412 –S2 STARTING BLOCK
CUSTOMER INSTRUCTIONS
Designed for high level
competition. Constructed of
aircraft quality aluminum.
Pedals feature four angle
adjustments.
Includes ½” pyramid spikes for
synthetic tracks.
Copyright © 2020 by Gill Athletics. All rights reserved.
GILL ATH
08/20/2021
INST412

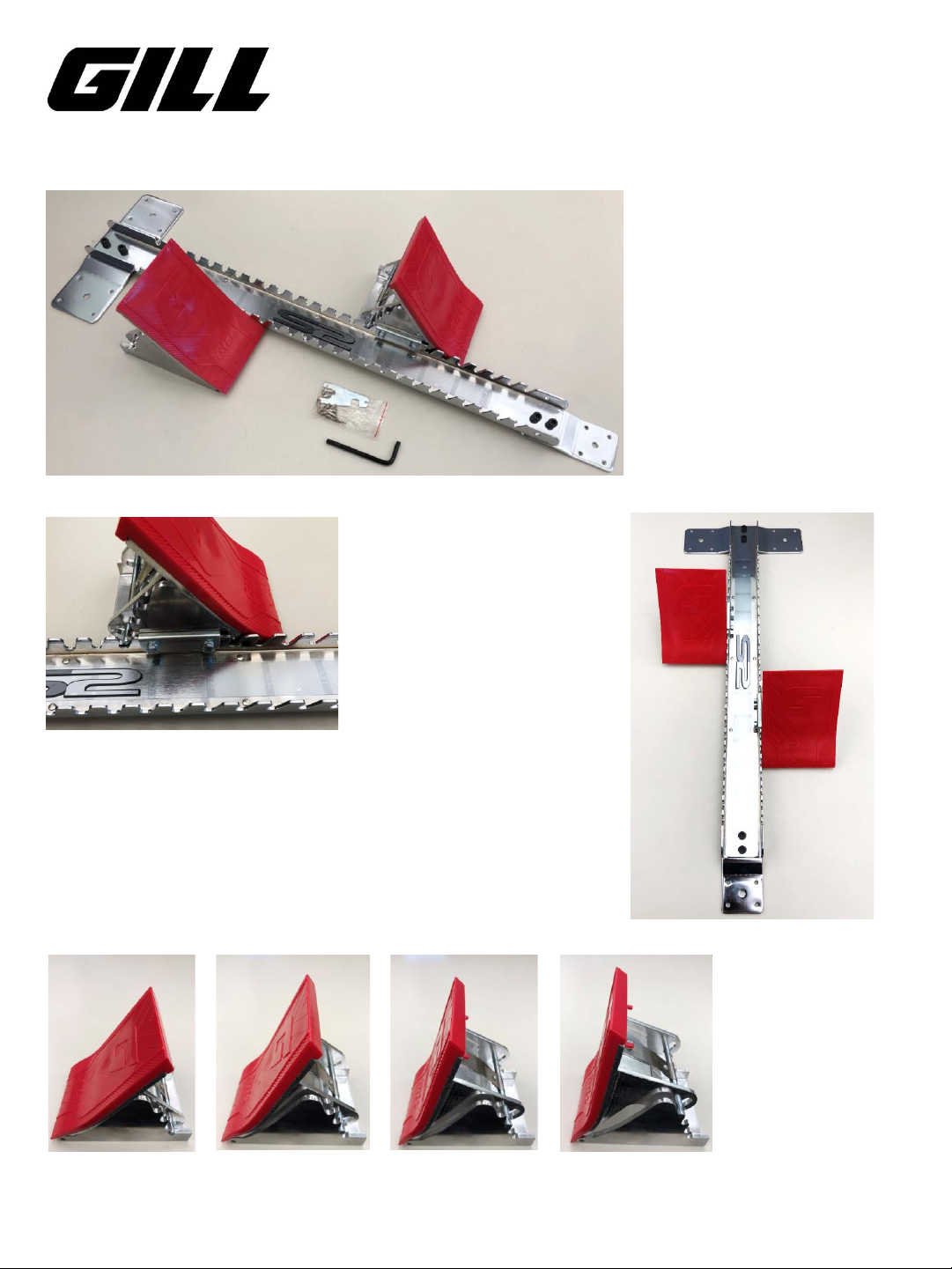

Pedals adjust easily
along the length of
the rail.
Ruled decal makes
repeatable pedal
set-ups quick and
easy.
Pedals feature
four angle
adjustments.
45°55°65°75°
www.gillathletics.com
800-637-3090
412 –S2 STARTING BLOCK
CUSTOMER INSTRUCTIONS
Copyright © 2020 by Gill Athletics. All rights reserved.
GILL ATH
08/20/2021
INST412

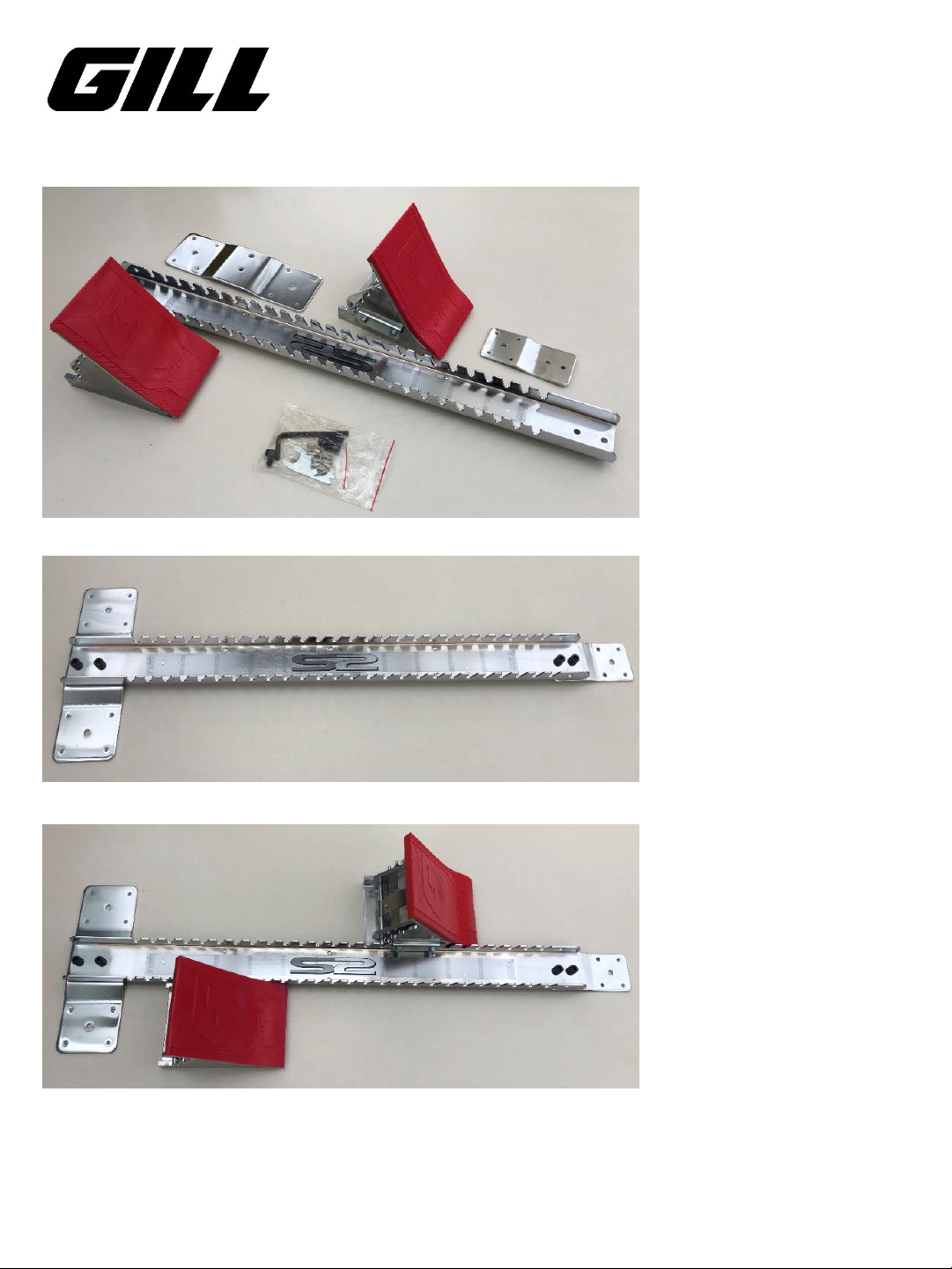

The 412 S2 Starting Block consists
of the following:
1x Rail
1x Front Stake Plate
1x Rear Stake Plate
1x Right Pedal
1x Left Pedal
4x Stake Plate Screw
12x Pyramid Spikes ½”
1x Allen Wrench
1x Spike Wrench
Using the four screws and
provided Allen wrench,
fasten the front and rear
stake plates to the rail.
The front stake plate should
be at the end of the
rail with the “10” marking.
The rear stake plate
should be at the end of the
rail with the “55”.
Turn the starting block back over
and place the pedals on the rail so
that they engage the “teeth” of
the rail. The pedals should face
the front of the rail, towards the
“10” marking. Adjust the angle of
the pedals as needed.
www.gillathletics.com
800-637-3090
412 –S2 STARTING BLOCK
CUSTOMER INSTRUCTIONS
Copyright © 2020 by Gill Athletics. All rights reserved.
GILL ATH
08/20/2021
INST412

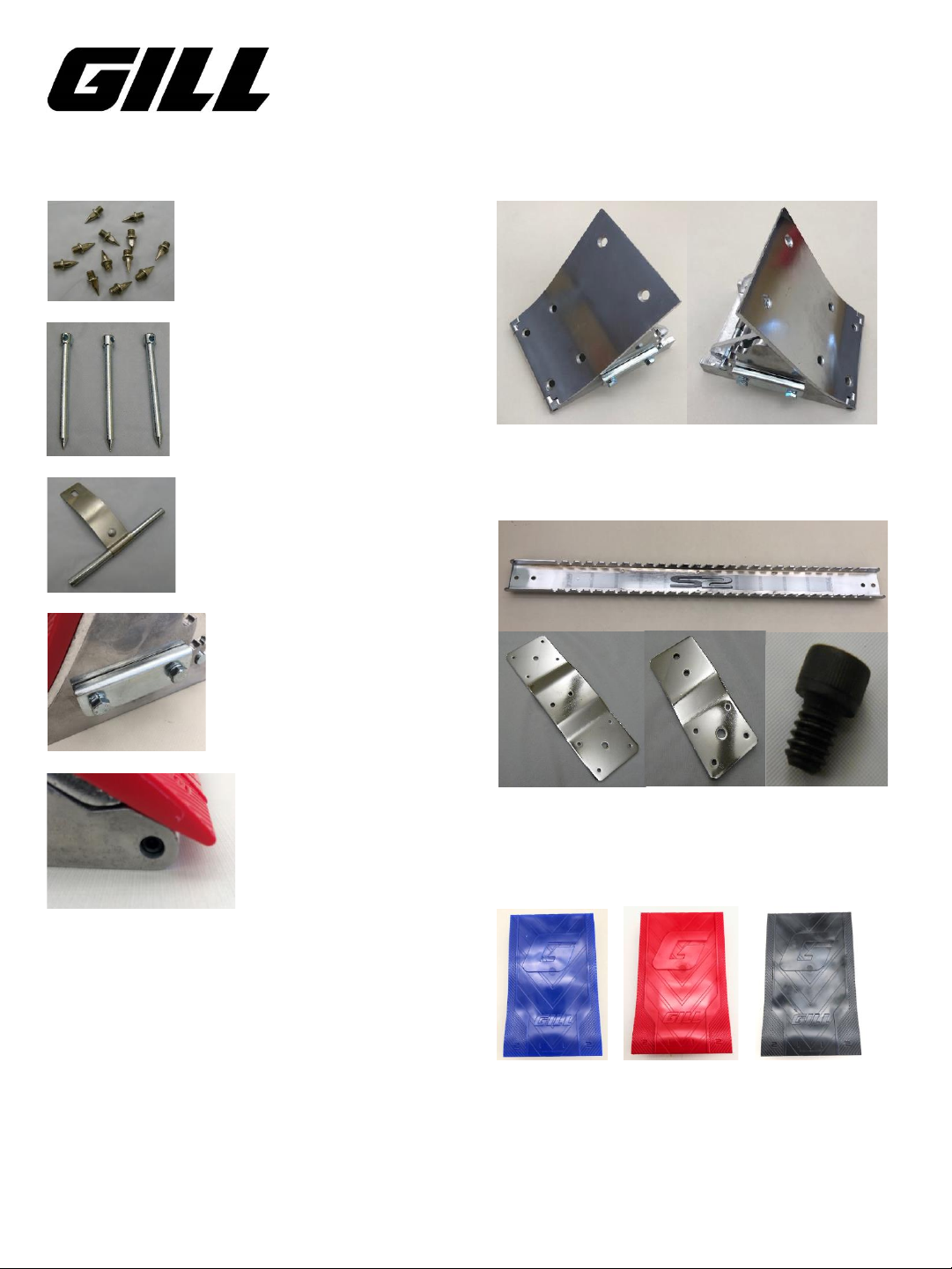

P41402
Anchor Pin (bag of 3)
Sold Separate
41220
Left & Right Pedal Block (without pads)
41210
S2 Rail & & Front and Rear Stake Plate & Stake
Plate Screw, 5/16”-18 x 1/2” socket cap (qty 4)
41040C02
Blue Pad 41040C03
Red Pad
41040C12
Black Pad
P41214
Pedal Bracket + Hardware
P41213
Adjustment Spring and Rod
REPL00042
Pedal Hinge Set Screw
M6 X 25 (bag of 10)
841
½” Pyramid Spikes (bag of 100)
