Gioteck EX-0S Manuale utente

EX-05

WIRELESS XB3

QUICK SETUP GUIDE

Set Up

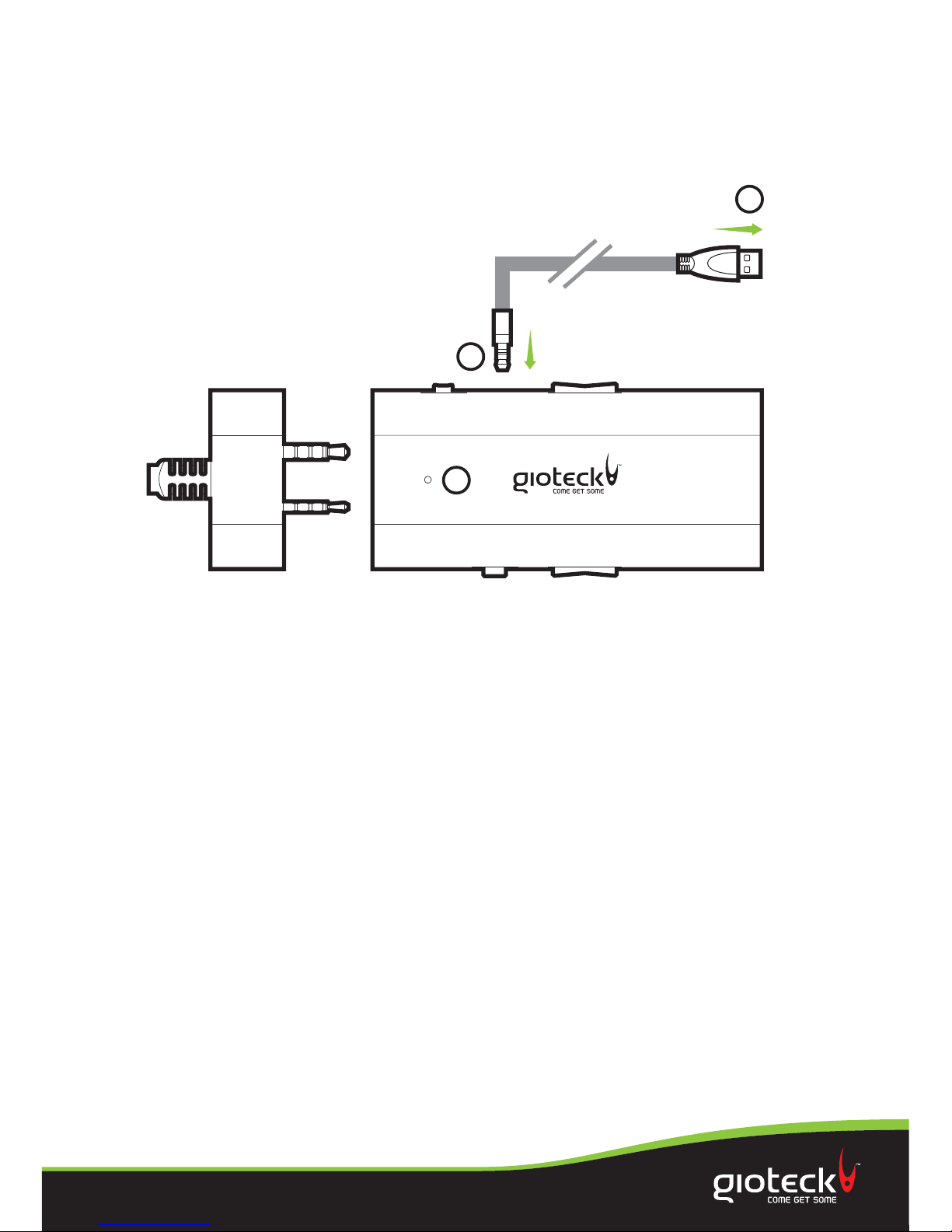

CHARGING THE WIRELESS CONTROL BOX

Page 1 of 11

The Wireless Control Box contains a rechargeable Lithium-ion battery. It is

strongly recommended to fully charge the battery for 3 hours before ﬁrst use.

1To charge the Wireless Control Box plug the mini jack connector (of the

supplied mini jack to USB cable) into the socket on the ‘game’ side of the

Wireless Control Box.

2Plug the USB connector into a spare USB port on your XBOX.

3The LED will glow red when charging. (Note: the XBOX must be turned on and

not in standby mode for the headset to charge).

HEADSET

CONNECTOR

USB

Set Up

XBOX 360® WITH A/V CABLES

(Without HDMI)

1Connect the AV RCA Cable into the back of your XBOX console.

2Plug the USB connector of the Gioteck Wireless Receiver into a spare

USB port on your console.

3Connect the Mini Jack end of the provided RCA/Mini Jack Cable into the

corresponding socket on the Gioteck Wireless Receiver.

4Connect the AV RCA RED/WHITE connectors into the corresponding sockets

on the RCA/Mini Jack Cable coming from the Gioteck Wireless Receiver.

5Plug the Yellow VIDEO connector into the Video IN socket of your TV/Monitor.

6Turn on your console and make sure that your controller is wirelessly

connected to your console (do not leave the controller charging or it may

transfer electrical noise into your headset).

See next page for chat set up

Page 2 of 11

You need the following cable for this set up option:

1. AV RCA CABLE (which came with the console)

YELLOW/

VIDEO

AV MULTI OUT

AV RCA CABLE

(SUPPLIED WITH

XBOX CONSOLE)

TV/MONITOR

AUDIO/VIDEO

INPUTS

Set Up (continued)

PAIRING AND CHAT SET UP

7Plug the short Mini Jack Cable into the corresponding socket on the

Wireless Control Box.

8Plug the other end of the short Mini Jack Cable into your controller.

9Turn the Wireless Control Box ON

(The power switch is on the ‘game’ side of the Wireless Control Box).

10 Press and hold the mute button for 5 seconds.

11 The Wireless Receiver (A) and Wireless Control Box (B) LEDs will ﬂash

repeatedly until paired – solid LED.

12 Make sure the microphone is not set to mute.

13 Go to XBOX Dashboard > Settings > Preferences > Voice.

14 Set the desired volume for the Game Sounds and Voice.

15 Set Voice Output to: Play through Headset.

16 You should now hear the sounds made by the XBOX through your headset.

17 To test the microphone go to messages and record and play back a message.

710

Page 3 of 11

HEADSET

CONNECTOR

Set Up

XBOX 360® SLIM WITH A/V CABLES

(Without HDMI)

1Connect the AV RCA Cable to the back of your XBOX console.

2Plug the USB connector of the Gioteck Wireless Receiver into a spare

USB port on your console.

3Connect the Mini Jack end of the provided RCA/Mini Jack Cable into the

corresponding socket on the Gioteck Wireless Receiver.

4Connect the Mini Jack end of the provided RCA/Mini Jack Cable into the

corresponding socket on the Gioteck Wireless Receiver

5Plug the Yellow VIDEO connector into the Video IN socket of your TV/Monitor.

6Turn on your console and make sure that your controller is wirelessly

connected to your console (do not leave the controller charging or it may

transfer electrical noise into your headset).

See next page for chat set up

AV MULTI OUT

USBAV RCA CABLE

(SUPPLIED WITH

XBOX CONSOLE)

Page 4 of 11

You need the following cable for this set up option:

1. AV RCA CABLE (which came with the console)

YELLOW/

VIDEO

TV/MONITOR

AUDIO/VIDEO

INPUTS

Page 5 of 11

Set Up (continued)

PAIRING AND CHAT SET UP

7Plug the short Mini Jack Cable into the corresponding socket on the

Wireless Control Box.

8Plug the other end of the short Mini Jack Cable into your controller.

9Turn the Wireless Control Box ON

(The power switch is on the ‘game’ side of the Wireless Control Box).

10 Press and hold the mute button for 5 seconds.

11 The Wireless Receiver (A) and Wireless Control Box (B) LEDs will ﬂash

repeatedly until paired – solid LED.

12 Make sure the microphone is not set to mute.

13 Go to XBOX Dashboard > Settings > Preferences > Voice.

14 Set the desired volume for the Game Sounds and Voice.

15 Set Voice Output to: Play through Headset.

16 You should now hear the sounds made by the XBOX through your headset.

17 To test the microphone go to messages and record and play back a message.

710

HEADSET

CONNECTOR

Set Up

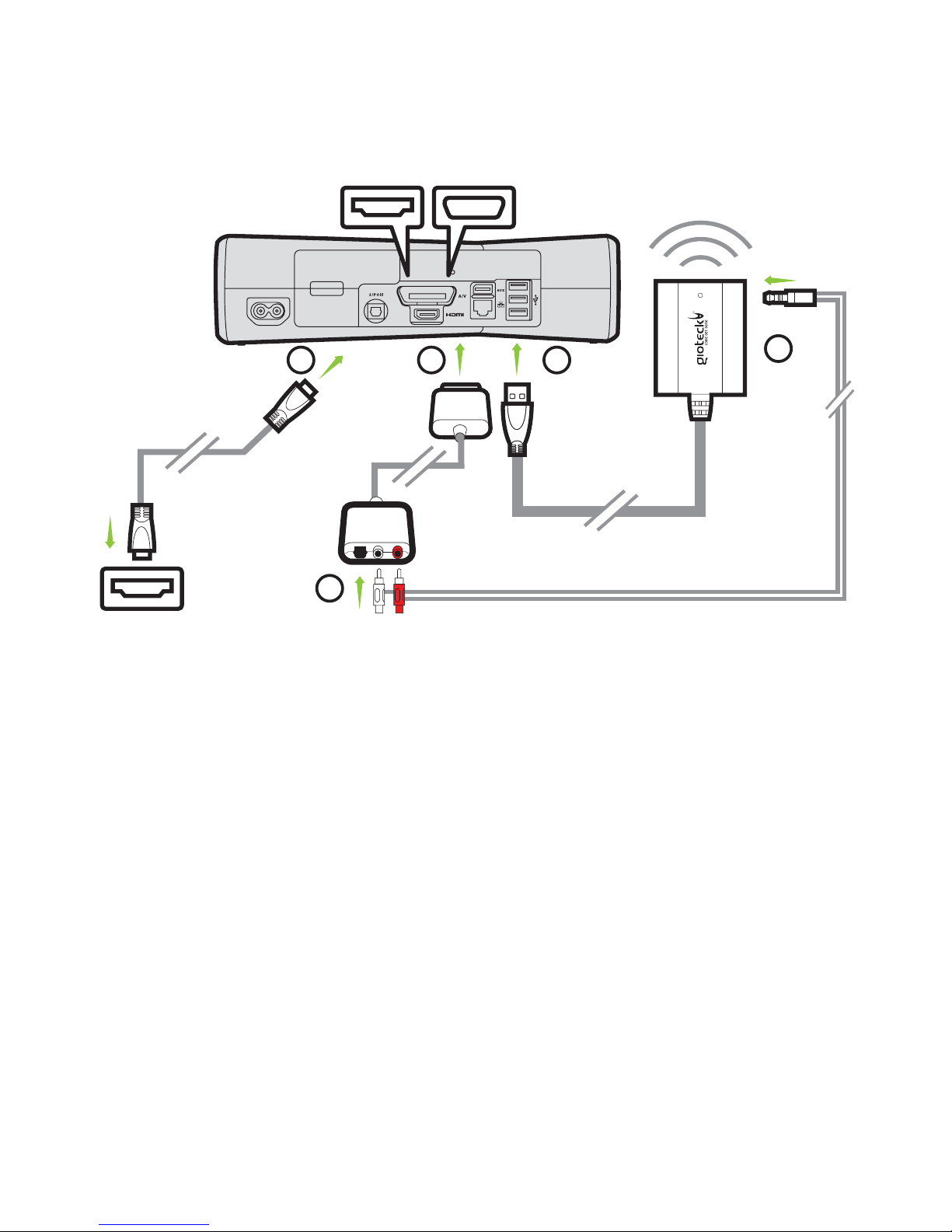

XBOX 360® WITH HDMI CABLE

(HDMI Option 1)

Page 6 of 11

You need the following cables for this set up option:

1. HDMI CABLE (not supplied) 2. AV RCA ADAPTOR (not supplied)

Unfortunately the design of the AV cable supplied with the XBOX does not allow for the

simultaneous use with an HDMI cable because the shape of the AV connector covers the

HDMI socket. Microso produces a cable adaptor such as the one shown in this link to solve

this problem: http://www.amazon.co.uk/Microsoft-Audio-Cable-Adaptor-Xbox/dp/

B004S5EH6Q/ref=sr_1_5?s=electronics&ie=UTF8&qid=1320753739&sr=1-5

AV MULTI OUT

USBAV RCA ADAPTOR

(NOT SUPPLIED)

HDMI CABLE

(NOT SUPPLIED)

TV/MONITOR

HDMI INPUT

HDMI OUTPUT

1Connect the HDMI lead between the XBOX and your TV/Monitor.

2Connect the AV RCA Adaptor Cable into the XBOX.

3Plug the Gioteck Wireless Receiver USB connector into a spare USB port on

your XBOX.

4Connect the Mini Jack end of the provided RCA/Mini Jack Cable into the

corresponding socket on the Gioteck Wireless Receiver.

5Plug the RED/WHITE connectors from the RCA/Mini Jack Cable into the

corresponding sockets of the AV RCA Adaptor Cable.

6Turn on your console and make sure that your controller is wirelessly

connected to your console (do not leave the controller charging or it may

transfer electrical noise into your headset).

See next page for chat set up

Page 7 of 11

Set Up (continued)

PAIRING AND CHAT SET UP

7Plug the short Mini Jack Cable into the corresponding socket on the

Wireless Control Box.

8Plug the other end of the short Mini Jack Cable into your controller.

9Turn the Wireless Control Box ON

(The power switch is on the ‘game’ side of the Wireless Control Box).

10 Press and hold the mute button for 5 seconds.

11 The Wireless Receiver (A) and Wireless Control Box (B) LEDs will ﬂash

repeatedly until paired – solid LED.

12 Make sure the microphone is not set to mute.

13 Go to XBOX Dashboard > Settings > Preferences > Voice.

14 Set the desired volume for the Game Sounds and Voice.

15 Set Voice Output to: Play through Headset.

16 You should now hear the sounds made by the XBOX through your headset.

17 To test the microphone go to messages and record and play back a message.

PLEASE NOTE: There are no settings in the XBOX preferences to redirect or stop the audio signal

coming through the HDMI output. To stop the audio playing through your TV/Monitor whilst you are

using the headset, you will have to place your TV/Monitor in mute mode.

710

HEADSET

CONNECTOR

Set Up

XBOX 360® WITH HDMI CABLE

(HDMI Option 2)

Page 8 of 11

You need the following cable for this set up option:

1. HDMI CABLE (not supplied)

N.B. Your TV/monitor will need to have Audio Out (RED/WHITE) sockets. Most, but not all TVs/

Monitors have RED/WHITE Audio IN and YELLOW Video IN sockets but not all TV’s,and even

fewer monitors have RED/WHITE Audio OUT sockets!

1Connect the HDMI lead between your XBOX Console and TV/Monitor.

2Plug the Gioteck Wireless Receiver USB connector into a spare USB port on

your XBOX 360.

3Connect the Mini Jack end of the provided RCA/Mini Jack Cable into the

corresponding socket on the Gioteck Wireless Receiver.

4Plug the RED/WHITE Connectors of the provided RCA/Mini Jack Cable into

the Audio OUT RED/WHITE sockets on your TV/Monitor

Please note that you may need to make some adjustments to your TV/Monitor’s

settings to enable the audio to come through the headset (Consult your TV

manual)

Then proceed as HDMI Option 1, Instructions 6 –17.

USB

HDMI OUTPUT

TV / MONITOR

HDMI INPUT

TV / MONITOR

AUDIO OUT

RED

WHITE

1HDMI CABLE

(NOT SUPPLIED)

Set Up

XBOX 360® SLIM WITH HDMI CABLE

(HDMI Option 1)

Page 9 of 11

You need the following cables for this set up option:

1. HDMI CABLE (not supplied) 2. AV RCA ADAPTOR (not supplied)

Unfortunately the design of the AV cable supplied with the XBOX does not allow for the

simultaneous use with an HDMI cable because the shape of the AV connector covers the

HDMI socket. Microso produces a cable adaptor such as the one shown in this link to solve

this problem: http://www.amazon.co.uk/Microsoft-Audio-Cable-Adaptor-Xbox/dp/

B004S5EH6Q/ref=sr_1_5?s=electronics&ie=UTF8&qid=1320753739&sr=1-5

AV MULTI OUT

USBAV RCA ADAPTOR

(NOT SUPPLIED)

HDMI CABLE

(NOT SUPPLIED)

TV/MONITOR

HDMI INPUT

HDMI OUTPUT

1Connect the HDMI lead between the XBOX and your TV/Monitor.

2Plug the AV RCA Adaptor into the back of your XBOX console.

3Plug the Gioteck Wireless Receiver USB connector into a spare USB port

on your XBOX console.

4Connect the Mini Jack end of the provided RCA/Mini Jack Cable into the

corresponding socket on the Gioteck Wireless Receiver.

5Plug the RED/WHITE Connectors of the provided RCA/Mini Jack Cable into

the corresponding sockets of the AV RCA Adaptor.

6Turn on your console and make sure that your controller is wirelessly

connected to your console (do not leave the controller charging or it may

transfer electrical noise into your headset).

See next page for chat set up
