Girard Systems 98GC274B Manuale utente
2
\\
Girard Systems awnings may be operated in light wind and rain
conditions. When periods of heavy rain and or high wind are expected
the awning must be closed. Never leave the awning open and
unattended.
Damage caused by wind and rain is not covered by warranty.
All awnings must be closed prior to moving the vehicle for any reason.
As an extra safety precaution a visual check that every awning is fully
closed is required.
Damage caused by failure to comply with these instructions is
not covered by warranty.
Before using your awning, ensure that the area into which the awning
will be deployed is free of obstructions (Trees, walls, pillars, posts,
other vehicles etc.)
Damage caused by collisions with any of the above or similar is
not covered by warranty.
Before using your awning make sure that all of your electrical circuits
are operating correctly. Recreational Vehicles can generate AC power
from three separate sources. The electrical system transfer switch in
your vehicle will select power for the awning as follows:
Shore Power –if connected;
Generator Power –if the generator is running;
Inverter Power –batteries must be charged for inverter operation.
Girard Systems awnings are supplied with an electric motor appropriate to the
product.
3
CONTENTS
98GC274B Product description ………………………………………………………………………4
Specification ……………………………………………………………………………………………….. 5
Wiring Diagram …………………………………………………………………………………………… 7
Set up and Programming ..……………………………………………………………………………. 8
Change Motor Direction.………….……………………………………………………………………. 8
Cancel a remote or all remote from GC274B……………………………………………………. 9
Multichannel Handset remote ………………………………………………………………………. 10
Programming the GC274B to a Remote handset 98GC2762B ………………….…….….11
Multichannel Wall Switch 98GC2763B………………………………………………………….... 15
Programming the GC274B to a Wall Switch 98GC2763B ………………….……………… 16
Programming to a Motion Sensor …………………………………………………………………. 18
THE G–LINK SYSTEM
The G-Link motors and control modules provided by Girard Systems communicate by
use of RF signals on a frequency of 433.92 MHZ. This eliminates the need for wiring
and the drilling of holes in the vehicle. These components must be electronically
matched, programmed or paired before use. This is usually done at the Girard Systems
factory. Should the need arise for the user to pair a device with the motor controller
they must refer to the appropriate manual for the devices applicable to their particular
installation.
4
98GC274B PRODUCT DESCRIPTION
AC Motor Controller with LED (12V DC) control plus Ignition retract and lockout.
Fig.1
•This module is designed to control a single Standard 110v AC Motor up to 8
Amps and can be remotely operated with any paired G-Link handset or wall
switch.
•The controller will receive signals from a distance of more than 500ft in open air
and more than 100ft in the presence of obstructions. The RF transmission
frequency is 433.92MHZ.
•The GC274B may be programmed with up to 20 compatible remote modules. If
an additional module is programmed it will replace the most recently
programmed module. The previous 19 modules will remain unchanged.
•The command to retract the awning can be initiated by turning on the ignition
switch or by releasing the parking brake depending upon how it is installed.
•This module will cause the awning to retract when the vehicle prepares to move
and then remove power to the awning so that it cannot be redeployed while the
vehicle is in motion.
OUT
STOP
IN
5
Fig.2
1) 110v AC Power supply from vehicle power distribution board.
2) Output to awning motor control.
3) Initiate retract signal from vehicle ignition or parking brake.
4) 12v DC to LED lighting.
Specifications
Power: 110VAC / 60Hz
AC Input: White = Neutral / Black = Live / Green = Earth
To the Motor: White = Neutral / Red = Direction 1 / Black = Direction 2 / Green =
Earth
Ambient T: 0 - 130°F
Installation
A circuit breaker protected 15A/115v AC power outlet is required form the Vehicles
power distribution panel as shown in the diagram below.
1. Install a UL approved 110VAC junction box in which to make the electrical
connections.
1
2
3
4
6
2. Route the Awning’s Motor cable to this location and make the connections to the
GC274B in accordance with NEC requirements.
3. Mount the GC274B on the wall using the screws and tape provided.
7
8
SETUP AND PROGRAMMING
1. Change motor direction
a. Supply power to GC274B
b. Simultaneously press the LEFT and RIGHT buttons of the GC274B for at least
6 seconds. The Green LED will illuminate and then blink a few times. When the
Green LED extinguishes, the operation is complete.
Fig.3
Note; when carrying out this part of the procedure each step must be
executed within 10 seconds of the previous one or the module will revert to
factory settings. It is highly recommended that you read and understand the
following sequence before attempting to execute it.
2. Programming the GC274B to a Remote handset or Wall switch
a. Supply power to the GC274B
b. Press and hold the MIDDLE and RIGHT buttons on the GC274 (Fig 3) for
about 3 seconds until the Green LED starts to flash.
c. Press STOP (Fig. 1): The Green LED will stop blinking and remain illuminated.
d. Press the IN button on the REMOTE DEVICE being programmed. The Green
LED on the motor controller will extinguish.
CHANGE MOTOR DIRECTION
PROGRAM MODE
9
3. Cancel one Remote from the GC274B
a. Supply power to the GC274B
b. Press and hold the MIDDLE and RIGHT buttons on the GC274 (Fig 3) for
about 3 seconds until the Green LED starts to flash.
c. Press STOP (Fig. 1): The Green LED will stop blinking and remain illuminated.
d. Press the OUT button on the REMOTE DEVICE being cancelled. The Green
LED will extinguish.
4. Cancel all of the Remotes from the GC274B
a. Supply power to GC274B
b. Simultaneously press the STOP and LEFT button of the GC274 for at least 6
seconds: The Green LED will first illuminate and then blink a few times. When
the Green LED extinguishes the operation has been completed.
10

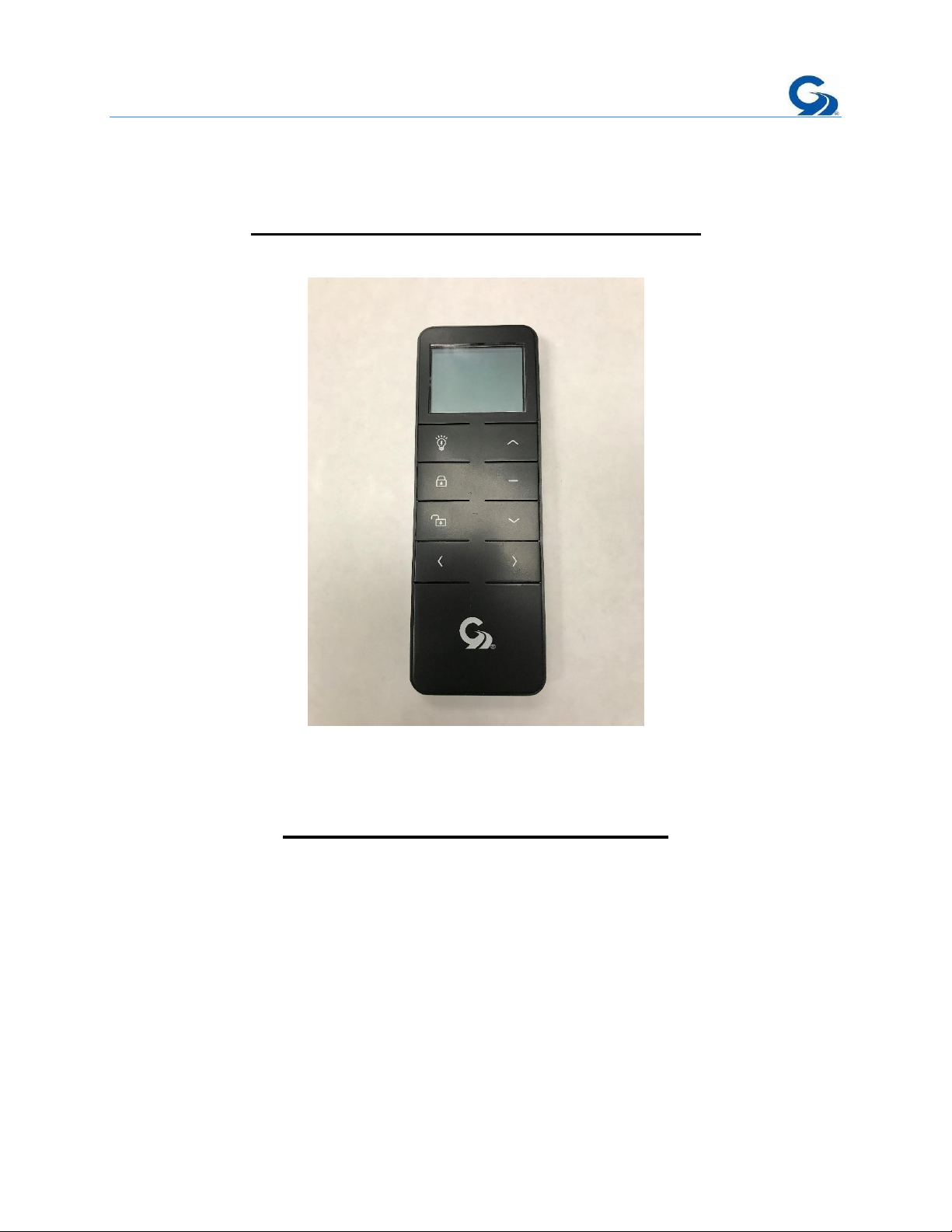

98GC2762B
MULTI CHANNEL REMOTE HANDSET
PRODUCT DESCRIPTION
The 98GC2762 remote handset is a Multi-channel RF transmitter, powered by a single 3v
Lithium battery (CR2450) designed to control up to 15 awnings and operate the LED
lighting strips by means of a multi-functional circular control pad. As shown in Fig.1 below.
