GJD D-TECT GJD370 Manuale utente

D-TECT Pet Immune

Dual PIR Microwave Detector

GJD370/371/372

Quick Installation Guide

DISPOSAL INFORMATION

Disposal - Your GJD product was developed

and manufactured with high-quality material

and components that can be recycled and

reused. This symbol means that electronic

and electrical appliances, which have reached

the end of their working life, must be collected

and disposed of separately from household

waste material. Separate collecting systems

are usually in place for disused electronic

and electrical products. Please dispose of

these units at an environmentally compatible

recycling, facility, per European Directive

2012/19/EU.

REGULATORY

SPECIFICATIONS

Download our free

Warranty Manager App

GJD

Unit 2, Birch Business Park

Whittle Lane

Heywood

Greater Manchester

OL10 2SX

Tel: +44 (0) 1706 363 998

Fax: +44 (0) 1706 363 991

E-mail: [email protected]

Web: gjd.co.uk

DETECTION RANGE Up to 15m selectable

COVERAGE 10º - 70º detection angle,

WALK TEST Output test mode with LED indication

OPERATING TEMPERATURE

-20ºC to +55ºC

Conformally coated electronics for

increased stability

ADJUSTMENT 180º pan, 30º tilt

MOUNTING HEIGHT 1.2m to 1.8m

POWER INPUT 9-15 V DC

INDICATOR LEDs

1 x Red - Top PIR

1 x Green - Bottom PIR

1 x Amber - Anti-Mark

1 x Blue - Alarm

OUTPUTS

3 x volt-free, silent solid state

magnetically immune

common tamper (front and rear

switches)

WEATHER RATING IP65

MICROWAVE FREQUENCY

GJD370 - 10.525GHz

GJD371 - 10.587GHz

GJD372 - 9.9GHz

Scan product QR code to register and

activate product warranty

INSTALLATION MANUAL

Scan the QR code to see our

full installation manual

All manuals and user guides at all-guides.com

all-guides.com

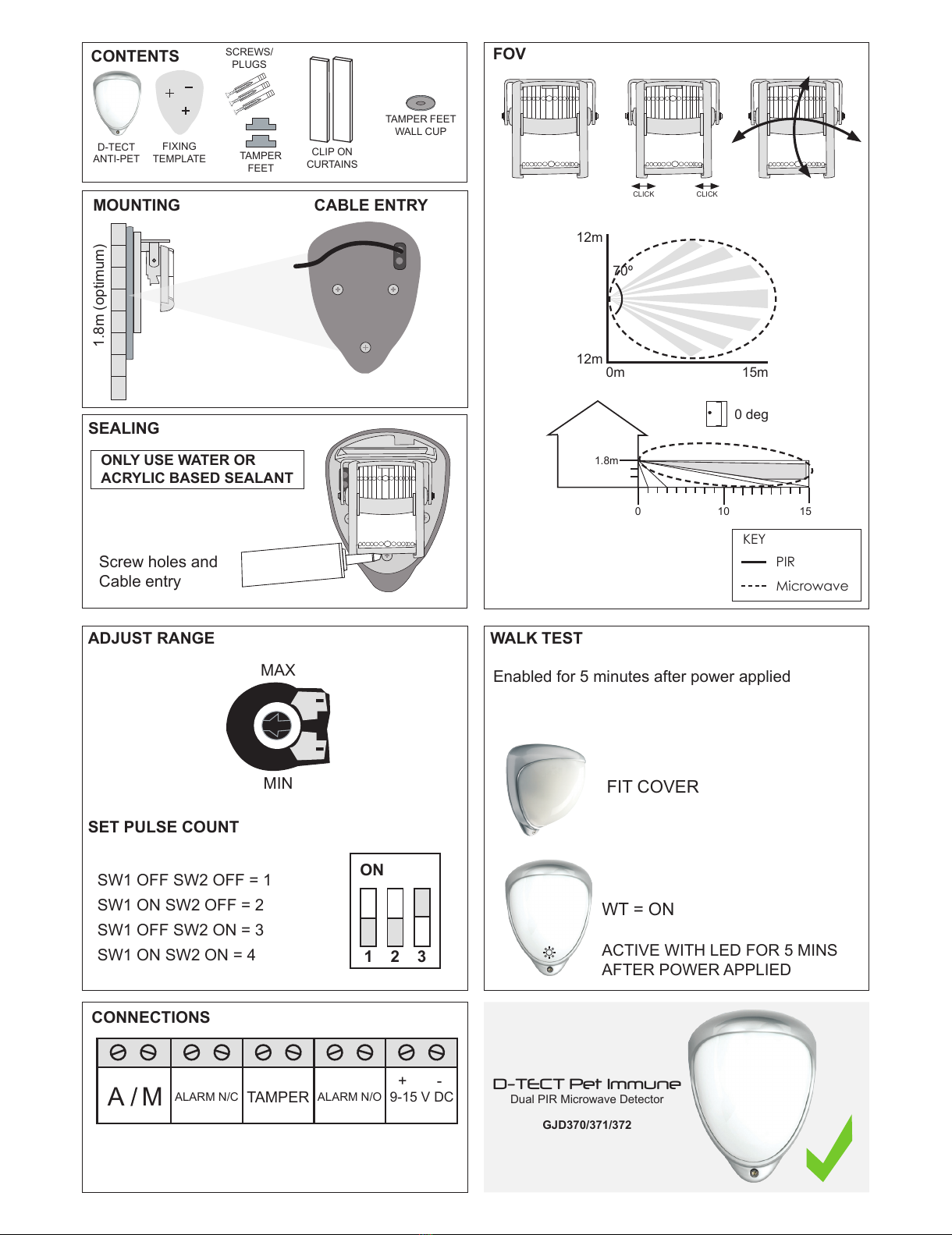

MOUNTING

CONTENTS

ADJUST RANGE

FOV

CLICK CLICK

WALK TEST

Enabled for 5 minutes after power applied

WT = ON

ACTIVE WITH LED FOR 5 MINS

AFTER POWER APPLIED

FIT COVER

CONNECTIONS

CABLE ENTRY

1.8m (optimum)

SEALING

Screw holes and

Cable entry

ONLY USE WATER OR

ACRYLIC BASED SEALANT

D-TECT

ANTI-PET

FIXING

TEMPLATE

SCREWS/

PLUGS

CLIP ON

CURTAINS

TAMPER

FEET

TAMPER FEET

WALL CUP

A M ALARM N/C ALARM N/O 9-15 V DC

+ -

TAMPER

MAX

MIN

SET PULSE COUNT

123

SW1 OFF SW2 OFF = 1

SW1 ON SW2 OFF = 2

SW1 OFF SW2 ON = 3

SW1 ON SW2 ON = 4

D-TECT Pet Immune

Dual PIR Microwave Detector

GJD370/371/372

0 10 15

1.8m

0 deg

70º

12m

15m

12m

KEY

PIR

Microwave
