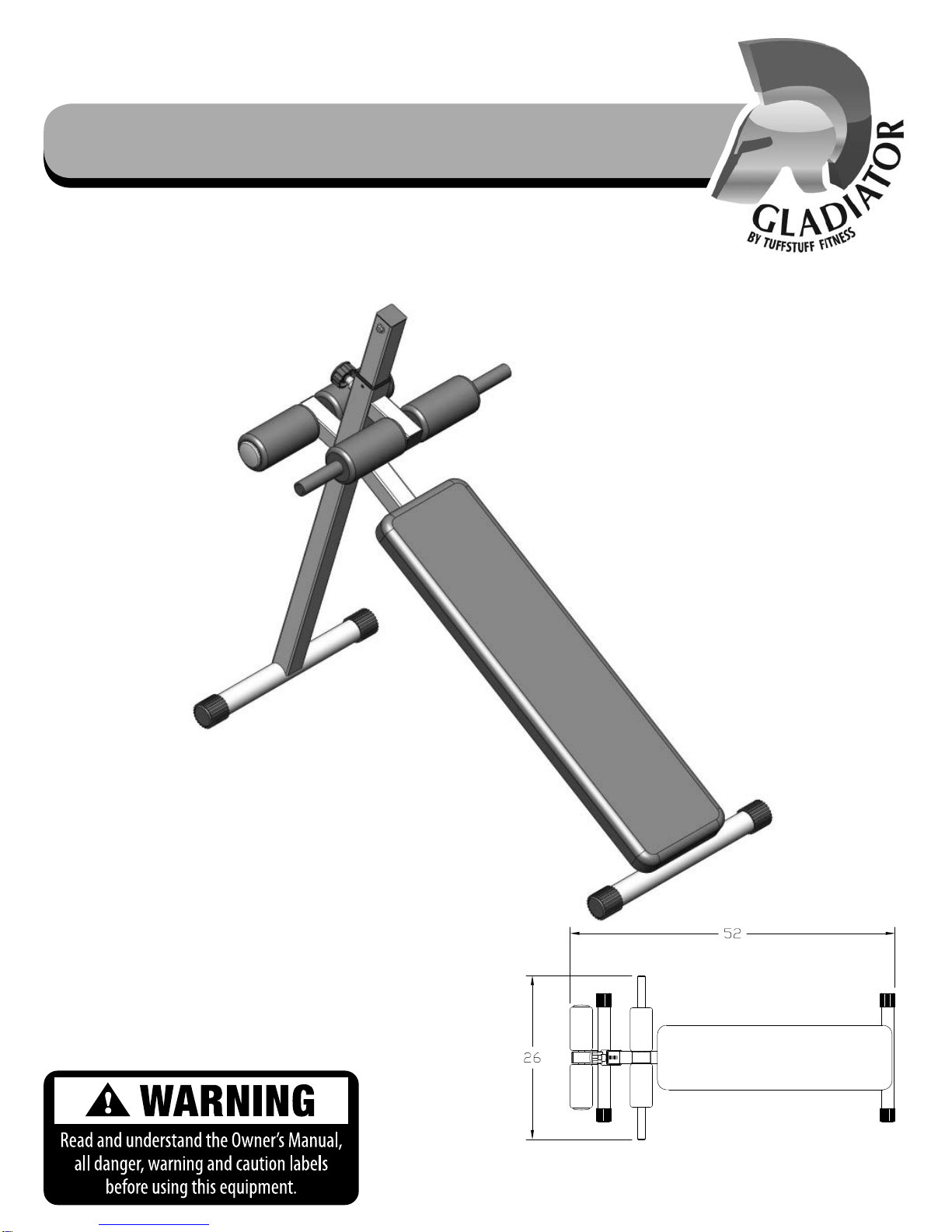

OWNER’S MANUAL
&Assembly Instructions
EAB-35
ADJUSTABLEABDOMINALBENCH
EAB-35_Rev0
Revision Date 4-9-12
Table of Contents
TuStu Fitness Equipment Inc. continually engages in research related to product improvements. Please take the time to carefully read through this
manual thoroughly. Instructions contained in this manual are not intended to cover all details or variations possible with Gladiator equipment, or to cover
every contingency that may be met in conjunction with assembly, installation, operation, maintenance or troubleshooting of the equipment. Eventhough
we have prepared this manual with extreme care, neither the manufacturer nor the author can accept responsibility for any errors in, or omission from, the
information given. Should additional information be required, or should situations arise that are not covered by this manual, the matter should be directed
to Customer Service atTuStu Fitness Equipment Inc. in Chino, California.
2EAB-35 Adjustable Abdominal Bench
DANGER, WARNING, & CAUTION LABELS INFORMATION ...............Page 3-4
IMPORTANT SAFETY INSTRUCTIONS..........................................................Page 5
PREPARATION & ASSEMBLY TIPS ..................................................................Page 6
ASSEMBLY INSTRUCTIONS – STEP 1 ...........................................................Page 7
ASSEMBLY INSTRUCTIONS – STEP 2 .......................................................Page 8-9
ASSEMBLY INSTRUCTIONS – STEP 3 ........................................................ Page 10
ASSEMBLY INSTRUCTIONS – STEP 4 ........................................................ Page 11
PARTS LIST......................................................................................................... Page 12
EXPLODED VIEW ............................................................................................. Page 13
BASIC EXERCISE GUIDE................................................................................. Page 14
NOTES................................................................................................................. Page 15
WARRANTY ....................................................................................................... Page 16
3
EAB-35 Adjustable Abdominal Bench
Carefully readALLDanger, Warning & Caution labels posted on the machine
BNH2906
BNH2913 BNH2915
BNH2916
BNH2918
4EAB-35 Adjustable Abdominal Bench

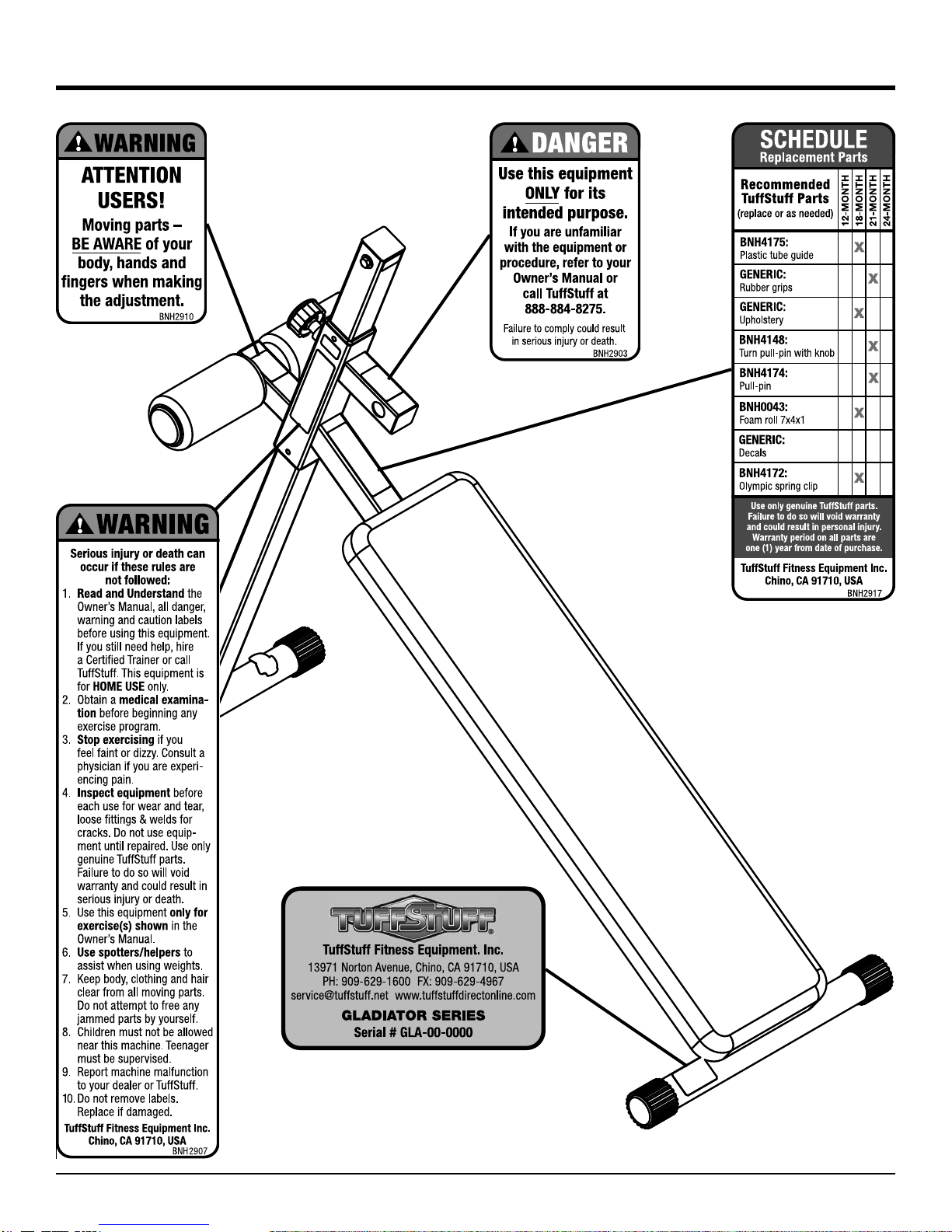

Carefully readALLDanger, Warning & Caution labels posted on the machine
BNH2903
BNH2907
BNH2910 BNH2917
BNH2919
5
EAB-35 Adjustable Abdominal Bench
Important Safety Instructions
Before beginning any form of exercise program, it is important to get your physician approval. If you have
not participated in a regular exercise program, smoke or have signs of high blood pressure, you must consult
with your personal physician before performing any form of physical activities.
Before using the equipment, read and
understand the Owner’s Manual and all DANGER, WARNING & CAUTION
labels posted on the machine. SERIOUS INJURY OR DEATH CAN OCCUR IF
THESE RULES ARE NOT FOLLOWED:
1. Inspect the equipment before each use for wear and tear, loose
ttings, and welded joints for cracks. If it appears to be inoperable
or damaged, DO NOT USE equipment until repaired. Use only
genuine TuStu parts. Failure to do so will void warranty and
could result in serious injury or death.
2. Children must not be allowed near this machine. Teenager must
be supervised.
3. Stop exercising if you feel faint or dizzy. Consult a physician if you
are experiencing pain.
4. Use this equipment only for exercises shown
on page 14.
5. Use spotters/helpers to assist when using weights.
6. Keep body, clothing and hair clear from all moving parts. Do not
attempt to free any jammed parts by yourself.
7. Always warm-up before and cool-down after weight training.
Warm-up for 10-15 minutes with stretching and cardiovascular
exercises. Cool-down should include light stretching exercises for
5-15 minutes.
8. Never hold your breath – will limit the ow of oxygen to your brain
and may cause dizziness. The most often used breathing pattern is
inhaling during least resistance and exhaling during maximum
resistance.
9. Do not remove any decals axed to the machine. Replace if
damaged.
10. Periodic maintenance is required to keep your equipment in safe
and proper operating condition. Follow the maintenance schedule
as shown in“Inpection”and“Schedule”labels.
11. Do not use accessories or accessory attachments that are not
recommended by TuStu.
12. Make sure all pull-pins are fully engaged and secured in the holes
before performing the exercises.
13. Do not use the equipment outdoors.
Personal Safety During Assembly
Before beginning assembly, it is important to take the time to read and
review all of the assembly instructions provided in this manual.
Read each step in the assembly instructions and follow the steps in
sequence. Do not skip ahead as you may learn later the you have to
disassemble the components and that you may have damaged the
components or parts.
Assemble, lubricate all moving parts, and operate the EAB-35 on a solid,
level and clean surface.
Locate the unit a few feet from the walls or furniture to provide easy
access.
After assembly, you should check all nuts & bolts that are wrench-
tightened, and all functions to ensure correct operation. If you experience
problems, rst recheck the assembly instructions to locate any possible
errors made during assembly. If you are unable to correct the problem(s),
call the dealer from whom you made the purchase rst before contacting
TuStu Customer Service.
Obtaining Service
Please use this Owner’s Manual as your guide to all parts included in
your shipment. When ordering parts, you must specify the part number
and description from this manual. Use only genuine TuStu replacement
parts when servicing the equipment. Failure to do so will void your
warranty and could result in serious injury or death.
For information about product operation or service:
Phone: 909-629-1600
Fax: 909-629-4967
Toll Free: 888-884-8275
E-mail: service@tustu.net
Hours: M–F 8:00 – 4:30 PST
Or write to: TuStu Fitness Equipment Inc.
Customer Service
13971 Norton Avenue, Chino, CA 91710
Retain this Owner’s Manual for future reference when ordering
service or parts. To assist you better, please be prepared to
provide the following information:
1. Model Number
2. Place of Purchase
3. Serial Number
4. Part # and Description
MAXIMUM
LOAD
400 lbs
DO NOT ATTEMPT to use over
maximum weight capacity
6EAB-35 Adjustable Abdominal Bench
EAB-35 Preparation & Assembly
Thank you for purchasing the Gladiator EAB-35 Adjustable Abdominal Bench. This bench is part of the TuStu
line of quality strength training equipment. To maximize your use of the equipment, please study the Owner’s
Manual thoroughly.
Required Tools
The basic tools that you will need to assemble the EAB-35 but are not
limited to:
• 9/16”, 1/2”, 14mm, and 13mm combination wrenches
• Adjustable wrench
• Ratchet wrench with 9/16”, 1/2”, 14mm, and 13mm
sockets
• Rubber mallet, measuring tape & utility knife
Assembly Requirements
Follow these installation requirements when assemblying the EAB-35.
Use the overhead view on the front page cover to layout your oor
plan before assemblying.
Set up the EAB-35 on a clean, solid, at surface. A smooth, at surface
under the machine helps keep it level.
Allow ample space around the machine for safe unrestricted use and
easier access.
Insert all bolts in the same direction. For aesthetic appearance,
insert all bolts in the same direction unless specied (in text or
illustration) to do otherwise.
Leave room for adjustments. Do not fully tighten fasteners until in-
structed in the assembly steps to do so (to prevent any diculty with
alignment of parts during the assembly process). When not instructed,
tighten fasteners such as bolts, nuts and screws so the unit is stable,
but leave room for adjustments.
Assembly Tips
Read all“Notes”on each page before beginning each step.
While you may be able to assemble the EAB-35 using the illustrations
only, IMPORTANT safety notes and other tips are included in the text.
Some pieces may have extra holes that you will not use. Use only
those holes indicated in the instructions and illustration. Safety bolts
(Stopper) are placed in some pieces to prevent accidental removal of
moving parts, be sure to comply with the manufacturer’s request.
NOTE: With so many assembled parts, proper alignment
and adjustment is critical.While tightening the
nuts and bolts, be sure to leave room for nal
adjustments.
CAUTION: Obtain assistance if you feel like you can’t assemble
the EAB-35 by yourself. Please do not attempt to
do so as this could result in equipment failure and
injuries to you. Review the installation requirements
before proceeding with the assembly steps.
Maintenance Requirements
Gladiator equipment is designed to oer long-life service and
minimum maintenance. Please refer to the Inspection and Schedule
replacement part labels posted on the machine or on pages 3-4 of this
manual. Do not use Lysol orWindex as they will dry out and crack the
vinyl. Use a lanolin based hand cleaner or naugahyde cleaner on the
upholstery.
Registration Card
To avoid unnecessary delays on warranty parts and to insure that a
permanent record of your purchase is on le with our company, be
sure to mail in the warranty registration card or register online at
www.tustudirectonline.com within 10 days of purchase.
Loosely Fasten
Finger tighten all hardware in this step. DO NOT wrench
tighten. Some component(s) may need pre-assembly
and alignment during the assembly process.
Fully Fasten
Wrench tighten all hardware in this step.
SCREWWIDTH
WASHERDIAMETER
NUTDIAMETER
SCREWLENGTH
3
8
12
8
8
12
1

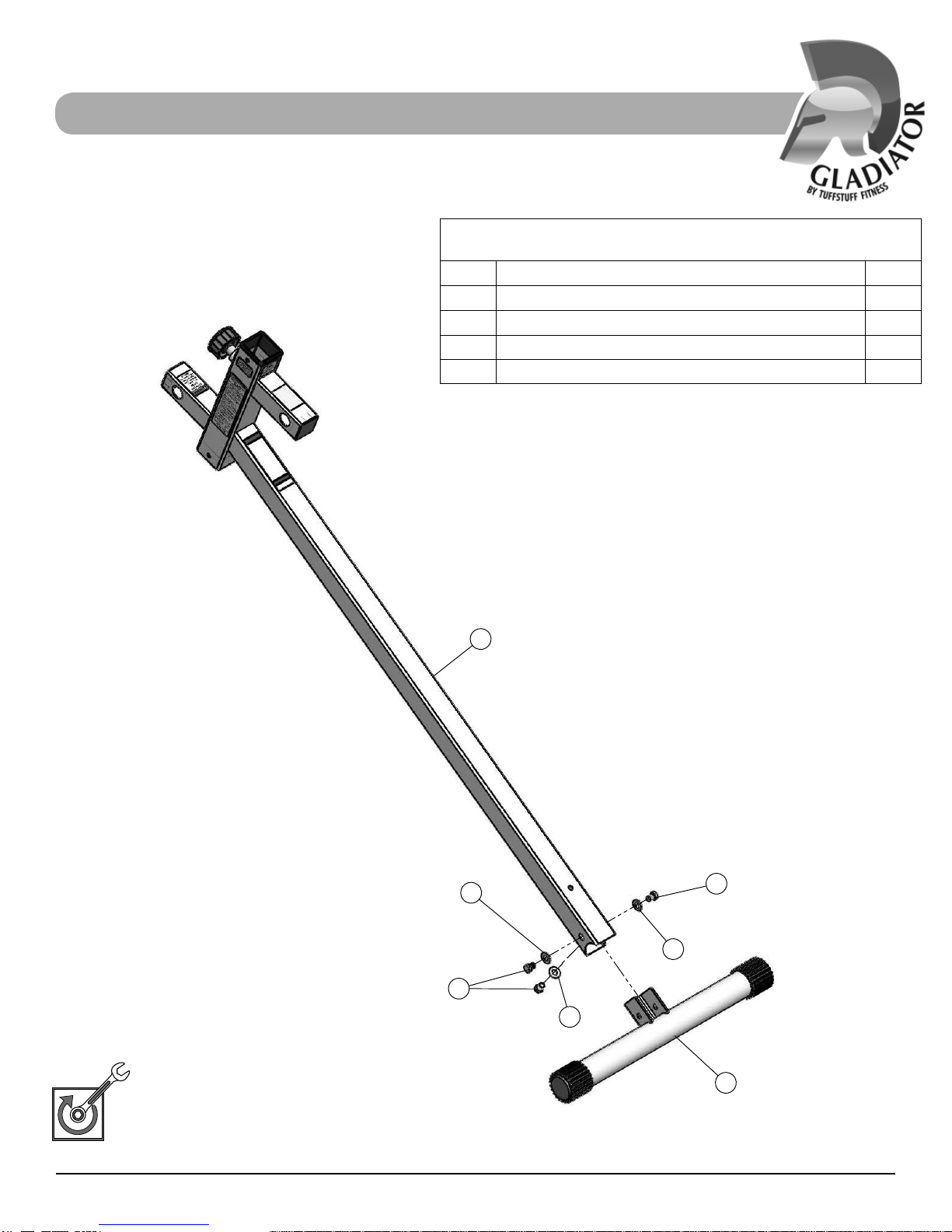

EAB-35 Step 1
7
EAB-35 Adjustable Abdominal Bench
Assembly List
Item # Description Qty.
1 MAIN FRAME 1
3 STABILIZER W/CONNECTOR 1
8 FLAT WASHER SAE Z/P 3/8 3
12 HEX HEAD CAP SCREW Z/P 3/8-16 X 1/2 3
)
FULLY FASTEN

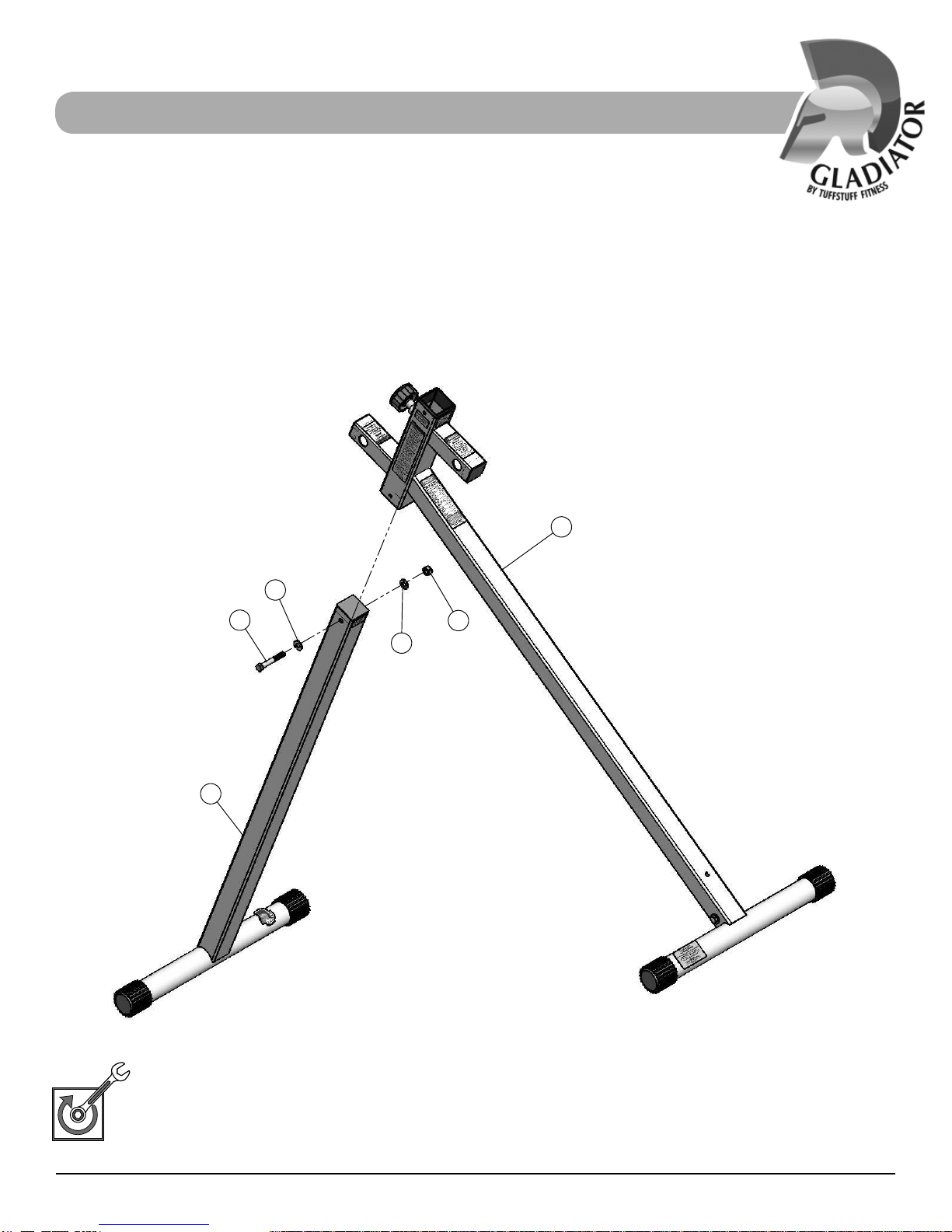

EAB-35 Step 2
8EAB-35 Adjustable Abdominal Bench
Assembly List
Item # Description Qty.
1 MAIN FRAME 1
2 SELECTORIZED UPRIGHT 1
8 FLAT WASHER SAE Z/P 3/8 2
13 HEX HEAD CAP SCREW Z/P 3/8-16 X 2 5/8 1
16 NYLON INSERT LOCK NUT Z/P 3/8-16 1

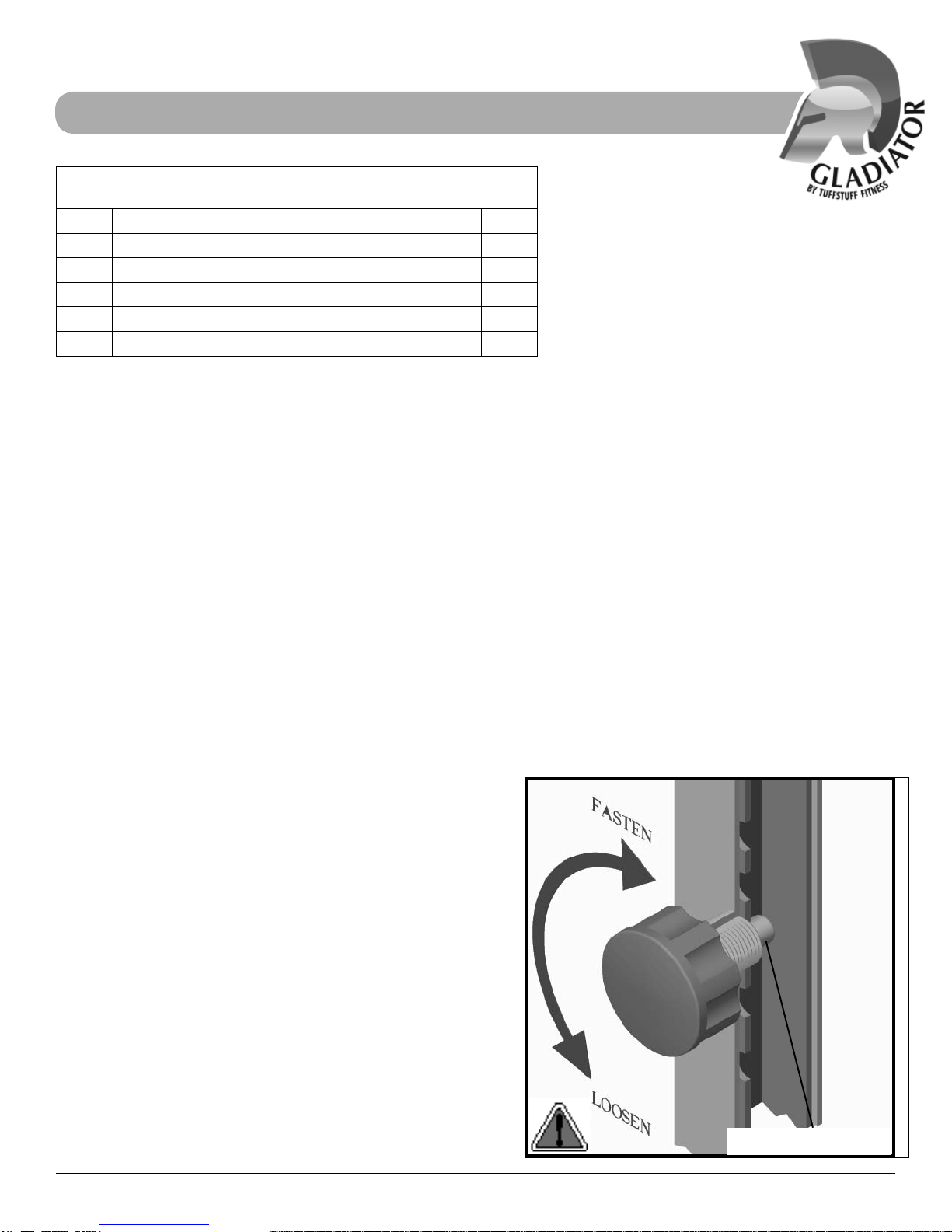

TURN/PULL PIN W/KNOB
FULLY ENGAGED
8 16
2
8
13
1
9
EAB-35 Adjustable Abdominal Bench
EAB-35 Step 2
)
FULLY FASTEN
)
FULLY FASTEN
9
7
9
15
4
14
10 EAB-35 Adjustable Abdominal Bench
)
FULLY FASTEN
EAB-35 Step 3
Assembly List
Item # Description Qty.
4 UPH PAD BRACKET 1
7 BACK PAD 1
9 FLAT WASHER SAE Z/P 5/16 3
14 HEX HEAD CAP SCREW Z/P 5/16-18 X 1 2
15 HEX HEAD CAP SCREW Z/P 5/16-18 X 2 3/4 1
