Glancetron 70-SM Manuale utente
USB Display
7" Monitor 70-SM
Operation Manual
Version 1.0
CONTENTS
1. Safety Instructions...............................................................................
2. Connections and Installation...............................................................
3. Accessories...........................................................................................
4. Specifications .......................................................................................
5. Troubleshooting....................................................................................
1.Safety Instructions
These safety instructions must be followed to ensure your safety and
prevent property damage.
Warning/Cautions otherwise, it may result in personal injury or
property damage.
Make sure to read the instructions carefully and use the product in
the correct manner.
1. Power adapter:
USB 0.75A/5V
2. Do not place 70-SM USB in a location exposed to moisture, dust,
smoke, water, or in a car., this may result in electric shock or fire.
3. Clean the product using a soft cloth with a monitor cleaner only.
Ensure that water does not enter the product and that it is not wet.
Otherwise, this may result in electric shock, fire or a malfunction.
Do not force on LCD Screen
4. Do not force on LCD Screen
Do not tap or scratch LCD Screen with a sharp object, otherwise, LCD
may get damaged.
5. Product Input/Output Connectors
Do not insert any metal, such as chopsticks, coins, pins and steel.
of foreign material enters the product.
Otherwise disconnect the adapter cable and contact a Service Center.
6.Do not install 70-SM USB in an unstable location.
Otherwise, it may fall and cause personal injury and/or damage the
product.
2.Connections and Installation

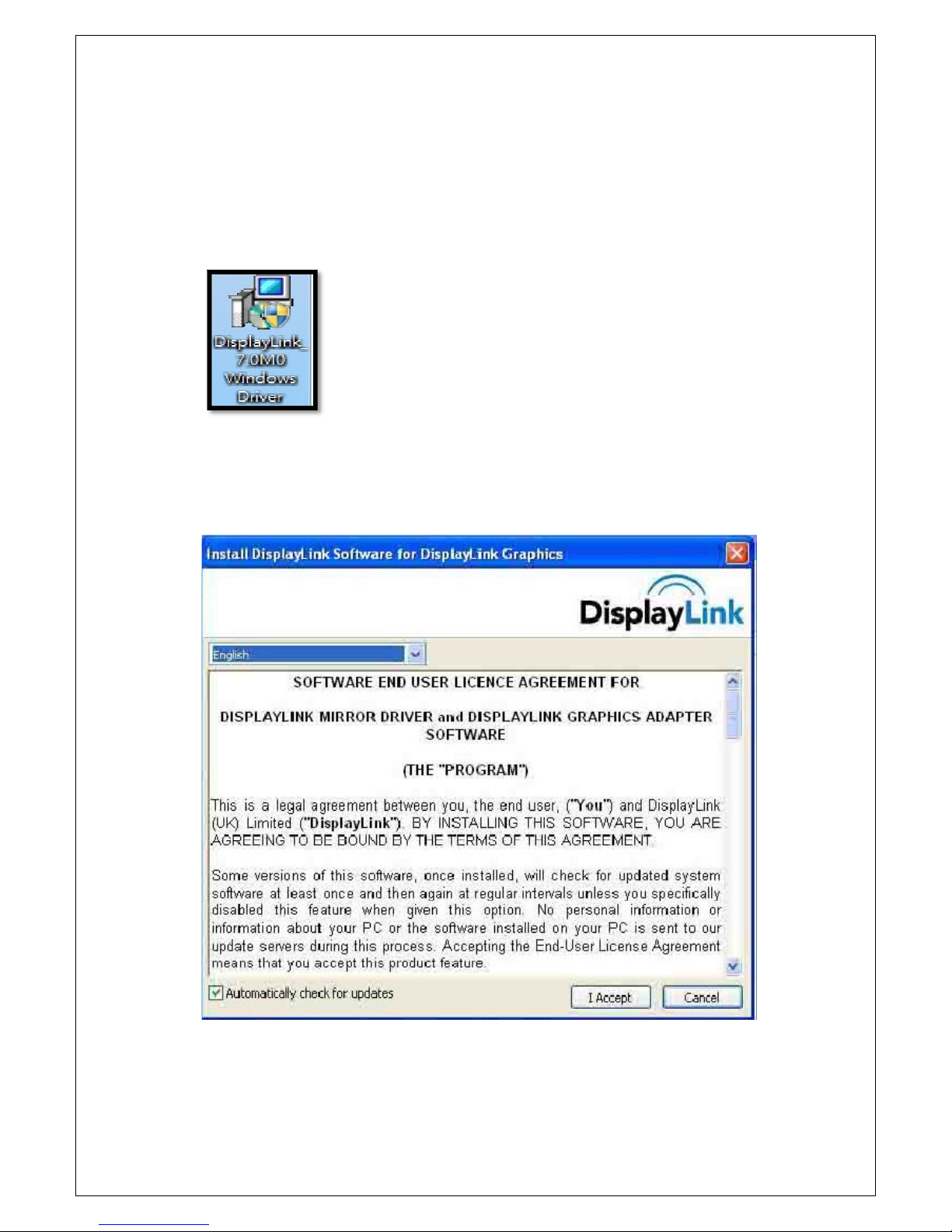

1.Installing monitor driver (Auto Run)
Double click the icon
2.Click I Accept.
DisplayLink Core software and DisplayLink Graphics installs.
Note: The screen may flash or go black during the install.

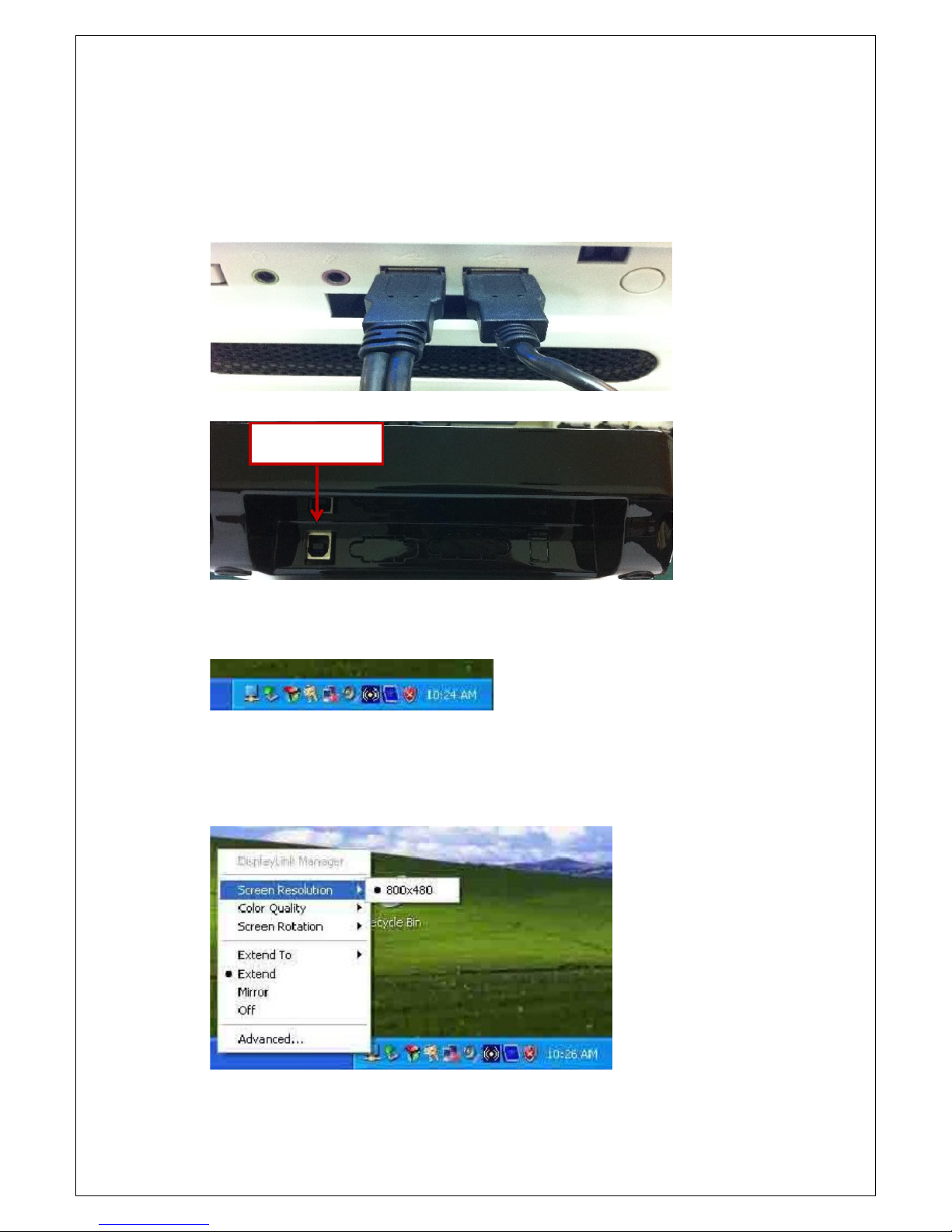

3.Connect your DisplayLink device via the USB cable to your PC
Note: The power supply needs to be dual USB connector to the PC.
you must complete this step before connecting the 70-CT USB Display
USB port
4.When the 70-CT USB Display driver installation is complete, the 70-CT
USB Display setting icon appears on your system tray.
5.Click-on 70-CT USB Display icon then you may see the 70-CT USB
Display setup menu for Screen Resolution, Colors, Rotation, Extension
and etc.
USB port
3.Accessories
4.Specifications
LED backlight Life time 10,000 (Min)
Power Supply USB 5V
Power Consumption 0.75A
Standby power consumption lower then 0.1A
Active area 152.4 x 91.5 mm
Response time 11ms
Color 262,144
Contrast 400 : 1
Brightness 350 cd/m2
Viewing angle 70 / 60 degree
Weight: 1.02 kg
Certifications CE / FCC
Operating temperature 0 ~ 40 c
Storage temperature -10 ~ 50 c
Operating humidity 20% ~ 80%(non-condensing)
Storage humidity 10% ~90%(non-condensing)
Fixation
Manual
Fixation screws
USB Cable
5.Troubleshooting
Before calling for assistance, please read below carefully. In case
further assistance is needed, please call local service center or
contact your dealer.
1. No picture on screen
a. Check the AC cord and signal cable. Make sure they are properly
connected.
b. Check if the computer has entered energy saving mode.
2. Abnormal display color
Check if the signal cable is properly connected to the computer.
3: How can I clean the outer case/LCD Panel?
Disconnect the USB Cable and then clean the 70-SM with a soft cloth
Do not leave any detergent or scratches on the case. Do not let any water
enter the monitor
4: 70-SM USB Display information remains in my ‘Display Properties’ even after
disconnect or power off the 70-SM USB Display.
The deactivated USB information implies power off or disconnected USB
Display status. To delete the deactivated monitor information, please uninstall
‘Displaylink Core software’ driver. Once the driver is uninstalled, you may not
use 70-SM USB Display. To use 70-SM USB Display again please re-install the driver.
