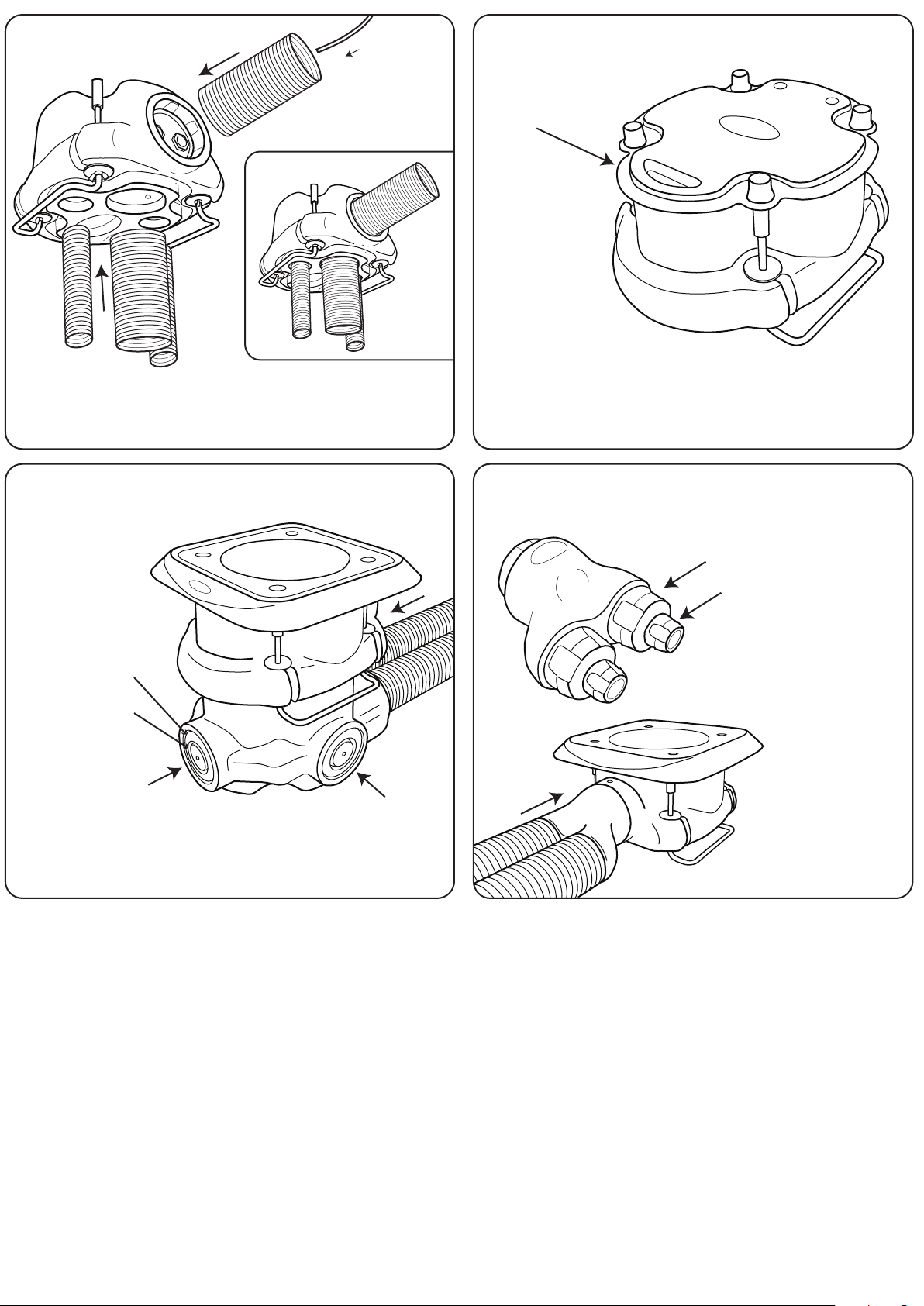

Diagram O Diagram P Diagram Q
Fill the hole with concrete ensuring
the concrete ows around all the
xing bars. Fill up to the edge of the
Installation Lid or ground level marker.
Smooth the surface and allow concrete
to dry for at least 24 hours. We
recommend leaving the Installation Lid
on for this duration. To maximise drive
through performance, concreting must
be of a good standard.
When the concrete has set the
Installation Lid can be removed and
disguarded or re used. Now lightly
grease the inside of all four xing bars
as shown with WD40 or equivalent.
Diagram R Diagram S Diagram T
If using a ‘cut out’, screw to the plywood
board and attach cable. Attach socket
to the end of cable and connect to the
plug on the LED Lighting Unit.
Position the LED Lighting Unit onto
the Underground Box. Ensuring the
top edge of the Underground Box sits
in the recess on the underside of the
LED Lighting Unit.
Position the Gasket onto the LED
Lighting Unit aligning the four holes.
Diagram U Diagram V Diagram W
Position the Signmaster Bollard onto
the Unit as shown, ensure the bollard
is in the correct orientation.
Position Items 2, 3, and 4 into the four
xing holes.
Tighten fully using the Allen Key
provided to secure the bollard in
position.
4
AND SIGNMASTER SUBLITE ARE TRADEMARKS OR REGISTERED TRADEMARKS OF
GLASDON GROUP OR ITS SUBSIDIARIES IN THE U.K AND OTHER COUNTRIES
• A planned maintenance schedule or regular inspection is recommended, replacing
components as necessary.
• Replacement components are available direct from GLASDON.
• GLASDON cannot be held responsible for claims arising from incorrect installation,
unauthorised modifications or misuse of the product.
Issue 1 March 2010 Stock no. C000/0357
© Copyright 2010
Glasdon UK Ltd reserve the right to alter specifications without prior notice.
Glasdon U.K Limited
Preston New Road
BLACKPOOL
Lancashire FY4 4UL
Tel: 01253 600410
Fax: 01253 792558
web: www.glasdon.com
IMPORTANT NOTE: PLEASE ENSURE THAT ALL RELEVANT PERSONNEL READ THE POINTS LISTED WITHIN THIS LEAFLET AND
THAT A COPY IS GIVEN TO STAFF INVOLVED WITH THE INSTALLATION AND MAINTENANCE OF THIS PRODUCT.
SAFETY NOTE: PLEASE REFER TO ‘THE MANUAL HANDLING OPERATIONS REGULATIONS 1992’ DURING HANDLING.
Important Installation Note: The Underground Box must be installed at the correct height and level or the ingress protection (IP
rating) of the unit may be severely impaired.
