GLEELITE GL G110A Manuale utente

GL G110A

CP2018100PD.1

Beam Spot

USER MANUAL

WWW.GLEELITE.COM

GL 110A Beam Spot

Table of contents

1. Safety instructions..................................................................................... 3

2. Operating determination........................................................................... 4

3. Fixture exterior view ................................................................................. 5

4. Installation ................................................................................................ 6

4.1 Connection to the mains............................................................... 6

4.2 Replacing gobos ........................................................................... 7

4.3 Rigging the fixture......................................................................... 8

4.4 DMX-512 connection..................................................................... 11

5. Control menu map.................................................................................... 12

6. Technical Specifications................................................................................ 14

7. Maintenance and cleaning.............................................................................. 17

8. Photometric diagram....................................................................................... 18

DMX protocol...........

........................................................................................ 19

CAUTION!

Keep this device away from rain and moisture!

Unplug mains lead before opening the housing!

FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY

BEFORE YOU INITIAL START - UP!

1. Safety instructions

Every person involved with installation and maintenance of this device have to:

- be qualified

- follow the instructions of this manual

CAUTION!

Be careful with your operations.

With a high voltage you can suffer

a dangerous electric shock when touching the wires!

This device has left our premises in absolutely perfect condition. In order to maintain this condition and to en-

sure a safe operation, it is absolutely necessary for the user to follow the safety instructions and warning

notes written in this manual.

Important:

The manufacturer will not accept liability for any resulting damages caused by the non-observance of this

manual or any unauthorized modification to the device.

Please consider that damages caused by manual modifications to the device are not subject to warranty.

Never let the power-cord come into contact with other cables! Handle the power cord and all connections

with the mains with particular caution!

Make sure that the available voltage is not higher than stated on the rear panel.

WARNING! Always disconnect power input cable to completely remove power from unit when not

in use or before cleaning or servicing the unit.

Make sure that the power cord is never crimped or damaged by sharp edges. Check the device and the pow-

er-cord from time to time.

Always disconnect from the mains, when the device is not in use or before cleaning it. Only handle the pow-

er-cord by the plug. Never pull out the plug by tugging the power cord.

This device falls under protection class I. Therefore it is essential to connect the yellow/green conductor to

earth. The electric connection, repairs and servicing must be carried out by a qualified employee.

Do not connect this device to a dimmer pack.

During the initial start-up some smoke or smell may arise. This is a normal process and does not necessarily

mean that the device is defective.

Do not touch the device’s housing bare hands during its operation (housing becomes hot)!

For replacement use fuses of same type and rating only.

Warning! Risk Group 2 LED product according to EN

62471.LED light emission. Risk of eye injury!

Do not look straight at the fixture´s LED source during operation. The intense

light beam may damage your eyes.

Do not view the light output with optical instruments or any device that

may concentrate the beam.

2. Operating determination

This device is a moving head for creating decorative effects and was designed for indoor use only.

This device is for professional use only. It is not for household use.

If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it

on immediately. The arising condensation water might damage your device. Leave the device switched off

until it has reached room temperature.

Do not shake the device. Avoid brute force when installing or operating the device.

Never lift the fixture by holding it at the projector-head, as the mechanics may be damaged. Always hold the

fixture at the transport handles.

When choosing the installation spot, please make sure that the device is not exposed to extreme heat,

moisture or dust.

Make sure that the area below the installation place is blocked when rigging, derigging or servicing the fixture.

Always fix the fixture with an appropriate safety rope. Fix the safety rope at the correct holes only.

Only operate the fixture after having checked that the housing is firmly closed and all screws are tightly fastened.

The maximum ambient temperature 45°C must never be exceeded.

CAUTION!

The lens has to be replaced when it is obviously damaged,

so that its function is impaired, e. g. due to cracks or deep scratches!

Operate the device only after having familiarized with its functions. Do not permit operation by persons not

qualified for operating the device. Most damages are the result of unprofessional operation!

Do not block the front objective lens with any object when the fixture is under operation.

The fixture housing never must be covered with cloth or other materials.

Please use the original packaging if the device is to be transported.

Please consider that unauthorized modifications on the device are forbidden due to safety reasons!

If this device will be operated in any way different to the one described in this manual, the product may suffer

damages and the guarantee becomes void. Furthermore, any other operation may lead to dangers like short-

cir-cuit, burns, electric shock, burns etc.

CAUTION!

To avoid damage of the internal parts of the fixture head, never let the sunlight or other

fixture lights directly to the front lens, even when the fixture is not working!

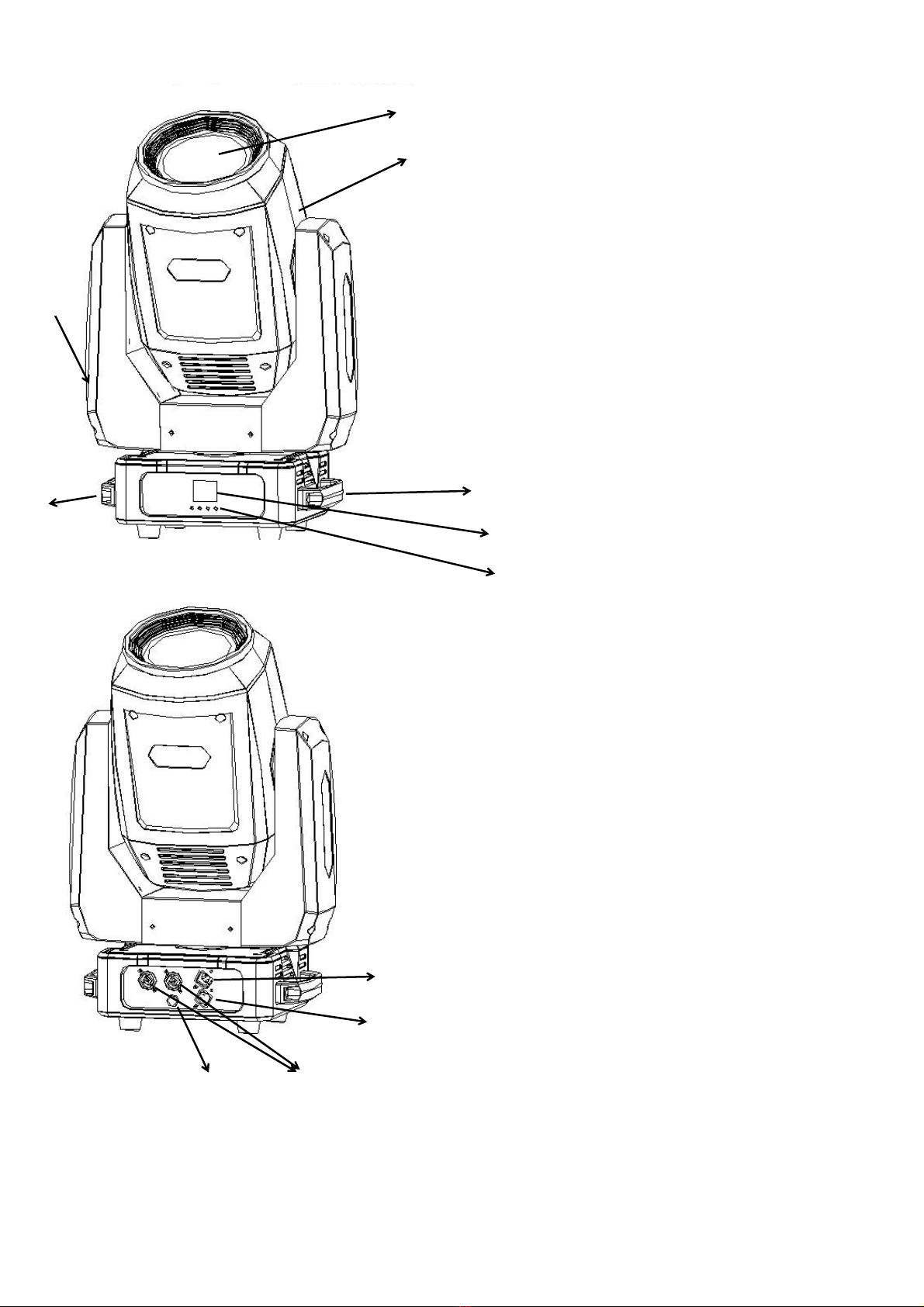

3. Fixture exterior view

1- Head

2- Front lens

3- Handles

4- Display screen

5- Control buttons

6- Yoke

9- Power (PowerCon)

10 - Fuse holder

11 - DMX OUT (3-pin)

12 - DMX IN (3-pin)

4. Installation

4.1 Connection to the mains

For protection from electric shock, the fixture must be earthed!

The GL G110A is equipped with auto-switching power supply that automatically adjusts to

any 50-60Hz AC power source from 100-240 Volts. Power cord is enclosed to the fixture.

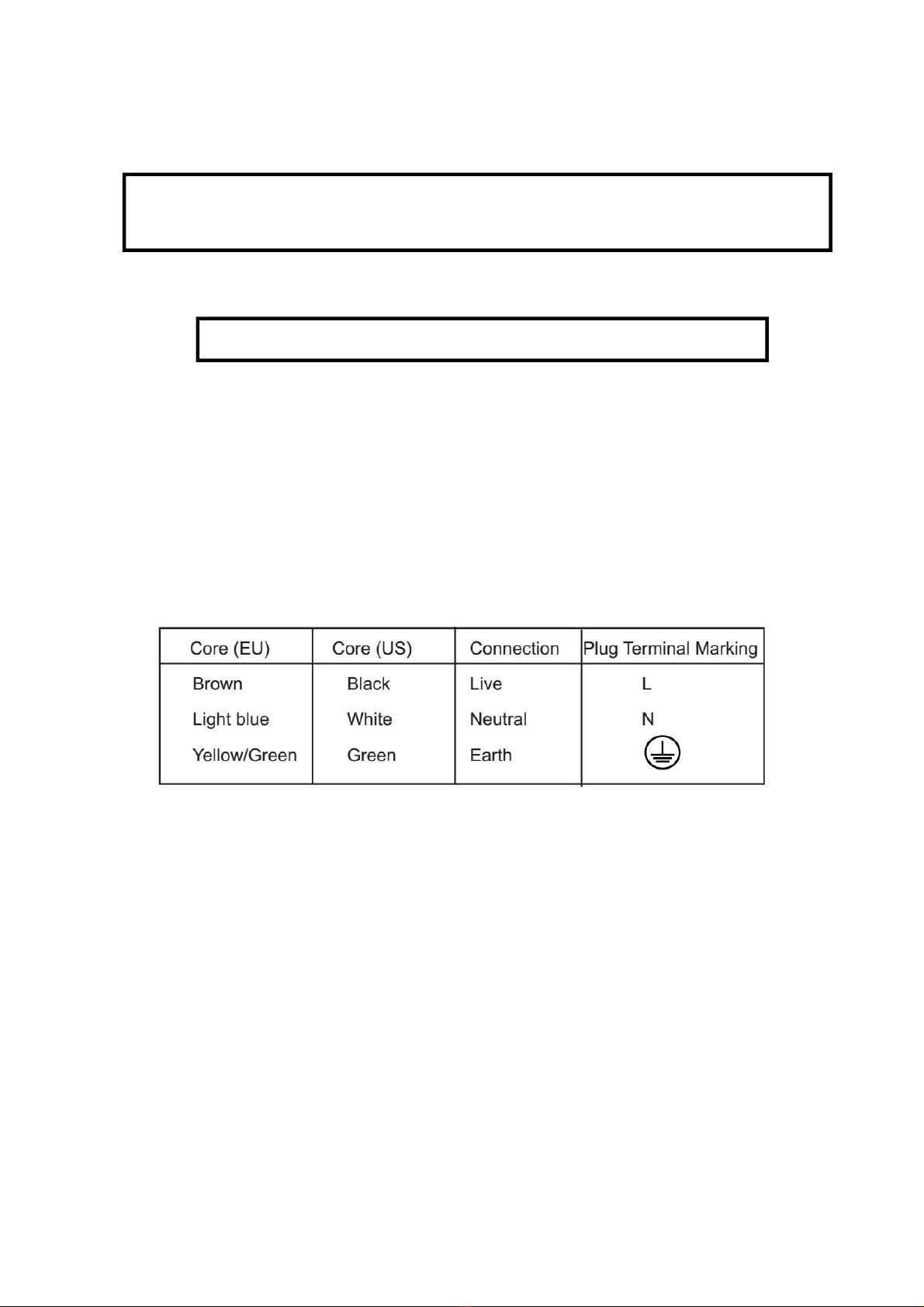

Install a suitable plug on the power cord if needed, note that the cores in the power cord are

coloured according to the following table. The earth has to be connected! If you have any

doubts about proper installation, consult a qualified electrician.

Fixtures must be installed by a Qualified electrician in accordance with all

national and local electrical and construction codes and regulations.

For protection from electric shock, the fixture must be earthed!

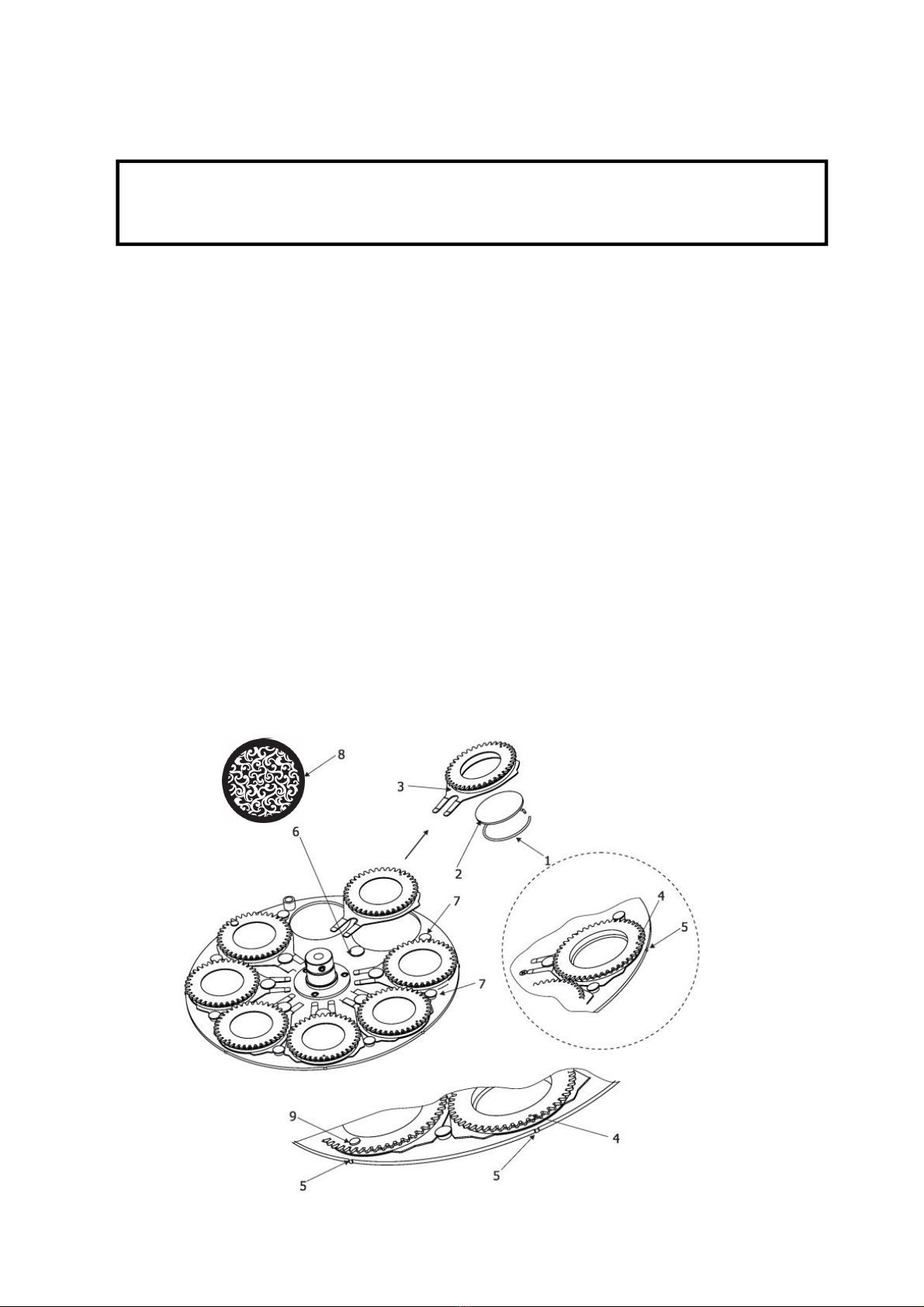

4.2 Replacing rotating gobos

1. Disconnect the fixture from mains and allow it to cool.

2. Remove the plastic cover of the head by loosening the 4 quarter-turn fasteners on

the cover.

3. Gently pull up the gobo holder (3) from the rotation gobo wheel.

4. Remove the spring lock (1) with an appropriate tool (e.g. small-bladed screwdriver)

and remove it. Do not touch the surface of the pattern of the glass gobo with bare

fingers.

5. Remove the original gobo (2) and insert the new one (glazy side towards the light

source). The Gleelite gobo has a small position point (8) at its edge which has to

aimed at the position point (4) on the gobo holder (4). Insert the spring lock to secure

correct gobo position in the gobo holder.

6. Insert he gobo holder back under the distance slots (6, 7) into rotating gobo wheel

in this way, that its position point (4) has to aimed at a small toothlike projection (5)

on the edge of the rotating gobo wheel.

Important! When inserting the gobo holder back to the rotating gobo wheel, one of

the adjacent gobo holder has to be oriented according to the same rule, it means that

its position point (4) has to aimed at the toothlike projection (5) on the edge of the

rotating gobo wheel. You have keep both marks (4) and (5) side by side when

rotating the gobo wheel to the position allows inserting the gobo holder back.

5. Replace the plastic cover before applying power.

6. Use the menu Service to fine adjust replaced gobo (Service -> Calibration ->

Calibrate effects -> R. Gobo Index 1 ...R. Gobo Index 6).

Note. The magnet (9) of the gobo holder has the same function as the position point

(4) on the rest of gobo holders.

DANGER!

Install the gobos with the device switched off only.

Unplug from mains before!

4.3 Rigging the fixture

The installation of the fixture has to be built and constructed in a way that it can hold

10 times the weight for 1 hour without any harming deformation.

The installation must always be secured with a secondary safety attachment, e.g. an

appropriate catch net. This secondary safety attachment must be constructed in a

way that no part of the installation can fall down if the main attachment fails.

When rigging, derigging or servicing the fixture staying in the area below the

installation place, on bridges, under high working places and other endangered areas

is forbidden.

The operator has to make sure that safety-relating and machine-technical

installations are approved by an expert before taking into operation for the first time

and after changes before taking into operation another time.

The operator has to make sure that safety-relating and machine-technical

installations are approved by an expert after every four year in the course of an

acceptance test.

The operator has to make sure that safety-relating and machine-technical

installations are approved by a skilled person once a year.

The projector should be installed outside areas where persons may walk by or be

seated.

IMPORTANT! OVERHEAD RIGGING REQUIRES EXTENSIVE EXPERIENCE,

including (but not limited to) calculating working load limits, installation material being

used, and periodic safety inspection of all installation material and the fixture. If you

lack these qualifications, do not attempt the installation yourself, but instead use a

professional structural rigger. Improper installation can result in bodily injury or

damage to property.

The fixture has to be installed out of the reach of people.

If the fixture shall be lowered from the ceiling or high joists, professional trussing

systems have to be used. The fixture must never be fixed swinging freely in the room.

Caution: Fixtures may cause severe injuries when crashing down! If you have

doubts concerning the safety of a possible installation, do not install the moving head!

Before rigging make sure that the installation area can hold a minimum point load of

10 times the fixture’s weight.

Danger of fire !

When installing the device, make sure there is no highly inflammable

material (decoration articles, etc.) in a distance of min. 0.5 m.

CAUTION!

Use 2 appropriate clamps to rig the fixture on the truss. Follow the

instructions mentioned at the bottom of the base. Make sure that the

device is fixed properly! Ensure that the structure (truss) to which you

are attaching the fixtures is secure.

The fixture can be placed directly on the stage floor or rigged in any orientation on a

truss without altering its operation characteristics .

For securing a fixture to the truss, install a safety wire that can hold at least 10 times

the weight of the fixture. Use only the safety wire with screw-on carabine. Pull the

safety wire through the safety attachment point on the bottom of the base and around

the truss as shown on the pictures below.

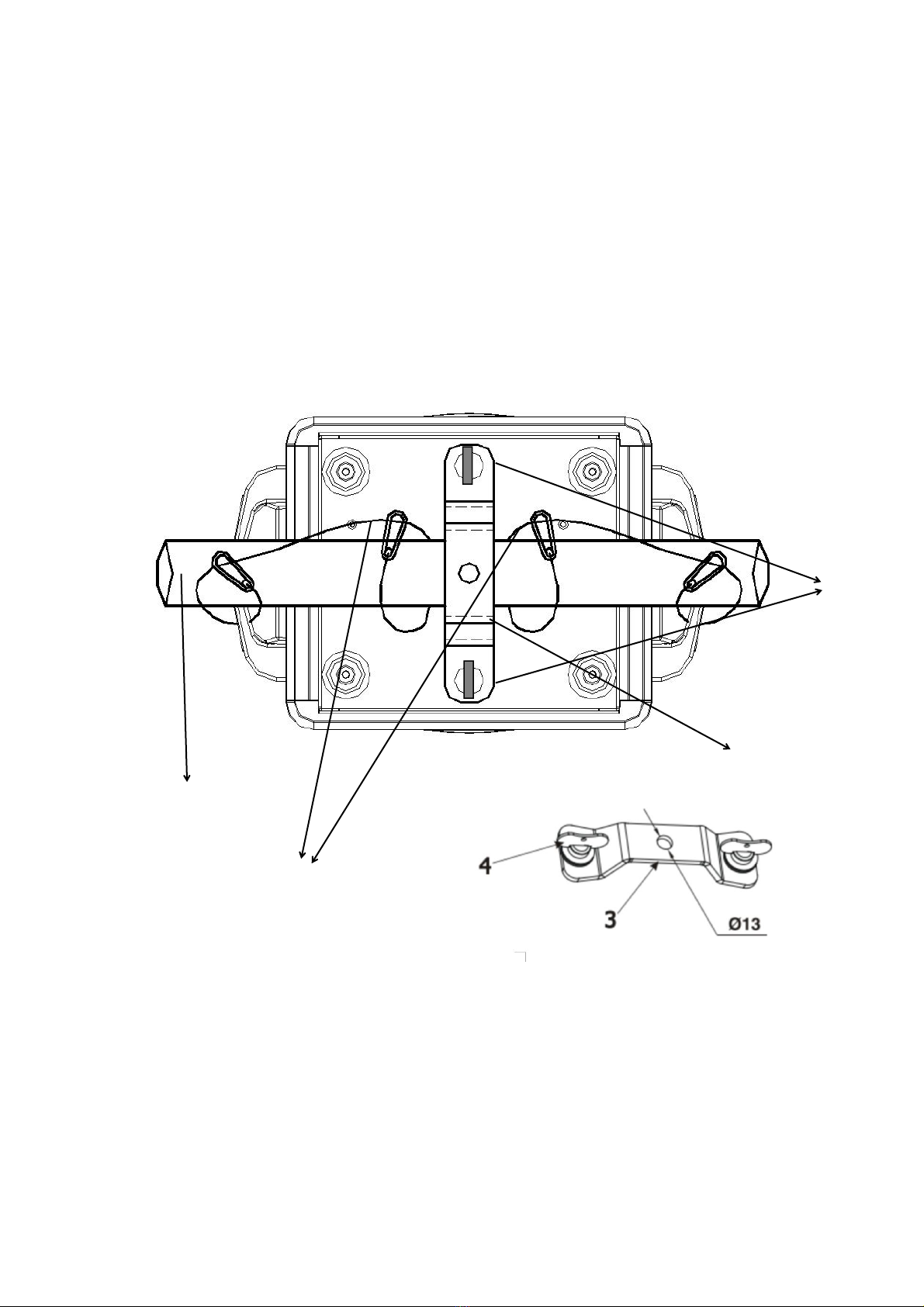

Truss installation

1.Bolt each clamp (1) to the omega holder (3) with M12 bolt and lock nut through the

hole in the holder.

2.Fasten the omega holders on the bottom of the base by inserting both quick-lock

fasteners (4) into the holes of the base and tighten fully clockwise.

3.Pull the safety wire (2) through the attachment point and around the truss (5).

1-Clamps

2-Safety wire

3-Omega holder

4-Quick-lock fastener

5-truss

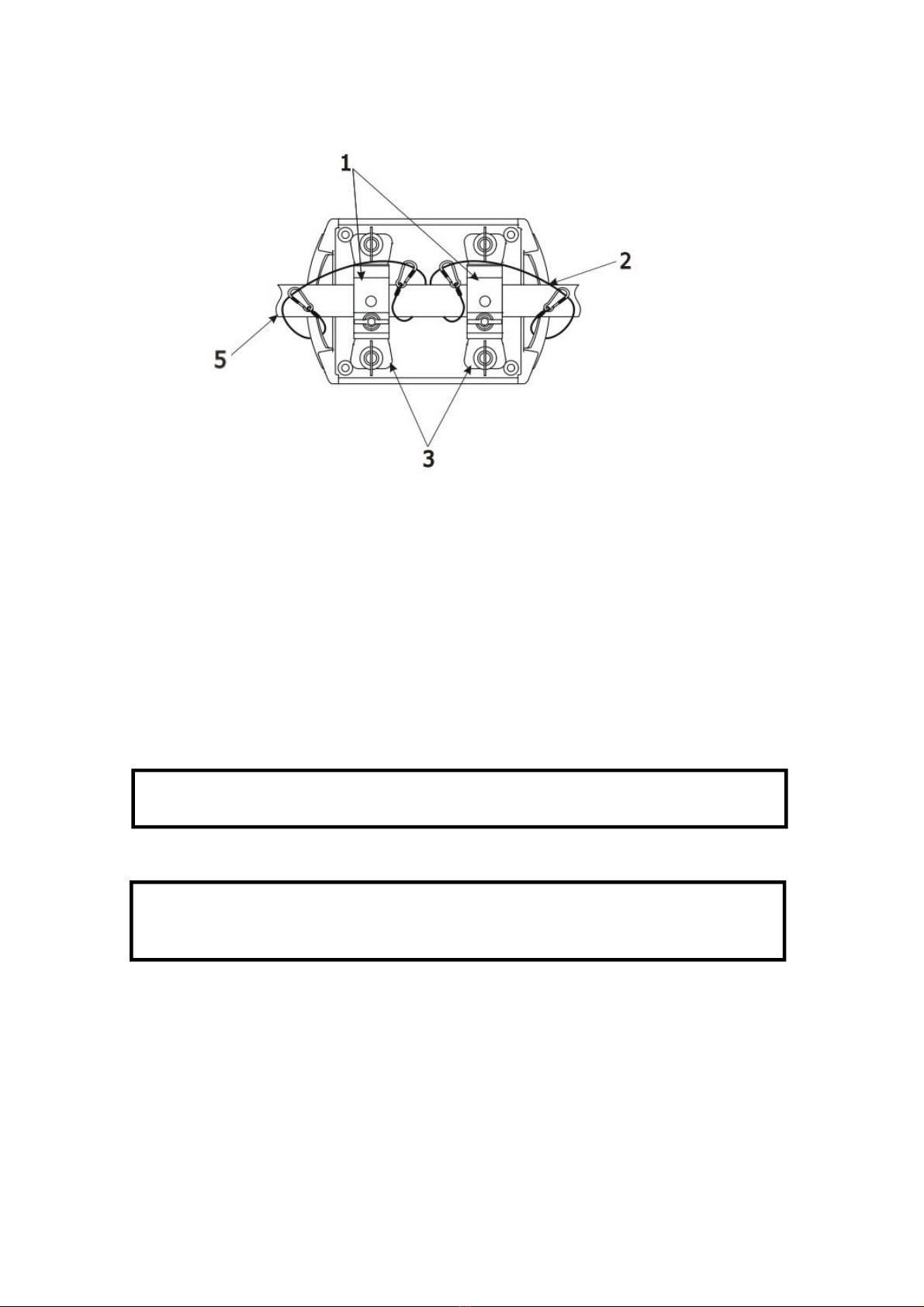

Alternativelly, fixtures handels can be used for safety attachment

When installing fixtures side-by-side,

avoid illuminating one fixture with another!

DANGER TO LIFE!

Before taking into operation for the first time,the installation has to be

approved by an expert!

1-Clamps

2-Safety wire

3-Omega holder

4-Quick-lock fastener

5-truss

Indice

Altri manuali GLEELITE Attrezzatura di illuminazione

GLEELITE

GLEELITE GLG110B Manuale utente

Manuali Attrezzatura di illuminazione popolari di altre marche

Brizo

Brizo 8SP-MU-4 Manuale utente

LUCE&LIGHT

LUCE&LIGHT BROM 1.0 Manuale utente

IKEA

IKEA BJÖRKSPIREA Manuale utente

Laserworld

Laserworld Evolution Series ES-400RGB Manuale utente

Alien

Alien RG STAR Manuale utente

EuroLite

EuroLite LED B-40 Manuale utente

Qazqa

Qazqa Suplux SL 3 Black 103062 Manuale utente

Commercial Electric

Commercial Electric 54568141 Manuale utente

CREE LIGHTING

CREE LIGHTING 304 Series Manuale utente

Goobay

Goobay 49867 Manuale utente

ECOMAN ITALIA

ECOMAN ITALIA LED T8 Manuale utente

Alkalite

Alkalite Krypton KT-81 Manuale utente

Clas Ohlson

Clas Ohlson GU10 Manuale utente

DTS

DTS DELTA 10 F Manuale utente

ring

ring Solar Steplight Manuale utente

One Stop Gardens

One Stop Gardens 57696 Istruzioni per il montaggio

Chauvet DJ

Chauvet DJ COREpar UV120 ILS Manuale utente

SIREM

SIREM Swimeo A2 Manuale utente
