Gliderol Glidermatic GTS+ Optima Guida rapida

Glidermatic GTS+ Optima

Heavy Duty Automatic Tilt and Sectional Door

Operator

Installation Instructions and

Glidermatic GTS+ Optima Owners Manual



1LEARNTransmitterLearn

2LIMITDoorLimitSetting

3OPENOn‐BoardOpen

4STOPOn‐BoardStop

5CLOSEOn‐BoardClose

6EXCONExternalI/OTerminal

7LED1TransmitterLearnLEDIndicator

81KEY/3KEYSTransmitterKeySettings

9AUTOCLOSEAutoCloseSetting

10BUZZERBuzzerSetting

11FORCEForceSetting

12WIRELESSP/CELLWirelessPhotocellConnector

13EASEASReceiverConnector

14EXPOSExternalDoorPositionSignalConnector

15EXLIGHTExternalLightConnector

16HALLHallConnector

17LIGHTLEDBoardConnector

18POWERPOWERLEDIndicator

19TRTransformerConnector

20F1ProtectionFuse

21MOTORMotorConnector

LimitSetting–ByOpener

1. Pressandhold[LIMIT]button.Unitwillbeepthreetimestosignalforlimitsettingmode

2. ProceedtosetuptheTOPlimit,byusingon‐board[OPEN]&[CLOSE]buttons,andconfirmTOP

limitpositionbypressing[STOP]button

3. ThensettheBOTTOMlimit,alsobyusingon‐board[OPEN]&[CLOSE]buttons,andconfirm

BOTTOMlimitpositionbypressing[STOP]button

4. Oncelimitsareset,theunitwillautomaticallyperformafullcalibrationcycle

5. Whenthedoorisclosedaftercalibration,thelimitsaresuccessfullysetup

6. Thedoorwillnowtravelbetweenlimitsandautomaticallysettheoptimaloperationforce

7. Nowtestthedooronablockofwood40mmofftheground.Inmostinstallationsthedoor

shouldautomaticallyreversewithoutanyfurtheradjustments.However,ifthedoordoesn’t

autoreverse,pleaserefertoForceSettinginstructionstoadjust



LimitResetting–ByTransmitter(Under3KeysTransmitterMode)

1. Usinganalreadyprogrammedtransmitter,pressandholdOPEN&CLOSEkeyssimultaneously

for5seconds

2. Whileunitbeepsthreetimestosignalforlimitsettingmode,proceedtosetuptheTOPlimit,by

usingtransmitter’sOPEN&CLOSEkeys,andconfirmTOPlimitpositionbypressingSTOPkey

3. ThensettheBOTTOMlimit,alsobyusingtransmitter’sOPEN&CLOSEkeys,andconfirm

BOTTOMlimitpositionbypressingSTOPkey

4. Oncelimitsareset,theunitwillautomaticallyperformafullcalibrationcycle

5. Whenthedoorisclosedaftercalibration,thelimitsaresuccessfullysetup.



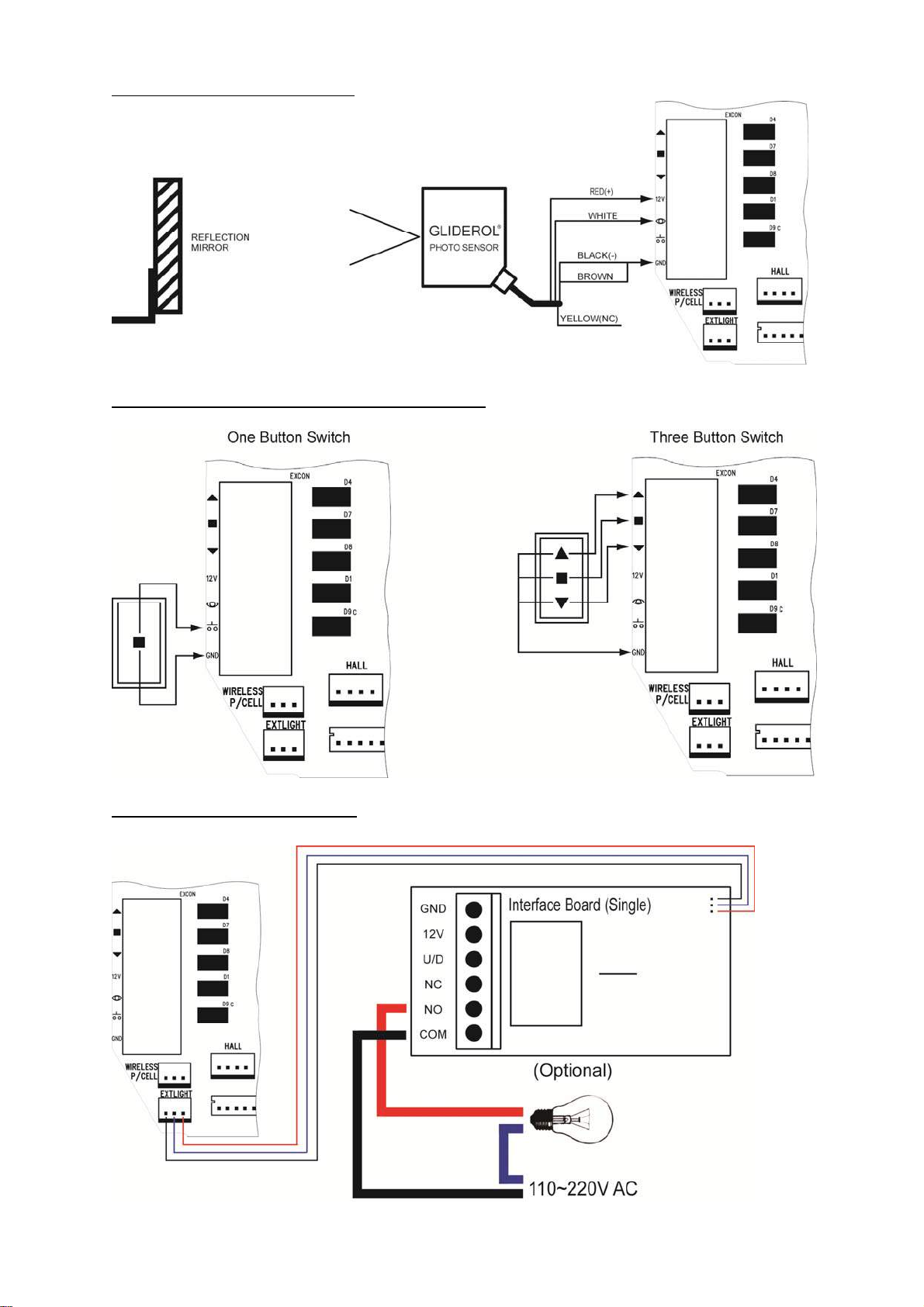

PhotoSensorConnectionDiagram



ExternalWallSwitchConnectionDiagram



ExternalLightConnectionDiagram

(OptionalInterfaceBoardRequired)


