Globalinx HT502 Manuale utente

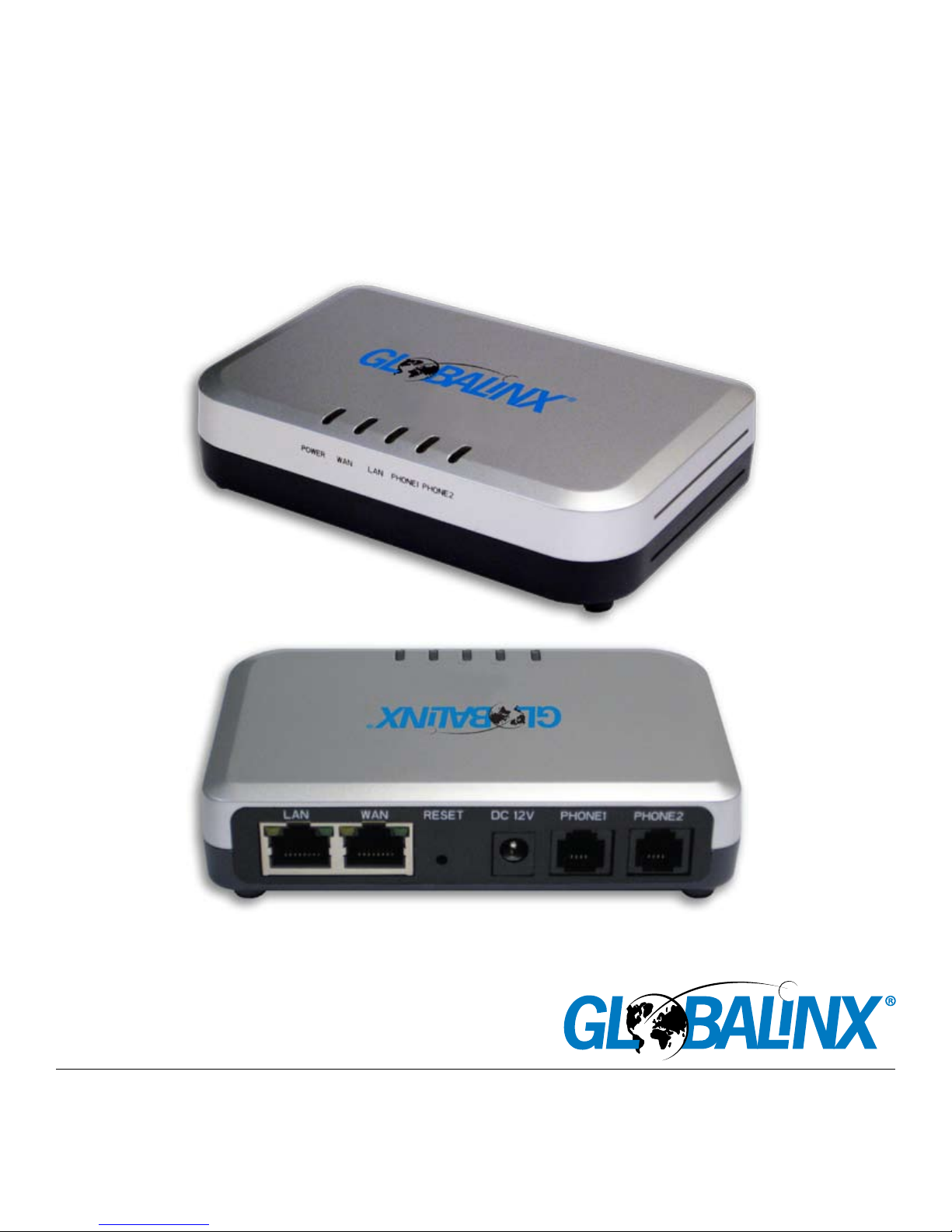

GLOBALINX®HT502 Dual FXS Port Analog

Telephone Adaptor Users Manual

No part of this document may be copied or reproduced in any form or by any means without the prior written consent of GLOBALINX®.

GLOBALINX®makes no warranties with respect to this documentation and disclaims any implied warranties of merchantability, quality, or tness for any particular purpose. The information

in this document is subject to change without notice. GLOBALINX®reserves the right to make revisions to this publication without obligation to notify any person or entity of any such changes.

Trademarks or brand names mentioned herein are trademarks or registered trademarks of their respective owners.

GLDTAUM-12/16/08

Table of Contents

1 Welcome ................................................................................................. 1

Safety Compliances ................................................................................................. 1

Warranty .................................................................................................................... 2

2 Connect Your HT502 ............................................................................... 3

Equipment Packaging ............................................................................................. 3

Connecting theHT502 ............................................................................................ 4

3 Product Overview .................................................................................. 6

Software features Overview ................................................................................. 6

Hardware Speciﬁcations ........................................................................................ 8

4 Basic Operations .................................................................................... 9

Placing a phone call ................................................................................................ 9

Placing extension or number ..................................... 9

Call Hold ...................................................................................................................... 8

Call Waiting ................................................................................................................. 9

3-Way Conferencing ................................................................................................ 10

FAX Support ............................................................................................................... 10

5 Call Features ........................................................................................... 11

Managing ﬁrmware and conﬁguration ﬁle downloading ......................... 11

Table of Contents

Table 1 Table of Figures .......................................................................... 4

Figure 1: Connecting the HT502 ......................................................................... 4

Figure 2: HT502 Connecting Diagram ............................................................... 5

Table 2 Table of Tables ............................................................................ 5

Table 1: Deﬁnations of the HT502 Connections ............................................ 5

Table 2: Deﬁnations of the HT502 LEDs ............................................................ 5

Table 3: HT502 Technical Speciﬁcations ........................................................... 7

Table 4: HT502 IVR Menu Deﬁnations ............................................................... 8

Table 5: HT502 Call Features ................................................................................. 11

HT502 User’s Manual 1

1Welcome

Thank you for purchasing the GLOBALINX® HT502, the aﬀordable, feature rich

Digital Telephone Adaptor (DTA). The GLOBALINX® HT502 features the rich audio

quality, a broad range of voice codecs, and functionality including two (2) FXS

ports each with independent SIP accounts.

This manual will help you learn how to operate and manage your GLOBALINX®

HT502 Digital Telephone Adaptor and make the best use of its many upgraded

features including simple and quick installation and 3-way conferencing.

This HT502 is very easy to manage and conﬁgure, and is speciﬁcally designed

to be an easy to use and aﬀordable VoIP solution for both the residential user

and the teleworker.

GLOBALINX®HT502 DTA

Safety Compliances

The HT502 DTA complies with FCC/CE and various safety standards. The HT502

power adaptor is compliant with UL standard. Only use the universal power

adapter provided with the HT502 package. The manufacturer’s warranty does

not cover damages to the phone caused by unsupported power adaptors.

HT502 User’s Manual 2

Warranty

GLOBALINX® warrants to the original purchaser of this product that it shall be

free of defects resulting from workmanship or components for a period of one

(1) year from the date of sale. Defects covered by this Limited Warranty shall be

corrected either by repair or, at GLOBALINX’s discretion, by replacement. In the

event of replacement, the replacement unit will be warranted for the remainder

of the original one (1) year period or thirty (30) days, whichever is longer. There

are no other oral or written warranties expressed or implied, including but not

limited to those of merchant ability or ﬁtness for a particular purpose.

This Limited Warranty is nontransferable and does not apply if the product

has been damaged by negligence, accident, abuse, misuse, modiﬁcation,

misapplication, shipment, or service by someone other than GLOBALINX®.

Transportation and/or shipping charges to GLOBALINX® are not covered by this

Limited Warranty. To be eligible for warranty service, the purchaser must have

previously spoken with GLOBALINX® Technical Support. Once GLOBALINX®

Technical Support has determined that the unit should be replaced, a RMA

number will be issued to the purchaser. The defective product must be sent to

and received by GLOBALINX® within fourteen (14) months of the date of sale

and be accompanied with account number and phone number. GLOBALINX®

does not warrant that this product will meet your requirements; it is your sole

responsibility to determine the suitability of this product for your purposes.

GLOBALINX® does not warrant the compatibility of this product with your

computer or related peripherals, software. GLOBALINX’s sole obligation and

liability under this warranty is limited to the repair or replacement of a defective

product. GLOBALINX® shall not in any event be liable to the purchaser or any

third party for any incidental or consequential damages or liability in the tort

relating to this product or resulting from its use or possession.

This document is subject to change without notice. The latest electronic version

of this user manual is available for download at: http://www.globalinx.com

Reproduction or transmittal of the entire or any part, in any form or by any means, electronic or

print, for any purpose is not permitted without the express written permission of GLOBALINX® Inc.

HT502 User’s Manual 3

GLOBALINX®HT502 DTA

2Connect Your HT502

Equipment Packaging

The HT502 DTA package contains:

• One HT502 Main Case

• One Universal Power Adaptor

• One Ethernet Cable

• One HT502 Vertical Stand

HT 502

Ethernet Cable

Universal Power Adaptor

Vertical Stand

HT502 User’s Manual 4

Connecting the HT502

The HT502 is designed for easy conﬁguration and installation. Follow these

quick steps to start using your GLOBALINX®service.

1. Connect a standard touch-tone analog telephone to the HT502 port.

2. Insert a standard RJ11 telephone cable into the PHONE 1 port and connect

the other end of the telephone cable to the analog telephone.

3. Insert the Ethernet cable into the WAN port of HT502 and connect

the other end of the Ethernet cable to an uplink port (a router or

a modem, etc.)

4. Connect a PC to the LAN port of HT502 if it is being used as a router.

5. Insert the power adapter into the HT502 and connect it to a wall outlet.

The HT502 Digital Telephone Adaptor is an all-in-one VoIP integrated device

designed to be a total solution for GLOBALINX®services. All GLOBALINX®

calling features are available using a regular analog telephone.

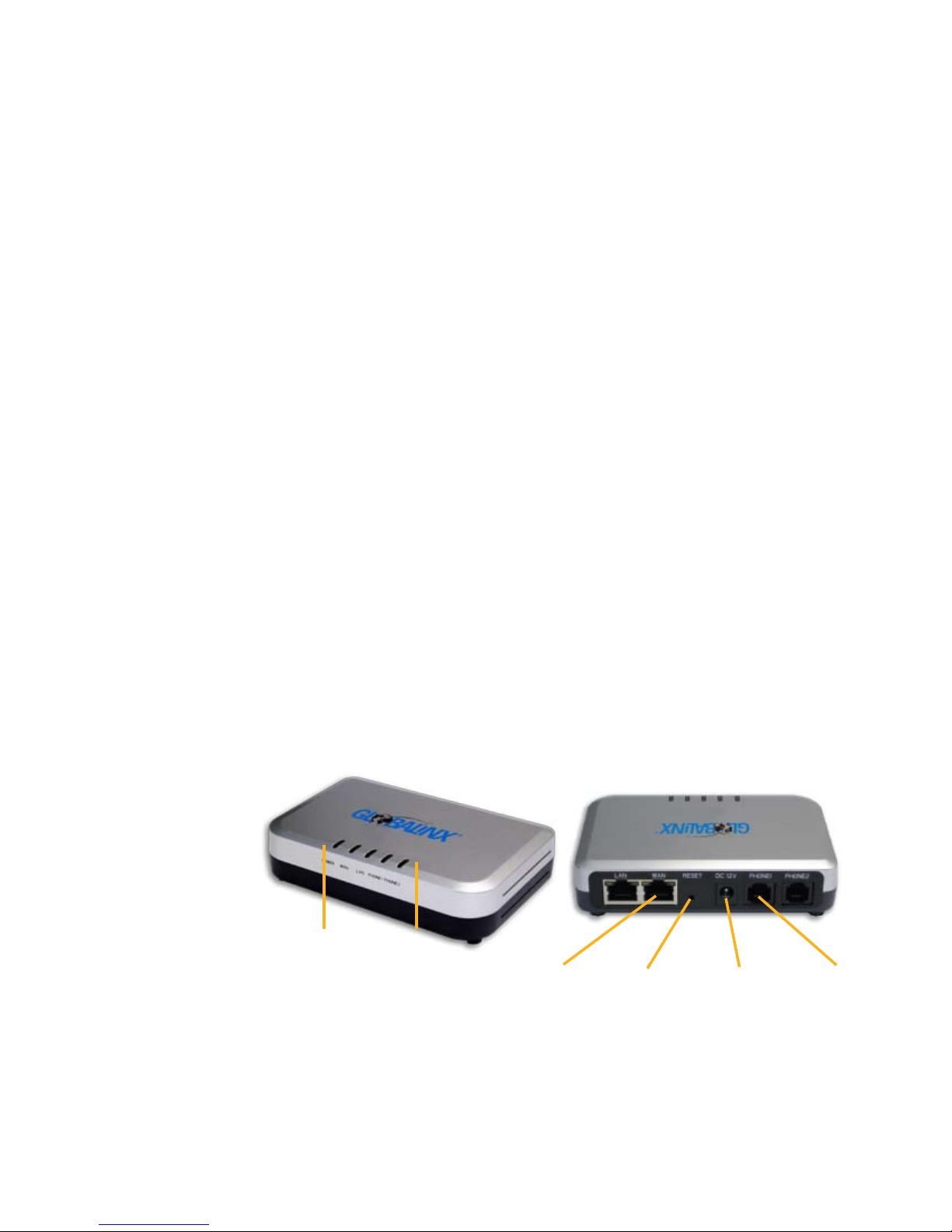

Back ViewFront View

{

Display LED

(green)

RJ-45 Ports

(10/100 Mbps)

Reset Power Supply

(12V)

RJ-11 FXS

Ports (Phone)

The HT502 has 2 (RJ-11) FXS ports. Both FXS ports can have separate SIP accounts.

This is a key feature of HT502 as it supports simultaneous calls on both FXS ports.

Figure 1: Connecting the HT502

HT502 User’s Manual 5

GLOBALINX®HT502 DTA

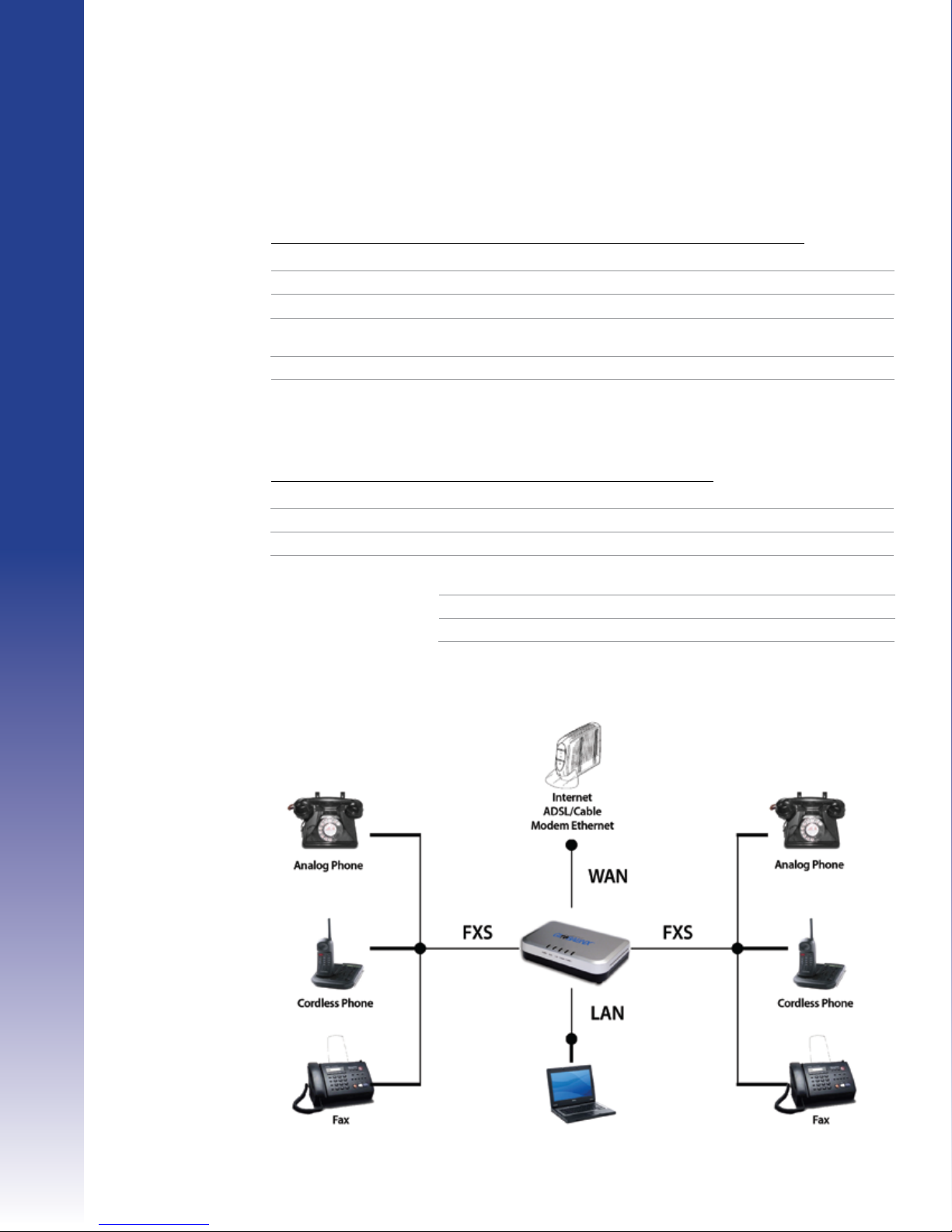

Figure 2: HT502 Connection Diagram

TABLE 1: DEFINITIONS OF THE HT502 CONNECTORS

POWER CABLE Power adapter connection

WAN Port (RJ-45) Connect to the internal LAN network or router.

LAN Port (RJ-45) Connect the LAN port with an Ethernet cable to your PC.

RESET Factory Reset button. Press for 7 seconds to reset factory

default settings.

PHONE1 (RJ-11) FXS port to be connected to analog phones / fax machines.

PHONE2 (RJ-11) FXS port to be connected to analog phones / fax machines.

There are ﬁve (5) LED buttons that help you manage the status of your GLOBALINX® HT502.

TABLE 2: DEFINITIONS OF THE HT502 LEDS

POWER LED Indicates Power. Remains ON when power is connected

WAN LED Indicates LAN (or WAN) port activity

LAN LED Indicates PC (or LAN) port activity

PHONE1 / PHONE2 LED Indicate status of the respective FXS Ports-PHONE1 / PHONE2

on the back panel

Busy – ON (Solid Green)

Available – OFF

Slow blinking LEDs indicates voicemail for that port.

NOTE: All LEDs display green when ON. Slow blinking of WAN and LAN LED together indicate

the product in ﬁrmware upgrading or provision state.

HT502 User’s Manual 6

The HT502 is a full feature voice and fax-over-IP device that oﬀers a high-level of

integration including dual 10M/100Mbps Ethernet ports with integrated router,

NAT, DHCP server, dual port FXS telephone gateway, market-leading sound

quality, rich functionalities, and a compact and lightweight design.

Software Features Overview

• 2 FXS ports

• Two RJ-45 ports

• 2 GLOBALINX®accounts & proﬁles

• Voice Codecs:

G711(a/µ, Annex I & II), G723.1A, G726 (ADPCM with 16/24/32/40

bit rates), G729 A/B/E, iLBC

• Echo Cancellation

• Voice Activation Detection (VAD), Comfort Noise Generation (CNG),

and Packet Loss Concealment (PLC)

• Supports PSTN/PBX analog telephone sets

3Product Overiew

HT502 User’s Manual 7

GLOBALINX®HT502 DTA

TABLE 3: HT502 TECHNICAL SPECIFICATIONS

Telephone Interfaces 2 FXS ports, 2 SIP accounts

Network Interface Two (2) 10M/100 Mbps, RJ-45

LED Indicators Power, WAN, LAN, PHONE1 and PHONE2

Reset Button Factory Reset button

Voice over Packet Capabilities Voice Activity Detection (VAD) with CNG (comfort noise

generation) and PLC (packet loss concealment), Dynamic Jitter

Buﬀer, Modem detection & auto-switch to G.711, Packetized

Voice Protocol Unit (supports RTP/RTCP and AAL2 protocol),

G.168 compliant Echo Cancellation, LEC (line echo cancellation)

with NLP, Asymmetric RTP stream

Voice Compression G.711 + Annex I (PLC), Annex II (VAD/CNG format) encoder and

decoder, G.723.1A, G.726(ADPCM), G.729A/B/E, iLBC, G.726

provides proprietary VAD, CNG, and signal power estimation,

Voice Play Out unit (reordering, ﬁxed and adaptive jitter buﬀer,

clock synchronization), AGC (automatic gain control), Status

output, Decoder controlling via voice packet header

DHCP Server/Client Yes, NAT Router or Switched Mode

Telnet Server Yes

Fax over IP Compatible Yes

QoS Diﬀserve, TOS, 802.1 P/Q VLAN tagging

IP Transport RTP/RTCP

DTMF Method Flexible DTMF transmission method, user interface of In-audio,

RFC2833, and/or SIP Info

IP Signaling SIP (RFC 3261)

Provisioning TFTP, HTTP, HTTPS

Control TLS/SIPS , SIP over TCP/TLS

Management Syslog support, HTTPS and telnet, remote management using

Web browser, Support Layer 2 (802.1Q, VLAN, 802.1p) and Layer

3 QoS (Tos, DiﬀSery, MPLS), Auto/manual provisioning system

Dial Plan Yes

UPnP Yes

Power Output: 12VDC / Input: 100–240 VAC/50-60 Hz

Environmental Operational: 32o–104oF or 0o–40oC

Storage: 10o–130o F / Humidity: 10–90% Non-condensing

Dimensions (H x W x D) 115mm (L) x 75mm (W) x 27mm (H)

Short and long haul REN3: Up to150 ft on 24 AWG line

Call Handling Features Caller ID display or block, Call waiting caller ID, Call

waiting/ﬂash, Call transfer, hold, forward, mute, 3-way confer-

encing, message waiting, Do-Not-Disturb (DND), call-return service

Caller ID Bellcore Type 1 & 2, ETSI, BT, NTT, and DTMF-based CID

Polarity Reversal / Wink Yes

EMC EN55022/EN55024 and FCC part15 Class B

Safety UL

Indice

Altri manuali Globalinx Accessori per telefoni

Globalinx

Globalinx Talk-100 Manuale utente

Manuali Accessori per telefoni popolari di altre marche

IAI

IAI CON-T Manuale utente

BT DIVERSE 5400 Manuale utente

Tadiran Telecom

Tadiran Telecom EMERALD ICE Manuale utente

Musicam

Musicam FieldFone II Manuale utente

Polycom

Polycom KIRK KIRK 4040 Scheda tecnica

TIPTEL

TIPTEL DECT Set 50 Manuale utente

Panasonic

Panasonic KX-UDS124 Manuale utente

BT BT7600 Scheda tecnica

Panasonic

Panasonic KX-TVP100E Manuale utente

View

View VP-PC Manuale utente

Baldwin Boxall

Baldwin Boxall BT8 Manuale utente

SMC Networks

SMC Networks SMCDPCR-AP Manuale utente

SkyLink

SkyLink SD-001 Manuale utente

Nera

Nera ISDN Manuale utente

MCheeta

MCheeta CT-CID803 Plus Manuale utente

YASKAWA

YASKAWA YRC1000 Manuale utente

Intellitouch

Intellitouch MOH-500E Manuale utente

Viking

Viking SQRG-12 Istruzioni per l’uso
