Glowworm Swift flow 100e Manuale utente

100e 80e 75e

221061A.02.97

Installation Instructions

Tobeleftwiththeuser

Hepworth Heating Ltd.,

Nottingham Road, Belper, Derbyshire. DE56 1JT

General/Sales enquiries :

Tel: (01773) 824141 Fax: (01773) 820569

One Contact Total Service



Customer Services:

Tel: (01773) 828100

Fax: (01773) 828070

These instructions are for the installation and setting of

the clock/timer.

Instructions on how to use and service are supplied with

the boiler.

Note. The boiler Installation Instructions will be

required should the clock/timer be fitted to an already

fitted boiler.

If the literature is not to hand, copies can be obtained

from:

Hepworth Heating Ltd.,

Nottingham Road,

Belper,

Derbyshire.

DE56 1JT

Telephone (01773) 824141

It is important to quote the model, size and serial

number.

This is a Cat I 2H Appliance

Digital Clock / Timer

Kit Style 1

100 80 75

Clock/Timer

221061A

5214

CONTENTS OF KIT

1 Casing label

2 Instruction sheet

3 Clock/timer

4 Clock/timer bracket

5 Clock/timer harness

6 "Snap in" cable bush

"continuation of “Boiler Fixing”

Remove two of the fascia securing screws,

see diagram 1.

Remove the control housing securing screw and cover,

see diagram 1.

Fit the clock/timer bracket and loosely secure with the

two previously removed fascia securing screws,

see diagram 2.

Remove the control housing securing screws,

see diagram 3.

Secure the control housing to the frame with one of

these screws, see diagram 4.

Remove the 4 way terminal block from the top left hand

side of the control box, see diagram 4 .

Refit the earth leads.

Fit the clock/timer by pushing it into the bracket until it

clicks into place.

Route wiring harness through the keyhole slot in the

side of the control box insert the "snap in" cable bush

and connect to the clock/timer and 4 way terminal block

connector, see diagram 5.

Clock/Timer

221061A

Remove the clock/timer blanking plate from the outer

case and use the new blanking plugs supplied.

Stick the Casing label, from the loose items pack, to the

right hand side of the clock/timer.

Note. Some adjustment of the clock/timer bracket may

be required to allow for a satisfactory alignment of the

outer casing.

Now continue with “Boiler Fixing”, as described in the

Installation Instructions.

Basic Setting Instructions for SWIFTFLOW

Digital Clock Timer / Style 1

Detailed instructions on how to set individual

programmes are provided in the Instructions for Use.

General Description

The clock has 3 “ON” and 3 “OFF” periods each day.

These periods can be set to the same time for each day or

for different times each day. The clock features an

“OFF” setting which allows the boiler to be switched off

for a long period of time, take care when using this

feature in the winter. An “ON” feature which keeps the

boiler on for a long period of time. A “TIMED” mode

which operates the boiler according to the three

programmes a day and a “ONCE” mode which switches

the boiler on at the first programmed “ON” time of day

and switches off at the last “OFF” of the day.

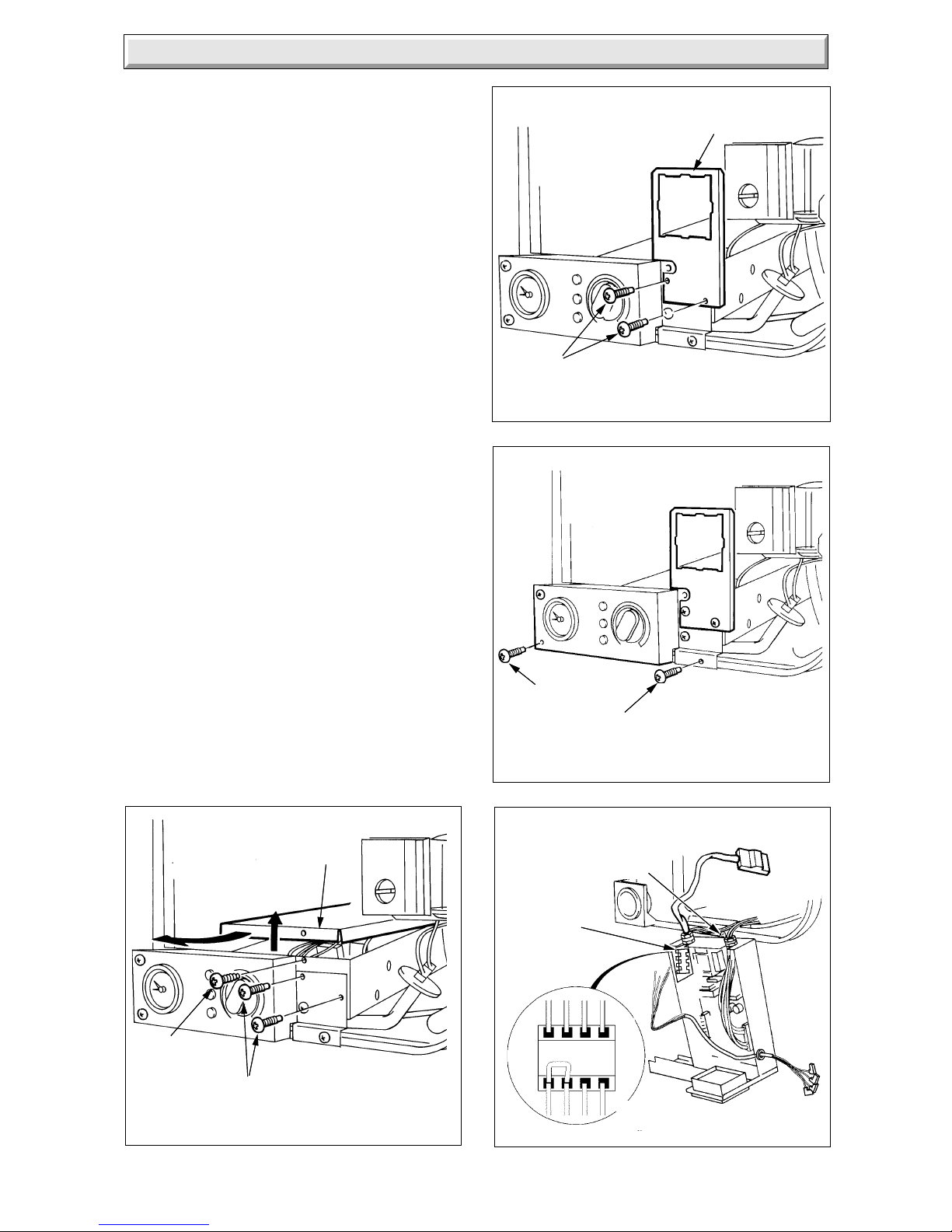

Diagram 3

100 ILLUSTRATED

Diagram 2

3910

100 ILLUSTRATED

CLOCK/TIMER

MOUNTING

BRACKET

FASCIA

SECURING

SCREWS

3887

CONTROL

HOUSING

COVER

SECURING

SCREWS (2)

3909

CONTROL

HOUSING

COVER

SECURING

SCREW

Diagram 1100 ILLUSTRATED

FASCIA

SECURING

SCREWS (2)

CONTROL

HOUSING

COVER

5213

Diagram 4

CONTROL

HOUSING

SECURING

SCREW

4 WAY

TERMINAL

BLOCK

*Remove yellow link

BBRYY

BRBYY

Clock/Timer

221061A

Because of our constant endeavour for improvement details may vary slightly from those in the instructions.

Setting the Clock/Timer

With the electrical supply to the boiler switched on the

clock will display the following:

Clock Setting.

1. Press “SET?” button.

The display will show “CLOCK SET”.

2. Press the “YES” button.

3. Press the “-” or “+” button until the correct day of

the week is shown on the display.

4. Press the “SET?” button, the “12” will flash on the

display.

5. Press the “-” or “+” button until the correct hour is

shown on the display.

Note. Make sure the “AM” or “PM” is displayed as

required.

6. Press “SET?” button. The minutes will flash on the

display.

7. Press “-” or “+” button until the correct minutes are

shown on the display.

8. Press the “SET?” button.

The display will show “SET PROG?.”

At this stage if you want to use the internal, factory set,

programmes, simply press the “SET?” button three

times. The display will show the current time and the

clock will switch the boiler “ON” and “OFF” according

to the following times.

MON/FRI

1st ON 06.30 AM

1st OFF 08.30 AM

2nd ON 12.00 PM

2nd OFF 12.00 PM

3rd ON 04.30 PM

3rd OFF 10.30 PM

SAT/SUN

1st ON 07.00 AM

1st OFF 09.00 AM

2nd ON 12.00 PM

2nd OFF 12.00 PM

3rd ON 04.00 PM

3rd OFF 11.00 PM

COMMON

MAINS

NEUTRAL

(N)

HEATING ON

MAINS

LIVE (L)

KEY

BROWN

BLUE

YELLOW

YDiagram 5

brb

ELECTRICAL

CONNECTORS

CLOCK/

TIMER

4 WAY

TERMINAL

BLOCK

*Remove yellow

*link

BBRYY

BRBYY

5347
