GLP POCKET SCAN Manuale utente

Instruction Manual

From Version 1.0

email: [email protected]

Internet: http://www.GLP.de

GLP zGerman Light Production (V2.1) 1

GLP zGerman Light Production (V2.1) 2

Contents

1INTRODUCTION.......................................................................................................3

1.1 SAFETY RULES ...................................................................................................4

2INSTALLATION........................................................................................................4

2.1 MOUNTING..........................................................................................................4

2.2 SECURE THE P

T-

-S

N............................................................................4

2.3 CONNECTORS.....................................................................................................5

2.3.1 AC Connectors.......................................................................................5

2.3.2 DMX.......................................................................................................5

2.4 FUSES................................................................................................................5

3DMX- ADDRESSES / BASIC FUNCTIONS..............................................................5

3.1 ADJUST THE DMX- ADDRESS...............................................................................5

3.2 SPECIAL FUNCTIONS ...........................................................................................6

3.2.1 Reset Function.......................................................................................6

3.3 SOUND FUNCTION...............................................................................................6

3.3.1 Switch between Master- and Receive- Mode.........................................7

3.3.2 Adjust the Speed of the internal Program...............................................7

3.4 SWITCH OFF THE LAMP ........................................................................................7

3.5 TEMPERATE CONTROL.........................................................................................8

4CHANNEL SELECTION ( OVERVIEW TABLE )......................................................9

5CHANGE THE LAMP .............................................................................................11

5.1 SAFETY RULES .................................................................................................11

5.2 HOW TO CHANGE THE LAMP................................................................................11

6MAINTENANCE THE P

T-

-S

N ..................................................................12

6.1 OPTICAL SYSTEM..............................................................................................12

6.2 CLEANING THE FAN ...........................................................................................12

7TECHNICAL DATA / OVERVIEW ..........................................................................13

GLP zGerman Light Production (V2.1) 3

1 Introduction

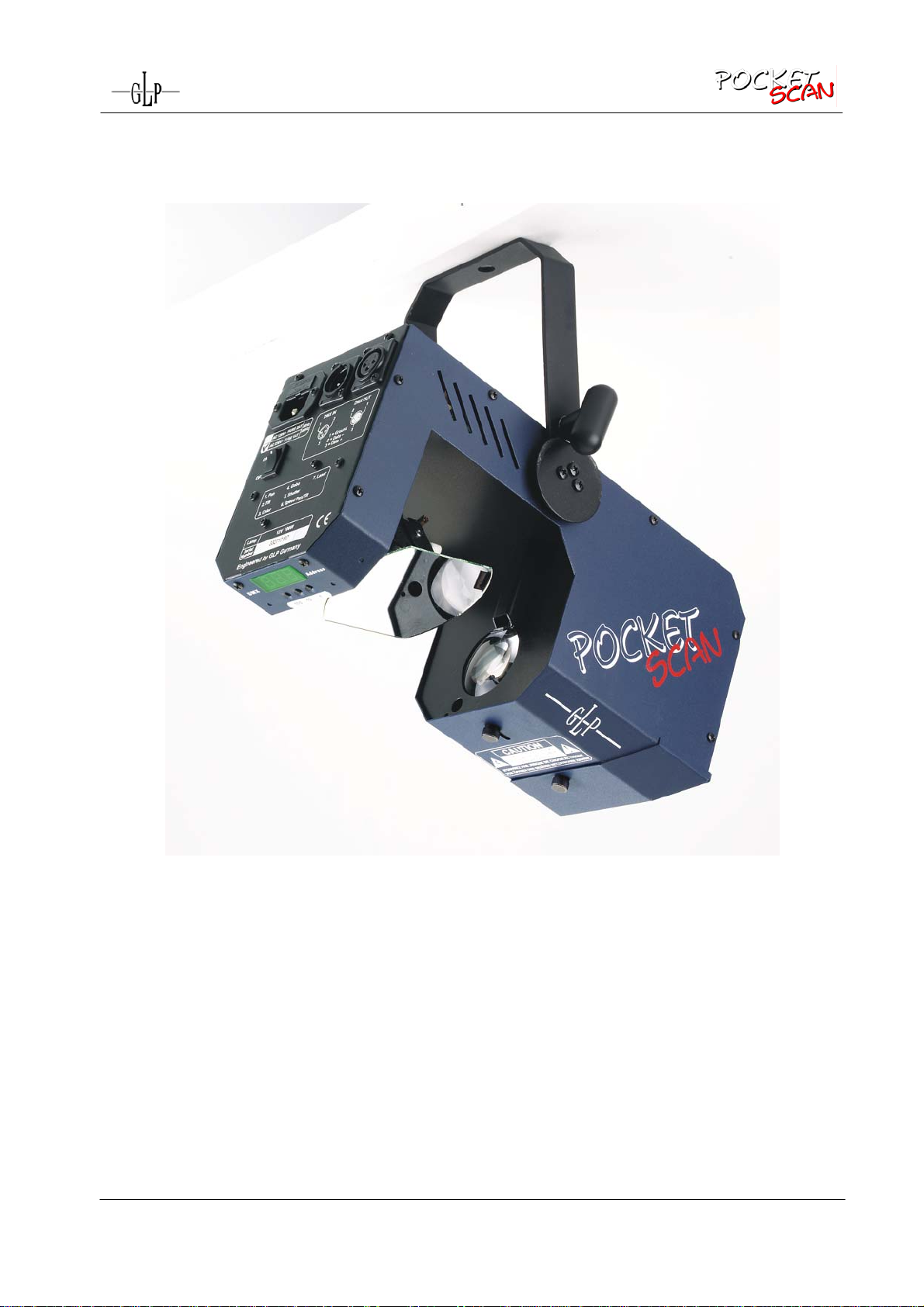

Illustration 1-1

GLP zGerman Light Production (V2.1) 4

1.1 Safety Rules

The

T-

-S

is a High-Tech Product. To guarantee a smooth operation, it

is necessary to keep following rules.

1. Make sure that the mirror of the P

T-

-S

N, can move without any

mechanical problems and that all fan openings are clean and not blocked by

anything.

2. Touching the mirror while moving can cause serious injuries

3. Unplug the

T-

-S

from the AC outlet before any service

4. It is necessary to wait at least 15 minutes after disconnecting the AC before

you open the P

T-

-S

N. Please do not touch the Bulb if you are not

absolutely sure it is cold. -Danger of BURNING-

5. To allow a secure operation, follow also the Installation guide described in

chapter 2. Operating the P

T-

-S

Nwithout suited safety aids like Safety

cables or clamps/hooks can increase the risk of an accident.

6. The installation should be done by qualified staff only. You need to pay

attention to the common rules of technology that are not explicit mentioned in

this manual.

2 Installation

2.1 Mounting

Mount clamps and/or hooks directly to the bow of the P

T-

-S

Please make sure to use right sized clamps and hooks and fit them securely.

The P

T-

-S

Nis fully operational whether it hangs or is mounted to the

wall.

2.2 Secure the

T-

-S

Use always safety wires to secure the P

T-

-S

N, connect them with the

eyelet (see Drawing 1-1 Chapter 1 ) and check the tight fit!

GLP zGerman Light Production (V2.1) 5

2.3 Connectors

2.3.1 AC Connectors

230/120 Volt, 50/60 Hz

Please see printing on the case for the right power supply !

2.3.2 DMX

DMX 512 Standard input/output

Please see printing on the case for the right Pin usage!

[+] = Pin 3 / [-] = Pin 2 / [Ground] = Pin 3

The P

T-

-S

starts at the DMX- Address [001].

2.4 Fuses

The P

T-

-S

electronic system is protected by 5x20 T1.0A fuse 250V, or

5x20 T2.0A fuse 120V. Please see the printing on the P

T-

-S

Disconnect AC outlet before changing a fuse !!!

3 DMX- Addresses / Basic Functions

Adjust the DMX- Address and the basic functions direct at the display of the P

T-

3.1 Adjust the DMX- Address

100 10 1

To adjust the DMX- Address please connect the

T-

-S

Nto the AC power and use the three

keys of the display to make your adjustments.

“Key 100” for the 100 digits.

“Key 10” for the 10 digits.

“Key 1” for the 1 digits.

Counting upwards.

GLP zGerman Light Production (V2.1) 6

3.2 Special Functions

3.2.1 Reset Function

After switching on the P

T-

-S

Na Reset is made automatically.

While the Reset „rSt“ is shown in the display.

You can make a Reset also via DMX direct from your controller. Therefore

select the following DMX- adjustments.

Channel 7 (Laser) DMX-Value: 240 – 250 (for longer than 5 sec.)

3.3 Sound Function

If the P

T-

-S

Nis not in the Master- Mode it will switch automatically to the

sound function if there is no DMX- Signal. If the scans should operate

synchronously you have to connect them with DMX cables. One P

T-

-S

is then the Master (be in Master/Send- Mode) all other scans must be in the

Receive- Mode.

GLP zGerman Light Production (V2.1) 7

3.3.1 Switch between Master- and Receive- Mode

You can switch between the Master- and Receive- Mode by holding the

“Key 100” of the display while switching on the P

T-

-S

For the Master/Send- Mode you see „S-F“ (fast) or „S-S“ (slow) in the

display.

For the Receive- Mode you see „rEC“ in the display.

3.3.2 Adjust the Speed of the internal Program

If the P

T-

-S

Nis in the Master/Send- Mode you can choose

between Send fast or Send slow. Therefore hold the “Key 10” of the display

while switching on the P

T-

-S

„S-F“ (Send- Mode fast): Internal program (fast).

„S-S“ (Send- Mode slow): Internal program (slow).

3.4 Switch off the Lamp

If the Shutter is closed for longer than 1 min. the lamp is switched off

automatically. By any change of the Shutter- Channel the lamp will switched on

immediately.

If the P

T-

-S

Nis in the sound function and there is no music signal for

longer than 1 min. the lamp will also switched off automatically. After any music

signal the lamp will switched on immediately.

GLP zGerman Light Production (V2.1) 8

3.5 Temperate Control

Deviates the temperature value too much from the system standard, the lamp will

turn off automatically.

Reconnection can only be made by authorized dealers.

GLP zGerman Light Production (V2.1) 9

4 Channel Selection ( Overview Table )

Channel Description DMX-Value Hex-Value Value in %

1) Pan Pan- Position 0 - 255 0 - FF 0 – 100%

2) Tilt Tilt- Position 0 - 255 0 - FF 0 – 100%

3) Color Color Correction Filter 5600K 0 -3 0 - 3 1%

Half Color 1 4 - 7 4 - 7 2%

Green 201 8 - 11 8 - B 3%

Half Color 2 12 - 15 C - F 5%

Orange 302 16 - 19 10 - 13 7%

Half Color 3 20 - 23 14 - 17 8%

Blue 101 24 - 27 18 - 1B 10%

Half Color 4 28 - 31 1C - 1F 11%

Yellow 603 32 - 35 20 - 23 13%

Half Color 5 36 - 39 24 - 27 15%

Pink 310 40 - 43 28 - 2B 16%

Half Color 6 44 - 47 2C - 2F 18%

Torques 208 48 - 51 30 - 33 19%

Half Color 7 52 - 55 34 - 37 21%

Red 304 56 - 59 38 - 3B 22%

Half Color 8 60 - 63 3C - 3F 24%

Cyan 104 64 - 67 40 - 43 25%

Half Color 9 68 - 71 44 - 47 27%

Magenta 507 72 - 75 48 - 4B 29%

Half Color 10 76 - 79 4C - 4F 30%

Magenta 501 80 - 83 50 - 53 32%

Half Color 11 84 - 87 54 - 57 33%

UV blue 108 88 - 91 58 - 5B 35%

Half Color 12 92 - 95 5C - 5F 36%

yellow 601 96 - 99 60 - 63 38%

Half Color 13 100 - 103 64 - 67 40%

Green 204 104 - 107 68 - 6B 41%

Half Color 14 108 - 111 6C - 6F 43%

Orange 306 112 - 115 70 - 73 44%

Half Color 15 116 - 119 74 - 77 46%

White 120 - 123 78 - 7B 47%

Half Color 16 124 - 127 7C - 7F 49%
