GLP Fusion EXO Spot 30 Manuale utente

Fusion EXO Spot 30

User Manual

Software version V1.0.00

GLP® Fusion EXO Spot 30 User Manual – Revision B

This document covers fixture software version V1.0.00

The marks ‘GLP’ and ‘German Light Products’ are trademarks registered as the property of German

Light Products GmbH in Germany, in the United States of America and in other countries.

The information contained in this document is subject to change without notice. German Light

Products GmbH and all affiliated companies disclaim liability for any injury, damage, direct or

indirect loss, consequential or economic loss or any other loss occasioned by the use of, inability to

use or reliance on the information contained in this document.

Manufacturer’s head office:

German Light Products GmbH (GLP), Industriestrasse 2, 76307 Karlsbad, Germany

Tel (Germany): +49 7248 92719 - 0

Service & Support EMEA:

GLP, Industriestrasse 2, 76307 Karlsbad, Germany

Tel. (Germany): +49 7248 9271955

Email: [email protected]

www.glp.de

Service & Support USA:

GLP USA, 1145 Arroyo St., Ste. A, 91340 San Fernando, California

Tel (USA): +1 818 767 8899

Support (US): info@germanlightproducts.com

www.germanlightproducts.com

Table of Contents

1. Safety .......................................................................................................... 5

Key to symbols ...................................................................................... 5

General safety information ................................................................. 5

Electrical safety .................................................................................... 6

Fire safety and protection from burns................................................ 7

Eye safety .............................................................................................. 8

Strobe safety ......................................................................................... 8

Installation safety and protection from personal injury ................... 9

2. Avoiding damage to the fixture ............................................................ 10

General precautions.......................................................................... 10

Avoiding damage from light sources and heat ............................. 10

IP rating................................................................................................ 11

Avoiding damage from water and humidity.................................. 11

Avoiding damage from dust and airborne particles..................... 12

Transportation and storage............................................................... 12

GLP Service and Support................................................................... 12

3. EXO Spot 30 overview ............................................................................. 13

4. Installation................................................................................................. 15

Permitted mounting options ............................................................. 15

Securing fixtures with a safety cable ............................................... 15

Installing on a rigging truss or similar structure................................. 16

Standing on a horizontal surface ..................................................... 17

5. AC mains power ...................................................................................... 18

Included items .................................................................................... 18

Connecting to power ........................................................................ 18

Installing power connectors.............................................................. 19

Connecting multiple fixtures to power in a chain .......................... 19

6. Connecting to DMX data....................................................................... 20

7. Starting and stopping operation ........................................................... 21

8. Features .................................................................................................... 22

Position................................................................................................. 22

Color wheels ....................................................................................... 22

Gobo wheels....................................................................................... 23

Dimming .............................................................................................. 24

Strobe / shutter ................................................................................... 24

Prism ..................................................................................................... 24

Frost ...................................................................................................... 24

Focus.................................................................................................... 24

Zoom .................................................................................................... 24

Behavior when the fixture is not receiving a DMX signal ............... 25

9. Control menus and onboard display.................................................... 26

Display options.................................................................................... 27

Display Locking ................................................................................... 27

Manual Control................................................................................... 27

LED PWM frequency........................................................................... 27

Fan control .......................................................................................... 27

Fixture information .............................................................................. 27

Pan disable / Tilt disable .................................................................... 28

Preset settings and factory defaults................................................. 28

10. Control menu layout ............................................................................... 29

Service Advanced menu .................................................................. 31

11. DMX control mode overview ................................................................. 32

12. DMX control channel layout tables....................................................... 33

DMX Mode 1: Standard ..................................................................... 33

13. Service ...................................................................................................... 38

Cleaning .............................................................................................. 38

GLP Service and Support................................................................... 38

14. Technical specifications ......................................................................... 39

Optics................................................................................................... 39

Control ................................................................................................. 39

Installation ........................................................................................... 39

Electrical .............................................................................................. 39

Connections........................................................................................ 39

Construction........................................................................................ 39

Thermal ................................................................................................ 39

Included items .................................................................................... 40

Dimensions and weight ..................................................................... 40

15. Dimensions................................................................................................ 41

German Light Products® Safety

EXO Spot 30 User Manual Rev. A 5

1. Safety

Key to symbols

The following symbols are used in the Fusion EXO Spot 30 lighting fixture’s user

documentation:

General safety information

Read this manual carefully before installing, using or servicing the Fusion EXO Spot 30

lighting fixture.

If you have any doubts or questions about how to use the fixture safely, contact your

GLP® supplier for assistance. Your GLP supplier will be happy to help.

The user documentation for GLP Fusion EXO Spot 30 lighting fixtures consists of:

● This document, the EXO Spot 30 User Manual, supplied with the fixture and available

for download from www.glp.de. The User Manual contains important safety

information and installation instructions that the installer and user must read.

● The EXO Spot 30 DMX Channel Index, available for download from www.glp.de. The

Channel Index is a separate guide to the DMX control channel layout and DMX

commands available.

All documents are available for download from www.glp.de.

The Fusion EXO Spot 30 is intended for use by experienced professionals with the

knowledge and skills to set up, operate, and maintain high-powered, remotely

controlled lighting equipment safely and efficiently. These operations require expertise

that may not be provided in this Manual or in the User Manual.

● Respect all warnings and directions given in the fixture’s user documentation and

on the fixture. Read the user documentation and familiarize yourself with the safety

precautions it contains before installing or using the fixture. GLP and affiliated

Warning! Safety hazard.

Risk of severe injury or

death.

Warning! Hazardous voltage.

Risk of lethal or severe

electric shock.

Warning! See user

manual for important

safety information.

Warning! Fire hazard.

Warning! Risk of eye

injury.

www.glp.de Safety

6 EXO Spot 30 User Manual Rev. A

companies will take no responsibility for damage or injury resulting from disregard for

the information in the user documentation.

● Check the GLP website at www.glp.de and make sure that you have the latest

version of this manual. Check the fixture software version indicated on page 2 of this

manual and then use the fixture’s control panel to check the version installed in the

fixture. If the versions are not the same, this manual may still cover the fixture,

because software updates do not always affect the way you use the fixture.

However, it is possible that this manual does not match the fixture perfectly.

Software release notes can help clarify this question. You can consult software

release notes and download the correct version of this manual on the GLP website if

necessary.

● Make all user documentation available to all installers and operators. Save this

document for future reference.

● If you have any questions about the safe operation of the fixture, please contact an

authorized GLP distributor (see list of distributors at www.glp.de).

● Use the fixture only as directed in this manual. Observe all markings in this manual

and on the fixture.

● Refer all repairs and any service operation not described in this manual to a

technician authorized by GLP.

● The light source in this fixture must not be changed by the end user.

● Read and follow the user documentation for all additional equipment.

Electrical safety

● Do not allow the fixture to become immersed. Do not expose the fixture to high-

pressure water projections.

● Keep any unused connectors on the fixture sealed with their protective caps at all

times, both when the fixture is in use and when not in use.

● Use only a source of AC mains power that complies with local building and

electrical codes and has both overload and ground fault (earth fault) protection.

● Ensure that the fixture is electrically connected to ground (earth).

● Disconnect the fixture from AC mains power before carrying out any installation or

maintenance work and when the fixture is not in use.

● Disconnect the fixture from power immediately if any seal, cover, cable, connector

or other component is damaged, defective, deformed or showing signs of

overheating. Do not reapply power until the fixture has been repaired and made

safe by a technician authorized by GLP.

● Check that all power distribution equipment, cables and connectors are in perfect

condition, rated for the electrical requirements of all connected devices, suitable

for their application and suitable for the installation environment.

German Light Products® Safety

EXO Spot 30 User Manual Rev. A 7

● Use only Neutrik PowerCON TRUE1 cable connectors for AC mains power input at

the fixture’s Mains IN connector and for relaying AC mains power from one fixture’s

Mains OUT (Thru) connector to another fixture’s Mains IN connector.

● Use minimum 14 AWG or 1.5 mm2power input and relay cables that are minimum

16 A-rated and temperature-rated to suit the application. In the USA and Canada

the cables must be UL-listed, type SJT or equivalent. In the EU the cables must be

type H05VV-F or equivalent.

● Do not connect devices to power in a chain if the total maximum current draw of all

the devices in the chain when added together will exceed the current rating of any

cable or connector used at any point in the chain. The supplied power input cable

is rated as follows:

- US power cable: 16 A, 14 AWG, UL-listed, E304117, SJT, 4.9 ft.

- EU power cable: 16 A, 1.5 mm², H07RN-F, 1.5 m.

Do not connect more than six (6) Fusion EXO Spot 30 fixtures to power in a chain at

100-120 V, 60 Hz.

Do not connect more than twelve (12) Fusion EXO Spot 30 fixtures to power in a

chain at 200-240 V, 50 Hz.

● The voltage and frequency at the Mains OUT socket are the same as the voltage

and frequency applied to the Mains IN socket. Only connect devices to the Mains

Out socket that accept this voltage and frequency.

● Fusion EXO Spot 30 fixtures do not have a user-replaceable fuse. If you suspect that

a fuse has blown, disconnect the fixture from power and send it to a technician

authorized by GLP for repair.

Fire safety and protection from burns

● Do not operate the fixture if the ambient temperature (Ta) exceeds 40° C / 104° F.

● The surface of the fixture’s casing can reach up to 90° C / 194° F during operation.

Avoid contact by persons and materials. Do not install the fixture in a location where

there is a risk of accidental contact. Allow the fixture to cool for at least 20 minutes

before handling

● Keep the fixture well away from flammable materials.

● Keep all combustible materials (e.g. fabric, wood, paper) at least 0.5 m / 20 in.

away from the fixture.

● Ensure that there is free and unobstructed airflow around the fixture.

● Do not illuminate surfaces within 0.5 m / 20 in. of the fixture. The light output from the

fixture is powerful enough to cause burns or fire in illuminated objects at very close

range.

● Do not stick filters, masks or other materials onto the fixture. Do not block the light

output in any way. The front surface becomes hot during operation and can melt or

www.glp.de Safety

8 EXO Spot 30 User Manual Rev. A

ignite objects that are in contact with the surface. Ensure that the front surface Is

clean and unobstructed at all times in order to prevent a fire hazard and damage

to the fixture.

● The fixture’s optical components can focus the sun’s rays, creating a risk of fire and

damage. Do not expose the front of the fixture to sunlight or any other intense light

source, even from an angle.

Eye safety

● The EXO Spot 30 is classified as a Risk Group 3 lighting fixture according to EN 62471.

Possibly hazardous radiation emitted. Do not stare into the light output from the

fixture. May be harmful to the eyes.

● Do not look at the fixture’s light output with optical instruments or any device that

may concentrate the light output.

● Make sure that persons near to or working on the fixture are not looking directly into

the light output when the fixture lights up suddenly. This can happen when power is

applied, when the fixture receives a DMX signal, or when certain control menu items

are selected.

● The warning below is printed on the fixture. If the warning becomes impossible to

read, replace it with a label reproduced from this illustration:

● Provide well-lit conditions to reduce the pupil diameter of anyone working on or

near the fixture.

Strobe safety

● Flashing light, particularly at 5 - 30 Hz, may cause seizures in persons with

photosensitive epilepsy. Do not use strobe effects for extended periods.

● Comply with local regulations on the use of strobe lighting and notify the public in

advance with highly visible warning signs when strobe effects are used.

● If a seizure occurs, stop using strobe effects. Seek professional medical help. Note

the time that the seizure starts and finishes. Call emergency medical help urgently if

German Light Products® Safety

EXO Spot 30 User Manual Rev. A 9

the seizure lasts more than five minutes, if it is the person’s first seizure, or if the person

is injured. While waiting for help to arrive, protect the affected person from injuring

themselves on hard or sharp objects. If necessary, move the person to a safe place.

Lay them on their side with their head supported to prevent it from hitting the floor.

Loosen any tight clothing around their neck. Do not use force to hold the person or

restrict their movements. Do not put anything in their mouth, including your fingers.

Installation safety and protection from personal injury

● Installation must be performed by qualified personnel only and carried out in

accordance with all locally applicable regulations such as DIN VDE 0711-217.

● The fixture is not portable when installed.

● Ensure that the supporting structure and installation hardware used can hold at least

ten times the weight of the load that they support.

● Fasten the fixture to a structure or surface only as directed in this manual and only

with hardware that is specifically designed and rated for its purpose. Do not use a

safety cable as the primary means of support. Check that installation hardware is in

perfect condition. Fasteners must be steel grade 8.8 strength or better. Rigging

clamps must be half-coupler type that completely encircle the rigging truss chord.

● If the fixture is installed in a location where it may cause injury or damage if it falls,

install as directed in this manual a safety cable or similar secondary attachment that

will hold the fixture if a primary attachment fails. The secondary attachment must be

approved by an official body such as TÜV as a safety attachment for the weight

that it secures, it must comply with EN 60598-2-17 Section 17.6.6, and it must be able

to support a static suspended load that is ten times the weight that it secures.

● If the fixture is installed in a location where it may be exposed to forces such as wind

pressure, vibration or movement, make sure that the installation can withstand these

forces. Monitor weather forecasts constantly. Take down the installation

immediately if there is any risk of weather conditions that could destabilize the

installation.

● Check that all covers and items of rigging hardware are secure before using the

fixture. Do not operate the fixture with missing or damaged covers, shields or any

optical component.

● Restrict access below the work area and work from a stable platform whenever

installing, servicing or moving the fixture.

● If the fixture becomes damaged, stop using it immediately and disconnect it from

power. Do not attempt to use a fixture that is obviously damaged.

● Do not modify the fixture in any way not described in its user documentation.

● Install genuine GLP parts only.

www.glp.de Avoiding damage to the fixture

10 EXO Spot 30 User Manual Rev. A

2. Avoiding damage to the fixture

Important! Follow the directions in this section carefully, or the fixture may suffer

damage that is not covered by the product warranty.

General precautions

Do not drop the fixture or expose it to mechanical stress.

Protect the onboard LCD display and control panel from shocks, or they may suffer

damage that is not covered by the product warranty.

Do not expose the fixture to heat (from other lighting fixtures for example).

Clean optical components only as directed. Oils, solvents, and other chemicals

commonly used for cleaning can damage the lens coatings and surfaces.

Use only original spare parts. Do not make any structural modifications to the fixture or

you will void the product warranty.

Avoiding damage from light sources and heat

Do not point the front of the fixture towards the sun or other strong light sources. Strong

light can cause internal damage to the fixture, melting components or starting an

internal fire within seconds.

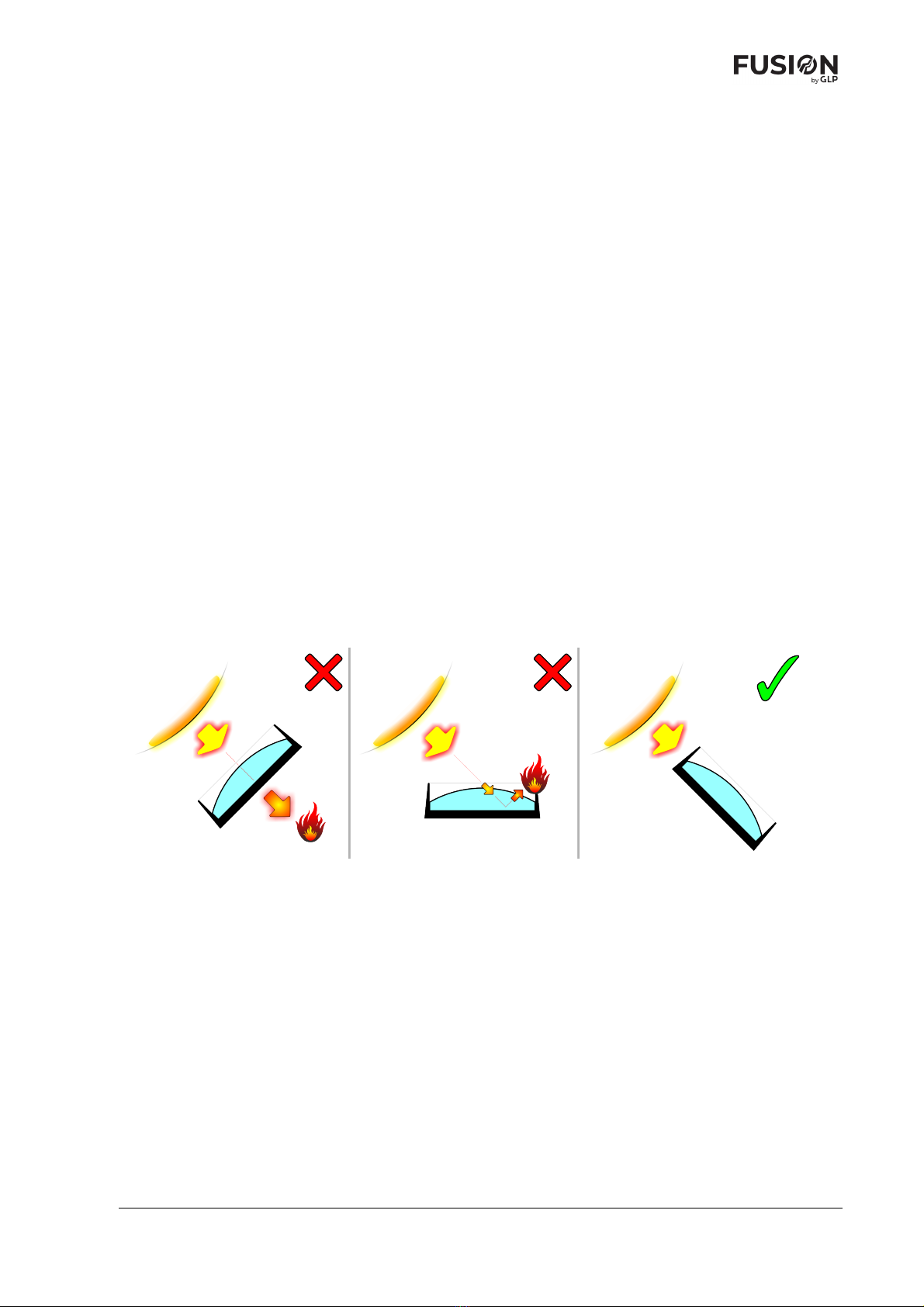

Figure 1. Avoiding damage from light sources

Damage can occur whether the fixture is powered on or off. See Figure 1. Damage

can also occur if the light hits the front of the fixture at an angle: the fixture does not

need to be pointing directly at the sun or other light source.

To avoid problems from strong light sources:

● Do not expose the front of the fixture to sunlight or any other strong light source.

● In outdoor applications during daylight, make sure that the front face of the fixture is

shielded or points away from the sun, even when not in use.

● Do not aim other high-powered beam lights directly at the fixture.

Do not operate the fixture in ambient temperatures above 40° C / 104° F. Allow free

airflow around the fixture.

Indice

Altri manuali GLP Riflettore

GLP

GLP YPOC PRO 250 Manuale utente

Manuali Riflettore popolari di altre marche

Guangzhou Yinhe Lighting&Sound Equipment Factory

Guangzhou Yinhe Lighting&Sound Equipment Factory NE-204 Manuale utente

LIVARNO home

LIVARNO home 375304 2101 Istruzioni originali

Cameo

Cameo CLQS40WW Manuale utente

Leviton

Leviton Ellipsoid 5/50 Manuale utente

Monacor

Monacor img Stage Line PARL-56PDX/CR Manuale utente

Vector

Vector SL3AKV Manuale utente

Quantum

Quantum Q262 Manuale operativo

Philips

Philips Vari-lite VL3015LT Manuale utente

EUROSPOT

EUROSPOT C51 Manuale utente

DTS

DTS MINI BRICK ARC Manuale utente

Federal Signal Corporation

Federal Signal Corporation VISIBEAM II Manuale

ACME

ACME LED-MS350B Manuale utente

EuroLite

EuroLite Akku flat light 1 Manuale utente

Commercial Electric

Commercial Electric SPTM-1401 Manuale utente

Vision & Control

Vision & Control SLB-500-W5K7-P-SL Manuale utente

Teknik

Teknik FLEXI Manuale utente

Craftsman

Craftsman CMXLSB10 Manuale utente

EuroLite

EuroLite LED SLS-144 UV Floor Spot Manuale utente
