Preface
This controller is designed for Sony pan/tilt/zoom cameras and
supports VISCA protocol. It has all the functions of the Sony
PTZ camera handheld remote controller and adds a touch
sensitive joystick control. In addition to the joystick and
keyboard, the controller has an LCD screen for displaying
commands and the camera's working status.
Features and functions of joystick controller:
* Supports VISCA protocol
* Can set and call 1-46 presets of Sony PTZ cameras
* Communication modes: RS485, RS422, RS232
* All parameters can be set conveniently through function keys
* Can control up to seven Sony PTZ cameras
* Supports operation password function
* Key-press sound on/off function
* Variable speed joystick control
user manual | 1
The contents of this manual may be updated periodically
without notification.
Notes:
* The LCD is fragile. Avoid long exposure under strong light.
* The controller should be used withinin the specified
temperature and humidity ranges (see chart below).
* Follow the connection method defined in this manual
* Joystick is fragile. Make sure product is packed in original or
adequate packaging if transported.
user manual | 2

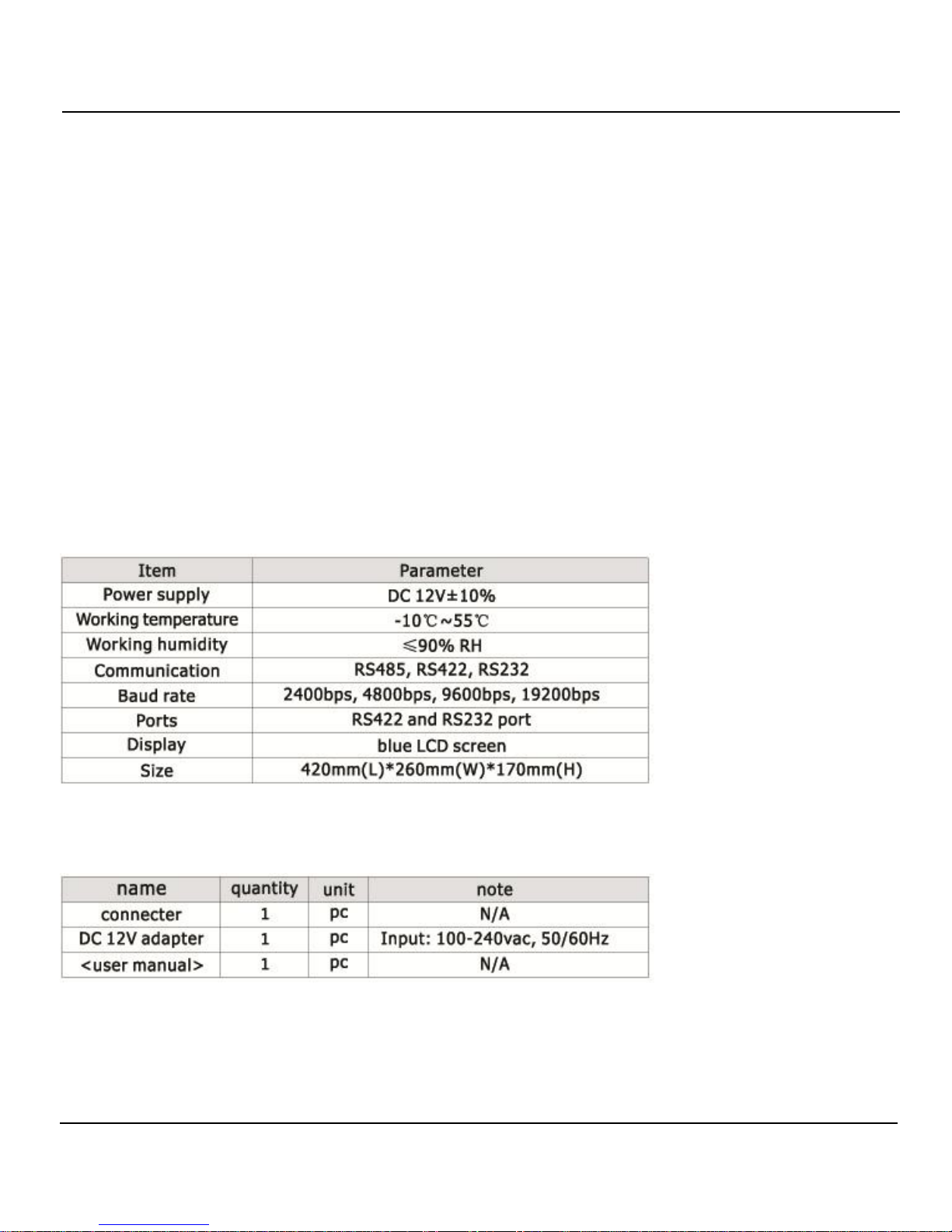

Parameters:
Accessories:
Contents
1.1 Keyboard ... 4
1.2 LCD screen ... 7
1.3 Joystick ... 7
1.4 Rear panel ... 8
1. Front panel and rear panel ................................................................................ 4
2. Operation .............................................................................................................. 9
2.1 Single key functions and combined key functions ... 9
2.2 Combined key functions ... 9
2.3 Camera ID setup ... 10
2.4 Preset setup and recall ... 10
2.5 Menu setup ... 11
user manual | 3
3. System settings ................................................................................................. 13
3.1 System settings setup ... 13
3.2 Settings framework ... 15
3.3 System settings display ... 15
4. Camera connection ............................................................................................ 16
5. FAQ ...................................................................................................................... 19
1. Front Panel and Rear Panel

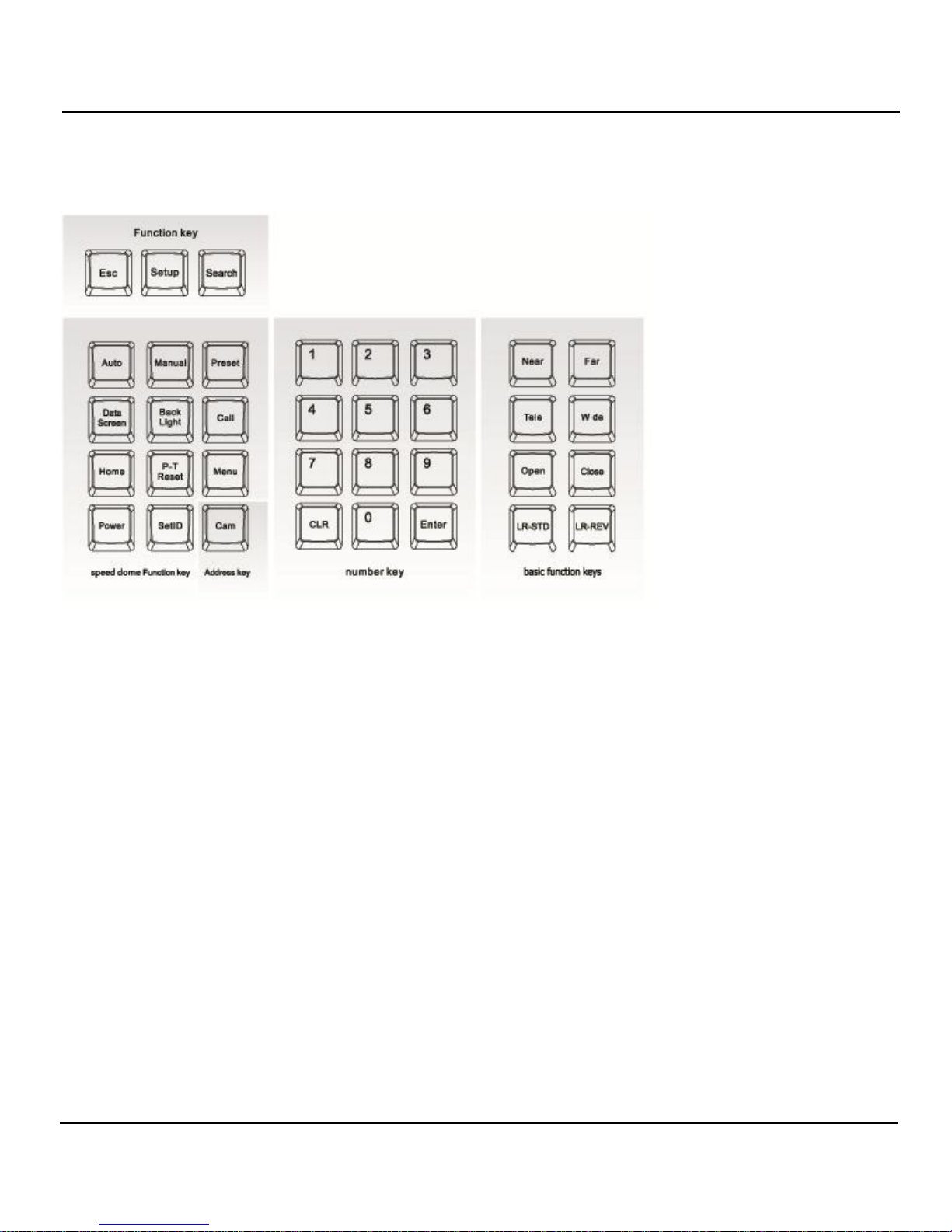

1.1 Keyboard
user manual | 4
[Esc] Back to previous menu
[Setup] Press and hold 3s to get into setup menu
[Search] Display keyboard model number, serial
number, key-press sound and operation
lock
1.1.1 Keyboard function keys:
[Auto] Enable auto focus
[Manual] Enable manual focus
1.1.2 Sony PTZ camera function setup/recall keys:
user manual | 5
[Data Screen] Open/close data screen
[Back Light] Turn on/turn off back light
[Home] Move camera to home position
[P-T Reset] Reset the camera
[Power] Power on/off camera
[SetID] Camera ID setup
[Preset] Camera preset setup; used with number
key and [Cam] key
[Call] Recall camera preset; used with number
key and [Cam] key
[Menu] Display camera menu
[Cam] Select the camera's ID
user manual | 6
[Near] In manual focus mode, focus near
[Far] In manual focus mode, focus far
[Tele] Zoom-in in slow speed, increase
magnification (note: to zoom-in faster, use
joystick and turn clockwise)
[Wide] Zoom-out in slow speed, decrease
magnification (note: to zoom-out faster,
use joystick and turn counter clockwise)
[Open] In manual aperture mode, enlarge camera
aperture
[Close] In manual aperture mode, reduce camera
aperture
[LR-REV] Reverse direction of controller; camera
moves in opposite direction of controller
1.1.3 Number keys:
[CLR] Delete all information keyed in
[0] - [9] Number keys: 0,1,2,3,4,5,6,7,8,9
[Enter] Confirm and save all information keyed in
1.1.4 PTZ camera basic function keys:
user manual | 7
[LR-STD] Reset direction of controller to standard;
camera moves in same direction as
controller
1.2 LCD Screen
All operations of keys and joystick will display on LCD screen when pressed. LCD
screen will go into power saving mode (brightness level is reduced) if there is no user
activity for more than 30 seconds.
1.3 Joystick
user manual | 8
1.4 Rear panel
Rear panel: 5 ports for RS422, 1 port for RS232, 1 DC 12V input port, 3 status
indicator lights
Rear panel description
2. Operation
2.1 Single key functions and combined key functions
user manual | 9
Single key functions: press key and camera will recall the specified function
Single funtion keys: [Auto] [Data Screen] [Home] [Back Light] [P-T Reset] [Tele]
[Wide] [Open] [Close] [LR-STD] [LR-REV] [Joystick]
Combined key functions: press key for more than 2 seconds and camera will recall
the specified function
Combined funtion keys: [Manual] [Preset] [Call] [Menu] [Cam] [Power] [SetID] [CLR]
2.2 Combined key functions

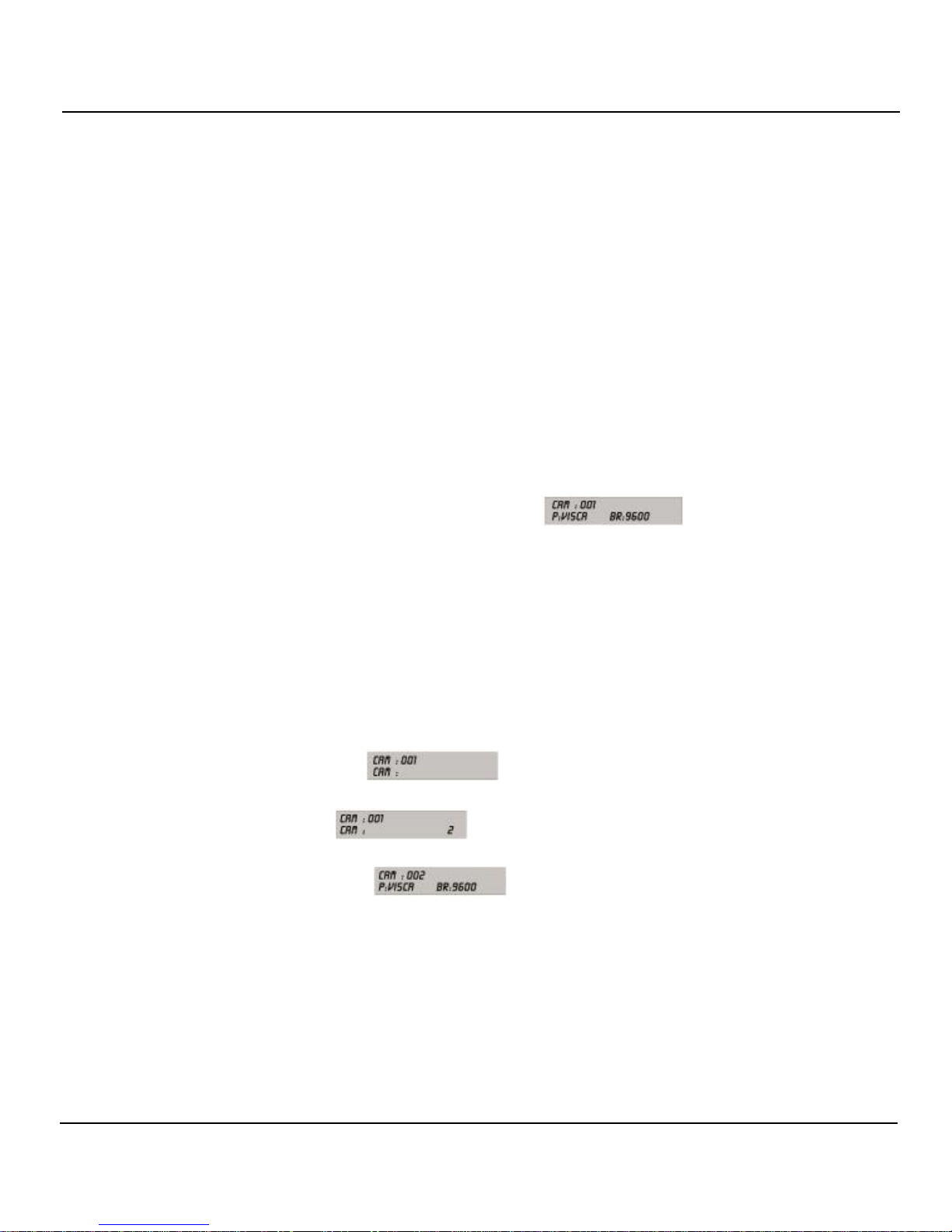

Must be in control mode. If LCD screen displays controller is in control
mode. If screen displays other information, press [Esc] to go back to control mode.
2.2.1 Select camera ID:
Press [Cam], enter camera ID number, press [Enter]
For example, to select Camera 2:
Press [Cam], LCD will display:
Press [2], LCD will display:
Press [Enter], LCD will display:
