2. Use the template included in the GPR-22 Regulator Manual to mark the four mounting
holes and the “cutting line for flush mounting”. Drill the mounting holes. Use a
keyhole or jig saw to cut along the rectangular outline you marked.
3. Wire the regulator as shown in the GPR-22 Regulator Manual. Use the leftover
power cable to connect the regulator to the batteries.
4. Mount the regulator to the wall using the four wood screws provided. Slip the washers
(supplied) over the screws so the washers are between the back of the regulator
and the wall. This provides an air gap for added cooling. Ensure the back of the
regulator is protected from damage by any object.
7.0 Connecting to the Battery & Solar Array
It is recommended to connect directly to the battery wherever possible.
1. Clean all corrosion from battery terminals before proceeding. Crimp ring terminals
onto the negative and positive wires of the power cable to be attached to the battery.
2. Attach the negative (black) wire’s 3/8” ring terminal to the RV battery. Check all
electrical connections and apply a protective coating to battery terminals.
7.1 Typical Battery Connection
1. Multiple 12 volt battery connection. (See Figure 6)
2. 6 volt battery connection. (See Figure 7)
8.0 Limited Warranty
1. Go Power! Electric Inc. warrants the Go Power! Electric RV Solar Power Kit for a
period of one (1) year from the date of shipment from its factory. This warranty is
valid against defects in materials and workmanship for the one (1) year warranty
period. It is not valid against defects resulting from, but not limited to:
• Misuse and/or abuse, neglect, or accident.
• Exceeding the unit’s design limits.
• Improper installation, including, but not limited to, improper environmental
protection and improper hook-up.
• Acts of God, including lightning, floods, earthquakes, fire, and high winds.
• Damage in handling, including damage encountered during shipment.
2. This warranty shall be considered void if the warranted product is in any way opened
or altered. The warranty will be void if any eyelet, rivets, or other fasteners used to
seal the unit are removed or altered, or if the unit’s serial number is in any way
removed, altered, replaced, defaced or rendered illegible.
3. The one (1) year term of this warranty does not apply to equipment where another
manufacturer’s warranty is available. This may include but is not limited to, the
charge controller, the solar modules and the inverter. The time limit for this warranty
may be for more or less than the Go Power Electric Inc. limited warranty. Go Power
Electric Inc. will assist the claimant in attempts to seek warranty claims for such
equipment.
8.1 General Warranty Issues
Refer to the manufacturer’s warranty sheet(s) where applicable.
1. Go Power Electric Inc. cannot assume responsibility for any damages to any system
components used in conjunction with Go Power Electric Inc. products, nor for claims
for personal injury or property damage resulting from the use of Go Power Electric
Inc. products or the improper operation thereof or consequential damages arising
from the products or use of the products.
2. Go Power Electric Inc. cannot guarantee compatibility of its products with other
components used in conjunction with Go Power Electric Inc. products, including, but
not limited to, solar modules, batteries, and system interconnects, and such loads
as inverters, transmitters, and other loads which produce “noise” or electromagnetic
interference, in excess of the levels to which Go Power Electric Inc. products are
compatible.
12 V Batteries

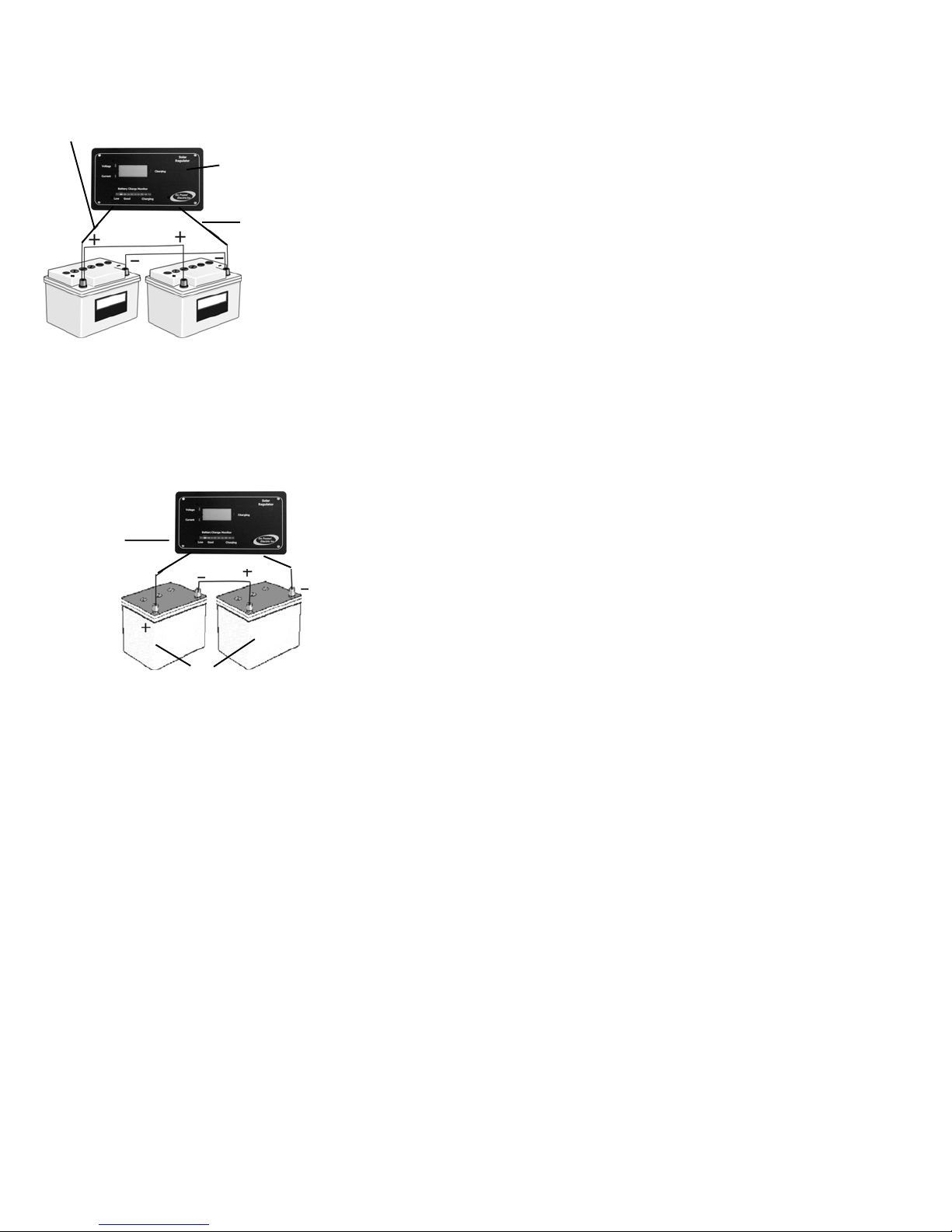

Figure 6
Red (Positive Wire)
Figure 7
6 V Batteries
Solar
Regulator
Black
(negative)
wire
Solar
Regulator
