Godox AI2C Manuale utente
Instruction Manual
使⽤⼿册
2路录音声卡
2-Channel Audio Interface
Instruction Manual
使用手册
合格证
QCPASS
地址：深圳市宝安区福海街道塘尾社区耀川工业区厂房2栋 电话：0755-29609320(8062)
传真：0755-25723423 邮箱：[email protected]
深圳市神牛摄影器材有限公司
GODOX Photo Equipment Co.,Ltd.
Add.: Building 2, Yaochuan Industrial Zone, Tangwei Community, Fuhai Street, Bao'an District, Shenzhen
518103, China Tel: +86-755-29609320(8062) Fax: +86-755-25723423 Email: [email protected]
www.godox.com
Made in China
Forward
Thank you for purchasing!
The AI2C offers flexible livestreaming and recording capabilities via its two mic/instrument inputs,
analog and digital smartphone I/O. The bus-powered Audio Interface features durable aluminum
construction and 24-bit/192kHz high-resolution AD/DA converters, making it sturdy, sonically solid,
and convenient.
Feature
• Silicone elastic treatment, resistant to falling and beautiful
• Support 5V/48V condenser microphone
• Built-in 48V phantom power
• USB2.0 transmission
• Support instrument input
Technical Data
• Microphone Input
Total harmonic distortion plus noise: <0.0061% (-90dB)
Dynamic range: 101dB (A weighting)
Signal to noise ratio: -94dB (A weighting)
Frequency response: 22Hz to 22kHz (+/-0.1dB)
Adjustable gain range: +34dB
Crosstalk: -87dB @1kHz
Input impedance: Mic in 1.8K Ohms, typical
Total gain range: +50dB
• Line output 1/2 (unbalanced)
Rated output level: Unbalanced: +4dBV, typical
Load impedance: 600 Ohm minimum
Dynamic range: 105dB (A weighting)
Total harmonic distortion plus noise: <0.003% (-90 dB)
Large output level: +11dBV, typical
Signal-to-noise ratio: -100dB (A weighting)
Frequency response: 22Hz to 22kHz (+/-0.1dB)
Input impedance: 150 Ohm
Crosstalk: 100dB@1kHz
• Headphone output
Frequency response: 22Hz to 22kHz (+/-0.1dB)
Load impedance: 32 to 600 Ohms
Signal to noise ratio: -90dB (A weighting)
Total harmonic distortion plus noise: <0.03% (-70dB)
Input impedance: 75 Ohm
Packing List
AI2C ×1, Micro USB Charging Cable ×1, Type B A/M USB Data Cable ×1,
3.5mm Audio Cable ×2, Instruction Manual ×1
MIC INST
/
+ 48V
MIC HP
LINE OUTPUTS
L R
DC 5V

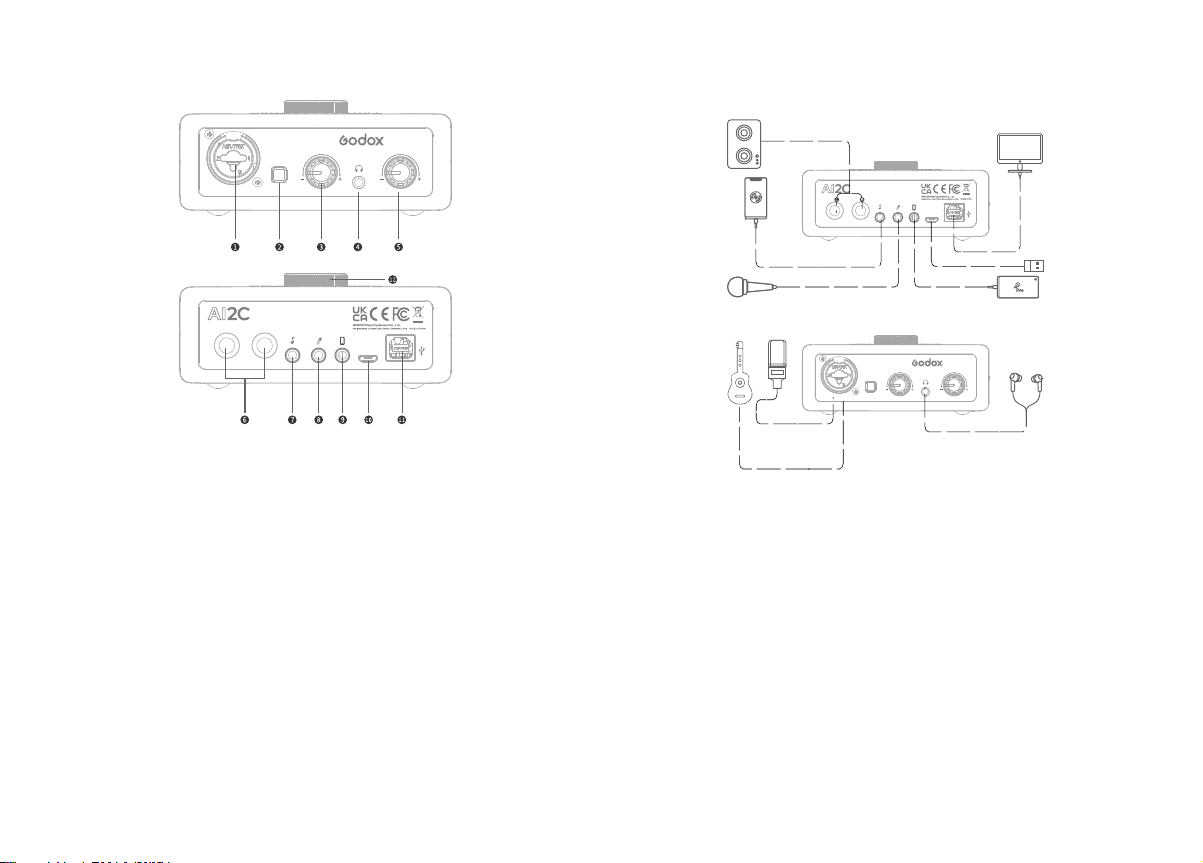

Product Structure
1. XLR Interface (MIC/INST)
48V condenser microphone can be
connected when 48V power is on, dynamic
microphone can be connected when 48V is
off; built-in 6.35 interface, can be
connected to musical instruments;
2. 48V Power Switch
Press to open, bounce to close;
3. MIC Volume Adjustment Knob
Turn left to decrease the volume of the
microphone while turn right to increase;
4. Headphone Jack
Can be connected to various types of
headphones (32Ω - 600Ω);
5. Headphone Volume Adjustment Knob
Turn left to decrease the volume of the
monitor headphone while turn right to
increase;
6. LINE QUTPUTS Left/Right Channel Outpt
Interface (6.35mm Interface)
Can be connected to active speakers;
ConnectingInstruction
7. Accompaniment Interface
Connect the accompaniment mobile phone
through the 3.5mm audio cable equipped;
8. Microphone Interface
Can be connected to 3.5mm interface
microphones (dynamic microphones and
condenser microphones no need power
supply);
9. Live Interface
Connect to mobile phone through the
3.5mm audio cable equipped;
10. 5V Power Interface
When the power supply of the USB interface
is insufficient, it is used as a
backup/supplementary power supply;
11.USB Interface
Power supply and audio communication,
connect to a computer as a live
broadcast/recording device;
12. Live Volume Adjustment Knob
Turn left to decrease the live broadcast
volume while turn right to increase.
1. Use a Type B A/M USB Data Cable to connect to the computer;
2. Use the 3.5mm audio cable equipped to connect the product with the mobile phone;
3. Insert the headset into the "headphone" jack;
4. Computer to play the accompaniment, and adjust the "microphone" volume and "monitor" volume,
so that the microphone and accompaniment volume match;
5. Open the mobile phone livestreaming APP, adjust the total volume of the livestreaming to a
suitable level, you can enjoy the fantastic livestreaming experience.
LINE OUTPUTS
L R
DC 5V
MIC INST
/
+ 48V
MIC HP
Loudspeaker Connecting
Cable (6.35mm)
Accompaniment Connecting
Cable
Computer
Connecting Cable
USB-A Connecting Cable
Live streaming
Connecting Cable (3.5mm)
5V Condenser Microphone/Dynamic
Microphone Connecting Cable
Headphone Connecting Cable
48V Condenser Microphone/
Dynamic Microphone
Connecting Cable
Instrument Connecting Cable
Instruction of Mobilephone Livestreaming
RoHS
MADE IN CHINA
Add: Yaochuan Industrial Zone, Bao'an, Shenzhen, China
GODOX Photo Equipment Co., Ltd.
Control Panel Instruction
Driver settings
1. Sound card sampling rate setting;
2. ASIO cache setting, the smaller the ASIO cache setting, the higher the requirements for computer
performance. When the ASIO buffer is too small, the computer cannot process the audio data in time,
and noise will appear. At this time, a larger ASIO buffer should be set;
3. Safe mode. After the safe mode is turned on, the requirements for computer performance can be
appropriately reduced, but at the same time it will also increase the delay of ASIO;
1. HW1/2 (MIC), the input channel of the Audio Interface driver, the audio comes from the microphone
input of the hardware.
2. HW3/4 (LINE IN), the input channel of the Audio Interface driver, the audio comes from the 3.5mm
accompaniment input of the hardware and the mixing of the instrument input.
3. Out1/2, the input channel of the Audio Interface driver, the audio data comes from the system
playback device AI2C 1/2.
4. Out 3/4, the input channel of the Audio Interface driver, the audio data comes from the system
playback device AI2C 3/4.
5. Virtual 1/2, the input channel of the Audio Interface driver, the audio data comes from the system
playback device AI2C Virtual 1/2.
6. Virtual 3/4, the input channel of the Audio Interface driver, the audio data comes from the system
playback device AI2C Virtual 3/4.
7. HW1/2 (HP), the output channel of the Audio Interface driver, output to the earphone and LINE
OUTPUTS interface on the hardware device.
8. HW 3/4 (Phone), the output channel of the Audio Interface driver, output to the mobile phone live
interface on the hardware device.
9.In 1/2, the output channel of the Audio Interface driver, output to the system recording device AI2C
1/2.
10.In 3/4, the output channel of the Audio Interface driver, output to the system recording device AI2C
3/4.
11.Virtual 1/2, the output channel of the Audio Interface driver, output to the system recording device
AI2C Virtual 1/2.
12. Virtual 3/4, the output channel of the Audio Interface driver, output to the system recording device
AI2C Virtual 3/4.
Compatible System
Window 7(32-bit)
Window 7(64-bit)
Window 8(32-bit)
Window 8(64-bit)
Maintenance
1. Use in low temperature and dry environment
Keep this product in a dry environment, pay attention to moisture and static electricity, and avoid use
in high temperature and high humidity environments;
2. Regularly clean and maintain it
It is recommended to conduct professional cleaning and maintenance on a regular basis;
3. Storage conditions
If not used for a long time, this product must be stored in a dry environment;
A moisture-proof storage box with temperature and humidity adjustment functions is preferred.
Troubleshooting
1. No sound from the microphone
Please check physical connection of the microphone;
Please check whether the 48V phantom power is turned on (in the case of 48V condenser
microphones);
Please check if the headphone and microphone volume knobs are in place;
Please check whether the volume of the driver panel is adjusted too low or muted.
2. Howling from the microphone
Please check whether the microphone is directly facing the speaker;
Please check whether the microphone is too close to the speaker, and keep the distance between the
microphone and the speaker at least 1.5 meters;
Please check whether the microphone gain and earphone gain are too large.
3. The microphone is noisy
Please check if the microphone is connected well, or please re-plug it;
Please check if the distance between the microphone and the lips is too close, the distance between
the lips and the microphone should be kept at 10-20 mm or at a 45 degree angle, better results can
be obtained;
Please check whether the microphone gain is too large, causing the microphone to pick up too
sensitively;
Please check whether there are noisy noise sources in the surrounding environment that affect the
microphone pickup;
Please check whether there is a "router" or other large electrical equipment causing interference in
the surrounding environment.
Window 8.1(32-bit)
Window 8.1(64-bit)
Window 10(32-bit)
Window 10(64-bit)
