Gold Note M-7 Manuale utente

Gold Note®

M-7

ITALIAN MONO BLOCK AMPLIFIER

Owner’s Manual

MANUFACTURED IN ITALY

TEL.+39.0571.675005 FAX.+39.0571.675013

M-7 Italian Mono Block Amplifier

Table Of Contents

-Congratulations & Introduction 3

-ContentsofPackaging 4

-BackPanelFeatures 4

-Operating Conditions & Front Panel 5

-Technical Specifications 7

-Warranty, Customer Service, Warnings & F.A.Q. 8

-Troubleshooting 9

-F.A.Q. 10

VERY IMPORTANT: Please read the following instructions carefully before installing your Gold Note® unit

M-7 Italian Mono Block Amplifier

Congratulations

Thank you for having purchased a Gold Note® product.

Introduction

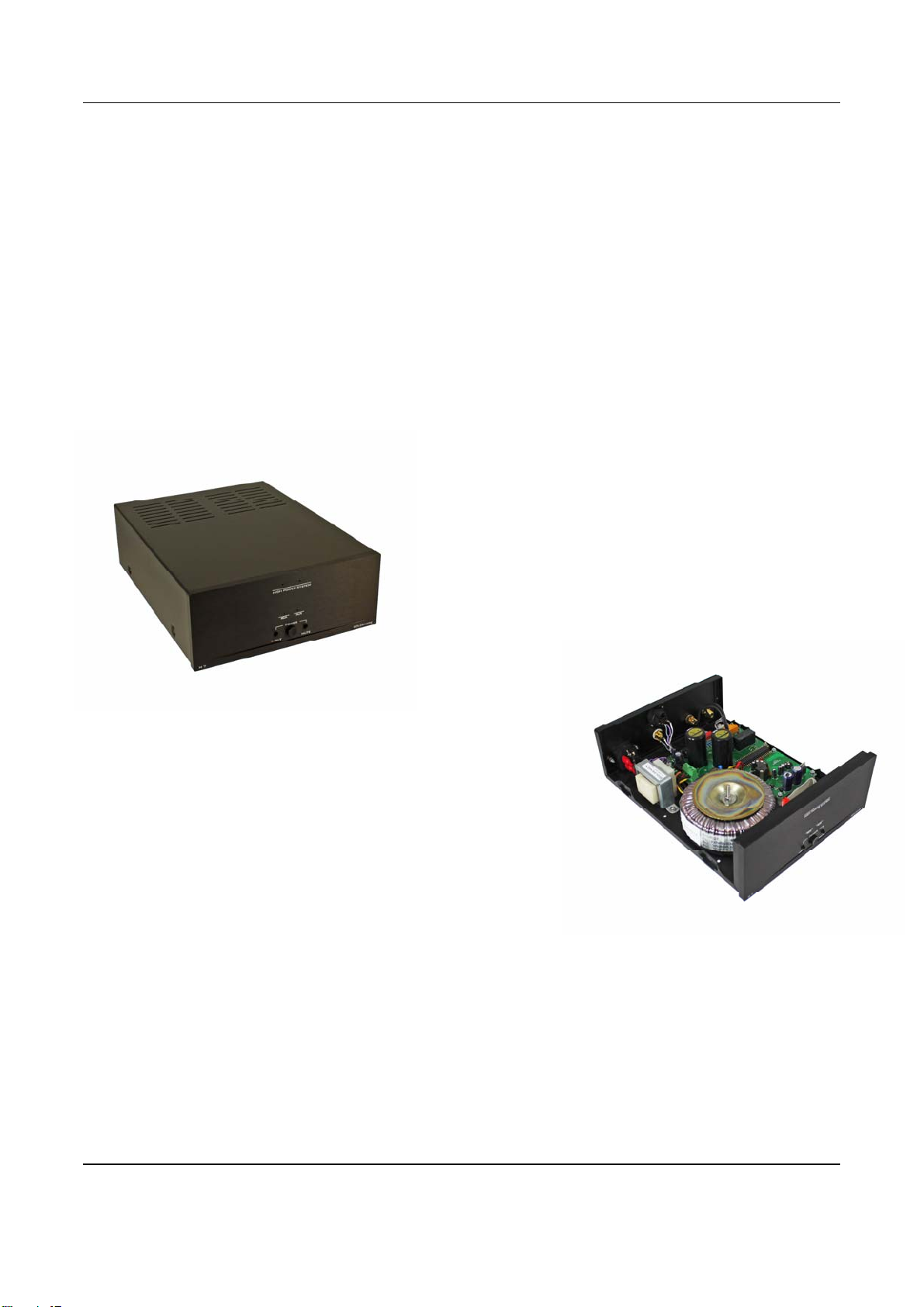

The Gold Note M-7 is a top quality Mono Block amplifier featuring 100 watt RMS power.

The M-7 is mono amplifier conveniently shaped in a super compact

elegant chassis.

around innovative micro components, the M-7 is able to drive any

kind of loudspeakers with ease and naturalness.

The M-7 is a 100Watt fully balanced amplifier can be hooked to

any preamplifier guaranteeing always the best audio performance.

The slim design

enable the unit to

be used combined

with any top quality

audio system where

dimension and look also matter.

The modern convenient compact luxury look helps introducing the unit into

any audio system or building a full Micro Line system offer a complete line

of high class convenient products.

Congratulations & Introduction

M-7 Italian Mono Block Amplifier

(Contents of Packaging)

1pc. MONO BLOCK AMPLIFIER UNIT

1pc. DETACHABLE AC POWER CHORD

INSTRUCTIONS MANUAL

(Set-Up Instructions)

-Open all the cartons inside the main box and look that all the components listed are present.

-Carefully remove the M-7 Mono Block Amplifier chassis from the shipping box and foam.

-Connect the audio cable (not supplied) and the AC Power Chord supplied.

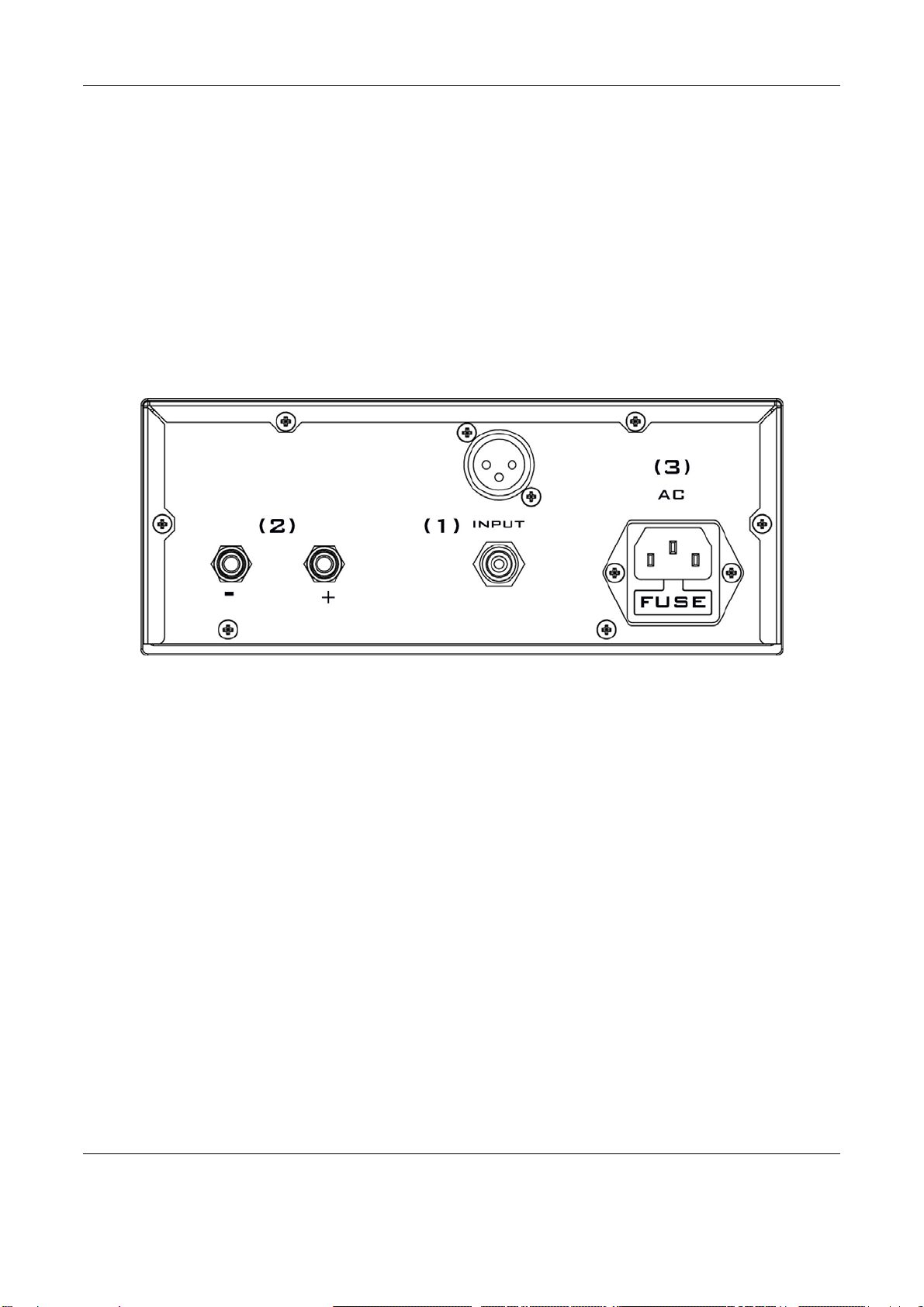

M-7 back panel

o(1) RCA unbalanced and XLR balanced mono input

o(2) +&- Speaker Binding Post (Speaker Terminal Connectors)

o(3) IEC PLUG with FUSE - 100 -240 Volt - 50/60Hz

Content of Packaging – Back Panel Features

M-7 Italian Mono Block Amplifier

(Operating Conditions)

Once the M-7 has been correctly wired and positioned on a solid shelf it is ready to play.

The M-7 has been designed for use in Hi-Fi systems in sheltered locations. It ought therefore to be protected from any

eventual variations in temperature and humidity. Avoid to use the unit close to radiators or other strong heat sources,

electrical and electronic motors, switched on mobile phones etc.

The location in proximity of other audio components is not theoretically critical, but you should nevertheless pay attention to

this. In any case, take care to unplug completely the unit every time you need to move it, or to move the turntable on which

it is installed.

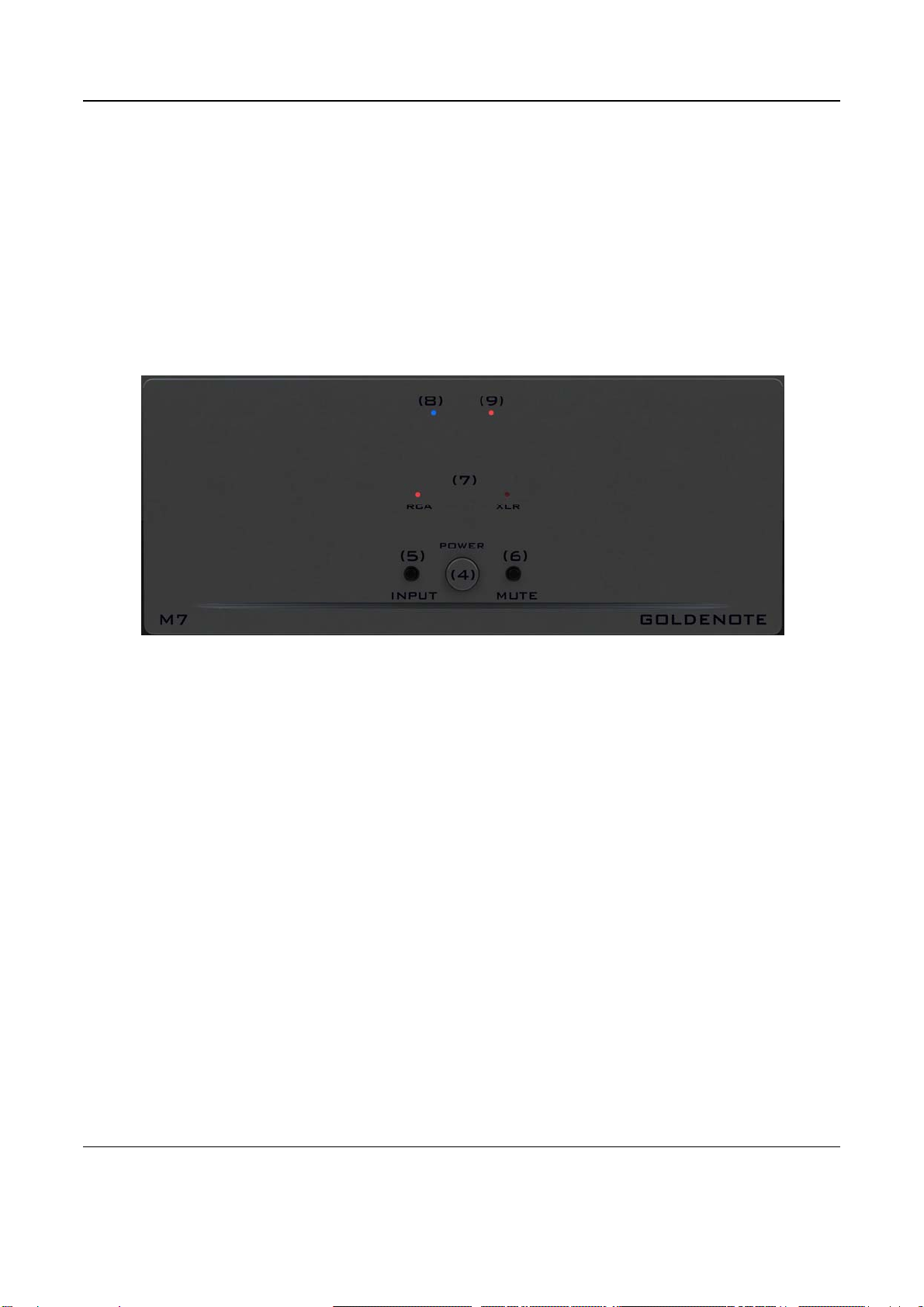

M-7 Front Panel

o(4) ON/OFF - Master switch, it turns the unit ON/OFF completely.

o(5) RCA/XLR Input - Select the RCA/XLR input.

o(7) RCA/XLR led Light – Showing the RCA/XLR input line stage activation. Pressing and holding together

for 5 seconds the Key (5) and (6) it switches internal or optional external power supply.

o(8) BLUE LED Light – It shows the unit ON/OFF

o(9) RED/(Blank)GREEN LED Light – With RED light ON the unit is powered by the internal power

supply. With Green light ON then unit is powered by optional external power supply.

oPLEASE NOTE: When the unit is thermally stabilized the ON Red/Green light fed down.

Operating Conditions

M-7 Italian Mono Block Amplifier

Technical Specifications

MAIN DETAILS 

POWER OUTPUT 100w @ 20-20000Hz

FREQUENCY RESPONSE 20Hz – 20KHz @ +/- 3dB 

THD (Total Harmonic Distortion) <0.2% THD @ 20Hz-20KHz 

RATIO SIGNAL TO NOISE-90dB 

DYNAMIC RANGE 120dB 

DAMPING FACTOR >400

SLEW RATE 13Volt/μs 

AUDIO INPUTS 

ANALOGUE INPUTS 1 per RCA & 1 per XLR balanced

INPUT SENSITIVITY 550mV

INPUT IMPEDANCE

7kΩ

AUDIO OUTPUTS 

SPEAKER Gold Plated Binding Posts

POWER 

MAINS SUPPLY

100V ▪115V ▪230V ▪50 or 60Hz (depending on market destination not

convertible) 

POWER SUPPLY Hybrid with Temperature Automatic Stabiliser

POWER CONSUMPTION  500watt Max. – 1watt Min.

UPGRADES 

SPECIAL Gold Note Lucca Power Chord

PHYSICAL 

DIMENSIONS 200mm L x 80mm H x 260mm D

WEIGHT 5Kilos (11Lbs.)

FINISHES 

FRONT PANEL Brushed Black or Silver anodised aluminium

CASE Black powder coated

Technical details may vary without notice

Technical Specifications

M-7 Italian Mono Block Amplifier

(Warranty Registration)

To validate the warranty is necessary to register the unit on the Gold Note internet web site within 15 days from the

purchase: http://www.Gold Note.com/index.php?option=com_content&view=article&id=14&Itemid=31&lang=en

If the unit is not registered correctly or is been purchased from a different country of the purchaser origin/home the unit will

not be covered by any warranty and the eventual registration refused.

The warranty does not does not cover in any case: Tubes, Phono Cartridge Styli and Batteries.

(Customer Service)

All GOLD NOTE® products are the result of meticulous technological research, and consequently their correct functioning is

guaranteed. In spite of this it is possible that problems may emerge which non-specialist users cannot resolve. In this case,

contact your dealer who will advise you on how to resolve the problem.

Do not return any object directly to the factory or to the national distributor or without being authorized to do so. In such

cases both GOLD NOTE® and the distribution agents operating within your territory decline responsibility of any kind.

Please Note: Descriptions and technical characteristics may vary in any moment without notice.

Warnings

1. Do not disassemble any part of the product.

2. Do not use any part of the product for other purposes.

3. For service and problems of any kind, contact qualified Gold Note personnel.

4. Protect the product from rain and humidity and keep away from heat sources, electric and electronic motors etc.

5. The power Chord supplied must be used only on this unit.

6. Gold Note does not have responsibility for any improper use of this unit

Warranty Certificate – Customer Service–Warnings-F.A.Q.

M-7 Italian Mono Block Amplifier

Troubleshooting

SYNPTOM DESCRIPTION CAUSE REMEDY

SPEAKER HUMMING

PROBLEMS

The speakers hum

when the Stage is

connected to the

system

The unit is correctly coupled

with the Ground on DC.

Be sure your area and

personal environment are

well grounded eventually

isolate the ground Pin of

the power chord plug for

verification.

The interconnect input

and/or output cables are not

shielded.

Be sure to always use

shielded cables for the

amp connections.

SWITCHING ON/OFF

BUMP

The Stage bumps any

time is switched ON or

OFF

It is important to notice

that it does not produce any

risk even if the bump is high



THE UNIT DOES NOT

WORK WHEN THE

STAGE IS SWITCHED

The AC Stage plug is

disconnected from the AC

wall plug

Connect it being sure that

the AC wall plug works

The interconnect cables are

not properly connected to

the amp.

Connect them properly

The fuse is blown Substitute the fuse with

one of the same value

Be sure you selected the

right Input on the

amplifier

F.A.Q.

ACTION DESCRIPTION HOW TO ADJUST IT

CLEANING THE UNIT The Unit is dirty and needs

to be cleaned

With EXTREME care use ONLY diluted

alcohol and a very soft 100% cotton cloth

to sweep dust and stains out.

Any acid or not extremely soft cloth will

irreversibly damage the amplifier fine

aesthetic.

Do not use any alcohol to clean the unit

anodised label, or printed parts. Only dry

cloth is allowed.

Troubleshooting & F.A.Q.
