Affix this manual and Users Information Manual adjacent to the unit.

INSTALLATION & OPERATING

INSTRUCTIONSfor

GPG13

SINGLEPACKAGEGAS-ELECTRIC

HEATING&COOLINGUNIT

CUS

Goodman Manufacturing Company, L.P.

IO-288B 5151 San Felipe, Suite 500, Houston, TX 77056

07/08 www.goodmanmfg.com

*NOTE: Please contact your distributor or our

website for the applicable product data

book referred to in this manual.

This Forced Air Central Unit Design Complies With

Requirements Embodied in The American National

Standard/National Standardof CanadaShown Below.

ANSI Z21.47•CSA-2.3 Central Furnaces

RECOGNIZE THIS SYMBOL AS A SAFETY PRECAUTION.

ATTENTION INSTALLING PERSONNEL

Prior to installation, thoroughly familiarize yourself with this Installation Manual. Observe all safety warnings. During

installation or repair, caution is to be observed.

It is your responsibility to install the product safely and to educate the customer on its safe use.

These installation instructions cover the outdoor

installation of single package gas electric heating and

cooling units. See the Product Data Book applicable to

your model* for information regarding accessories.

INDEX

Replacement Parts ............................................................................................................................................................. 3

ORDERING PARTS .............................................................................................................................................. 3

Safety Instructions ............................................................................................................................................................. 3

Unit location........................................................................................................................................................................ 4

ALL INSTALLATIONS:........................................................................................................................................... 4

GROUND LEVEL INSTALLATIONS ONLY: .................................................................................................................. 4

ROOFTOP INSTALLATIONS ONLY:........................................................................................................................... 4

ROOF CURB INSTALLATIONS ONLY:....................................................................................................................... 5

General Information ........................................................................................................................................................... 5

TRANSPORTATION DAMAGE ................................................................................................................................... 6

Rigging Details ................................................................................................................................................................... 6

Gas piping ........................................................................................................................................................................... 6

HIGH ALTITUDE DERATE (U.S. INSTALLATIONS ONLY) ............................................................................................... 6

PIPING ............................................................................................................................................................. 6

GAS PIPING CHECKS.......................................................................................................................................... 7

Propane Gas Installations.................................................................................................................................................. 7

TANKS AND PIPING ............................................................................................................................................. 8

Electrical Wiring ................................................................................................................................................................. 8

THERMOSTAT LOCATION ....................................................................................................................................... 8

UNIT VOLTAGE ................................................................................................................................................... 9

HEAT ANTICIPATOR SETTING .................................................................................................................................. 9

Circulating Air and Filters................................................................................................................................................ 10

AIRFLOW CONVERSION ...................................................................................................................................... 10

DUCTWORK...................................................................................................................................................... 10

FILTERS .......................................................................................................................................................... 10

Venting ...............................................................................................................................................................................11

FLUE HOOD INSTALLATION ...................................................................................................................................11

Condensate Drain ..............................................................................................................................................................11

CONDENSATE DRAIN CONNECTION ........................................................................................................................11

Normal sequences of operation .......................................................................................................................................11

HEATING ..........................................................................................................................................................11

COOLING .........................................................................................................................................................11

FAN ONLY ...................................................................................................................................................... 12

Startup, Adjustments, and Checks .................................................................................................................................. 12

HEATING STARTUP ............................................................................................................................................ 12

COOLING STARTUP ........................................................................................................................................... 15

Troubleshooting ................................................................................................................................................................ 15

IGNITION CONTROL ERROR CODES ...................................................................................................................... 15

ABNORMAL OPERATION - HEATING.................................................................................................................... 16

ABNORMAL OPERATION - COOLING ................................................................................................................... 16

Maintenance ..................................................................................................................................................................... 17

FILTER REPLACEMENT OR CLEANING.................................................................................................................... 17

CABINET FINISH MAINTENANCE ........................................................................................................................... 17

CLEAN OUTSIDE COIL (QUALIFIED SERVICER ONLY)............................................................................................. 17

CONDENSER, EVAPORATOR, AND INDUCED DRAFT MOTORS ..................................................................................... 17

FLAME SENSOR (QUALIFIED SERVICER ONLY) ...................................................................................................... 17

FLUE PASSAGES (QUALIFIED SERVICER ONLY) ..................................................................................................... 17

CLEANING FLUE PASSAGES (QUALIFIED SERVICER ONLY) ...................................................................................... 17

MAIN BURNER FLAME (QUALIFIED SERVICER ONLY).............................................................................................. 18

CLEANING BURNERS ......................................................................................................................................... 18

Accessories and Functional Parts ................................................................................................................................... 18

SHEET METAL ACCESSORIES .............................................................................................................................. 18

FUNCTIONAL PARTS .......................................................................................................................................... 18

GENERAL INFORMATION ..................................................................................................................................... 18

Ignition Control Diagnostic Indicator Chart .................................................................................................................... 19

Heating Timing Chart ....................................................................................................................................................... 19

Cooling Timing Chart ....................................................................................................................................................... 19

APPENDIX ......................................................................................................................................................................... 20

Wiring Diagrams.......................................................................................................................................................... 21-36

Minimum Clearances ....................................................................................................................................................... 37

Recommended Filter Sizes ............................................................................................................................................. 37

REPLACEMENT PARTS

ORDERINGPARTS

When reporting shortages or damages, or ordering repair

parts, give the complete unit model and serial numbers as

stamped on the unit’s nameplate.

Replacementpartsforthis applianceare availablethrough your

contractor or local distributor. For the location of your nearest

distributor, consult the white business pages, the yellow page

section of the local telephone book or contact:

SERVICEPARTSDEPARTMENT

GOODMANMANUFACTURINGCOMPANY,L.P.

5151 SAN FELIPE, SUITE 500

HOUSTON,TEXAS 77056

(713) 861 – 2500

SAFETY INSTRUCTIONS

TOTHEINSTALLER

Before installing this unit, please read this manual to

familiarize yourself on the specific items which must be

adhered to, including maximum external static pressure to

unit, air temperature rise, minimum or maximum CFM and

motor speed connections.

TOTHEOWNER

A warranty certificate is provided with the unit. Read the

warrantycarefully andnote what is covered. Keepthe warranty

certificate in a safe place so you can find it when necessary.

Keep this literature in a safe place for future reference.

WARNING

IF THE INFORMATION IN THESE INSTRUCTIONS IS NOT FOLLOWED EXACTLY, A

FIRE OR EXPLOSION MAY RESULT CAUSING PROPERTY DAMAGE, PERSONAL

INJURY OR LOSS OF LIFE.

– DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE VAPORS AND

LIQUIDS IN THE VICINITY OF THIS OR ANY OTHER APPLIANCE.

– WHAT TO DO IF YOU SMELL GAS:

•

DO NOT TRY TO LIGHT ANY APPLIANCE.

•

DO NOT TOUCH ANY ELECTRICAL SWITCH; DO NOT USE ANY

PHONE IN YOUR BUILDING.

•

IMMEDIATELY CALL YOUR GAS SUPPLIER FROM A NEIGHBOR’S

PHONE.

FOLLOW THE GAS SUPPLIER’S INSTRUCTIONS.

•

IF YOU CANNOT REACH YOUR GAS SUPPLIER, CALL THE FIRE

DEPARTMENT.

–

INSTALLATIONANDSERVICEMUSTBEPERFORMEDBYA QUALIFIEDINSTALLER,

SERVICE AGENCY OR THE GAS SUPPLIER.

WARNING

SHOULD OVERHEATING OCCUR OR THE GAS SUPPLY FAIL TO SHUT OFF, TURN

OFF THE MANUAL GAS SHUTOFF VALVE EXTERNAL TO THE FURNACE BEFORE

TURNING OFF THE ELECTRICAL SUPPLY.

WARNING

THIS PRODUCT CONTAINS OR PRODUCES A CHEMICAL OR CHEMICALS WHICH

MAY CAUSE SERIOUS ILLNESS OR DEATH AND WHICH ARE KNOWN TO THE

STATE OF CALIFORNIA TO CAUSE CANCER, BIRTH DEFECTS OR OTHER

REPRODUCTIVE HARM.

WARNING

HEATING UNIT SHOULD NOT BE UTILIZED WITHOUT REASONABLE, ROUTINE,

INSPECTION, MAINTENANCE AND SUPERVISION. IF THE BUILIDNG IN WHICH ANY

SUCH DEVICE IS LOCATED WILL BE VACANT, CARE SHOULD BE TAKEN THAT

SUCH DEVICE IS ROUTINELY INSPECTED, MAINTAINED AND MONITORED. IN THE

EVENT THAT THE BUILDING MAYBE EXPOSED TO FREEZING TEMPERATURES

AND WILL BE VACANT, ALL WATER-BEARING PIPES SHOULD BE DRAINED, THE

BUILDING SHOULD BE PROPERLY WINTERIZED, AND THE WATER SOURCE

CLOSED. IN THE EVENT THAT THE BUILDING MAY BE EXPOSED TO FREEZING

TEMPERATURES AND WILL BE VACANT, ANY HYDRONIC COIL UNITS SHOULD

BE DRAINED AS WELL AND, IN SUCH CASE, ALTERNATIVE HEAT SOURCES

SHOULD BE UTILIZED.

WARNING

TO AVOID PROPERTY DAMAGE, PERSONAL INJURY OR DEATH, DO NOT USE

THIS UNIT IF ANY PART HAS BEEN UNDER WATER. IMMEDIATELY CALL A

QUALIFIED SERVICE TECHNICIAN TO INSPECT THE FURNACE AND TO REPLACE

ANY PART OF THE CONTROL SYSTEM AND ANY GAS CONTROL HAVING BEEN

UNDER WATER.

WARNING

THIS UNIT MUST NOT BE USED AS A "CONSTRUCTION HEATER" DURING THE

FINISHING PHASES OF CONSTRUCTION ON A NEW STRUCTURE. THIS TYPE OF

USE MAY RESULT IN PREMATURE FAILURE OF THE UNIT DUE TO EXTREMELY

LOW RETURN AIR TERMPERATURES AND EXPOSURE TO CORROSIVE OR VERY

DIRTY ATMOSPHERES.

WARNING

TO PREVENT THE RISK OF PROPERTY DAMAGE, PERSONAL INJURY, OR DEATH,

DO NOT STORE COMBUSTIBLE MATERIALS OR USE GASOLINE OR OTHER

FLAMMABLE LIQUIDS OR VAPORS IN THE VICINITY OF THIS APPLIANCE.

WARNING

DO NOT CONNECT TO OR USE ANY DEVICE THAT IS NOT DESIGN CERTIFIED

BY GOODMAN FOR USE WITH THIS UNIT. SERIOUS PROPERTY DAMAGE,

PERSONAL INJURY, REDUCED UNIT PERFORMANCE AND/OR HAZARDOUS

CONDITIONS MAY RESULT FROM THE USE OF SUCH NON-APPROVED DEVICES.

CARBON

MONOXIDE

POISONING

HAZARD

B10259-216

Carbon monoxide producingdevices(such as an automobile, space

heater, gas water heater, etc.) shouldnot be operated in enclosed areas

such as unventilated garages, utility rooms or parking areas because of

the danger of carbon monoxide (CO) poisoning resulting from the exhaust

emissions. Ifa furnace or airhandleris installed inan enclosedarea such

as a garage, utility room or parking area and a carbon monoxide producing

device is operated therein, there must be adequate, direct outside

ventilation.

This ventilation is necessary to avoid the danger of CO poisoningwhich

can occur if a carbon monoxide producingdevice continues to operate in

the enclosed area. Carbon monoxide emissions can be (re)circulated

throughout thestructure if the furnace or air handleris operating inany

mode.

CO can cause serious illness including permanent brain damage or death.

Special Warning for Installation of Furnaces or Air Handling Units in

Enclosed Areas such as Garages, Utility Rooms or Parking Areas

UNIT LOCATION

WARNING

TO PREVENT POSSIBLE EQUIPMENT DAMAGE, PROPERTY DAMAGE, PERSONAL

INJURY OR DEATH, THE FOLLOWING BULLET POINTS MUST BE OBSERVED

WHEN INSTALLING THE UNIT.

IMPORTANT NOTE: Remove wood shipping rails prior to instal-

lation of the unit.

ALL INSTALLATIONS:

•For proper flame pattern within the heat exchanger and

proper condensate drainage, the unit must be mounted

level.

•The flue outlet hood must be at least 12 inches from any

opening through which flue gases could enter a building,

and at least three feet above any forced air inlet located

within ten feet. The economizer/manual fresh air intake/

motorized fresh air intake and combustion air inlet

mounted on the unit are not affected by this restriction.

•To avoid possible corrosion of the heat exchanger, do not

locate the unit in an area where the outdoor air (i.e.

combustionair fortheunit) willbe frequentlycontaminated

by compounds containing chlorine or fluorine. Common

sources of such compounds include swimming pool

chemicals and chlorine bleaches, paint stripper,

adhesives, paints, varnishes, sealers, waxes (which are

not yet dried) and solvents used during construction and

remodeling.Various commercialand industrial processes

may also be sources of chlorine/fluorine compounds.

•To avoid possible illness or death of the building occupants,

do NOT locate outside air intake device (economizer,

manualfresh airintake, motorizedfresh airintake)tooclose

to an exhaust outlet, gas vent termination, or plumbing vent

outlet. For specific distances required, consult local codes.

•Allow minimum clearances from the enclosure for fire

protection, proper operation, and service access (see

appendix). These clearances must be permanently

maintained.

•The combustion air inlet and flue outlet hoods on the unit

must never be obstructed. If used, do not allow the

economizer/manual fresh air damper/ motorized fresh air

damper to become blocked by snow or debris. In some

climates or locations, it may be necessary to elevate the

unit to avoid these problems.

•When the unit is heating, the temperature of the return air

entering the unit must be between 50° F and 100° F.

GROUND LEVEL INSTALLATIONS ONLY:

•When the unit is installed on the ground adjacent to the

building, a level concrete (or equal) base is recommended.

Prepare a base that is 3” larger than the package unit

footprint and a minimum of 3” thick.

•The base should also be located where no runoff of water

from higher ground can collect in the unit.

OutsideSlabInstallation

ROOFTOPINSTALLATIONS ONLY:

NOTE: To ensure proper condensate drainage, unit must be

installed in a level position.

•To avoid possible property damage or personal injury, the

roof must have sufficient structural strength to carry the

weight of the unit(s) and snow or water loads as required

by local codes. Consult a structural engineer to determine

the weight capabilities of the roof.

RooftopInstallation

•The unit may be installed directly on wood floors or on

Class A, Class B, or Class C roof covering material.

•To avoid possible personal injury, a safe, flat surface for

service personnel should be provided.

ROOF CURB INSTALLATIONS ONLY:

•Sufficient structural support must be determined prior to

locating and mounting the curb and package unit.

•Ductwork must be constructed using industry guidelines.

The duct work must be placed into the roof curb before

mounting the package unit.

•Curb insulation, cant strips, flashing and general roofing

material are furnished by the contractor.

RoofCurbInstallation

GENERAL INFORMATION

WARNING

TO PREVENT PROPERTY DAMAGE, PERSONAL INJURY OR DEATH, DUE TO FIRE,

EXPLOSIONS, SMOKE, SOOT, CONDENSATION, ELECTRIC SHOCK OR CARBON

MONOXIDE, THIS UNIT MUST BE PROPERLY INSTALLED, REPAIRED, OPERATED,

AND MAINTAINED.

This unit is approved for outdoor installation ONLY. To assure

that your unit operates safely and efficiently, it must be installed,

operated, and maintained in accordance with these installation and

operating instructions, all local building codes and ordinances, or in

their absence, with the latest edition of the National Fuel Gas Code

NFPA54/ANSI Z223.1 and National Standard of Canada CAN/CSA

B149 Installation Codes.

The heating and cooling capacities of the unit should be greater

than or equal to the design heating and cooling loads of the area to

be conditioned. The loads should be calculated by an approved

method or in accordance with A.S.H.R.A.E. Guide or Manual J -

Load Calculations published by the Air Conditioning Contractors of

America. Obtain from:

American National Standards Institute

1430 Broadway

New York, NY 10018

TRANSPORTATIONDAMAGE

Check the carton upon arrival for external damage. If damage is

found, a request for inspection by carrier agent should be made in

writing immediately.

Carefully inspect the unit for damage including damage to the

cabinetry. Any bolts or screws which may have loosened in transit

must be re-tightened. In the event of damage, the receiver should:

1. Make notation on delivery receipt of any visible damage to

shipment or container.

2. Notify carrier promptly and request an inspection.

3. In case of concealed damage, carrier should be notified

as soon as possible-preferably within 5 days.

4. File the claim with the following supporting documents:

a. Original Bill of Lading, certified copy, or indemnity bond.

b. Original paid freight bill or indemnity in lieu thereof.

c. Original invoice or certified copy thereof, showing trade

and other discounts or reductions.

d. Copy of the inspection report issued by carrier

representative at the time damage is reported to the

carrier. The carrier is responsible for making prompt

inspection of damage and for a thorough investigation of

each claim. The distributor or manufacturer will not accept

claims from dealers for transportation damage.

NOTE: Wheninspecting theunit for transportationdamage,remove

all packaging materials. Recycle or dispose of the packaging ma-

terial according to local codes.

RIGGING DETAILS

WARNING

TO PREVENT PROPERTY DAMAGE, THE UNIT SHOULD REMAIN IN AN UPRIGHT

POSITION DURING ALL RIGGING AND MOVING OPERATIONS. TO FACILITATE

LIFTING AND MOVING WHEN A CRANE IS USED, PLACE THE UNITIN AN

ADEQUATECABLE SLING.

Important: If usingbottomdischarge withroof curb,ductwork should

be attached to the curb prior to installing the unit. Ductwork dimen-

sions are shown in roof curb installation instructions.

Refer to the Roof Curb Installation Instructions for proper curb in-

stallation. Curbing must be installed in compliance with the National

Roofing Contractors Association Manual.

Lower unit carefully onto roof mounting curb. While rigging unit,

center of gravity will cause condenser end to be lower than supply

air end.

Rigging

GAS PIPING

IMPORTANT NOTE: This unit is factory set to operate on natural

gas at the altitudes shown on the rating plate.

WARNING

TO AVOID PROPERTY DAMAGE, PERSONAL INJURY OR DEATH WHEN EITHER

USING PROPANE GAS ALONE OR AT HIGHER ALTITUDES, OBTAIN AND INSTALL

THE PROPER CONVERSION KIT(S). FAILURE TO DO SO CAN RESULT IN

UNSATISFACTORY OPERATION AND/OR EQUIPMENT DAMAGE. HIGH ALTITUDE

KITS ARE FOR U.S. INSTALLATIONS ONLY AND ARE NOT APPROVED FOR USE

IN CANADA.

The rating plate is stamped with the model number, type of gas and

gas input rating. Make sure the unit is equipped to operate on the

type of gas available. Conversion to LP gas is permitted with the

use of the factory authorized conversion kit LPT-00A.

Inlet Gas Pressure

Natural Min. 5.0" W.C., Max. 10.0" W.C.

Propane Min. 11.0" W.C., Max. 13.0" W.C.

Inlet Gas Pressure Must Not Exceed the Maximum Value Shown in Table

Above.

The minimum supply pressure should not vary from that shown in

the table above because this could prevent the unit from having

dependable ignition. In addition, gas input to the burners must not

exceed the rated input shown on the rating plate. Overfiring of the

unit could result in premature heat exchanger failure.

HIGH ALTITUDE DERATE (U.S. INSTALLATIONS ONLY)

IMPORTANT NOTE: The gas/electric units naturally derate with al-

titude. Do not attempt to increase the firing rate by changing ori-

fices or increasing the manifold pressure. This can cause poor com-

bustion and equipment failure. At all altitudes, the manifold pres-

sure must be within 0.3 inches W.C. of that listed on the nameplate

for the fuel used.At all altitudes and with either fuel, the air tempera-

ture rise must be within the range listed on the unit nameplate.

Refer to the Installation Manual provided with the LP kit for conver-

sion from natural gas to propane gas and for altitude adjustments.

PIPING

IMPORTANT NOTE: To avoid possible unsatisfactory operation or

equipment damage due to under firing of equipment, do not under-

size the natural/propane gas piping from the meter/tank to the unit.

When sizing a trunk line, include all appliances on that line that

could be operated simultaneously.

The rating plate is stamped with the model number, type of gas

and gas input rating. Make sure the unit is equipped to operate on

the type of gas available. The gas line installation must comply

with local codes, or in the absence of local codes, with the latest

edition of the National Fuel Gas Code NFPA 54/ANSI Z223.1.

NaturalGasConnection

Len

th of

Pipe in Feet 1/2 3/4 11 1/4 1 1/2

10 132 278 520 1050 1600

20 92 190 350 730 1100

30 73 152 285 590 980

40 63 130 245 500 760

50 56 115 215 440 670

60 50 105 195 400 610

70 46 96 180 370 560

80 43 90 170 350 530

90 40 84 160 320 490

100 38 79 150 305 460

Pressure = .50 PSIG or less and Pressure Drop of 0.3" W.C. (Based

on 0.60 S

ecific Gravit

Gas

)

Natural Gas Capacity of Pipe

in Cubic Feet of Gas Per Hour (CFH)

Nominal Black Pipe Size (inches)

BTUH Furnace Input

Heatin

Value of Gas

(

BTU/Cubic Foot

)

CFH =

Refer to the Proper Piping Practice drawing for the general layout

at the unit. The following rules apply:

1. Use black iron pipe and fittings for the supply piping. The

use of a flex connector and/or copper piping is permitted

as long as it is in agreement with local codes.

2. Use pipe joint compound on male threads only. Pipe joint

compound must be resistant to the action of the fuel used.

3. Use ground joint unions.

4. Install a drip leg to trap dirt and moisture before it can enter

the gas valve. The drip leg must be a minimum of three

inches long.

5. Use twopipe wrencheswhen makingconnection to thegas

valve to keep it from turning.

6. Install a manual shut-off valve in a convenient location

(within six feet of unit) between the meter and the unit.

7. Tighten all joints securely.

8. The unit must be connected to the building piping by one

of the following methods:

• Rigid metallic pipe and fittings

• Semirigid metallic tubing and metallic fittings (Aluminum

alloy tubing must not be used in exterior locations)

• Listed gas appliance connectors used in accordance with

the terms of their listing that are completely in the same

room as the equipment

• In the prior two methods above the connector or tubing

must be protected from physical and thermal damage.

Aluminum alloy tubing and connectors must be coated to

protect against external corrosion when in contact with

masonry, plaster or insulation or are subject to repeated

wettings by liquids (water - not rain water, detergents or

sewage)

DRIP LEG

MANUAL

SHUT-OFF

VALVE

GROUND JOINT UNION

(INSTALLED AHEAD OF GAS VALVE)

GROMMET

Proper Piping Practice

NOTE: The unit gas supply entrance is factory sealed with plugs.

Keep plugs in place until gas supply is ready to be installed. Once

ready, replace the plugs with the supplied grommets and install gas

supply line.

GAS PIPING CHECKS

CAUTION

TO PREVENT PROPERTY DAMAGE OR PERSONAL INJURY DUE TO FIRE, THE

FOLLOWING INSTRUCTIONS MUST BE PERFORMED REGARDING GAS

CONNECTIONS AND PRESSURE TESTING:

• THE UNIT AND ITS GAS CONNECTIONS MUST BE LEAK TESTED BEFORE

PLACING IN OPERATION. BECAUSE OF THE DANGER OF EXPLOSION OR

FIRE, NEVER USE A MATCH OR OPEN FLAME TO TEST FOR LEAKS. NEVER

EXCEED SPECIFIED PRESSURES FOR TESTING. HIGHER PRESSURE MAY

DAMAGE GAS VALVE AND CAUSE OVERFIRING WHICH MAY RESULT IN

PREMATURE HEAT EXCHANGE FAILURE.

• THIS UNIT AND ITS SHUT-OFF VALVE MUST BE DISCONNECTED FROM

THE GAS SUPPLY DURING ANY PRESSURE TESTING OF THAT SYSTEM AT

TEST PRESSURES IN EXCESS OF 1/2 PSIG(3.48 KPA).

• THIS UNIT MUST BE ISOLATED FROM THE GAS SUPPLY SYSTEM BY

CLOSING ITS MANUAL SHUT-OFF VALVE DURING ANY PRESSURE

TESTING OF THE GAS SUPPLY PIPING SYSTEM AT TEST PRESSURES

EQUAL TO OR LESS THAN 1/2 PSIG (3.48 KPA).

WARNING

TO AVOID PROPERTY DAMAGE OR PERSONAL INJURY, BE SURE THERE IS

NO OPEN FLAME IN THE VICINITY DURING AIR BLEEDING.

There will be air in the gas supply line after testing for leaks

on a new installation. Therefore, the air must be bled from the

line by loosening the ground joint union until pure gas is

expelled. Tighten union and wait for five minutes until all gas

has been dissipated in the air. Be certain there is no open

flame in the vicinity during air bleeding procedure. The unit is

placed in operation by closing the main electrical disconnect

switch for the unit.

PROPANE GAS INSTALLATIONS

WARNING

TO AVOID PROPERTY DAMAGE, PERSONAL INJURY OR DEATH DUE TO FIRE

OR EXPLOSION CAUSED BY A PROPANE GAS LEAK, INSTALL A GAS

DETECTING WARNING DEVICE. SINCE RUST CAN REDUCE THE LEVEL

OF ODORANT IN PROPANE GAS, A GAS DETECTING WARNING DEVICE

IS THE ONLY RELIABLE WAY TO DETECT A PROPANE GAS LEAK.

CONTACT A LOCAL PROPANE GAS SUPPLIER ABOUT INSTALLING A

GAS DETECTING WARNING DEVICE.

IMPORTANT NOTE: Propane gas conversion kits must be

installed to convert units to propane gas.

All propane gas equipment must conform to the safety

standardsoftheNational BoardofFireUnderwriters (SeeNBFU

Manual 58).

For satisfactory operation, propane gas supply pressure must

be within 9.7 - 10.3 inches W.C. at the manifold with all gas

appliances in operation. Maintaining proper gas pressure

depends on three main factors:

1. Vaporization rate, which depends on (a) temperature of the

liquid, and (b) wetted surface area of the container or

containers.

2. Proper pressure regulation.

3. Pressure drop in lines between regulators, and between

second stage regulator and the appliance. Pipe size

required will depend on length of pipe run and total load of

all appliances.

WARNING

TO PREVENT PROPERTY DAMAGE OR SERIOUS PERSONAL INJURY DUE TO

FIRE OR EXPLOSION CAUSED BY A PROPANE GAS LEAK, INSTALL A GAS

DETECTING WARNING DEVICE.

IF THE PROPANE GAS UNIT IS INSTALLED IN AN EXCAVATED AREA OR A

CONFINED SPACE, A WARNING DEVICE IS REQUIRED DUE TO:

• PROPANE GAS IS HEAVIER THAN AIR AND ANY LEAKING GAS CAN

SETTLE IN ANY LOW AREAS OR CONFINED SPACES.

• PROPANE GAS ODORANT MAY FADE, MAKING THE GAS UNDETECTABLE

EXCEPT WITH A WARNING DEVICE.

ELECTRICAL WIRING

THERMOSTATLOCATION

Mount the thermostat approximately five feet above the floor,

in an area that has an inside, vibration-free wall and has good

air circulation.

Movement of air must not be obstructed by furniture, door,

draperies, etc. The thermostat must not be mounted where it

will be affected by drafts, hot or cold water pipes or air ducts in

walls, radiant heat from fireplace, lamps, the sun, television,

etc. Consult the Instruction Sheet packaged with thermostat

for mounting instructions.

All units have one stage of heating and one stage of

mechanical cooling. Units which will have economizers may

use thermostats with one or two stages of cooling.

*PG1360***1A ONLY: These models have two stages of

mechanical cooling. A 1-stage heat, 2-stage cooling

thermostat is recommended for these models.

The units are designed for operation on 60 hertz current and

at voltages as shown on the rating plate. All internal wiring in

theunit iscomplete. It isnecessary tobring inthe powersupply

to the contactor as shown on the unit wiring diagram which is

supplied with each unit. 24 volt wiring must be connected

between the unit control panel and the room thermostat.

11 12

WYR

C22

FUSE3 AMP MAX

P1 12

445

9FS

BREAK FOR TWO STAGE

COMPRESSOR

24VAC 50/60Hz 400mA MAX.

L1DI

L1 HEATUNUSED

COOL

1068-83-400A

MODEL

1068-400

B18099-18

ANSI Z21.20AUTOMATIC IGNITION SYSTEM

L2L2L2L2

ECON

120

135

150

SPEED-UP

LOW VOLTAGE

CONNECTOR

Low Voltage Wiring

TANKS AND PIPING

Complete information regarding tank sizing for vaporization,

recommended regulator settings and pipe sizing is available

frommost regulator manufacturersand propanegas suppliers.

Since propane gas will quickly dissolve white lead or most

standard commercial compounds, special pipe dope must be

used. Shellac base compounds resistant to the actions of

liquefied petroleum gases such as Gasolac®, Stalactic®,

Clyde’s®or John Crane®are satisfactory.

See below for typical propane gas piping.

200 PSIG

Maximum

5 to 15 PSIG

(20 PSIG Max.) Continuous

11" W.C.

Second Stage

Regulator

First Stage

Regulator

Typical Propane Gas Piping

Sizing Between First and Second Stage Regulator

Maximum Propane Capacities listed are based on 1 PSIG Pressure Drop at 10

PSIG Setting. Capacities in 1,000 BTU/HR

3/8" 1/2" 5/8" 3/4" 7/8" 1/2" 3/4"

30 309 700 1,303 2,205 3,394 1,843 3,854

40 265 599 1,115 1,887 2,904 1,577 3,298

50 235 531 988 1,672 2,574 1,398 2,923

60 213 481 896 1,515 2,332 1,267 2,649

70 196 446 824 1,394 2,146 1,165 2,437

80 182 412 767 1,297 1,996 1,084 2,267

90 171 386 719 1,217 1,873 1,017 2,127

100 161 365 679 1,149 1,769 961 2,009

150 130 293 546 923 1,421 772 1,613

200 111 251 467 790 1,216 660 1,381

250 90 222 414 700 1,078 585 1,224

300 89 201 378 634 976 530 1,109

350 82 185 345 584 898 488 1,020

400 76 172 321 543 836 454 949

To convert to Capacities at 15 PSIG Settings -- Multiply by 1.130

To convert to Capacities at 5 PSIG Settings -- Multiply by 0.879

PIPE OR

TUBING

LENGTH,

FEET

NOMINAL PIPE SIZE,

SCHEDULE 40

TUBING SIZE, O.D., TYPE L

Sizing Between Single or Second Stage Regulator and Appliance*

Maximum Propane Capacities Listed are Based on 1/2" W.C. Pressure Drop at

11" W.C. Setting. Capacities in 1,000 BTU/HR

3/8" 1/2" 5/8" 3/4" 7/8" 1/2" 3/4" 1" 1-1/4" 1-1/2"

10 49 110 206 348 539 291 608 1,146 2,353 3,525

20 34 76 141 239 368 200 418 788 1,617 2,423

30 27 61 114 192 296 161 336 632 1,299 1,946

40 23 52 97 164 253 137 284 541 1,111 1,665

50 20 46 86 146 224 122 255 480 985 1,476

60 19 42 78 132 203 110 231 436 892 1,337

80 16 36 67 113 174 94 198 372 764 1,144

100 14 32 59 100 154 84 175 330 677 1,014

125 12 28 52 89 137 74 155 292 600 899

150 11 26 48 80 124 67 141 265 544 815

200 10 22 41 69 106 58 120 227 465 697

250 9 19 36 61 94 51 107 201 412 618

300 8 18 33 55 85 46 97 182 374 560

350 7 16 30 51 78 43 89 167 344 515

400 7 15 28 47 73 40 83 156 320 479

*DATA IN ACCORDANCE WITH NFPA PAMPHLET NO. 54

NOMINAL PIPE SIZE,

SCHEDULE 40

TUBING SIZE, O.D., TYPE L

PIPE OR

TUBING

LENGTH,

FEET

Table 3 - Propane Gas Pipe Sizing

Electrical Power Directly To Junction Box

Electrical Power Routed Through Bottom of Unit

Note:Junction box location

shown is optional and is

for illustration purposes only.

JUNCTION BOX

TypicalElectricalWiringUnitVoltage

UNITVOLTAGE

The unit transformer is factory connected for 230V operation.

If the unit is to operate on 208V, reconnect the transformer

primary lead as shown on the unit wiring diagram. The induced

draft blower on some models is equipped with a 230V lead

(red)and a208Vlead (black). Ifequipped,connect the induced

draft blower 208V lead (black) in place of the 230V lead (red).

Tape the unused 230V lead.

HEATANTICIPATORSETTING

The heat anticipator is to be set by measuring the load

(amperage) at the “R” circuit. Follow the instructions provided

by the thermostat for more details.

From

Unit

Typical Thermostat and Unit 24 V Wiring Hookup

11 12

C22

FUSE3 AMPMAX

P1 12

445

9FS

BREAK FO R TWO STAGE

COMPRESSOR

24VAC 50/60Hz 400mAMAX.

L1DI

L1 HEATUNUSED

COOL

1068-83-400A

MODEL

1068-400

B18099-18

ANSIZ21.20 AUTOMATI CIGNITIONSYSTEM

L2L2L2L2

ECON

120

135

150

SPEED-UP

LOW VOLTAGE

CONNECTOR

Y/Y2

Low Voltage Wiring-*PG1360***1A Only

Refer to the unit wiring diagram for electrical connections.

When installed, the unit must be electrically grounded in

accordance with local codes or in the absence of local codes,

with the National Electrical Code, ANSI/NFPA No. 70, and/or

the CSA C22.1 Electrical Code. Ensure low voltage

connections are waterproof.

WARNING

TO AVOID THE RISK OF ELECTRICAL SHOCK, WIRING TO THE UNIT MUST BE

POLARIZED AND GROUNDED.

CAUTION

TO AVOID PROPERTY DAMAGE OR PERSONAL INJURY DUE TO FIRE, USE

ONLY COPPER CONDUCTORS.

CAUTION

TO PREVENT IMPROPER AND DANGEROUS OPERATION DUE TO WIRING ERRORS,

LABEL ALL WIRES PRIOR TO DISCONNECTION WHEN SERVICING CONTROLS.

VERIFY PROPER OPERATION AFTER SERVICING.

For unit protection, use a fuse or HACR circuit breaker that is

in excess of the circuit ampacity, but less than or equal to the

maximum overcurrent protection device. DO NOT EXCEED

THE MAXIMUM OVERCURRENT DEVICE SIZE SHOWN ON

UNIT DATAPLATE.

All line voltage connections must be made through

weatherproof fittings. All exterior power supply and ground

wiring must be in approved weatherproof conduit. Low voltage

wiring from the unit control panel to the thermostat requires

coded cable. See below for ground level and rooftop wiring.

From

Unit

Y/Y2

Typical 2-Stage Cool Thermostat and

Unit24 V WiringHookup

*PG1360***1A Only

CIRCULATING AIR AND FILTERS

AIRFLOW CONVERSION

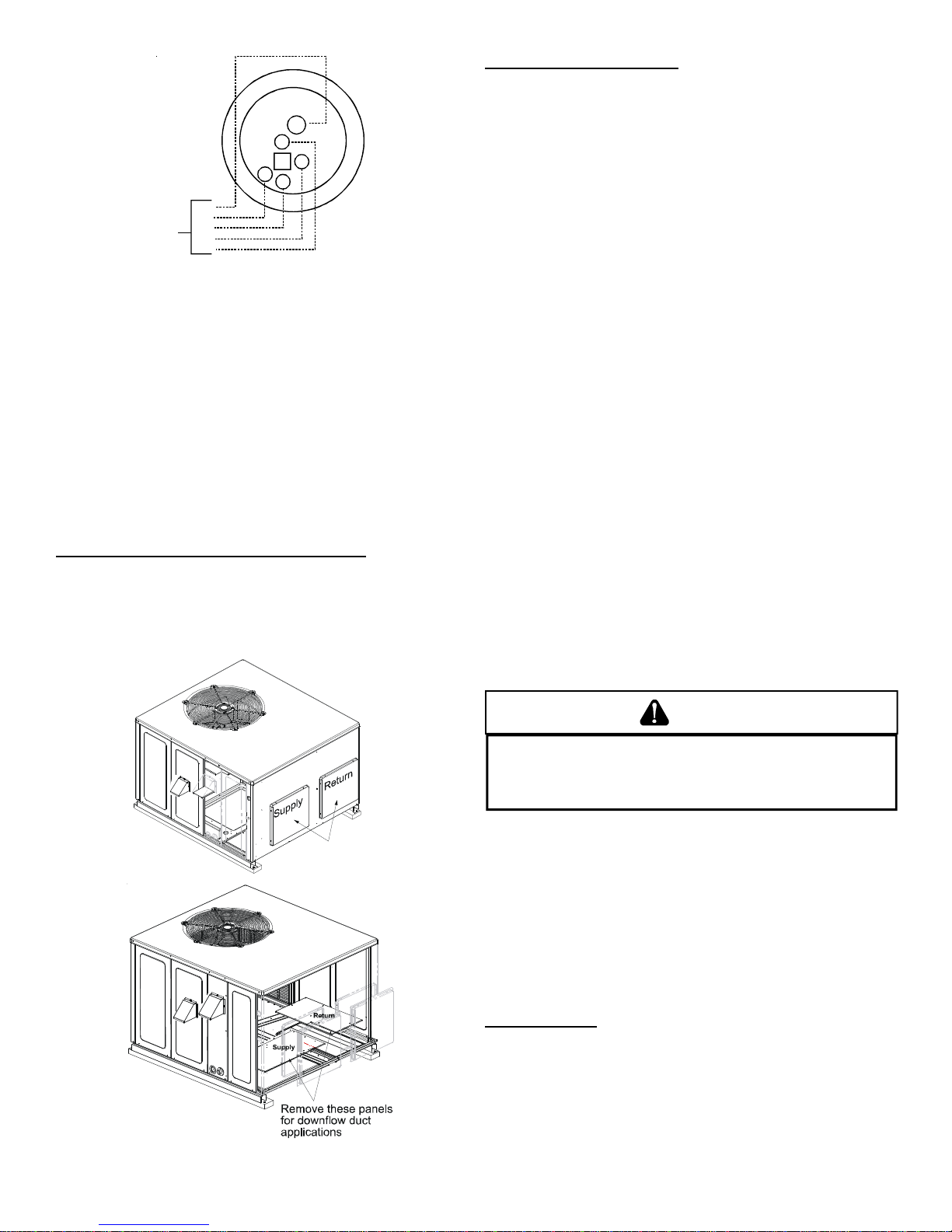

Units can easily be converted from horizontal to down-

discharge airflow delivery. In down-discharge or high static

installations, the installer should measure the total external

static and review the blower performance charts before

performing the installation. In some installations it will be

necessary to change the blower speed to provide proper air

flow.

Horizontal Air Flow (Applies to 3 phase models)

Single phase models are shipped without horizontal duct

covers. If needed, these kits may be ordered through

Goodman’s Service Parts department.

Remove supply and return duct covers which are attached to

the unit as shown below.

Remove these covers

for horizontal duct

applications

DuctCoverInstallation

DownDischargeApplications

Cut insulation around bottom openings and remove panels

from the bottom of the unit, saving the screws holding the

panels in place.

NOTE: Single phase models require installation of horizontal

duct kit #20464501PDGK (medium chassis) and

#20464502PDGK (large chassis).

DUCTWORK

Duct systems and register sizes must be properly designed

for the C.F.M. and external static pressure rating of the unit.

Ductwork should be designed in accordance with the

recommended methods of Air Conditioning Contractors of

America Manual D (Residential) or Manual Q (Commercial).

All ductwork exposed to the outdoors must include a

weatherproof barrier and adequate insulation.

A duct system should be installed in accordance with

Standards of the National Board of Fire Underwriters for the

Installation of Air Conditioning, Warm Air Heating and

Ventilating Systems. Pamphlets No. 90A and 90B.

The supply duct from the unit through a wall may be installed

without clearance. However, minimum unit clearances as

shown in the appendix must be maintained. The supply duct

should be provided with an access panel large enough to

inspect the air chamber downstream of the heat exchanger. A

cover should be tightly attached to prevent air leaks.

For duct flange dimensions on the unit refer to the Unit

Dimension illustration in the appendix.

For down-discharge applications, the ductwork should be

attached to the roof curb prior to installing the unit. Ductwork

dimensions are shown in the roof curb installation manual.

If desired, supply and return duct connections to the unit may

be made with flexible connections to reduce possible unit

operating sound transmission.

FILTERS

CAUTION

TO PREVENT PROPERTY DAMAGE DUE TO FIRE AND LOSS OF

EQUIPMENT EFFICIENCY OR EQUIPMENT DAMAGE DUETO DUST AND LINT

BUILD UP ON INTERNAL PARTS, NEVER OPERATE UNIT WITHOUT AN AIR

FILTER INSTALLED IN THE RETURN AIR SYSTEM.

Even though a return air filter is not supplied with this unit,

there must be a means of filtering all return air. The

*PG1336(3A,4A), *PG1342, *PG1348, and *PG1360 models

are provided with internal filter racks for down-discharge

applications. All units may be externally filtered.

Refer to the unit filter size chart in the appendix for filter size

information.

Filters installed external to the unit should be sized in

accordance with their manufacturer recommendations. A

throwaway filter must be sized for a maximum face velocity of

300 feet per minute.

Filter Installation

Important: When installing a filter, the air flow arrows on the

filter must point toward the circulator blower.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Goodman Stufa

Goodman

Goodman CPC SERIES Manuale utente

Manuali Stufa popolari di altre marche

oventrop

oventrop Regucor Series Manuale utente

Blaze King

Blaze King CLARITY CL2118.IPI.1 Manuale utente

ELMEKO

ELMEKO ML 150 Manuale utente

BN Thermic

BN Thermic 830T Manuale utente

KING

KING K Series Guida

Empire Comfort Systems

Empire Comfort Systems RH-50-5 Guida rapida

Well Straler

Well Straler RC-16B Manuale utente

EUROM

EUROM 333299 Manuale utente

Heylo

Heylo K 170 Manuale utente

Eterna

Eterna TR70W Manuale utente

Clarke

Clarke GRH15 Manuale di istruzioni

IRSAP

IRSAP The Radiator Company Ovali Manuale utente

Empire Heating Systems

Empire Heating Systems WCC65 Manuale utente

Wetekom

Wetekom 92 86 43 Manuale utente

Desa

Desa SPC170-F Manuale utente

Watlow

Watlow Watrod Electric Tubular Heaters Manuale utente

Haverland

Haverland ECO-DRY GPS Series Manuale elenco delle parti

Stelpro

Stelpro ASILVC2060 Series Manuale utente
