Goosky S2 Manuale utente
INSTRUCTION MANUAL
使用说明书
Thank you for choosing Goosky Technology series products. Before
entering the remote control world, you must be told a lot of relevant
knowledge and precautions to ensure that you can be more comfortable in
the learning process. Before starting the operation, please read this manual
carefully. We believe it will be of great help to you. Please keep this manual
properly for future reference.
感谢您选用谷天科技系列产品。
进入遥控世界前必须告诉您许多相关的知识与注意事项，以确保您能够在学
习的过程中较得心应手。在开始操作之前，请务必详细阅读本说明书，相信
一定能够给您带来相当大的帮助，也请您妥善保管这本说明书，以作为日后
参考。
#1 BY DESIGN
2022
2
遥控模型飞机、直升机属于高危险性商品，飞行时务必远离人群，人为组装不当或机件损坏，电子控制设备不良，以及操控上的不熟悉、都有可能导致
飞行失控损伤等不可预期的意外，请飞行者务必注意飞行安全，并需了解自负疏忽所造成的任何意外之责任。
Remote control model airplanes and helicopters are high-risk commodities, and they must be kept away from crowds when flying. Improper assembly or
damaged parts, poor electronic control equipment, and unfamiliar handling may lead to unforeseen accidents such as loss of control and damage to the
flight. Please pay attention to flight safety and understand the responsibility for any accident caused by your own negligence.
SAFETY NOTES 安全注意事项
模型商品属于需高操作技术且为消耗性之商品，如经拆装使用后，会造成不等情况零件损耗，任何使用情况所造成的商品不良或不满意，将无发于
保固条件内更换新品或者退货，如遇有使用操作维修问题，本公司全球分公司或者代理商将提供技术指导，特价零件供应服务。
S2遥控直升机并非玩具，它是结合了许多高科技产品所设计出来的休闲用品，所以商品的使用不当或者不熟悉都可能会造成严重伤害甚至死亡，
使用之前请务必详细阅读本说明书，勿轻忽并注意自身安全。
注意！任何遥控直升机的使用，制造商和经销商是无法对使用者于零件使用的损耗异常或组装不当所发生之意外负责任何责任，本产品是提供给
有操作过模型直升机经验的成人或者有相当技术的人员在旁指导于当地合法遥控飞行场飞行，以确保安全无误下操作使用，产品售出后该公司将
不负责任何操作和使用控制上的任何性能与安全责任。
Model products are consumable products that require high operating skills. If they are disassembled and used, the parts will be damaged in various
situations. If the products are defective or unsatisfactory due to any use, they will not be replaced with new products within the warranty conditions.
Or return the product, in case of operation and maintenance problems, the company's global branches or agents will provide technical guidance and
special parts supply services.
S2 remote control helicopter is not a toy, it is a leisure product designed by combining many high-tech products. Improper use or unfamiliarity of the
product may cause serious injury or even death. Please read this manual carefully before using. Pay attention to your own safety.
Notice! For the use of any remote control helicopter, the manufacturer and distributor cannot take any responsibility for the user's accident caused by
abnormal wear and tear of parts or improper assembly. This product is provided for adults who have experience in operating model helicopters or
have equivalent skills. The company will guide the flight in the local legal remote control flight field to ensure safe and error-free operation and use.
After the product is sold, the company will not be responsible for any performance and safety responsibility for any operation and use control.
IMPORTANT NOTES 重要声明
Do not attempt the operation in any prohibited environment.
在任何禁止的环境下，请勿尝试操作。
Incorrect use can be dangerous by ignoring these operating instructions.
因为疏忽这些操作说明，而使用错误可能造成危险。
因为疏忽这些操作说明，而使用错误可能造成财产损失或严重伤害。
Misuse of these operating instructions could result in property damage or serious injury.
WARNING LABEL LEGEND 标志代表含义
感谢您选购谷天科技公司产品，为了你容易方便使用S2直升机，请您详细的阅读完这本说明书之后再进行组装以及操作这台直升机，同时请您妥
善保存这本说明书，作为日后进行调整以及维修的参考。
Thank you for purchasing Goosky products. In order to use the S2 helicopter easily and conveniently, please read this manual in detail before
assembling and operating this helicopter. At the same time, please keep this manual properly for future adjustment and maintenance reference. S2 is a
new product developed by Goosky. No matter you are a beginner who needs stable flight or a flight enthusiast who pursues excellent performance, S2
is your best choice.
INTRODUCTION 前言
WARNING
警告
!
!注意
CAUTION
禁止
FORBIDDEN
!注意
CAUTION
EN
S2是由谷天科技有限公司自行研发的新产品，不论您是需求飞行稳定的初学者还是追求性能卓越的飞行爱好者。S2将是您最佳的选择。
WWW.GOO-SKY.COM
Beer
请于自己能力内及需要一定技术范围内操作这台直升机，过于疲劳，精神不佳或不当操作，意外发生风险将可能会提高。
Please operate this helicopter within your own capabilities and within a certain technical range. If you are too tired, mentally or improperly
operated, the risk of accidents may increase.
ALWAYS BE AWARE OF THE ROTATING BLADES 远离运转中的零件
SAFE OPERATION 安全操作
Most of the remote control planes are made of fiber, polyethylene, and electronic products. Therefore, try to stay away from heat sources and
sunlight to avoid the possibility of deformation or even meltdown and damage due to high temperature.
KEEP AWAY FROM HEAT 远离热源
遥控飞机多半是以 纤维或聚乙烯、电子商品为主要材质，因此要尽量远离热源、日照、以避免因高温而变形甚至熔毁损坏的可能。
当直升机主旋翼与尾旋翼运转时，切勿触摸并远离任何物件，以避免造成危险及损坏。
When the main rotor and tail rotor of the helicopter are running, do not touch and keep away from any objects to avoid danger and damage
避免独自操控
至飞行场地前，需确认是否有相同频率的同好正在飞行，因为开启相同的频率的发射机将导致自己与他人立即干扰等意外危险。
Remote control aircraft control skills are difficult in the early stage of learning. It is necessary to avoid operating the flight alone as much as
possible, and it needs the guidance of an experienced person to control the flight. Diligent practice of computer simulators and veteran guidance
is a necessary choice for entry
Before arriving at the flight site, it is necessary to confirm whether there are friends of the same frequency flying, because turning on the
transmitter of the same frequency will cause unexpected dangers such as immediate interference with others.
OBTAIN THE ASSISTANCE OF AN EXPERIENCED PILOT
遥控飞机操控技巧在学习初期有着一定的难度，要尽量避免独自操作飞行，需有经验的人士在旁指导，才可以操控飞行。 勤练电脑模拟器及
老手指导是入门必要的选择
请确认于产品限界内操作，请勿过载使用，并勿用于安全、法令外其他非法用途。
PREVENT OPETATION 勿不当使用本产品
Do not modify and process by yourself. For any upgrade, modification or repair, please use the parts in the product catalog of GOOSKY to
ensure the safety of the structure.
Please confirm to operate within the product limits, do not use overload, and do not use it for other illegal purposes other than safety and laws.
请勿自行改造加工，任何的升级改装或维修，请使用谷天科技产品目录中的零件，以确保结构的安全。
直升机内部也是由精密的电子零件组成，所以必须绝对的防止潮湿或水气 避免在浴室或雨天时使用，防止水气进入机身内部而导致机件及电
子零件故障而引发不可预期的意外！
The interior of the helicopter is also composed of precise electronic parts, so it must be absolutely protected from damp or moisture. Avoid using
it in the bathroom or in rainy days, to prevent moisture from entering the interior of the fuselage and causing the failure of the parts and
electronic parts, resulting in unexpected accidents!
PREVENT MOISTURE 远离潮湿环境
Helicopter flying has a certain speed, which is relatively potentially dangerous. The choice of venue is also relatively important. Please abide by
local laws and regulations and go to a legal remote control flight venue to fly. You must pay attention to whether there are people, high-rises,
buildings, high-voltage wires, trees, etc. around, so as to avoid damage to your own or other people's property caused by improper manipulation.
When practicing for the first time, be sure to choose to fly in an open, legal and exclusive flight site and properly match the training rack, which
will greatly reduce the damage caused by flight errors. Do not operate in bad weather such as rainy days and thunderstorms to ensure the
safety of yourself and the body.
初次练习时，务必选择在空旷合法专属飞行场地并适当搭配练习架飞行，这对于飞行失误所造成的损伤将会大幅的降低。请勿在下雨天、打雷
等恶劣天气下操作，以确保本身及机体的安全。
必须注意周边有没有人、高楼、建筑物、高压电线、树木等等、避免操控的不当造成自己或与他人的财产损坏。
LOCATE AN APPROPRIATE LOCATION 远离障碍物及人群
直升机飞行时具有一定的速度，相对的也潜在着危险性，场地的选择也相对的重要，请遵守当地的法律法规到合法的遥控飞行场地去飞行。
禁止
FORBIDDEN
禁止
FORBIDDEN
禁止
FORBIDDEN
WARNING
警告
!
WARNING
警告
!
!注意
CAUTION
!注意
CAUTION
3EN
WWW.GOO-SKY.COM
Precautions before use 使用前须知
六角螺丝起子
十字螺丝起子
For the assembly steps marked with the following symbols, please use glue or oil to ensure the reliability of use.
剪刀
Scissors
刀子
Knife
斜口钳
Diagonal Cutting Pliers
尖嘴钳
Needle Nose Pliers
The width of the blue screw glue
AB Glue AB胶CA瞬间胶
lubricating oil
Hexagon Screw DriverPhilips Screw Drive
EQUIPMENT REQUIRED FOR ASSEMBLY 自备工具
胶水使用方法 Instructions of using glue
2
Repeat many times
Use screw glue Add lubricating oil Normal tightening
No screw glue needed Add lubricating grease Completely tightened
Secure with instant glue
4
EN WWW.GOO-SKY.COM
标有以下符号之组装步骤，请配合上胶或上油，以确保使用之可靠度。
使用螺丝胶 添加润滑油 普通拧紧
使用瞬间胶固定 重复多次
无需使用螺丝胶 添加润滑油脂 完全拧紧
蓝色螺丝胶上胶宽度约
Grease
1

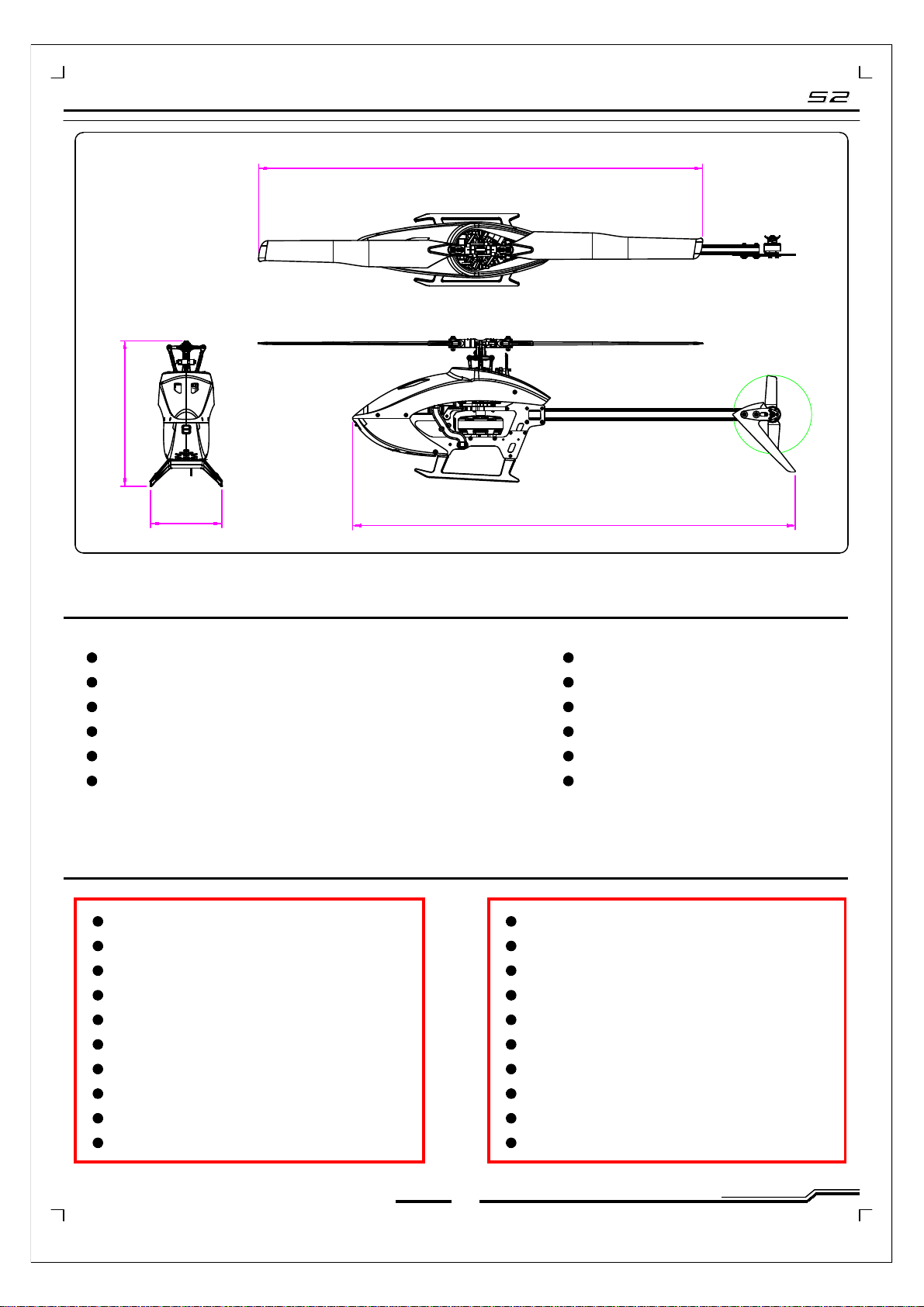

Specifications 参数规格
Lenght：436mm
Specifications 参数配备
Height：144mm
Main Blade：193mm
Main Rotor Diameter：440mm
Tail Rotor Diameter：99mm
Flying Weight：345g
Features 设计特点
5EN
WWW.GOO-SKY.COM
机身长：436mm
机身高：144mm
主旋翼长度：193mm
主旋翼直径：440mm
尾旋翼直径：78mm
起飞重量约：345g
采用双无刷电机直接驱主尾旋翼设计
FBL 旋翼头结构
全机免调连杆设计
流线型，封闭式头罩，采用炫彩烤漆工艺
开合式快拆电池结构
沉入式快装垫片设计
手机APP调参、无线程序升级
防呆快拆螺旋桨设计
紧固式极耳电机连接
多功能、高集成GTS飞控系统
440
436
144
71.5
Retractable quick-release battery structure
Embedded quick assembly gasket design
Parameter adjustment by Smart Phone APP
Wireless program upgrade
Anti-reversion quick-release propeller design
GTS System Reconstruction of Higher Order Control
Algorithms
Adjustment free connecting rod of the whole aircraft
With dual brushless motors driving the main and tail
rotors directly
FBL rotor head structure
Streamlined and enclosed canopy with colorful paint
technology
Fastening motor tab connection
step 1 步骤一
!
CAUTION
(OUT)
(IN)
(Ø3xØ6x2.8)
!
CAUTION
一
(Ø3*Ø6*2.5mm)x4
Φ3.1*Φ4.4*1.4mm)x2
(Ø3*Ø4.5*0.1mm)x2
!
CAUTION
6
EN WWW.GOO-SKY.COM
Ball Bearing-MR63ZZ
Main collet bearing bushing
Flat bearing gasket
Thrust bearing
Thrust braring and washer for radial bearing are wear items,and thus should be
inspected for replacement after every 20 flights.
For flights with high headspeed ,the inspection interval should be reduced to
ensure flight safety.
Thrust bearing
Ø3*Ø6*2.8mm)
Thrust bearings
(Ø3*Ø4.5*0.1mm)
Flat bearing gasket
(Ø3*Ø6*2.5mm)
Ball Bearing-MR63ZZ
Φ3.1*Φ4.4*1.4mm)
Main collet bearing bushing
Concave opening of bearing face
inside
(Ø3*Ø6*2.8)
Φ3*Φ6*3mm)x2
(Φ3.1*Φ4*Φ4*0.3*0.55)x2
Ø2*Ø5*0.2mm)x2
(M2x5mm)x2
Washer
Socket screw Damper rubber-red
Washer
Damper rubber
!
CAUTION
Pay attention to the direction
of the copper washer
(Φ3.175x9.5mm)
(Ø3*Ø6*2.5mm)
Ball Bearing-MR63ZZ
Ball head screw
Φ3x38.9mm
Feathering shaft
(Φ3.1*Φ4*Φ5*0.3*0.55)
Washer
Φ3*Φ6*3mm
Horizontal shaft
damper rubber
Washer
Ø2*Ø5*0.2mm
M2x5mm
Socket screw
Center Hub
main propeller clip
Grease
Grease
Grease
Main Blade Clip
The original assembled product, please confirm
whether the screw is glued and will not loosen
before each flight.
step 2 步骤二
7
EN WWW.GOO-SKY.COM
Ball head screw
Ball head screw
Ball head screw
(Φ3.175*6.3mm-M1.6)x2
(Φ3.175*5.7mm -M1.6)x4
(Φ3.175*15mm-M1.6)x1
Copper sets
(Φ1.5*Φ4*2mm)x8
Ball Bearing-681X
Copper sets
Copper sets
(Φ1.5*Φ2.8*0.4mm)x2
Socket screw
Copper sets
Socket screw
!
CAUTION
Socket screw
Copper sets
Copper sets
Socket screw
(Φ1.5*Φ4*2mm)
Ball Bearing-681X
Copper sets
Socket screw
(Φ1.5*Φ4*2mm)
Ball Bearing-681X
(Φ1.5*Φ2.8*0.4mm)
Copper sets
FBL control arm
Copper sets
Inner ball head seat
(Φ3.175*5.7mm-M1.6)
Ball head screw
(Φ3.175*5.7mm-M1.6)
Ball head screw
Ball head screw
(Φ3.175*6.3mm-M1.6)
Ball head screw
(Φ3.175*6.3mm-M1.6)
(Φ3.175*15mm-M1.6)
Ball head screw
It's recommended to use medium strength
metal screw thread sealant to install slotted
round head screw.
step 3 步骤三
8
EN WWW.GOO-SKY.COM
( Φ4*Φ10*4 )x2
Ball Bearing-MR104ZZ
(M2x6mm)x3
Socket screw
(M1.6x6mm)x2
Socket screw
installed in the outer
hole
(Φ3.175*7.3)x3 (M1.6)x3
(M1.6x4mm)x9
Linkage Ball M1.6 Nut
Socket screw
!
CAUTION
M1.6x4mm
Socket screw
M1.6x4mm
Socket screw
(Φ3.175*7.3)
Linkage Ball
Servo Arm
M1.6
M1.6 Nut
CCPM舵机
M1.6x4mm
Socket screw
M1.6x4mm
Socket screw
!
CAUTION
Bearing limit
carbon plate
(M1.6X6)
Socket screw
(M2X6)
Socket screw
second floor
Motherboard
(M2X6)
Socket screw
( Φ4*Φ10*4 )
Ball Bearing-MR104ZZ
( Φ4*Φ10*4 )
Ball Bearing-MR104ZZ
Servo bracket
CCPM servo
step 4 步骤四
9
EN WWW.GOO-SKY.COM
M3*4mm x2
Machine screw
(M2.5x6mm)
Socket screw
(M2.5x5mm)
Socket screw
Motor shaft fixing sleeve
(M1.6x4mm)x6
Socket screw
(M1.6x3mm)x4
Socket screw
Chassis fixing column
(M2x4mm)x2
Socket screw
M1.6x4mm
Socket screw
M1.6x3mm
Socket screw
Frame Widening Mount
M1.6x4mm
Socket screw
M1.6x4mm
Socket screw
M2x4mm
Socket screw
Tail Boom Mount
!
CAUTION
Main Shaft
M3*4mm
Machine screw
Motor shaft fixing sleeve
main motor
M3*4mm
Machine screw
(M2.5x5mm)
Socket screw
Main motor fixing base
!
CAUTION
!
CAUTION
Frame Widening Mount
The arrow is the outgoing
direction of the motor
wire.
M2.5*6 screws at the bottom of the motor, please apply
medium strength metal thread locking adhesive
(M2.5x6mm)
Socket screw
step 5 步骤五
10
EN WWW.GOO-SKY.COM
M1.6 x4
M1.6 Nut
(M1.6x5mm)
Socket screw
Body reinforcement
(ST1.6x4mm)
cross recessed
countersunk head tapping
screws
card buckle
(ST1.5X4 )
cross recessed
round head
tapping screw
(M1.6x3mm)
Socket screw
motor cable cover
right panel
left panel
(M1.6x3mm)
Socket screw
(ST1.6x4mm)x2
cross recessed countersunk
head tapping screws
(ST1.5X6)x6
cross recessed round
head tapping screw
(ST1.5x4mm)
cross recessed round
head tapping screw
M1.6
M1.6 Nut
Socket screw
(M1.6x5mm)
起落架
landing gear
M1.6
M1.6 Nut
Socket screw
(M1.6x5mm)
Socket screw
(M1.6x5mm)
Socket screw
(M1.6x5mm)
(ST1.5X6 )
cross recessed
round head
tapping screw
Altri manuali per S2
3
Altri manuali Goosky Drone
