GoPro 3D Hero SyStem Manuale utente

3D HERO®SYSTEM

User ManUal + Warranty Info

reQUIreD free 3D eDItInG softWare:

GoPro CIneforM stUDIo™

Your 3D HERO System allows you to combine two 1080p HD

HERO cameras with a 3D HERO Sync Cable to record synchronized

videos and photos. The cameras record video and photos much

like your eyes see the world—with right and le lenses. While

recording, each camera independently saves 2D video or photos

to the respective SD card. In order to convert the saved 2D ﬁles

into a single 3D ﬁle, you will need to download a FREE copy of

GoPro CineForm Studio from: gopro.com/3D.

GoPro CineForm Studio makes creating 3D videos and photos

easy. Simply import the video or photo ﬁles you want to convert

to 3D, click a button and the soware automatically converts

your paired 2D ﬁles into a single, viewable 3D ﬁle. Using the

red/blue (anaglyph) glasses included with the 3D HERO System,

you can watch your 3D videos and photos on your computer,

online at video sharing sites like YouTube that support 3D videos

or on your 3D TV at home using active or passive shutter

glasses depending on your 3D TV.

To download and install your free copy of GoPro CineForm

Studio, visit gopro.com/3D.

fIrMWare UPDate

The 3D HERO System requires two 1080p HD HERO cameras.

You will need to make sure both of your HD HERO cameras have

the latest ﬁrmware installed before using the 3D HERO System.

To download the latest ﬁrmware, visit: gopro.com/ﬁrmware.

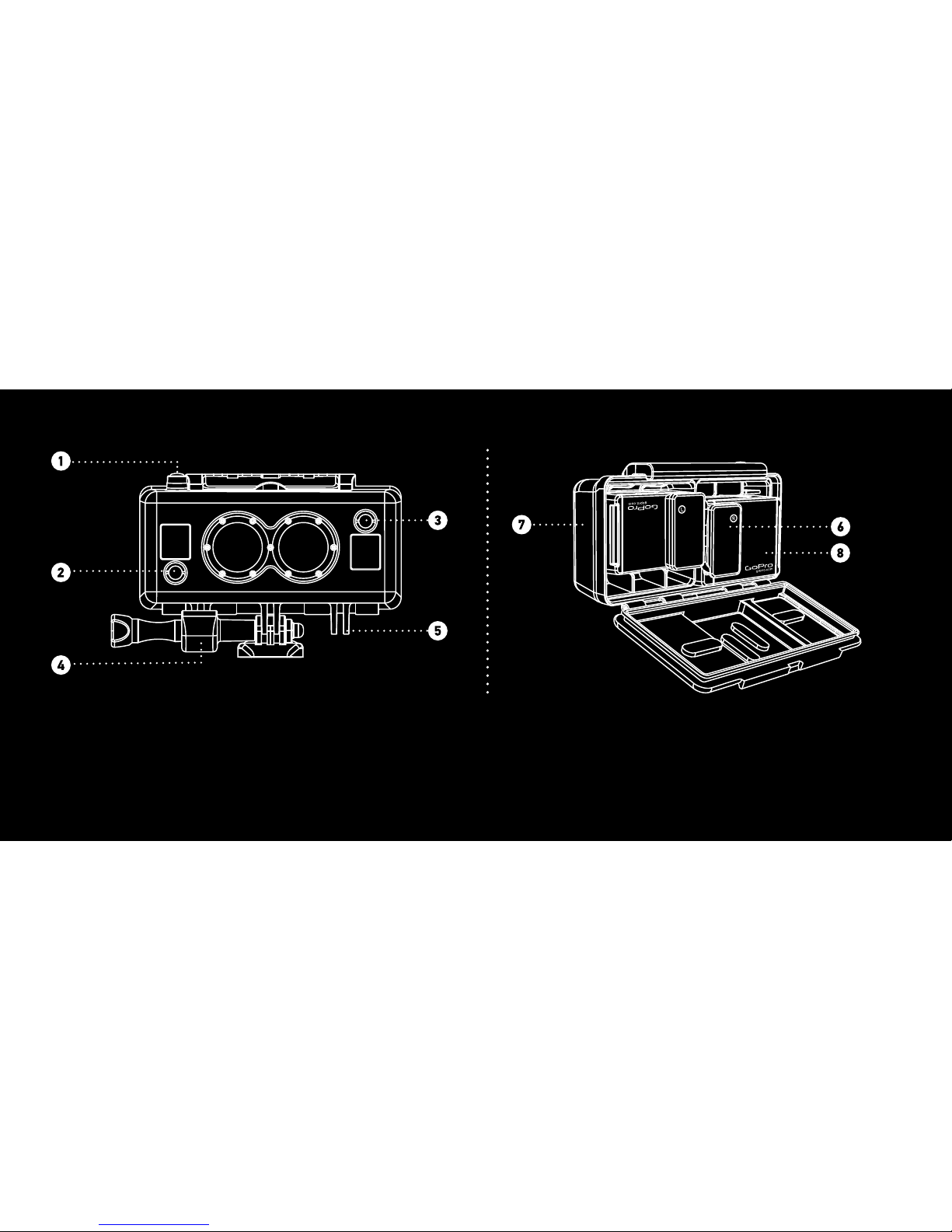

3D Hero systeM featUres

1. Master Shutter Button

Controls Both Cameras

2. Right Camera Power Button

3. Le Camera Power Button

4. Center Mount Adapter

5. Mounting Fingers

6. 3D HERO Sync Cable

7. Waterproof Housing

8. Requires Two 1080p

HD HERO Cameras

(not included)

asseMBlInG 3D Hero systeM

COMBINING TWO CAMERAS FOR 3D VIDEO AND PHOTO CAPTURE

NOTE: The 3D HERO System requires two 1080p HD HERO cameras. Each camera requires a fully charged battery

and SD card with suﬃcient memory for recording (GoPro recommends Class 4 or faster SD cards). Each camera’s settings

(e.g.: resolution, exposure, record mode, video format (PAL & NTSC)) must match for 3D synchronization to

work.

To combine cameras in 3D HERO System waterproof housing:

1. Open back door to the 3D housing.

2. Insert “right” camera right side up into housing.

3. Insert “le” camera upside down into housing.

4. I

nsert the 3D HERO Sync Cable into the HERO Bus

Port on both cameras. The side that says “R” on the

sync cable attaches to the right camera while side that

says “L” on the sync cable attaches to the le camera.

Note: Upon insertion of the sync cable, the right

camera will automatically set itself to be in UP mode

and the le camera will automatically set itself to

be in UPd mode. This conﬁguration is required for

capturing synchronized 3D videos and photos. If 3D

synchronization is not desired, you can manually

change each camera’s settings to be in a diﬀerent

UP/UPd mode, diﬀerent resolution, etc, but the

cameras will only record in a synchronized manner

allowing for 3D if BOTH cameras are set to shoot the

same resolution, record mode and frame rate.

5. Make sure the 3D Sync Cable is fully inserted

and is ﬂush against the back of the cameras.

Close waterhousing.

If settings are changed and you wish to return each camera

to its default 3D setting, simply unplug the sync cable and

then plug the sync cable back in to both cameras. This will

reset the right camera to UP mode (right side up) and the le

camera to UPd mode (upside down), allowing for synchronized

3D video and photo capture.

REMOVING 3D SYNC CABLE FROM CAMERAS

To remove the sync cable from the HD HERO Bus Port, grasp

each 3D sync port connector ﬁrmly and remove by liing

device evenly away from the HERO Bus Port. Do NOT pull on

cable connecting the le and right HERO port connectors.

UsInG tHe 3D Hero systeM

IMPORTANT: To capture 3D video and photos, both cameras

must be set to identical resolution, record mode and frame

rate settings.

To begin recording video or photos:

1. Power on both cameras.

2. Verify that SD cards are present in both cameras,

that batteries are charged and that both cameras are

set to the same resolution, record mode and frame

rate. Upon insertion of the sync cable, right camera

will automatically set itself to UP and le camera will

automatically set

itself to UPd. This is necessary for

capturing synchro

nized 3D video and photos.

Press master shutter button on top of 3D HERO

System

housing to initiate synchronized 3D video

or photo capture.

Additional Notes:

• Blinking front LCD screen and red LED record lights may

or may not blink in sync. This is OK and has no eﬀect on

whether or not each camera is in sync with the other.

• Should the battery die or SD card become full on either

camera, both cameras will save the ﬁles and stop recording.

• Always use brand name SD cards with a Class 4 rating

or higher.

• The 3D HERO System can also capture 3D photos in time

lapse mode every 2, 5, 10, 30, or 60 seconds. Photo every

1 second mode is not possible when capturing 3D photos.

To capture 3D photos in 3D time-lapse mode, change the

mode on both cameras to Photo Every “X” mode and press

the shutter button to begin recording.

MoUntInG ConfIGUratIons

IMPORTANT: It is recommended to use dual quick-release buckles for mounting the 3D HERO System whenever possible for

maximum stability. Using a single center mounted quick-release buckle is only recommended for chest, helmet, suction cup,

and other body worn applications where high vibration or impact are less likely. Use of a single center quick-release buckle

in high vibration or high impact scenarios can result in less stable video compared to using two quick-release buckles.

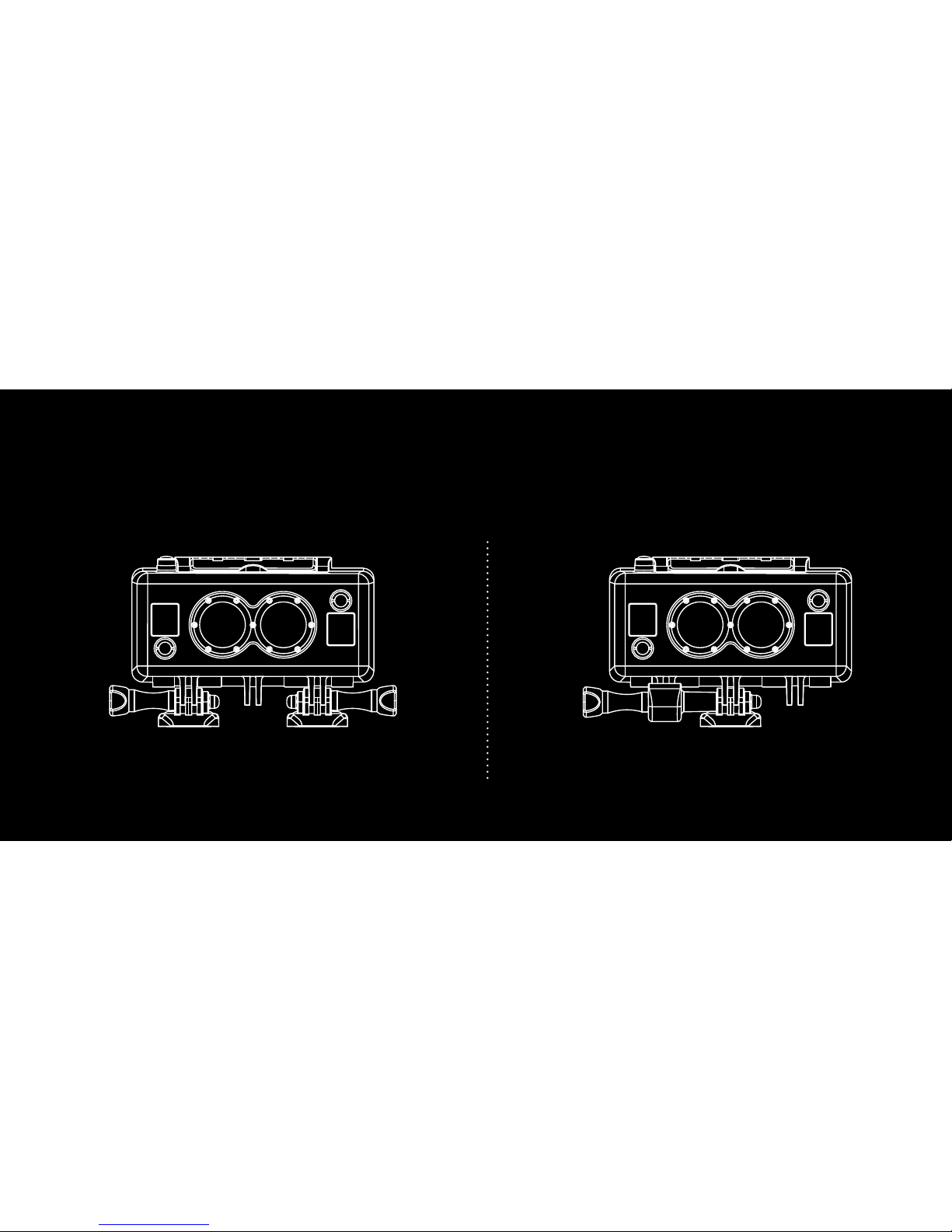

More stable video with dual quick-release buckles Less stable video with single quick-release buckle

CURVED AND FLAT SURFACE MOUNTING

The extension arms and quick-release buckles can be

used in a number of diﬀerent orientations depending on

what type of surface you are attaching the 3D HERO System

to. For example, attach included extension arms to the quick-

release buckles in order to achieve proper orientation when

attaching the waterhousing to curved surfaces.

Note: When removing the quick-release buckles from

the adhesive mounts, push both quick-release buckles

out evenly to avoid jamming the buckles.

FRONT HELMET AND CHEST MOUNTING

Front Helmet Mount:

Attach the Front Helmet Mount to the center ﬁngers with

the center mount adapter and long thumb screw.

Chest Mount:

Attach the curved quick-release buckle (and straight arms

if necessary for proper angle adjustment) to the center

ﬁngers on the waterhousing with the

center mount adapter

and long thumb screw.

WARNING: Single center mount conﬁguration is not

recommended for high impact or high vibration use.

VIDeo reCorDInG tIPs

• For best results, keep your subject at least 3 feet away

from

camera when shooting in photo mode 720p and 960p

resolutions

. When shooting in 1080p, because of its less

wide angle perspective, it’s best to keep your subject at

least 5 feet away from the camera. Failure to do so will

result in an inability to properly align the two video ﬁles

for 3D and will cause your eyes to strain when viewing

the subject on screen.

WARNING: If images are shot closer than the

recommended

distances, the resulting 3D image will

cause eye strain when viewing during playback.

• For best 3D results, the right camera must be in UP and

the le camera must be in UPd recording modes. For

convenience, the sync cable automatically adjusts each

camera into the ideal UP / UPd mode each time you plug

the sync cable into each camera.

• Both lenses should be cleaned prior to and during use.

Discrepancies in images between cameras due to dust

particles, water drops, etc, will cause eye strain when

viewing in 3D.

• The 3D HERO System can record dierent video resolutions

simultaneously, but it will not be possible to create 3D video

ﬁles from the resulting video ﬁles as the resolutions will not

match. Additionally, synchronization will not occur when the

resolutions of each camera do not match.

•

To prevent fogging when using the waterproof back

door, use GoPro’s anti-fog inserts with your 3D HERO

System housing.

transferrInG VIDeo anD PHotos

to yoUr CoMPUter

Plug the camera into your computer with the included USB

cable, turn on the camera, and locate the Removable Disk

(SD Card) icon. Once the icon is located:

1. Double click the “Removable Disk” icon.

2. Double click the “DCIM” folder icon.

3. Image ﬁles captured with the right camera will

be stored in a folder named 100G_3D_R.

4. Image ﬁles captured with the le camera will

be stored in a folder named 100G_3D_L.

5. Any ﬁle created during 3D sync recording will

start with 3D_L0001 or 3D_R0001.

CreatInG 3D VIDeo anD PHotos WItH

GoPro CIneforM stUDIo

To convert 2D video and photo ﬁles into 3D ﬁles, you will need

to use GoPro CineForm Studio soware. GoPro CineForm

Studio and associated instructions are available as a FREE

download from: gopro.com/3D.
