EN - Instruction on mounting and use
Closely follow the instructions set out in this
manual. All responsibility, for any eventual
inconveniences, damages or fires caused by not
complying with the instructions in this manual, is
declined. The extractor hood has been designed
exclusively for domestic use.
The hood can look different to that illustrated in
the drawings in this booklet. The instructions
for use, maintenance and installation, however,
remain the same.
Note: the elements marked with the symbol “(*)”
are optional accessories supplied only with some
models or elements to purchase, not supplied.
Caution
WARNING! Do not connect the appliance to the
mains until the installation is fully complete.
Before any cleaning or maintenance operation,
disconnect hood from the mains by removing the
plug or disconnecting the mains electrical supply.
Always wear work gloves for all installation and
maintenance operations.
The appliance is not intended for use by children or
persons with impaired physical, sensorial or mental
faculties, or if lacking in experience or knowledge,
unless they are under supervision or have been
trained in the use of the appliance by a person
responsible for their safety.
This appliance is designed to be operated by
adults, children should be monitored to ensure that
they do not play with the appliance.
This appliance is designed to be operated by
adults. Children should not be allowed to tamper
with the controls or play with the appliance.
Never use the hood without effectively mounted
grating!
The hood must NEVER be used as a support
surface unless specifically indicated.
The premises where the appliance is installed must
be sufficiently ventilated, when the kitchen hood is
used together with other gas combustion devices
or other fuels.
The ducting system for this appliance must not be
connected to any existing ventilation system which
is being used for any other purpose such as
discharging exhaust fumes from appliances
burning gas or other fuels.
The flaming of foods beneath the hood itself is
severely prohibited.
The use of exposed flames is detrimental to the
filters and may cause a fire risk, and must
therefore be avoided in all circumstances.
Any frying must be done with care in order to make
sure that the oil does not overheat and ignite.
Accessible parts of the hood may became hot
when used with cooking applicance.
With regards to the technical and safety measures
to be adopted for fume discharging it is important
to closely follow the regulations provided by the
local authorities.
The hood must be regularly cleaned on both the
inside and outside (AT LEAST ONCE A MONTH).
This must be completed in accordance with the
maintenance instructions provided in this manual).
Failure to follow the instructions provided in this
user guide regarding the cleaning of the hood and
filters will lead to the risk of fires.
Do not use or leave the hood without the lamp
correctly mounted due to the possible risk of
electric shocks.
We will not accept any responsibility for any faults,
damage or fires caused to the appliance as a
result of the non-observance of the instructions
included in this manual.
This appliance is marked according to the
European directive 2002/96/EC on Waste
Electrical and Electronic Equipment (WEEE). By
ensuring this product is disposed of correctly, you
will help prevent potential negative consequences
for the environment and human health, which
could otherwise be caused by inappropriate waste
handling of this product.
The symbol on the product, or on the
documents accompanying the product, indicates
that this appliance may not be treated as
household waste. Instead it should be taken to the
appropriate collection point for the recycling of
electrical and electronic equipment. Disposal must
be carried out in accordance with local
environmental regulations for waste disposal.
For further detailed information regarding the
process, collection and recycling of this product,
please contact the appropriate department of your
local authorities or the local department for
household waste or the shop where you purchased
this product.
Use
The hood is designed to be used either for
exhausting or filter version.
Ducting version
In this case the fumes are conveyed outside of the
building by means of a special pipe connected with
the connection ring located on top of the hood.
9
Attention! The exhausting pipe is not supplied and
must be purchased apart.
Diameter of the exhausting pipe must be equal to
that of the connection ring.
In the horizontal runs the exhausting pipe must be
slightly slanted (about 10°) and directed upwards
to vent the air easily from the room to the outside.
Attention! If the hood is supplied with active
charcoal filter, then it must be removed.
Connect the hood and discharge holes on the
walls with a diameter equivalent to the air outlet
(connection flange).
Using the tubes and discharge holes on walls with
smaller dimensions will cause a diminution of the
suction performance and a drastic increase in
noise.
Any responsibility in the matter is therefore
declined.
! Use a duct of the minimum indispensible
length.
! Use a duct with as few elbows as possible
(maximum elbow angle: 90°).
! Avoid drastic changes in the duct cross-
section.
! Use a duct with an as smooth as possible
inside.
! The duct must be made of certified material.
Filter version
One active charcoal filter is needed for this and
can be obtained from your usual retailer.
The filter removes the grease and smells from the
extracted air before sending it back into the room
through the upper outlet grid.
The models with no suction motor only operate in
ducting mode, and must be connected to an
external suction device (not supplied).
The connecting instructions are supplied with the
peripheral suction unit.
Installation
The minimum distance between the supporting
surface for the cooking equipment on the hob and
the lowest part of the range hood must be not less
than 45cm from electric cookers and 65cm from
gas or mixed cookers.
If the instructions for installation for the gas hob
specify a greater distance, this must be adhered to.
Electrical connection
The mains power supply must correspond to the
rating indicated on the plate situated inside the
hood. If provided with a plug connect the hood to a
socket in compliance with current regulations and
positioned in an accessible area, after installation.
If it not fitted with a plug (direct mains connection)
or if the plug is not located in an accessible area,
after installation, apply a double pole switch in
accordance with standards which assures the
complete disconnection of the mains under
conditions relating to over-current category III, in
accordance with installation instructions.
Warning! Before re-connecting the hood circuit to
the mains supply and checking the efficient
function, always check that the mains cable is
correctly assembled.
The hood is provided with a special power cable ; if
the cable is damaged, request a new one from
Technical Service.

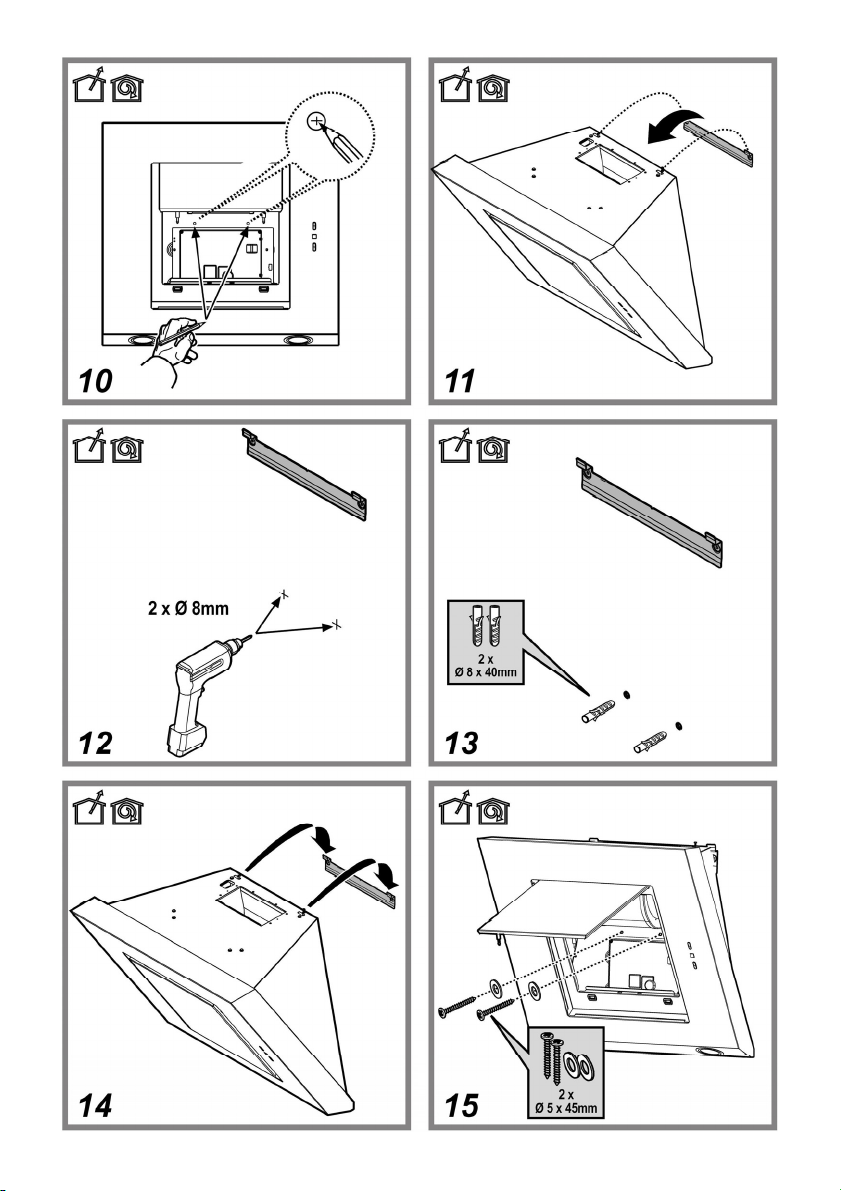

Mounting
Before beginning installation:
• Check that the product purchased is of a
suitable size for the chosen installation area.

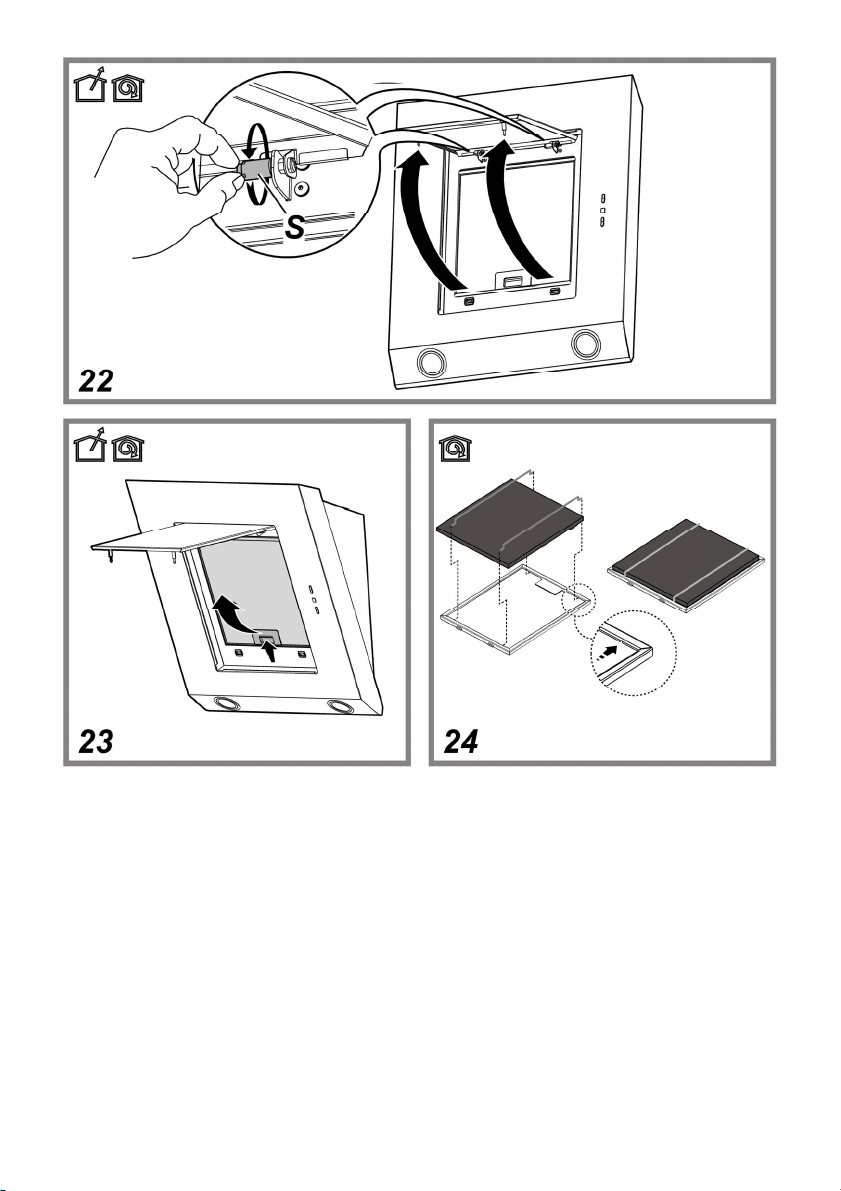

• To facilitate installation, remove the fat filters
and the other parts allowed and described
here, dismantle and mount it.
To remove see also the relative paragraphs.
• Remove the active carbon (*) filter/s if supplied
(see also relative paragraph). This/these is/are
to be mounted only if you want lo use the hood
in the filtering version.
• Check (for transport reasons) that there is no
other supplied material inside the hood (e.g.
packets with screws (*), guarantees (*), etc.),
eventually removing them and keeping them.
• If possible, disconnect and move freestanding
or slide-in range from cabinet opening to
provide easier access to rear wall/ceiling.
Otherwise put a thick, protective covering over
countertop, cooktop or range to protect from
damage and debris. Select a flat surface for
assembling the unit. Cover that surface with a
protective covering and place all canopy hood
parts and hardware in it.
• In addition check whether near the installation
area of the hood (in the area accessible also
with the hood mounted) an electric socket is
available and it is possible to connect a fumes
discharge device to the outside (only suction
version).
• Carry out all the masonry work necessary (e.g.
installation of an electric socket and/or a hole
for the passage of the discharge tube).
Expansion wall plugs are provided to secure the
hood to most types of walls/ceilings. However, a
qualified technician must verify suitability of the
materials in accordance with the type of
wall/ceiling. The wall/ceiling must be strong
enough to take the weight of the hood. Do not tile,
grout or silicone this appliance to the wall.
Surface mounting only.
10
Operation
Use the high suction speed in cases of
concentrated kitchen vapours. It is recommended
that the cooker hood suction is switched on for 5
minutes prior to cooking and to leave in operation
during cooking and for another 15 minutes
approximately after terminating cooking.
1 ON/OFF motor
Pressing the button, the hood turns on at
speed 1.
Pressing the button during functioning, the
hood turns OFF.
2 Speed Increase
Pressing the button the hood passes from the
OFF state to speed 1.
Pressing the button (hood in ON state) the
motor speed is increased from speed 1 to
intensive.
To each speed corresponds the ignition of the
respective led.
Speed 1 led L1
Speed 2 led L2
Speed 3 led L3
Intensive Speed led L4 (flashing)
The intensive speed is timed. The standard
timing is 5’, at the end of which the hood
positions itself to speed 2.
To deactivate the function before the time
expires press key 2, the hood positions itself to
speed 1, pressing key 1the hood will turn off.
3 ON/OFF lights
4 Speed timing
5 Function state indicator
Speed Timing
The timing of the speed is enabled by pressing key
4, once the timing expires the hood turns off.
The timing is subdivided as follows:
Speed 1 - 20 minutes (led L1 flashing)
Speed 2 - 15 minutes (led L2 flashing)
Speed 3 - 10 minutes (led L3 flashing)
Intensive Speed - 5 minutes (led L4 flashing)
During the timed functioning pressing key 1the
hood turns off, if you press key 2 or key 4 the hood
returns to the set speed.
Grease trap Signal
After 40 hours of operation the led L5 turns on.
When such signal appears the installed grease
trap needs to be washed.
To reset the signal hold down key 1for 3”.
Carbon filter Signal
After 160 hours of operation the led L5 flashes.
When such signal appears the installed carbon
filter must be substituted.
To reset the signal hold down key 1for 3”.
In the case of both filters signalling at the same
time, the led L5 will indicate the alarms alternately
remaining on for 3" and subsequently flashing 3
times.
The reset takes place by carrying out the
procedure described above 2 times.
The first time resets the grease trap signal, the
second resets the carbon filter signal.
In the standard mode the carbon filter signal is not
active.
In case one uses the hood in filter version is it
necessary to enable the carbon filter signal.
Carbon filter signal activation:
Position the hood in OFF and simultaneously hold
down keys 1and 4for 3”.
The led L1 and L2 will flash for 5”.
Carbon filter signal deactivation:
Position the hood in OFF and simultaneously hold
down keys 1and 4for 3”.
The led L1 will flash for 2”.
Temperature Alarm
The hood is equipped with a temperature sensor
that activates the motor to speed 3 in the case that
the temperature in the control zone becomes too
elevated.
The alarm condition is indicated with the sequential
flash of the leds L1, L2, L3.
This condition remains until the temperature falls
Indice
Lingue:
Altri manuali Gorenje Plus Cappa di ventilazione
Gorenje Plus
Gorenje Plus GHF62X Manuale utente
Gorenje Plus
Gorenje Plus GHT92X Manuale tecnico
Gorenje Plus
Gorenje Plus GHV62X Manuale tecnico
Gorenje Plus
Gorenje Plus S10/GHV93B Manuale utente
Gorenje Plus
Gorenje Plus GHV6B Manuale utente
Gorenje Plus
Gorenje Plus GHI92X Manuale tecnico
Gorenje Plus
Gorenje Plus GHT62X Manuale tecnico
Gorenje Plus
Gorenje Plus GHF6X Manuale utente
Gorenje Plus
Gorenje Plus GHV6B Manuale utente
