READ THIS MANUAL

KEEP INSTRUCTIONS FOR FUTURE USE.

Do not install or use this infant restraint until you

read and understand the instructions in this manual.

FAILURE TO PROPERLY USE THIS INFANT RESTRAINT

INCREASES THE RISK OF SERIOUS INJURY OR DEATH IN

A SUDDEN STOP OR CRASH.

Infant Restraint/Carrier

Owner’s Manual Model 8444

4480402

1.0 Registration Information . . . . . . . . . . . . . . . . . . . . . . . . . . .4-5

1.1 Register Your Infant Restraint . . . . . . . . . . . . . . . . . . . . . .4

1.2 Recall Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

1.3 If You Need Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

2.0 Features and Components . . . . . . . . . . . . . . . . . . . . . . . .6-10

2.1 Removing andAttaching Base . . . . . . . . . . . . . . . . . . . . .8

2.2 Adjusting Handle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

2.3 Attaching Canopy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

2.4 Head Support (on certain models) . . . . . . . . . . . . . . . . . .10

3.0 Important Information . . . . . . . . . . . . . . . . . . . . . . . . . . .11-15

3.1 Warnings for Use as Infant Restraint . . . . . . . . . . . . . . . .11

3.2 Warning for Use With a Stroller . . . . . . . . . . . . . . . . . . . .13

3.3 Additional Warnings for Use as Carrier . . . . . . . . . . . . . .14

3.4 Height and Weight Limits . . . . . . . . . . . . . . . . . . . . . . . .15

4.0 Infant Restraint Location . . . . . . . . . . . . . . . . . . . . . . . .16-20

4.1 Vehicle Seat Requirements . . . . . . . . . . . . . . . . . . . . . . .16

4.2 Vehicle Seat Belt Requirements . . . . . . . . . . . . . . . . . . .17

4.2.1 UNSAFE Vehicle Belt Systems . . . . . . . . . . . . . . . .18

4.2.2 SAFE Vehicle Belt Systems . . . . . . . . . . . . . . . . . .19

4.3 LATCH Locations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

5.0 Using Infant Restraint . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22-32

5.1 Positioning Harness Straps . . . . . . . . . . . . . . . . . . . . . . .22

5.2 Securing Child in Infant Restraint . . . . . . . . . . . . . . . . . .24

5.3 Installing the Infant Restraint/Base with Vehicle Belt . . . .26

5.4 Using LATCH to Install Base . . . . . . . . . . . . . . . . . . . . . .29

5.5 Reclining Infant Restraint/Base . . . . . . . . . . . . . . . . . . . .30

6.0 Additional Information . . . . . . . . . . . . . . . . . . . . . . . . . .33-35

6.1 Airplane Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

6.2 Storing LATCH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

6.3 Cleaning and Maintenance . . . . . . . . . . . . . . . . . . . . . . .34

Replacement Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38-39

Model Number:

Serial Number:

Purchase Date:

1.1 Register Your Infant Restraint

Please fill in the above information. The model and serial numbers

can be found on a label underneath your infant restraint. Fill out the

prepaid registration postcard attached to the seat cover and mail

it today.

Child restraints could be recalled for safety reasons. You must

address and model/serial numbers to:

Graco Children’s Products Inc.

P.O. Box 100

Elverson, PA19520-9974

or call 1-888-224-6549

• Call the U.S. Government’sAuto Safety Hotline

at 1-800-424-9393 (202-366-0123 in D.C. area)

• www.nhtsa.dot.gov

• Graco: 1-888-224-6549 or www.gracobaby.com

1.2 Recall Information

1.0 Registration Information

1.3 If You Need Help

In the U.S.A. or Canada, please contact our Customer Service

Department with any questions you may have concerning parts, use,

or maintenance. When you contact us, please have your product’s

model and serial numbers ready so that we may help you

efficiently. These numbers can be found on a sticker on the

underside of your infant restraint.

USA: 1-888-224-6549 or www.gracobaby.com

Canada: 1-800-667-8184 Montreal: 514-344-3533

2.0 Features and Components

FRONT VIEW

Handle

Harness

slots

Vehicle

belt

hook

Handle

adjustment

button

Harness

clip

Harness

buckle

Harness

buckle tongues

Vehicle belt/LATCH path

Base

Adjustable Foot

LATCH Connector

Adjustment Belt LATCH

Storage

Bars

REAR VIEW

Canopy

Harness slot

Release handle

Attachment

latch

Level

indicator*

Owner’s manual

pocket

Harness

tightener

Locking clip**

The level indicator is attached to the side of

the infant restraint, and indicates whether or

not the infant restraint is properly reclined.

The locking clip is stored on the bottom of

the infant restraint. You will need to use it

with certain types of vehicle seat belts.

**Locking

Clip

*Level

Indicator

2.1 Removing and Attaching Base

2.2 Adjusting Handle

To remove infant restraint, squeeze release

handle at back of seat and lift infant

restraint from base as shown .

To put infant restraint in base, push infant

restraint down until it clicks into base.

Pull up on infant restraint to be sure

it is latched firmly into base.



1. Press handle adjustment buttons on

both sides of handle .

2. Rotate handle until it clicks into any

of three positions (for carrying,

reclining, or sitting). BOTH handle

adjustment buttons must pop out

to lock handle in place .

3. Push and pull on the handle to be

sure it is locked firmly in position.





Carrying

Reclining

Sitting

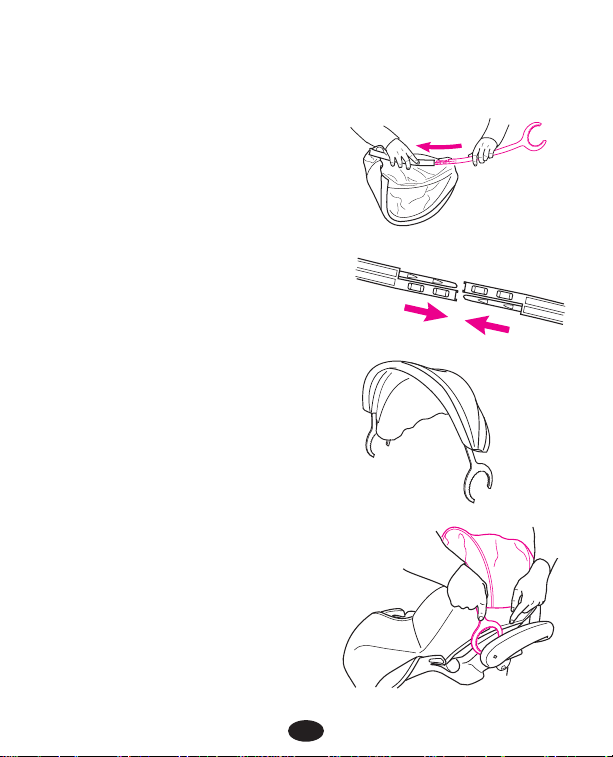

2.3 Attaching Canopy

1. Infant restraint comes with two

identical canopy support parts.

Thread one canopy support

completely through sewn

tunnel .

2. Slide straight end of a second

support into the straight end of the

first support .

3. The canopy should appear as

shown .

4. Attach canopy in the areas

between the infant restraint

and the handle base .









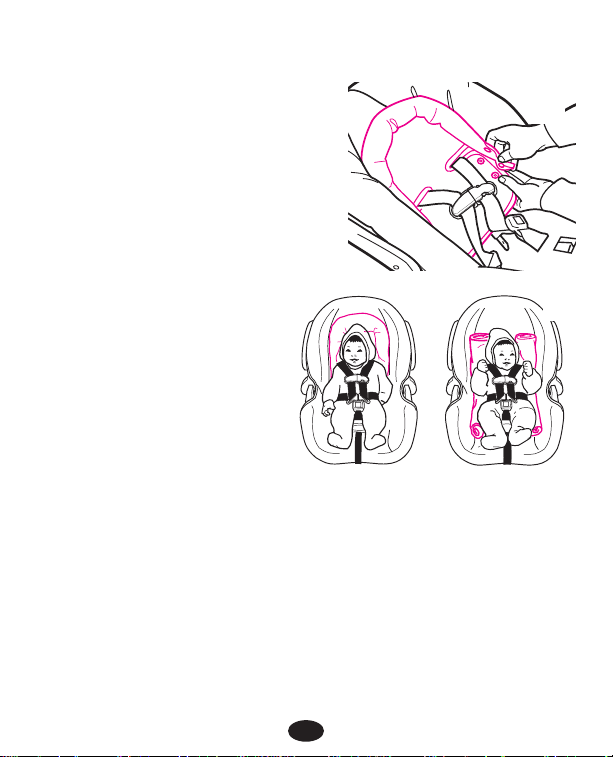

2.4 Head Support (on certain models)

Some infants may need extra support

to keep their head and body in a

comfortable position. Unsnap the sides

and resnap them with the harness

straps threaded through the slots in

the cushion .

If your model does not include

a head support, you may want

to use a rolled towel or a

blanket for support .

MAKE SURE THAT NOTHING

INTERFERES WITH THE

HARNESS OR THE BLANKET.

It must still be flat and snug

against your child’s shoulders.




