Graco 4EVER DLX SNUGLOCK Manuale utente
Do not install or use this child restraint until you read and understand the
instructions in this manual.
FAILURE TO PROPERLY USE THIS CHILD RESTRAINT INCREASES THE RISK OF
SERIOUS INJURY OR DEATH IN A SUDDEN STOP OR CRASH.
www.gracobaby.com
NWL0000814217A 7/18
4EVER
®DLX
4-IN-1 CAR SEAT
2
1-A Quick Guide to Your Manual
1-B Welcome to the Graco Family
1-C Right Mode of Use
1-D Before You Begin
Register This Car Seat
If You Need Help
Certification
Car Seat’s Useful Life
Vehicle Seat Protection
Warm Weather Use
1-E Safety Warnings
1 Important Pages 6-27
2 Features Pages 28-33
3
4-A Forward-Facing Use
4-B Install Forward-Facing with InRightTM LATCH
4-C Install Forward-Facing with the Vehicle Seat Belt
4 Forward-Facing Pages 47-64
3-A Rear-Facing Use
3-B Install Rear-Facing with InRightTM LATCH
3-C Install Rear-Facing with Vehicle Seat Belt
3 Rear-Facing Pages 34-46
4
6-A Securing Child 5-Point Harness
6-B Securing Child Highback Booster
6-C Securing Child Backless Booster
6 Securing Child Pages 81-97
7
Moving the InRightTM LATCH Strap
Pages 98-101
5-A Booster Use
5-B Install Highback Booster
5-C Install Backless Booster
5 Booster Pages 65-80
5
9-A How to Remove LATCH and Top Tether
9-B Choosing Vehicle Seat Location
9-C Unsafe Vehicle Seat Location
9-D Vehicle Seat Belts
10-A Cleaning RapidRemoveTM Seat Pad
10-B Cleaning the Buckle
10-C Cleaning Harness and LATCH Straps
9 Vehicle Information Pages 103-113
8 Accessories Page 102
10 Care & Cleaning Pages 114-117
6
1-A Quick Guide to Your Manual
This car seat is for children: Rear-Facing: 4-40 lb (1.8-18 kg)
Forward-Facing: 22-65 lb (10-30 kg)
Highback Booster: 40-100 lb (18.1-45 kg)
Backless Booster: 40-120 lb (18.1-54 kg)

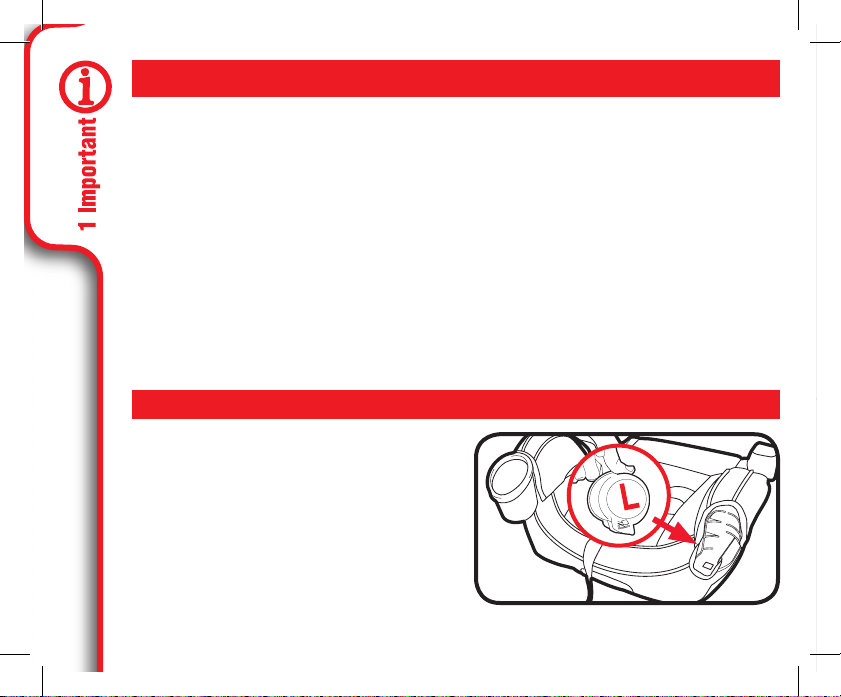

Install Cup Holders
R
L
Cup holders must be installed.
To attach the cup holders, match the
right cup holder (find the letter R on the
bottom of the cup holder) to the right
side of the seat and the left “L” to the
left.
• Infants who weigh less than 22 lb (10 kg) MUST be rear-facing. Review section 1-C
for more information.
Note: Preterm or low birth weight infants may be at special risk in a vehicle or aircraft.
According to the AAP, these infants may suffer breathing issues if improperly reclined in
a car seat. When rear-facing, use the corrected age for preemies. Graco advises that you
have your physician or hospital staff evaluate your infant and recommend the proper car
seat or car bed before you and your infant leave the hospital.
7
This car seat is for children: Rear-Facing: 4-40 lb (1.8-18 kg)
Forward-Facing: 22-65 lb (10-30 kg)
Highback Booster: 40-100 lb (18.1-45 kg)
Backless Booster: 40-120 lb (18.1-54 kg)
Move the fabric aside and align the tab
behind the cup holder with the slot in
the seat.
Align the tab on the bottom of the cup
holder with the hole in the seat.
Use both hands to push down hard
on the cup holder. You will hear a
“Click” when they are secured in
place.
8
continue next page
Get to Know Your Car Seat

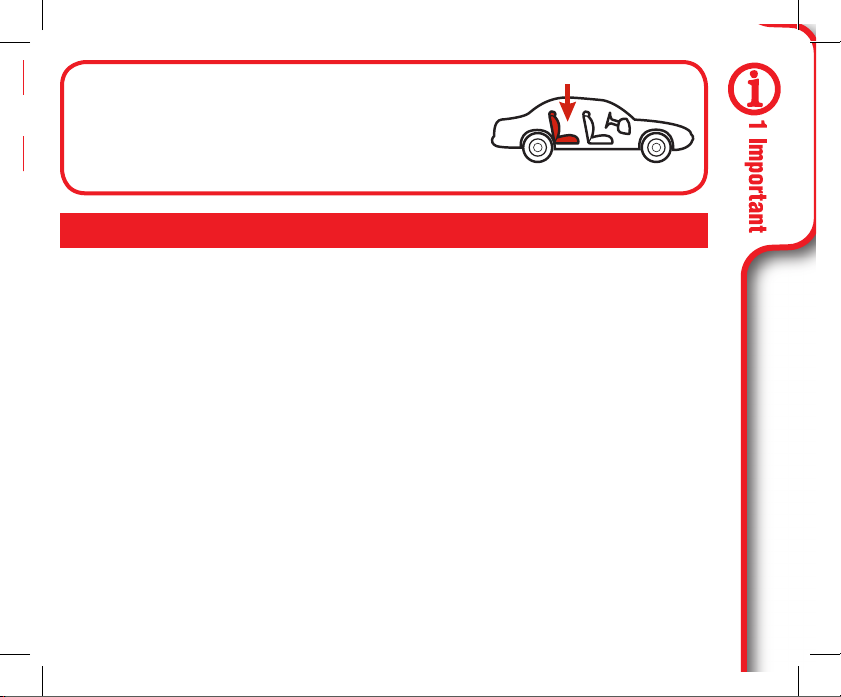

What Seating Location Should I Use?
Review section 2-A to see all of the features of this car seat.
The best seating location for this car seat is one that:
• Is recommended by your vehicle owner’s manual, and
• Results in a secure installation of this car seat.
Some vehicles have specific requirements for where the car seat can be
installed, so be sure to check your vehicle owner’s manual for available
seating positions, if any. For example, sometimes the center rear seat has a
lap belt only vehicle seat belt, which cannot be used when this car seat is in
Booster mode.
Review section 9-C, 9-D of this manual AND your vehicle owner’s manual.
NEVER place this child restraint rear-facing in a vehicle
seating location that has an active front air bag.
In the event there is no back seat, review your vehicle owner’s
manual to see how to use your child restraint.
9
Which Installation Method Should I Use?
This car seat can be installed in your vehicle using either the vehicle seat
belt OR the LATCH system. Both are equally safe to use. DO NOT USE BOTH
AT THE SAME TIME IN THE 5-POINT HARNESS MODE. Graco allows the
securing of the car seat with LATCH system in the booster mode, only if the
vehicle manufacture allows it.
Vehicle Seat Belt: Review section 9 and your vehicle owner’s manual to
learn how to install your car seat with the vehicle seat belts.
LATCH: The LATCH system allows you to securely attach your safety seat
in your car without using the vehicle seat belt and possibly to get a better
fit. All 2003 and newer model year vehicles are required to have a LATCH
system, although some manufacturers began including LATCH earlier. Some
vehicle owner manuals use the term ISOFIX to identify the LATCH system.
According to crash statistics, the safest
place for your child in any vehicle is the
back seat. The center of the back seat can
be the safest during a possible side impact.
10
LATCH consists of lower anchors and top tether anchors, which are built-
in to your vehicle, and connecting hooks that are built-in to your car seat.
Lower anchors are used INSTEAD of the vehicle’s seat belt to secure the
child seat to the vehicle. Top tethers are used IN ADDITION to the lower
anchors OR the vehicle’s seat belt to secure a forward-facing car seat to
the vehicle.
Review your vehicle’s owner manual for exact location and use.
What is LATCH?
Vehicle Top Tether
Anchor Points
Vehicle Lower
Anchor Points
Typical seat in a passenger
vehicle. Other vehicle types
may have different LATCH
locations.
Vehicle Seat Bight
continue next page
