Graco Extend2Fit Manuale utente
Extend2Fit
CONVERTIBLE CAR SEAT
www.gracobaby.com
FAILURE TO PROPERLY USE THIS CHILD
RESTRAINT INCREASES THE RISK OF
SERIOUS INJURY OR DEATH IN A SUDDEN
STOP OR CRASH.
Do not install or use this child restraint
until you read and understand the
instructions in this manual.
PD348857A 11/15
2
1-A A Quick Guide to Your Manual
1-B Welcome to the Graco Family
1-C Right Mode of Use
1-D Before You Begin
Register This Car Seat
If You Need Help
Certification
Car Seat’s Useful Life
Vehicle Seat Protection
Warm Weather Use
1-E Safety Warnings
2-A Car Seat Features
1 Important Pages 6-23
2 Features Pages 24-29
3
1 Important Pages 6-23
4-A Forward-Facing
4-B Installing Forward-Facing With LATCH Straps
4-C Install Forward-Facing With Vehicle Seat Belt
4 Forward-Facing Use Pages 48-61
3-A Rear-Facing
3-B Installing Rear-Facing With LATCH Straps
3-C Install Rear-Facing With Vehicle Seat Belt
3 Rear-Facing Use Pages 30-47
4
5-A Securing Child 5-Point Harness
5 Securing Child Pages 62-69
6 Accessories Pages 70-71
7 Moving the LATCH Strap Pages 72-74
5
8-A How to Remove LATCH and Top Tether
8-B Choosing Vehicle Seat Location
8-C Unsafe Vehicle Seat Locations
8-D Vehicle Seat Belts
8 Additional Information Pages 75-85
9-A Cleaning Seat Pad
9-B Cleaning Crotch Buckle
9-C Cleaning Harness and LATCH Straps
9 Cleaning Seat Pad Pages 86-90
6
1-A A Quick Guide to Your Manual
This car seat is for children: Rear-Facing: 4-50 lb (1.8-22.5 kg)
Forward Facing: 22-65 lb (10-30 kg)
• Children less than 22 lb (10 kg) MUST use this car seat rear-facing. Review section
1-C for more information.
Get to Know Your Car Seat
What Seating Location Should I Use?
Review section 2-A to see all of the features of this car seat.
The best seating location for this car seat is one that:
• Is recommended by your vehicle owner’s manual, and
Car Seat Assembly (On Select Models)
Adult Assembly Required
1. Attach Cup Holders
You MUST attach cup holders. Remove
seat cover. Line up tab on bottom of
cupholder with hole in shell. Press and
snap into place. Replace cover.
7
Which Installation Method Should I Use?
This car seat can be installed in your vehicle using either the vehicle seat belt OR the
LATCH system. Both are equally safe to use. DO NOT USE BOTH AT THE SAME TIME.
Vehicle Seat Belt: Review section 8 and your vehicle owner’s manual to learn how to
install your car seat with the vehicle seat belts.
LATCH: The LATCH system allows you to securely attach your safety seat in your car
without using the vehicle seat belt and possibly to get a better fit. All 2003 and newer
model year vehicles are required to have a LATCH system, although some manufacturers
began including LATCH earlier. Some vehicle owner manuals use the term ISOFIX to
identify the LATCH system.

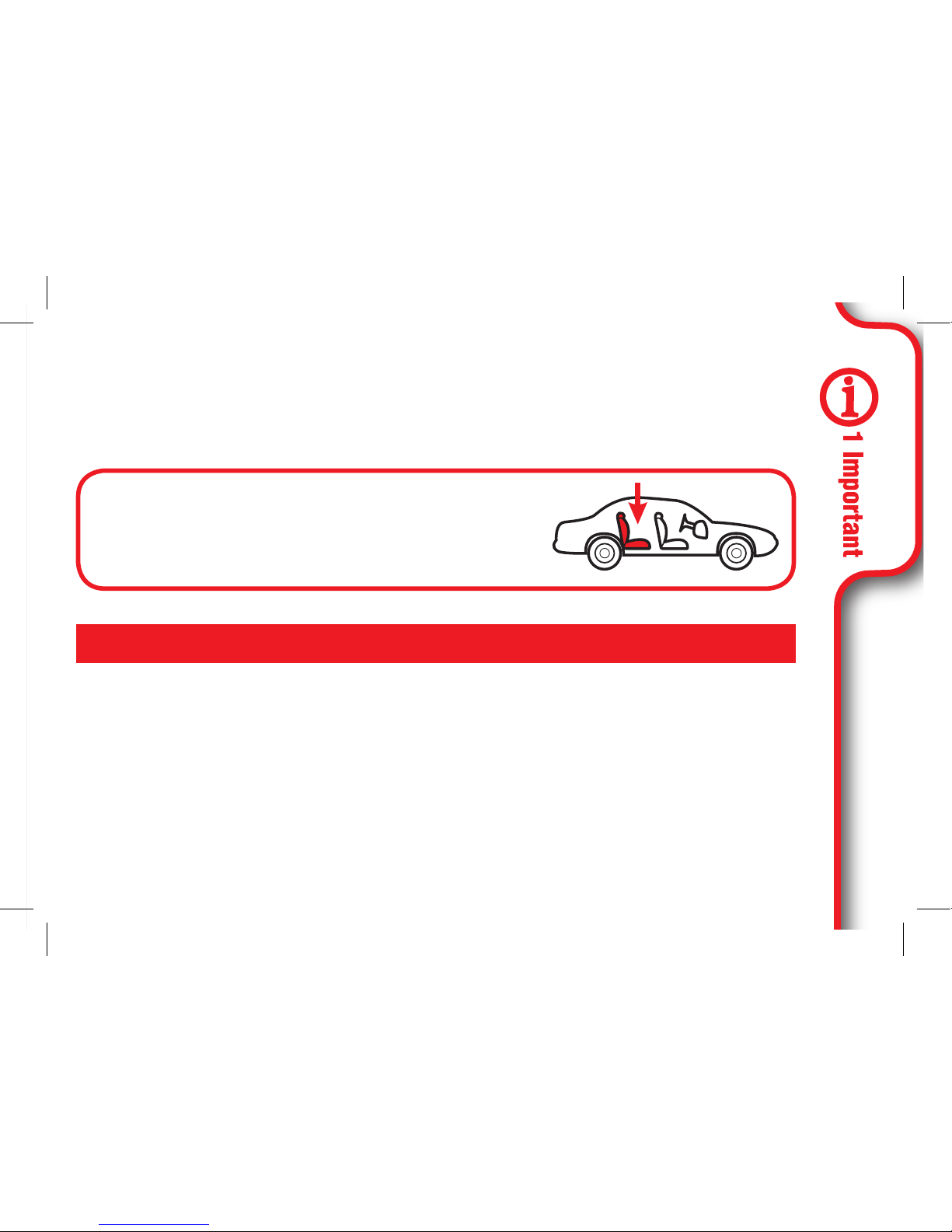

According to accident statistics, the safest
place for your child in any vehicle is the
back seat. The center of the back seat can
be the safest during a possible side impact.
• Results in a secure installation of this car seat.
Some vehicles have specific requirements for where the car seat can be installed, so
be sure to check your vehicle owner’s manual for available seating positions, if any.
Review section 8-B, 8-C of this manual AND your vehicle owner’s manual.
8
LATCH consists of lower anchors and top tether anchors, which are built-
in to your vehicle, and connecting hooks that are built-in to your car seat.
Lower anchors are used INSTEAD of the vehicle’s seat belt to secure the
child seat to the vehicle. Top tethers are used IN ADDITION to the lower
anchors OR the vehicle’s seat belt to secure a forward-facing car seat to
the vehicle.
Review your vehicle’s owner manual for exact location and use.
What is LATCH?
Vehicle Top Tether
Anchor Points
Vehicle Lower
Anchor Points
Typical seat in a passenger
vehicle. Other vehicle types
may have different LATCH
locations.
Vehicle Seat Bight
continue next page
11”
(28 cm)
9
When Installing Rear-Facing & Forward-Facing
Vehicle Seat Belt
There are two types of vehicle seat belts
that can be used. Lap/Shoulder Seat Belt
or Lap Only Seat Belt.
Review section 3-C & 4-C of this manual
AND your vehicle owner’s manual.
LATCH System
LATCH consists of two lower anchors, which are
built-in to your vehicle, and connecting hooks that
are built-in your car seat.
Review section 3-B & 4-B of this manual AND your
vehicle owner’s manual.
LATCH can ONLY be used if the vehicle LATCH
anchor spacing is 11 inches (28 cm) from the
center of one LATCH anchor to the center of the
other LATCH anchor.
10

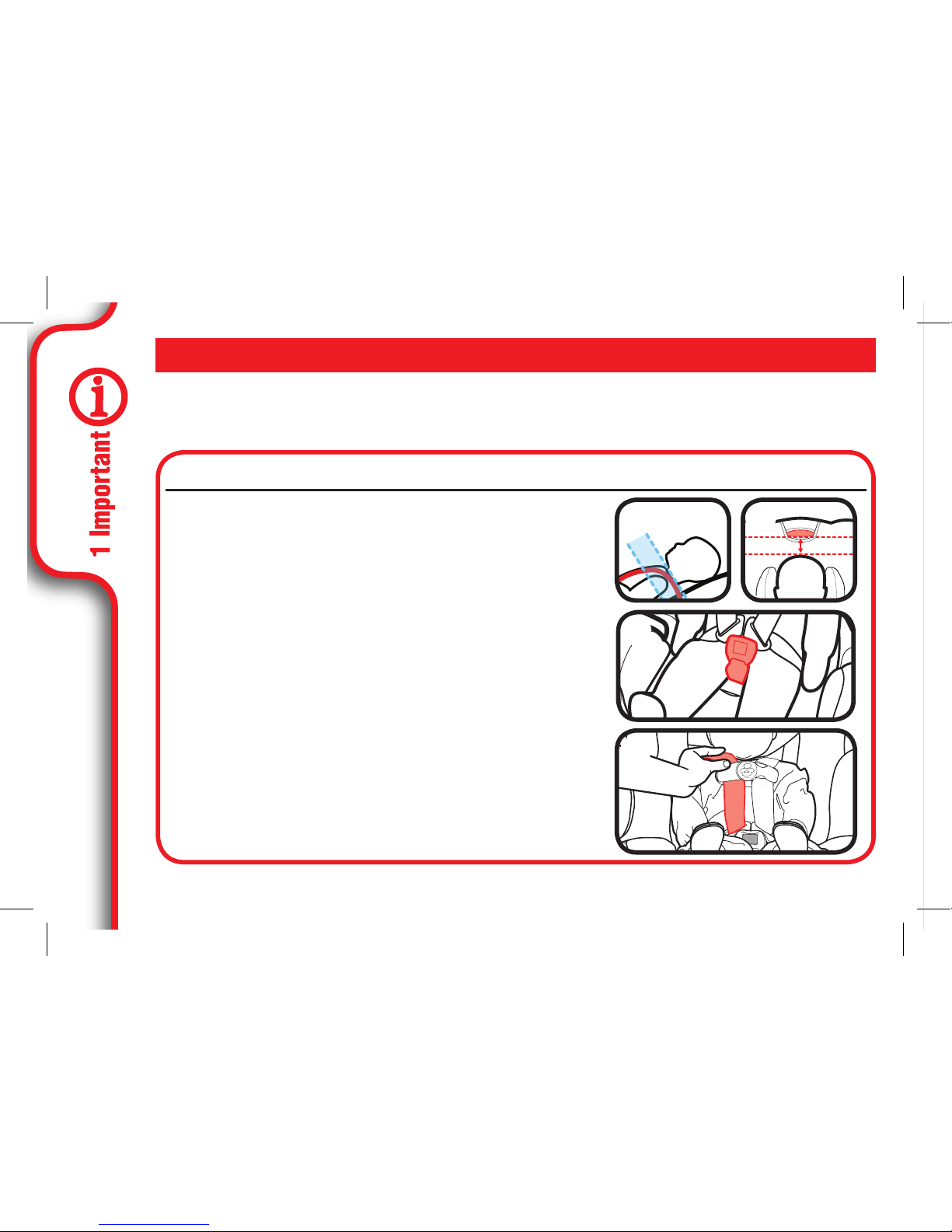

Does Your Car Seat Fit Your Child Correctly?
To make sure your child is secured properly, review section 3 and 4 to
understand all of the actions you need to take to properly adjust the car seat
to fit your child.
Harness Height, Rear-Facing (A)
Harness straps at or just below the child’s
shoulders and
top of head must be at least 1”
(2.5 cm) below the headrest adjustment lever
(B).
Review section 5.
Buckle Position (C)
The correct slot is the one that is closest to
your child without being underneath them.
Review section 5.
Harness Tightness (D)
If your fingers slide off the harness straps
without pinching the straps, it is tight enough.
Review section 5.
For Rear-Facing, You Need to Adjust:
A
C
B
D
continue next page
