Graco NAUTILUS Manuale utente

READ THIS MANUAL

Do not install or use this child restraint until you read and understand the instructions in this manual.

FAILURE TO PROPERLY USE THIS CHILD RESTRAINT INCREASES THE RISK OF SERIOUS

INJURYOR DEATH INASUDDEN STOP OR CRASH.

Child Restraint/Booster Seat

Owner’s Manual

Table of Contents

1.0 Warnings to Parents and Other Users

......................4-5

2.0 Registration Information.........6

2.1 Register Your Child Restraint 6

2.2 For Recall Information ......6

2.3 If You Need Help ..........7

3.0 Useful Information .............7

3.1 Certification...............7

3.2 Child Restraint Useful Life....7

3.3 Second Hand Child Restraint .7

4.0 Features...................8-9

5.0 Assembling the Child Restraint10-13

6.0 WARNINGS..............14-15

7.0 Height and Weight Limitations . . .16

7.1 WITHBuilt-inHarness......16

7.2 WITHOUT Built-in Harness. .17

7.3 WITHOUT Back Support....18

8.0 Choosing anAppropriate Vehicle

Seat Location ...............19

8.1 Vehicle Seat Location

Requirements............19

8.2 Vehicle Seat Belt Requirements

......................20

8.3 SAFE Vehicle Seat Belt

Systems ................20

8.4 For Built-in Harness Only . .21

8.5 WITH or WITHOUT Built-in

Harness................22

8.6 To Install Locking Clip......23

8.7 UNSAFE Vehicle Belt

Systems..............24-25

9.0 LATCH......................26

9.1 WhatisLATCH?.......26-27

9.2 LATCHSystem........28-29

10.0Using Child Restraint WITH Built-in

Harness.................30-35

Table of Contents (cont.)

11.0 Securing the Child Restraint in Your

Vehicle .....................36

11.1 Using a Child Restraint WITH a

Built-inHarness..........36

11.2 With a Vehicle Lap or

Lap/shoulder belt ......36-37

11.3WithLATCH..........38-39

12.0Securing Your Child in the

Child Restraint............40-41

13.0 Harness Removal or

Re-attaching Harness ......42-46

14.0 Using Your Child Restraint WITHOUT

Built-inHarness...........47-49

15.0 Securing Child & Booster Seat in . .

Vehicle.....................50

16.0 Adjusting Head Support........51

17.0 Removing or Re-attaching Back

Support .................52-54

18.0 Securing Child in Vehicle Belt

with Shoulder Belt

Positioning Clip ...........55-58

19.0 Using the Tether..............59

19.1 Storing Lower Anchors and

Tether..................60

20.0 Airplane Use ................61

21.0Accessories.................62

21.1 Body Support and

HarnessCovers...... ...62

21.2 Body Support and

HarnessCovers...... ...63

22.0 Recline Foot ................64

23.0 Care and Maintenance .........65

23.1 Buckle Cleaning Process. . .66

24.0 To Remove or Re-attach

SeatCover..................67

25.0 Owners Manual Storage. .......68

26.0 Replacement Parts and

Warranty.....................68

1.0 Warnings to Parents and Other Users

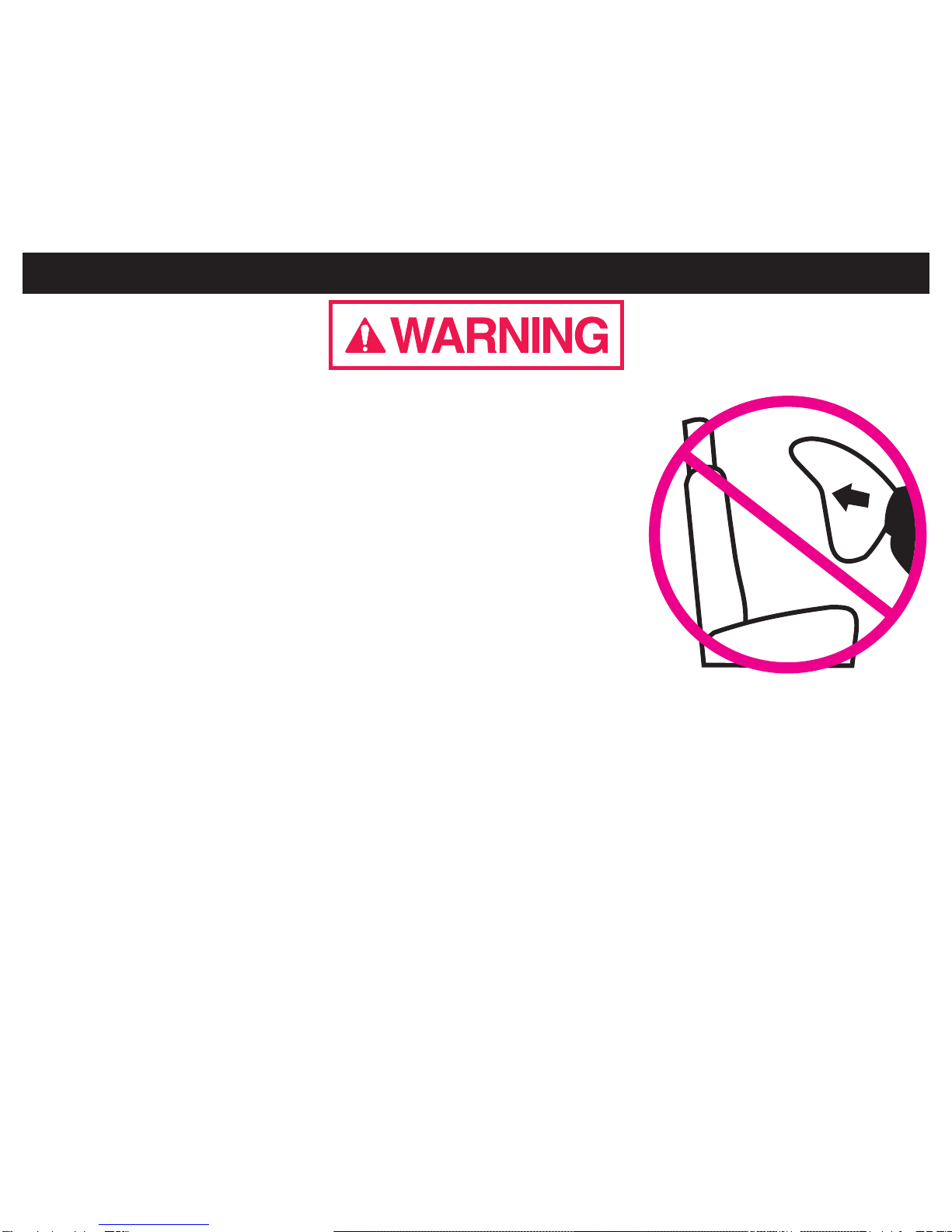

NEVER PLACE THIS CHILD RESTRAINT INA VEHICLE

SEATING LOCATION THAT HAS A FRONTAIR BAG. If an air

EDJLQÀDWHVLWFDQKLWWKHFKLOGDQGFKLOGUHVWUDLQWZLWKJUHDWIRUFH

and cause serious injury or death to your child. Refer to your

vehicle owner’s manual for information about side air bags and

child restraint installation.

Failure to properly use this child restraint increases the risk of serious injury or death in a sharp

WXUQVXGGHQVWRSRUFUDVK<RXUFKLOG¶VVDIHW\GHSHQGVRQ\RXLQVWDOOLQJDQGXVLQJWKLVFKLOG

restraint correctly.

(YHQLIXVLQJWKLVFKLOGUHVWUDLQWVHHPVHDV\WR¿JXUHRXWRQ\RXURZQLWLVYHU\LPSRUWDQWWR5($'

THE OWNER’S MANUALand the vehicle owner’s manual.

Your child’s safety depends on:

1. Choosing the correct mode of use for the child restraint depending on your child’s size.

2. Inserting the harness straps (if needed) in the proper slots for your child.

3. Selecting a suitable location for the child restraint in your vehicle.

4. Properly routing the vehicle seat belt or LATCH.

5. Properly securing the child restraint in the vehicle using a seat belt designed to restrain

both the child restraint and your child or by using LATCH. Many seat belts are NOT safe to use

with this child restraintHYHQWKRXJKWKH\FDQHDVLO\EHWKUHDGHGWKURXJKRUDURXQGWKHchild

restraint!

6. Properly securing your child in the child restraint.

2.0 Registration Information

3OHDVH¿OOLQWKHDERYHLQIRUPDWLRQ7KHPRGHOQXPEHUDQGGDWHRIPDQXIDFWXUHFDQEHIRXQGRQ

a label on the child restraint. Fill out the prepaid registration postcard attached to the harness and

mail it today.

Child restraints could be recalled for safety reasons. You must register this restraint to be reached

in a recall. 6HQG\RXUQDPHDGGUHVVDQGWKHUHVWUDLQW¶VPRGHOQXPEHUDQGdate of manufacture

to: Graco Children’s Products Inc.

Attn: Customer Service

3 Glenlake Parkway, Atlanta, GA 30328

or call 1-800-345-4109 or register online at:

http://www.gracobaby.com/carseatregistration

2.1 Register Your Child Restraint

Call the U.S. Government’s Vehicle Safety Hotline at: 1-888-327-4236

(TTY:1-800-424-9153), or go to http://www.NHTSA.gov or contact Graco:

1-800-345-4109 or www.gracobaby.com

2.2 For Recall Information

Model Number:

Date of Manufacture:

Purchase Date:

3.2 Child Restraint Useful Life

Please contact our Customer Service Department with any questions you may have concerning

SDUWVXVHRUPDLQWHQDQFH:KHQ\RXFRQWDFWXVSOHDVHKDYH\RXUSURGXFW¶VPRGHODQG

GDWHRIPDQXIDFWXUHUHDG\VRWKDWZHPD\KHOS\RXHI¿FLHQWO\7KHVHQXPEHUVFDQEHIRXQG

on a label on the child restraint.

USA: 1-800-345-4109 or www.gracobaby.com

www.cpsc.gov

www.NHTSA.gov

www.seatcheck.org

2.3 If You Need Help

THIS CHILD RESTRAINT

CONFORMS to all applicable

Federal Motor Vehicle Safety

6WDQGDUGVDQGLVFHUWL¿HGIRUXVHLQ

motor vehicles.

,WLVFHUWL¿HGIRUXVHLQ$LUFUDIWRQO\

when used with the built-in harness.

When used as a booster without

WKHKDUQHVVWKLVUHVWUDLQW

LVQRWFHUWL¿HGIRUXVHLQDLUFUDIW

3.1&HUWLÀFDWLRQ

Graco Children’s Products Inc. advises against loaning or

passing along a child restraint.

3.3 Second Hand Child Restraint

3.0 Useful Information

STOP using this child restraint and throw it away

10 years after the date of manufacture. Look for this

sticker on rear of child restraint:

MODEL

Date of Manufacture

GRACO CHILDREN'S PRODUCTS, INC.

ATLANTA, GA 30328 1-800-345-4109

Made in China

PD206938A

NAME

year month day

4.0 Features

The locking clip is stored

on the back of the child

restraint. You will need

to use it with certain

types of vehicle seat

belts.

United States Federal

Motor Vehicle Safety

Standards have

GH¿QHGDV\VWHPIRU

installing child restraints

in vehicles. The system

is called LATCH (Lower

Anchorage and Tether

for CHildren). LATCH

may ONLY be used

IN PLACE of vehicle belt

if vehicle is equipped

with LATCH anchor

points. Please refer to

vehicle owners manual

for LATCH locations in

vehicles.



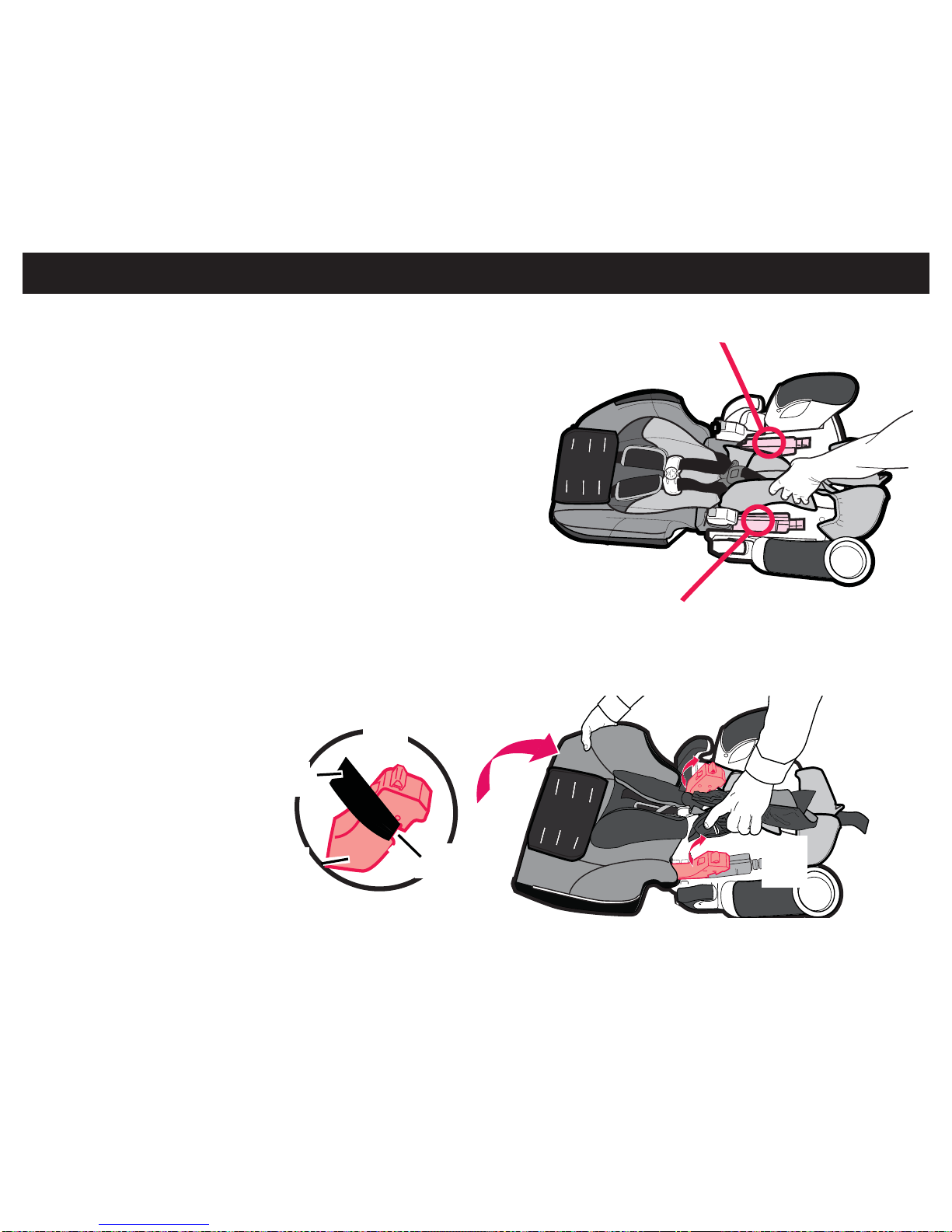

1. Lay child restraint flat on back. Grab seat pad

fabric in sitting area to expose the gutters .

MAKE SUREDOOKDQGVILQJHUVDQGRWKHUREMHFWV

are clear of the gutters.

2. MAKE sure the harness straps are securely

attached within the “T”-shaped slots around the

arms as shown .

:LWK\RXURWKHUKDQGUDLVHVHDWEDFNVRWKDW

both arms LOCK into the gutters .

KEEP GUTTERS CLEAR

A r m

Harness Strap

T-slot

5.0 Assembling the Child Restraint

Adult assembly required.




