READ THIS MANUAL
Do not install or use this child restraint until you read and understand the instructions in this manual.
FAILURE TO PROPERLY USE THIS CHILD RESTRAINT INCREASES THE RISK OF SERIOUS
INJURY OR DEATH IN A SUDDEN STOP OR CRASH.
Child Restraint / Booster Seat Owner’s Manual
featuring
© 2013 Graco PD254379A 7/13 US
2
Table of Contents
1.0 Warnings to Parents and Other Users
...........................4-5
2.0 Registration Information ..............6
2.1 Register Your Child Restraint ......6
2.2 For Recall Information ...........6
2.3 If You Need Help ...............7
3.0 Useful Information ..................7
3.1 Certification....................7
3.2 Child Restraint Useful Life.........7
3.3 Second Hand Child Restraint ......7
4.0 Features........................8-9
5.0 Assembling the Child Restraint ....10-13
6.0 WARNINGS...................14-15
7.0 Height and Weight Limitations ........16
7.1 WITHBuilt-inHarness...........16
7.2 WITHOUTBuilt-inHarness.......17
7.3 WITHOUT Back Support.........18
8.0 Choosing an Appropriate Vehicle
Seat Location ...............19
8.1 Vehicle Seat Location
Requirements ............19
8.2 Vehicle Seat Belt Requirements
......................20
8.3 SAFE Vehicle Seat Belt
Systems ................20
8.4 For Built-in Harness Only . .21
8.5 WITH or WITHOUT Built-in
Harness ................22
8.6 To Install Locking Clip......23
8.7 UNSAFE Vehicle Belt
Systems..............24-25
9.0 LATCH......................26
9.1 WhatisLATCH?.......26-27
9.2 LATCHSystem........28-29
10.0 Using Child Restraint WITH Built-in
Harness .................30-35
3
Table of Contents (cont.)
11.0 Securing the Child Restraint in Your
Vehicle .....................36
11.1 Using a Child Restraint WITH a
Built-inHarness ..........36
11.2 With a Vehicle Lap or
Lap/shoulder belt ......36-37
11.3WithLATCH..........38-39
12.0 Securing Your Child in the
Child Restraint ............40-41
13.0 Harness Removal .........42-46
14.0 Using Your Child Restraint WITHOUT
Built-inHarness...........47-49
15.0 Securing Child & Booster Seat in . .
Vehicle ....................50
16.0 Adjusting Head Support........51
17.0 Removing Back Support ....52-54
18.0 Securing Child in Vehicle Belt with
Shoulder Belt Positioning Clip.... 55-58
19.0 Using the Tether ..................59
19.1 Storing LATCH and Tether......60
20.0 Airplane Use ....................61
21.0Accessories .....................62
21.1 Body Support and
HarnessCovers..............62
22.0 Recline Foot ....................63
23.0 Care and Maintenance .............64
23.1 Buckle Cleaning Process .......65
24.0 To Remove Seat Cover ............66
25.0 Owners Manual Storage. ...........67
26.0 Replacement Parts and Warranty . . ...68
4
1.0 Warnings to Parents and Other Users
NEVER PLACE THIS CHILD RESTRAINT INA VEHICLE
SEATING LOCATION THAT HAS A FRONTAIR BAG. If an air
bag inÀatesit can hit the child and child restraint with great force
and cause serious injury or death to your child. Refer to your
vehicle owner’s manual for information about side air bags and
child restraint installation.
5
Failure to properly use this child restraint increases the risk of serious injury or death in a sharp
turnsudden stop or crash. Your child’s safety depends on you installing and using this child
restraint correctly.
Even if using this child restraint seems easy to ¿gure out on your ownit is very important to READ
THE OWNER’S MANUAL and the vehicle owner’s manual.
Your child’s safety depends on:
1. Choosing the correct mode of use for the child restraint depending on your child’s size.
2. Inserting the harness straps (if needed) in the proper slots for your child.
3. Selecting a suitable location for the child restraint in your vehicle.
4. Properly routing the vehicle seat belt or LATCH.
5. Properly securing the child restraint in the vehicle using a seat belt designed to restrain
both the child restraint and your child or by using LATCH. Many seat belts are NOT safe to use
with this child restrainteven though they can easily be threaded through or around the child
restraint!
6. Properly securing your child in the child restraint.
6
2.0 Registration Information
Please ¿ll in the above information. The model number and date of manufacture can be found on a
label on the child restraint. Fill out the prepaid registration postcard attached to the harness and
mail it today.
Child restraints could be recalled for safety reasons. You must register this restraint to be reached
in a recall. Send your nameaddressand the restraint’s model number and date of manufacture to:
Graco Children’s Products Inc.
Attn: Customer Service
3 Glenlake Parkway
Atlanta, GA 30328
or call 1-800-345-4109 or register online at:
http://www.gracobaby.com/carseatregistration
2.1 Register Your Child Restraint
Call the U.S. Government’s Vehicle Safety Hotline at: 1-888-327-4236
(TTY:1-800-424-9153), or go to http://www.NHTSA.gov or contact Graco:
1-800-345-4109 or www.gracobaby.com
2.2 For Recall Information
Model Number:
Date of manufacture:
Purchase Date:
7
3.2 Child Restraint Useful Life
Please contact our Customer Service Department with any questions you may have concerning
partsuseor maintenance. When you contact usplease have your product’s model and
date of manufacture ready so that we may help you ef¿ciently. These numbers can be found
on a label on the child restraint.
USA: 1-800-345-4109 or www.gracobaby.com
www.cpsc.gov www.NHTSA.gov www.seatcheck.org
2.3 If You Need Help
THIS CHILD RESTRAINT
CONFORMS to all applicable
Federal Motor Vehicle Safety
Standards and is certi¿ed for
use in motor vehicles.
It is certi¿ed for use in Aircraft
only when used with the
built-in harness. When used
as a booster without the
harnessthis restraint is NOT
certi¿ed for use in aircraft.
3.1 CertiÀcation
Graco Children’s Products Inc. advises against loaning or
passing along a child restraint.
3.3 Second Hand Child Restraint
3.0 Useful Information
STOP using this child restraint and throw it away 10 years after the
date of manufacture.
Look for this sticker on rear
of child restraint: MODEL
Date of Manufacture
GRACO CHILDREN'S PRODUCTS, INC.
ATLANTA, GA 30328 1-800-345-4109
Made in China
PD206938A
NAME
year month day
8

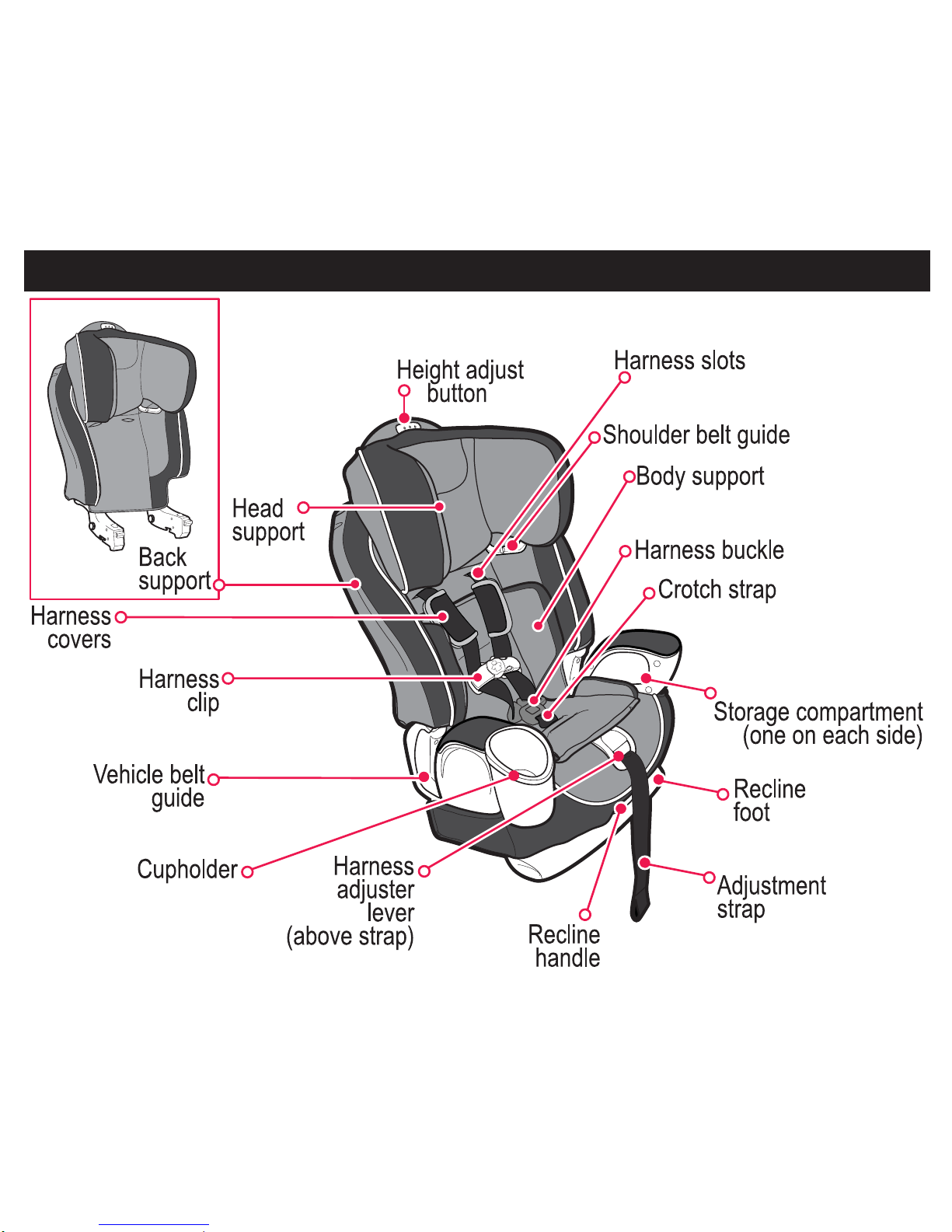

4.0 Features
9

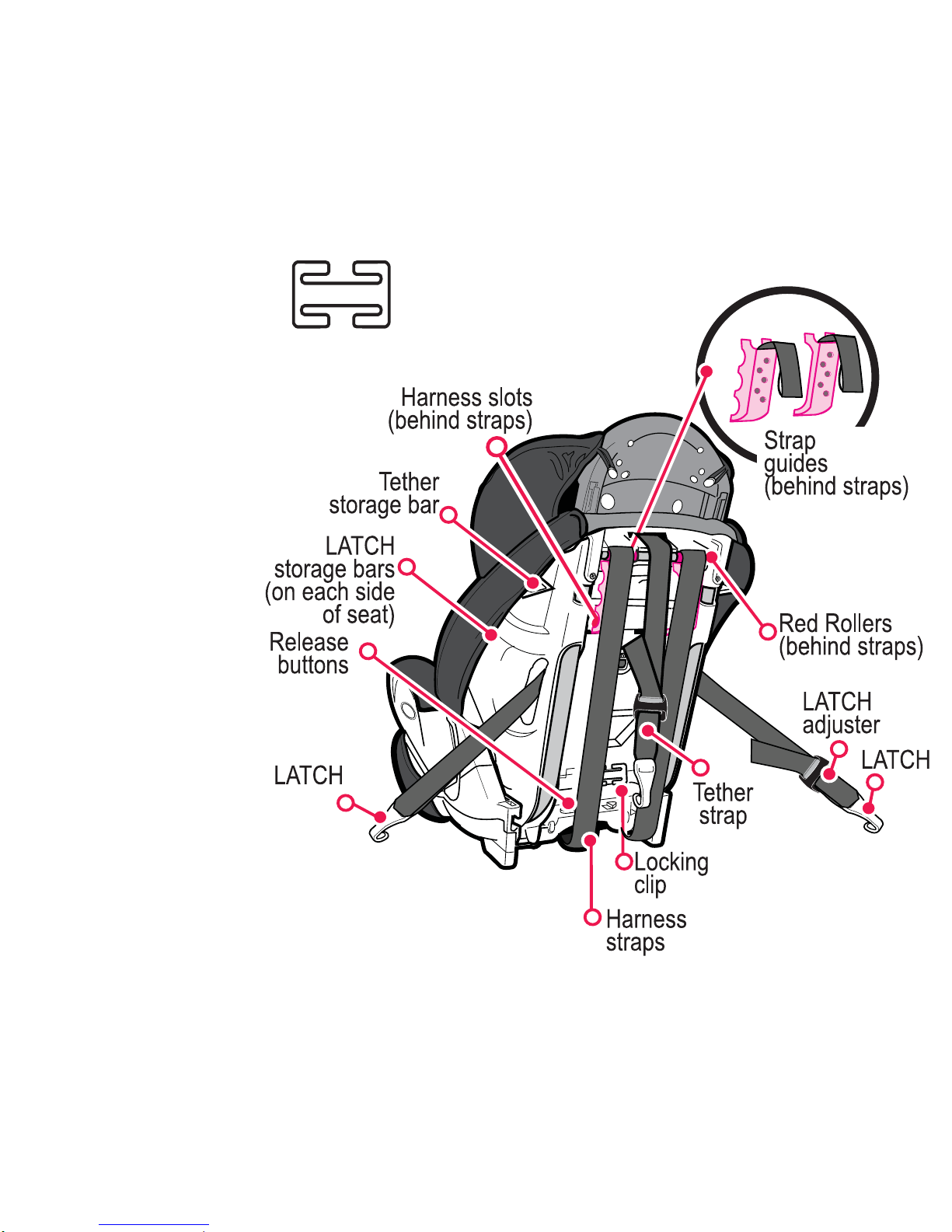

The locking clip is stored
on the back of the child
restraint. You will need to
use it with certain types
of vehicle seat belts.
United States Federal
Motor Vehicle Safety
Standards have de¿ned a
system for installing child
restraints in vehicles.
The system is called
LATCH (Lower
Anchorage and Tether for
CHildren). LATCH may
ONLY be used IN PLACE
of vehicle belt if vehicle is
equipped with LATCH
anchor points. Please
refer to vehicle owners
manual for LATCH
locations in vehicles.
10
1. Lay child restraint flat on back. Grab seat pad
fabric in sitting area to expose the gutters .
MAKE SURE all handsfingers and other objects
are clear of the gutters.
2. MAKE sure the harness straps are securely
attached within the “T”-shaped slots around the
arms as shown .
With your other handraise seat back so that
both arms LOCK into the gutters .
KEEP GUTTERS CLEAR
KEEP GUTTERS CLEAR
A r m
Harness Strap
T-slot
5.0 Assembling the Child Restraint
Adult assembly required.
