Graco 190ES 261825 Istruzioni operative

- For portable spray application of architectural paints and coatings -

190ES Model: 261825

210ES Model: 261830 (Hi-Cart), 24V111 (Stand)

Maximum Working Pressure: 3000 psi (20.7 MPa, 207 bar)

Important Safety Instructions

Read all warnings and instructions in this

manual. Save these instructions.

Related Manuals

311988

312830

English

312831

Français

312832

Español

312015

ti23118a

311990J

Repair

190ES/210ES™

Electric Airless Sprayer

Warning

2311990J

Warning

The following warnings are for the setup, use, grounding, maintenance and repair of this equipment. The exclamation

point symbol alerts you to a general warning and the hazard symbol refers to procedure-specific risks. Refer back to

these warnings. Additional, product-specific warnings may be found throughout the body of this manual where appli-

cable.

WARNING

FIRE AND EXPLOSION HAZARD

Flammable fumes, such as solvent and paint fumes, in work area can ignite or explode. To help

prevent fire and explosion:

• Use equipment only in well ventilated area.

• Eliminate all ignition sources; such as pilot lights, cigarettes, portable electric lamps, and plastic

drop cloths (potential static arc).

• Sprayer generates sparks. When flammable liquid is used in or near the sprayer or for flushing or

cleaning, keep sprayer at least 20 feet (6 m) away from explosive vapors.

• Keep work area free of debris, including solvent, rags and gasoline.

• Do not plug or unplug power cords or turn lights on or off when flammable fumes are present.

• Ground equipment and conductive objects in work area. Read Grounding instructions.

• If there is static sparking or you feel a shock, stop operation immediately. Do not use equipment

until you identify and correct the problem.

• Keep a working fire extinguisher in the work area.

PRESSURIZED ALUMINUM PARTS HAZARD

Do not use 1, 1, 1-trichloroethane, methylene chloride, other halogenated hydrocarbon solvents or

fluids containing such solvents in pressurized aluminum equipment. Such use can cause serious

chemical reaction and equipment rupture, and result in death, serious injury, and property damage.

BURN HAZARD

Equipment surfaces can become very hot during operation. To avoid severe burns, do not touch hot

equipment. Wait until equipment has cooled completely.

MOVING PARTS HAZARD

Moving parts can pinch or amputate fingers and other body parts.

• Keep clear of moving parts.

• Do not operate equipment with protective guards or covers removed.

• Pressurized equipment can start without warning. Before checking, moving, or servicing equipment,

follow the Pressure Relief Procedure in this manual. Disconnect power or air supply.

Warning

311990J 3

TOXIC FLUID OR FUMES HAZARD

Toxic fluids or fumes can cause serious injury or death if splashed in the eyes or on skin, inhaled, or

swallowed.

• Read MSDSs to know the specific hazards of the fluids you are using.

• Store hazardous fluid in approved containers, and dispose of it according to applicable guidelines.

PERSONAL PROTECTIVE EQUIPMENT

Wear appropriate protective equipment when in the work area to help prevent serious injury, including

eye injury, hearing loss, inhalation of toxic fumes, and burns. This protective equipment includes but is

not limited to:

• Protective eyewear, and hearing protection.

• Respirators, protective clothing, and gloves as recommended by the fluid and solvent manufacturer

WARNING

Component Identification

4311990J

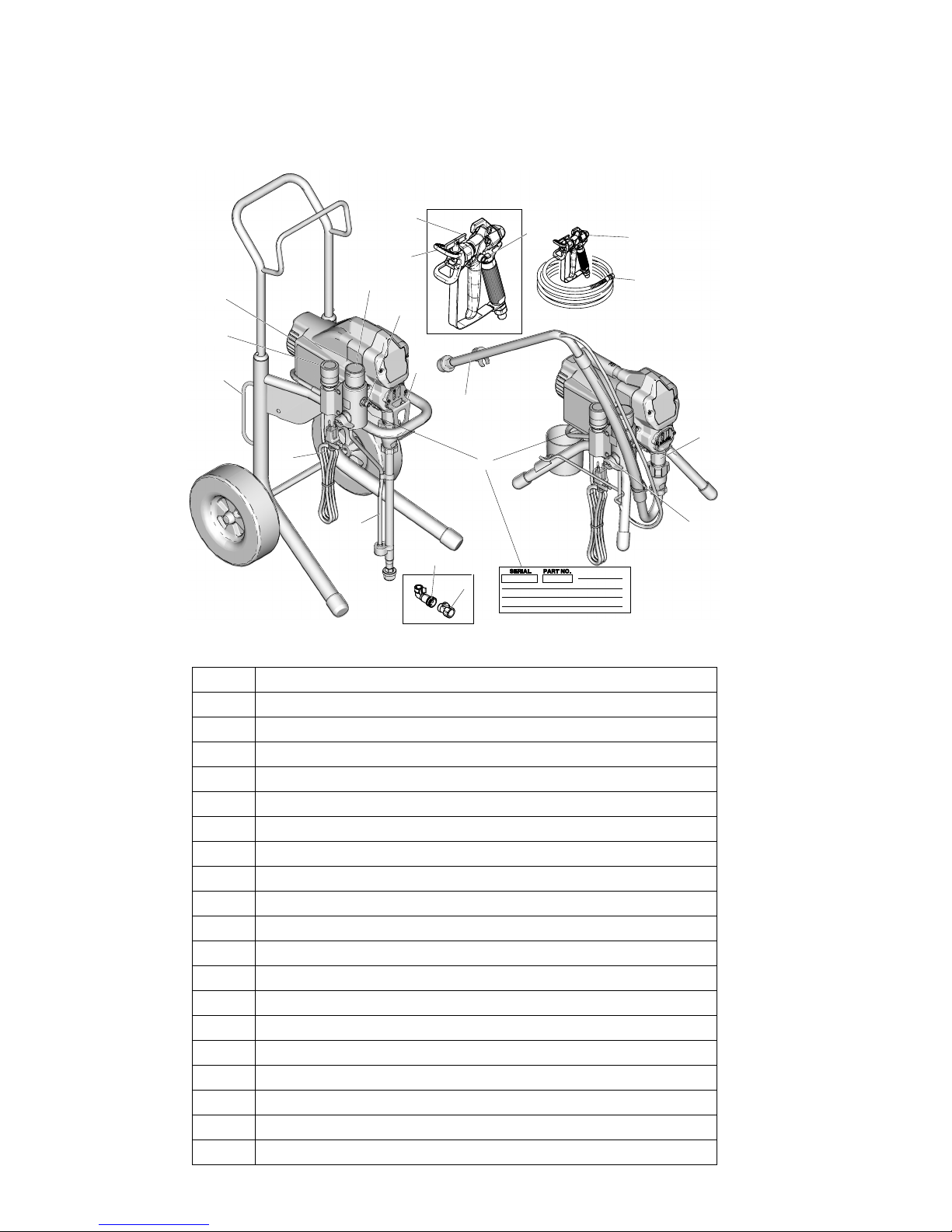

Component Identification

ti13375b

Ref Component

A Pressure Control

B ON/OFF Switch

D Power Cord

E Fluid Outlet

F Prime Valve

G Kick Stand (210ES Series A)

HPump

J Suction Tube

K Drain Hose

M Fluid Hose

NGun

PTip

R Guard

S Trigger Safety Lock

T Serial Number ID Label

U Filter Cap

V Pail Hook

W Power Flush Adapter

X Shutoff Valve

Installation

311990J 5

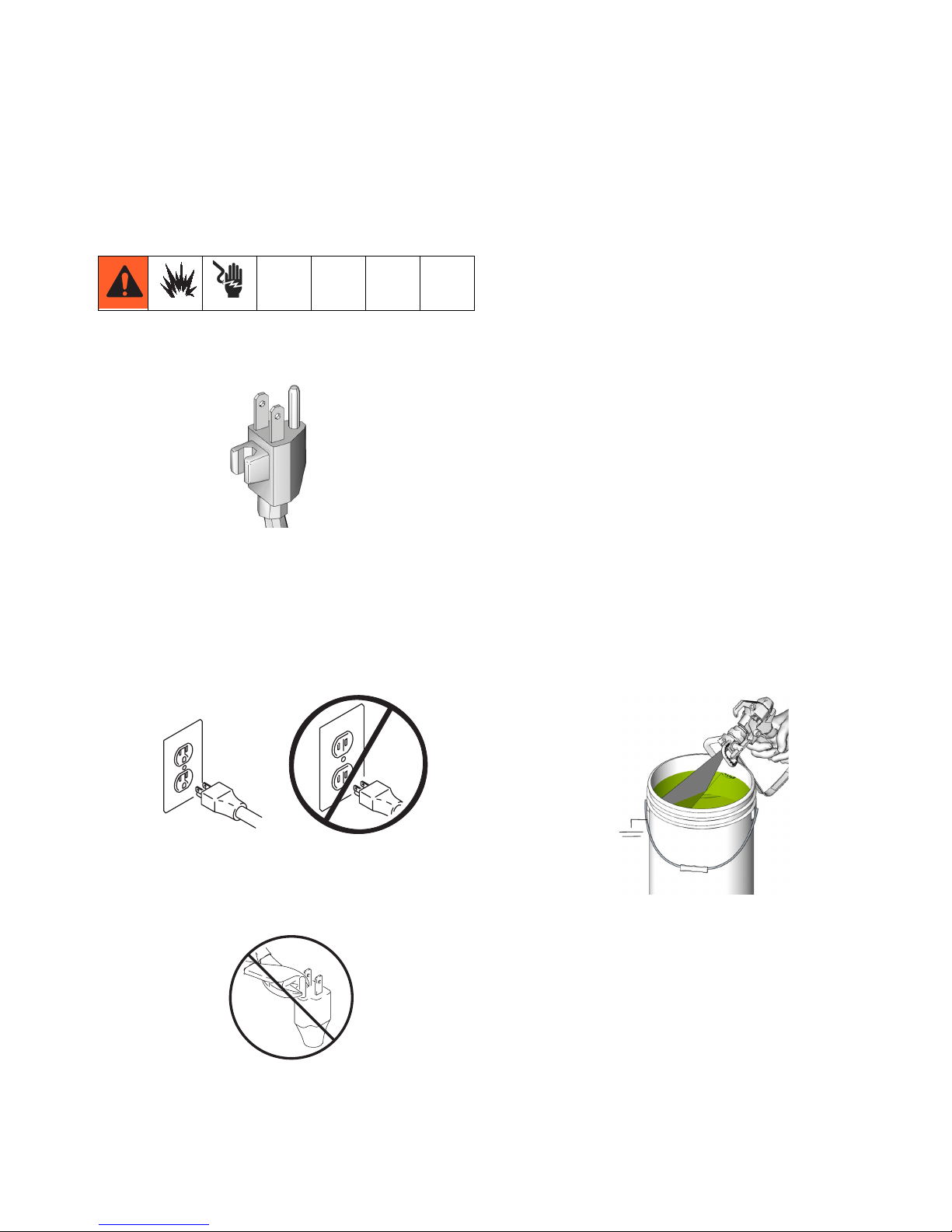

Installation

Grounding and Electric

Requirements

The sprayer cord includes a grounding wire with an

appropriate grounding contact.

The sprayer requires:

100-130 Vac, 60 Hz, 11A, 1 phase, circuit with a

grounding receptacle.

Never use an outlet that is not grounded or an

adapter.

Do not use the sprayer if the electrical cord has a dam-

aged ground contact. Only use an extension cord with

an undamaged ground contact.

Recommended extension cords:

110-120V: 3-wire, 12 AWG (2.5 mm2) minimum, 300 ft

(90 m) maximum length.

NOTE: Smaller gauge or longer extension cords may

reduce sprayer performance.

Spray gun: ground through connection to a properly

grounded fluid hose and pump.

Fluid supply container: follow local code.

Solvent and Oil-based fluids: follow local code. Use

only conductive metal pails placed on a grounded sur-

face such as concrete. Do not place the pail on a non-

conductive surface such as paper or cardboard, which

interrupts grounding continuity.

Grounding the metal pail: connect a ground wire to the

pail by clamping one end to pail and other end to ground

such as a water pipe.

To maintain grounding continuity when flushing or

relieving pressure: hold metal part of the spray gun

firmly to the side of a grounded metal pail, then trigger

the gun.

ti9164a

ti5573a

ti4297

ti9146a

Pressure Relief Procedure

6311990J

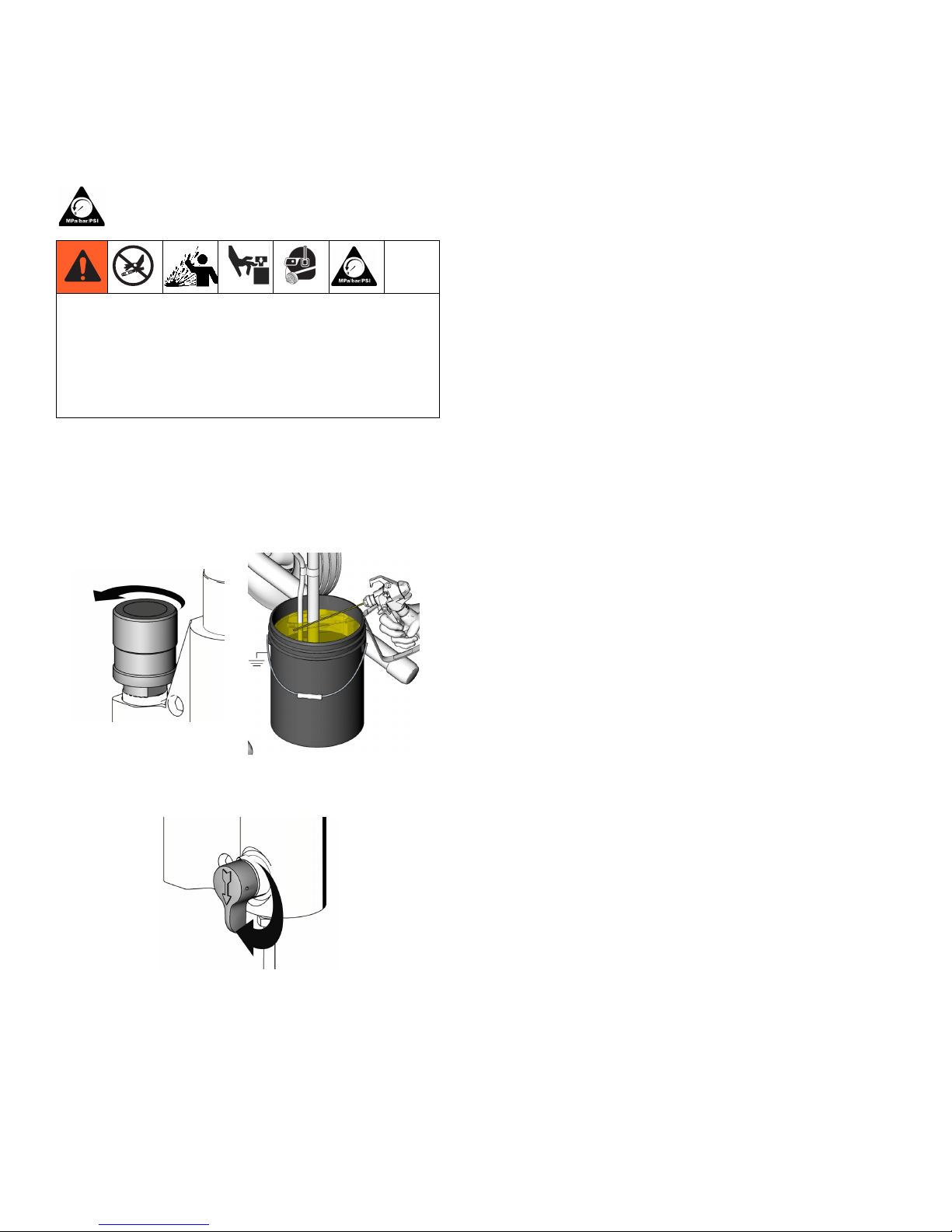

Pressure Relief Procedure

Follow the Pressure Relief Procedure whenever

you see this symbol.

1. Turn OFF power and turn pressure control to lowest

pressure setting.

2. Hold gun against side of grounded metal flushing

pail. Trigger gun to relieve pressure.

3. Turn prime valve down.

If you suspect the spray tip or hose is clogged or that

pressure has not been fully relieved after following the

steps above, VERY SLOWLY loosen tip guard retaining

nut or hose end coupling to relieve pressure gradually,

then loosen completely. Clear hose or tip obstruction.

4. Engage trigger safety lock on gun if unit is being

shut down or left unattended.

This equipment stays pressurized until pressure is

manually relieved. To help prevent serious injury

from pressurized fluid, such as skin injection,

splashing fluid and moving parts, follow the Pressure

Relief Procedure when you stop spraying and before

cleaning, checking, or servicing the equipment.

ti8324a

ti9035a

ti8326a

General Repair Information

311990J 7

General Repair Information

• Keep all screws, nuts, washers, gaskets, and elec-

trical fittings removed during repair procedures.

These parts usually are not provided with replace-

ment kits.

• Test repairs after problems are corrected.

• If sprayer does not operate properly, review repair

procedure to verify you did it correctly. See Trou-

bleshooting, page 8.

• Overspray may build up in the air passages.

Remove any overspray and residue from air pas-

sages and openings in the enclosures whenever

you service sprayer.

• Do not operate the sprayer without the motor shroud

in place. Replace if damaged. Motor shroud directs

cooling air around motor to prevent overheating and

insulates the control board from accidental electric

shock.

Flammable materials spilled on hot, bare, motor

could cause fire or explosion. To reduce risk of

burns, fire or explosion, do not operate sprayer with

cover removed.

To reduce risk of serious injury, including electric

shock:

• Do not touch moving or electric parts with fingers

or tools while testing repair.

• Unplug sprayer when power is not required for

testing.

• Install all covers, gaskets, screws and washers

before you operate sprayer.

CAUTION

• Do not run sprayer dry for more than 30 seconds.

Doing so could damage pump packings.

• Protect the internal drive parts of this sprayer from

water. Openings in the cover allow for air cooling of

the mechanical parts and electronics inside. If

water gets in these openings, the sprayer could

malfunction or be permanently damaged.

• Prevent pump corrosion and damage from freez-

ing. Never leave water or water-base paint in

sprayer when its not in use in cold weather. Freez-

ing fluids can seriously damage sprayer. Store

sprayer with Pump Armor to protect sprayer during

storage.

Troubleshooting

8311990J

Troubleshooting

Problem What To Check

(If check is OK, go to next check)

What To Do

(When check is not OK, refer to this column)

Motor Won’t Operate

Basic Fluid Pressure 1. Pressure control knob setting.

Motor will not run if set at mini-

mum (fully counter-clockwise).

Slowly increase pressure setting to see if

motor starts.

2. Spray tip or fluid filter may be

clogged.

Relieve pressure, page 6. Then clear clog

or clean gun filter. Refer to gun instruction

manual, 311979.

Basic Mechanical 1. Pump frozen or hardened paint Thaw sprayer if water or water-based paint

has frozen in sprayer. Place sprayer in warm

area to thaw. Do not start sprayer until

thawed completely. If paint hardened (dried)

in sprayer, replace pump packings. See page

12, Displacement Pump Replacement.

2. Displacement pump connecting

rod pin. Pin must be completely

pushed into connecting rod and

retaining spring must be firmly in

groove or pump pin.

Push pin into place and secure with spring

retainer. See page 12, Displacement Pump

Replacement.

3. Motor. Remove drive housing

assembly. See page 14, Drive

Housing Replacement. Try to

rotate fan by hand.

Replace motor if fan won’t turn. See page 27,

Motor Replacement.

Troubleshooting

311990J 9

Basic Electrical

See wiring diagram, page

1. Electric supply. ON/OFF switch

in OFF position. Meter must read

100-130 Vac.

Turn ON/OFF switch to ON position. Reset

building circuit breaker, replace building

fuses. Try another outlet.

2. Extension cord. Check exten-

sion cord continuity with volt

meter.

Replace extension cord.

3. Sprayer power supply cord.

Inspect for damage such as bro-

ken insulation or wires.

Replace power supply cord. See page 26,

Power Cord Replacement.

4. Fuse. Check replaceable fuse on

control board (next to ON/OFF

switch).

Replace fuse after completing motor inspec-

tion. See page 21, Fuse Replacement.

5. Motor leads are securely fas-

tened and properly connected to

control board.

Replace loose terminals; crimp to leads. Be

sure terminals are firmly connected.

Clean circuit board terminals. Securely recon-

nect leads.

6. Motor thermal switch. Yellow

motor leads must have continuity

through thermal switch.

Replace motor. See page 27, Motor

Replacement.

7. Brush cap missing or loose brush

lead connections.

Install brush cap or replace brushes if leads

are damaged. See page 17, Motor Brush

Replacement.

8. Brush length which must be

greater than 1/4 in. (6mm).

NOTE: Brushes do not wear at

the same rate on both sides of

motor. Check both brushes.

Replace brushes. See page 17, Motor Brush

Replacement.

9. Motor armature commutator for

burn spots, gouges and extreme

roughness.

Remove motor and have motor shop resur-

face commutator if possible. See page 27,

Motor Replacement.

10. Motor armature for shorts using

armature tester (growler) or per-

form spin test, page 15.

Replace motor. See page 27, Motor

Replacement.

11. Pressure control not plugged in

to control board.

Insert pressure control connector into control

board.

Problem What To Check

(If check is OK, go to next check)

What To Do

(When check is not OK, refer to this column)

Troubleshooting

10 311990J

Low Output 1. Worn spray tip. Relieve pressure, page 6. Replace tip. Refer

to gun instruction manual, 311979.

2. Verify pump does not continue to

stroke when gun trigger is

released.

Service pump. See page 12, Displacement

Pump Replacement.

3. Prime valve leaking. Relieve pressure, page 6. Then repair prime

valve. See page 24, Manifold Replacement.

4. Suction tube connections. Tighten any loose connections. Check o-ring

on suction tube.

5. Electric supply with volt meter.

Meter must read 100-130 Vac.

Low voltages reduce sprayer

performance.

Reset building circuit breaker; replace building

fuse. Repair electrical outlet or try another

outlet.

6. Extension cord size and length. Replace with a correct, grounded extension

cord. See page 5, Grounding and Electric

Requirements.

7. Leads from motor to circuit board

for damaged or loose wire con-

nectors. Inspect wiring insulation

and terminals for signs of over-

heating.

Be sure male terminal pins are centered and

firmly connected to female terminals. Replace

any loose terminals or damaged wiring.

Securely reconnect terminals.

8. Worn motor brushes which must

be greater than 1/4 in. (6 mm).

Replace brushes. See page 17. Motor Brush

Replacement.

9. Motor brushes binding in brush

holders.

Clean brush holders. Remove carbon dust by

using compressed air to blow out brush dust.

10. Low stall pressure. Turn pres-

sure control knob fully clockwise. Replace pressure control assembly. See

page 22, Pressure Control Assembly

Replacement.

11. Motor armature for shorts by

using an armature tester

(growler) or perform spin test,

page 15.

Replace motor. See page 27, Motor

Replacement.

Problem What To Check

(If check is OK, go to next check)

What To Do

(When check is not OK, refer to this column)

Altri manuali per 190ES 261825

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Graco Spruzzatore di vernice

Graco

Graco LineLazer V 250SPS Manuale utente

Graco

Graco Magnum Pro Plus Guida

Graco

Graco XTR 5 Manuale elenco delle parti

Graco

Graco GM 3500 Manuale utente

Graco

Graco TurfLiner 826059 Manuale di istruzioni

Graco

Graco 231-315 Series Manuale operativo

Graco

Graco ULTRA AIRLESS 230-963 Scheda tecnica

Graco

Graco 233001 Manuale operativo

Graco

Graco GRACO OR PRO TI1681A Manuale operativo

Graco

Graco DutyMax 24M054 Manuale di istruzioni

Graco

Graco Sharpe 309989F Manuale elenco delle parti

Graco

Graco 390 390 Manuale utente

Graco

Graco Glascraft GC-1388G Manuale utente

Graco

Graco 965022 Manuale utente

Graco

Graco Series B Manuale operativo

Graco

Graco Series B Manuale operativo

Graco

Graco 17C810 Manuale per l'uso e la cura

Graco

Graco 1095 Premium Hi Guida

Graco

Graco ULTIMATE Mx 1095 A Series Manuale utente

Graco

Graco RATIO BULLDOG 238-253 Manuale utente

Graco

Graco Project Series Manuale utente

Graco

Graco 256391 Istruzioni per il montaggio

Graco

Graco SG2 Manuale utente

Graco

Graco GH 230 Manuale per l'uso e la cura

Manuali Spruzzatore di vernice popolari di altre marche

SNOWJOE

SNOWJOE Sunjoe 24V-GS-LTW-RM Manuale utente

Binks

Binks SV100 Manuale utente

Fimco

Fimco LG-4-3-1 Manuale utente

AG SPRAY

AG SPRAY FS-ATV-25BL Manuale utente

Nordson

Nordson MicroMax 2 Manuale utente

Bonide

Bonide 051 Manuale operativo

zogics

zogics Z-DAS Manuale utente

KISANKRAFT

KISANKRAFT KK-KBS-165 Manuale utente

Matrix

Matrix SG 650 Manuale utente

Anest Iwata

Anest Iwata SGA-3 Guida rapida

paasche

paasche VV Scheda tecnica

Carlisle

Carlisle DeVilbiss JGA-510 Manuale utente

Gardena

Gardena 11120 Manuale utente

Conrad

Conrad Hobby Airbrush K3 Manuale utente

wiwa

wiwa 14025 R/F Manuale utente

DeVilbiss

DeVilbiss LUNA2i Manuale utente

WAGNER

WAGNER W 125 Manuale utente

My Clean Buddy

My Clean Buddy PW018 Manuale utente
