Graco 287995 Manuale utente

Graco Inc. P.O. Box 1441 Minneapolis, MN 55440-1441

228 bar (22,8 MPa, 3300psi) Maximum Working Pressure

Important Safety Instructions

Read all warnings and instructions in this

manual. Save these instructions

311421

311515E rev.b

Instructions

Filter Accessory Kit 287995

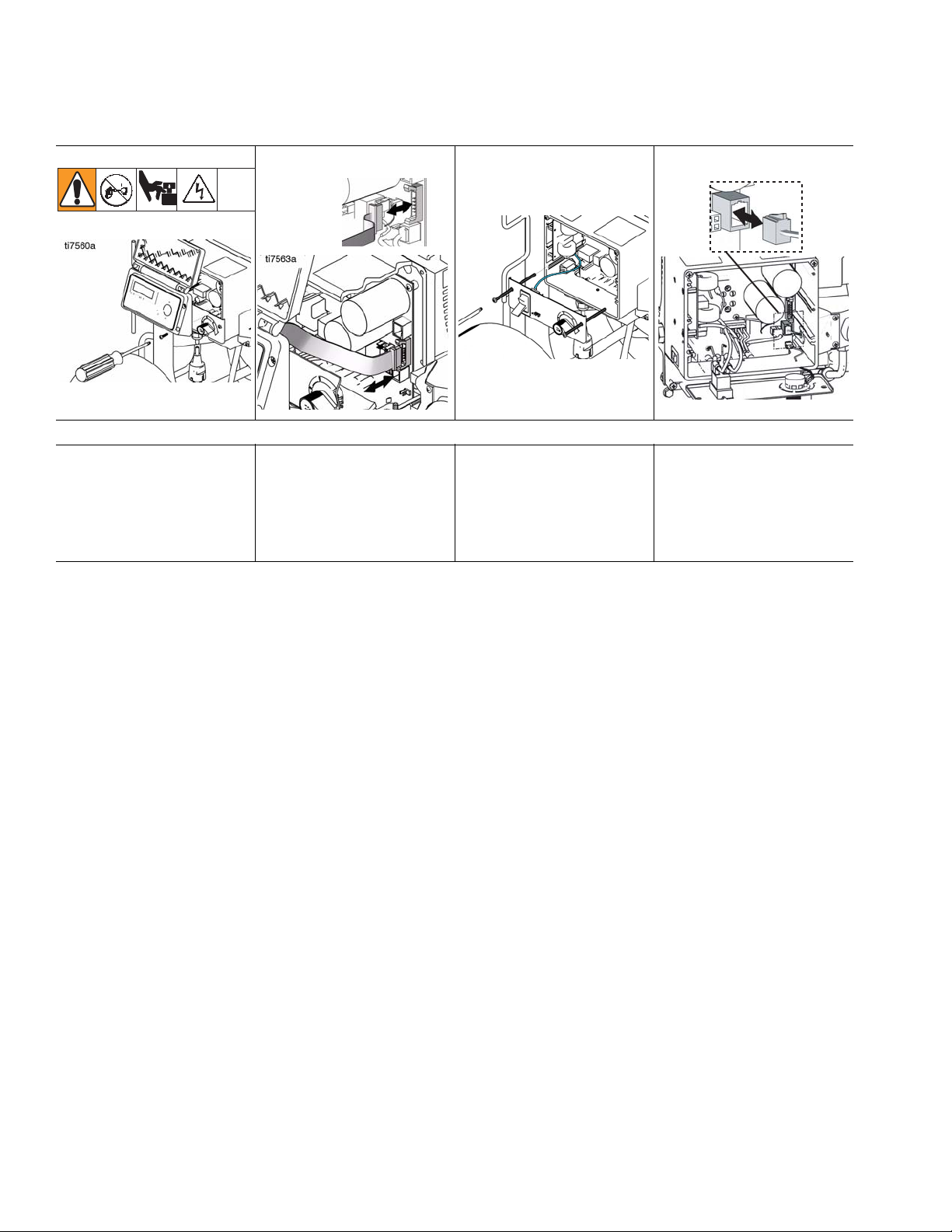

Pressure Control Transducer Replacement

Removal

Warning: Do Pressure Relief:

See Manual 311421. Unplug

sprayer. Wait 5 minutes before

servicing.

1 Remove four screws and

cover.

2 Disconnect display

connector from motor

control board.

3 Remove two screws and

allow control panel to hang.

4 Disconnect transducer

connector from motor

control board.

TIA

ti7579a

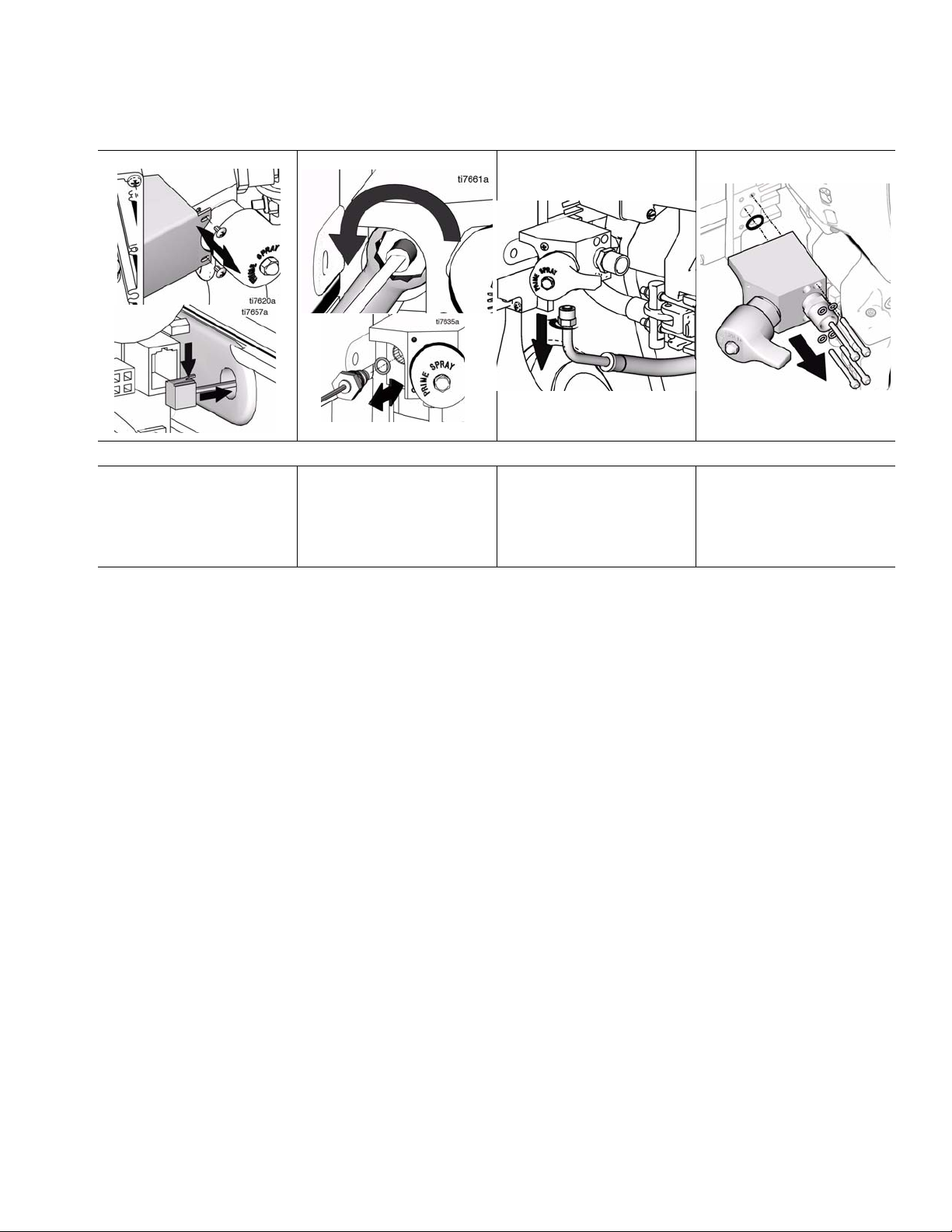

Removal

5 Remove two screws and

transducer cover.

Press tab on transducer

connector and pull

transducer wire through

grommet.

6 Pass transducer wire

through 3/4-in. box end

wrench and remove

transducer and o-ring from

valve block.

7 Remove drain hose from

valve block

8 Remove four screws,

washers and valve block

Installation

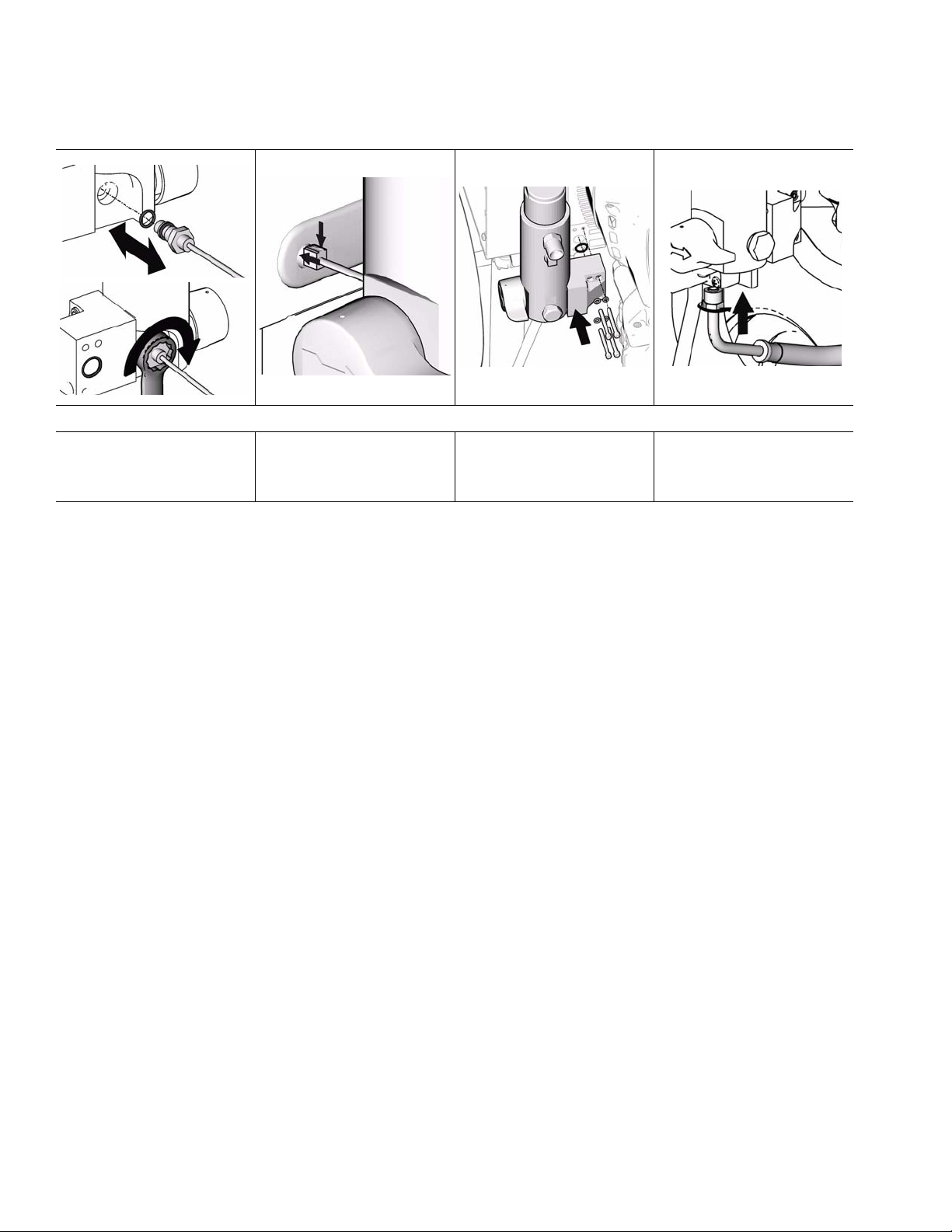

1 Install transducer and

o-ring and in filter manifold.

Torque to 47-61 N·m

(35-45 ft-lb).

2 Press tab on transducer

connector and push

transducer wire through

grommet.

3 Install o-ring. Install filter

assembly with four washers

and screws.

4 Connect drain hose

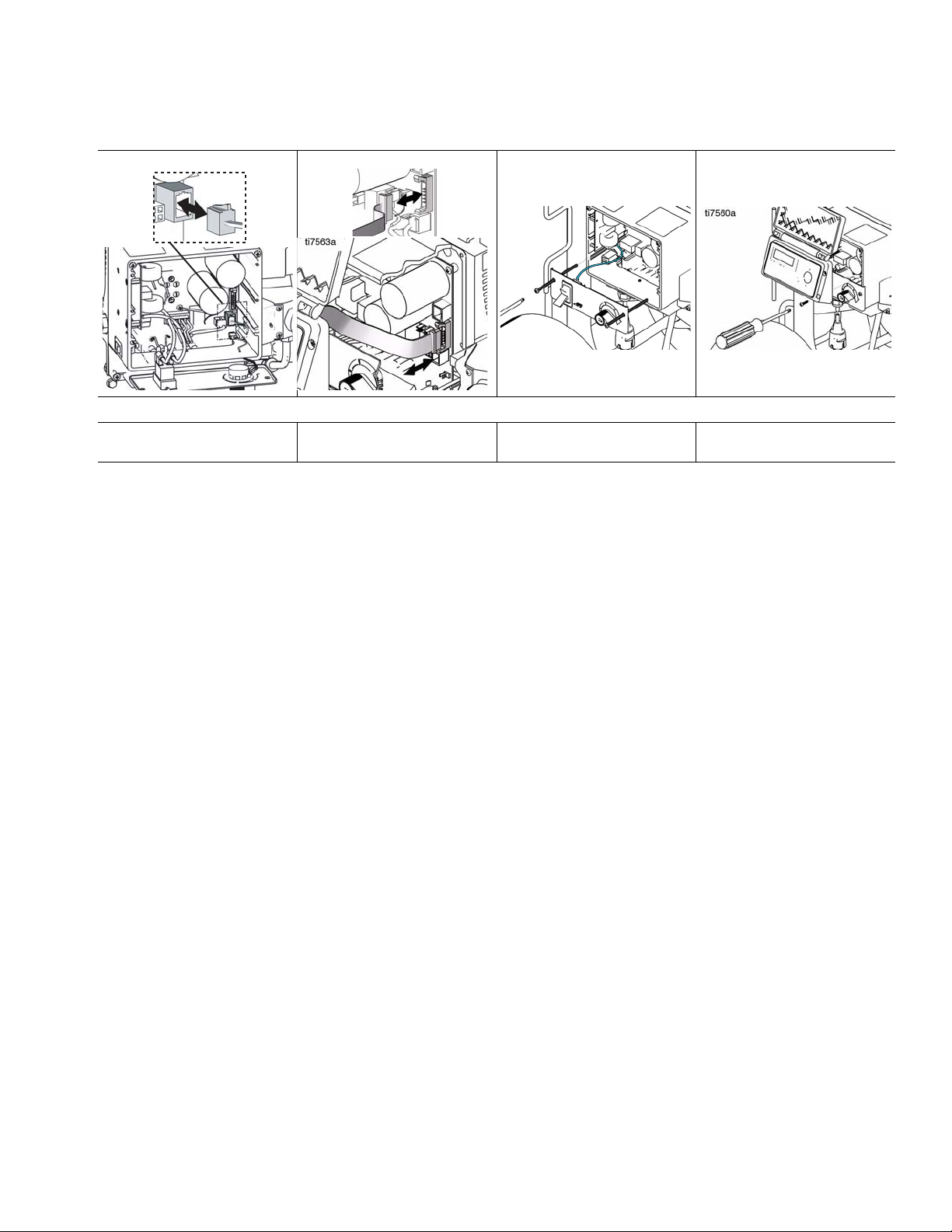

Installation

5 Connect transducer connector

to motor control board.

6 Connect display connector

to motor control board.

7 Install control panel with

two screws.

8 Install cover with four

screws.

ti7579a

TIA

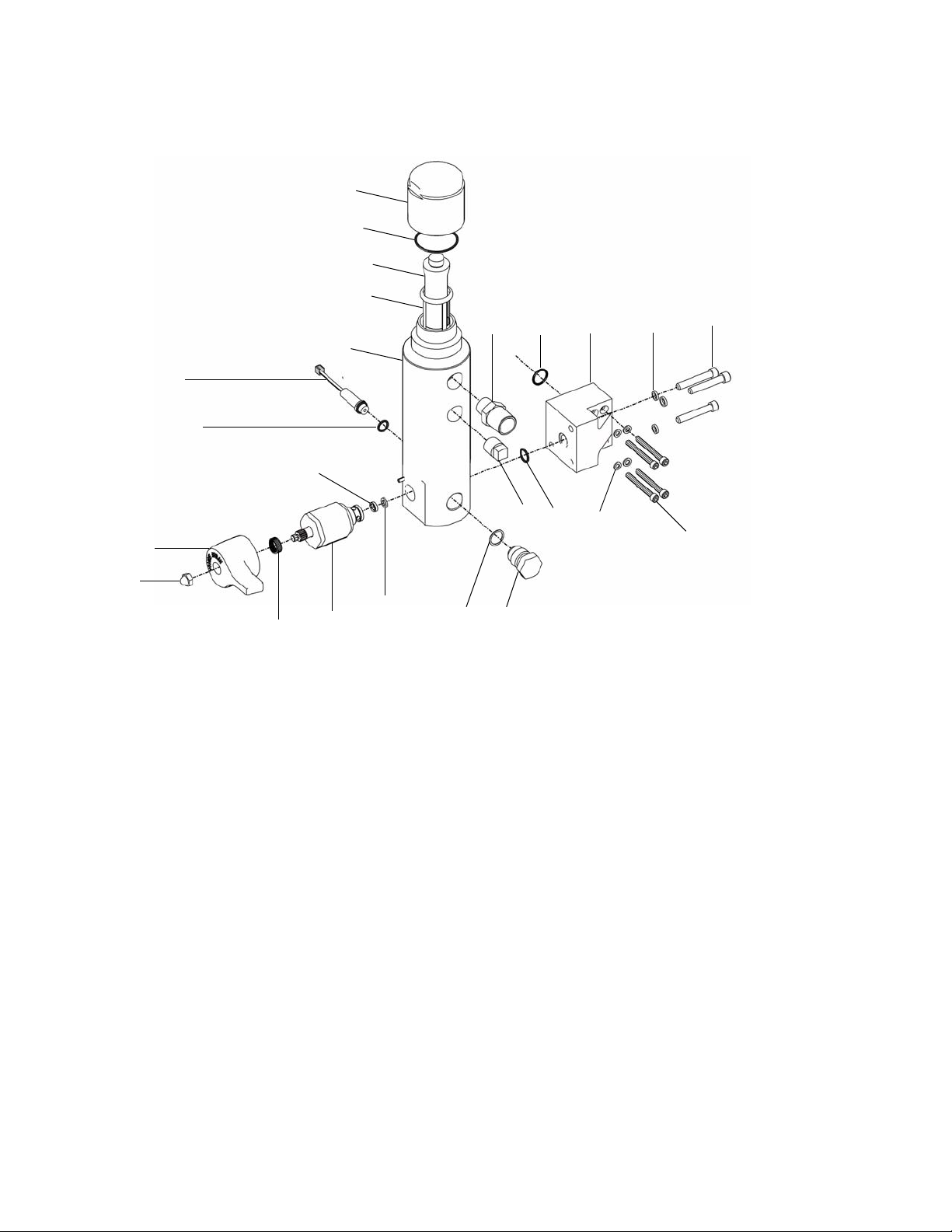

Parts

TO PLACE AN ORDER, contact your Graco distributor, or call 1-800-690-2894 to identify the nearest distributor.

All written and visual data contained in this document reflects the latest product information available at the time of publication.

Graco reserves the right to make changes at any time without notice.

This manual contains English, French, Spanish, Italian and Dutch; MM 311515

Graco Headquarters: Minneapolis

International Offices: Belgium, China, Japan, Korea

GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440-1441

www.graco.com

6/2006, Revised 06/2008

28 12 13

14 15

Ref Part Description Qty

1 15C765 CAP, filter 1

2 117285 PACKING, o-ring 1

3 15C766 TUBE, diffusion 1

4 243984 FILTER, fluid 1

5 15C838 BASE, filter 1

6 241732 TRANSDUCER, pressure control 1

7 111457 PACKING, o-ring 1

12 15D541 SEAL, washer 1

13 248314 PLUG, auto clean, includes 14 1

14 107505 PACKING, o-ring 1

15 100020 WASHER, lock 4

16 104459 SCREW, shcs 10-32 x 1.75 4

17 15B588 SCREW, socket hd cap 3

18 105510 WASHER, lock, spring (hi-collar) 3

19 15G488 BLOCK, filter 1

20 117517 O-RING 1

21 104813 PLUG, pipe 1

22 159239 FITTING, nipple, pipe, rdcg 1

28 193710 SEAL, seat, valve 1

29 193709 SEAT, valve 1

30 287879 VALVE, drain, assy 1

31 114708 SPRING, compression 1

32 15G563 HANDLE, valve 1

33 116424 NUT, cap 1

Ref Part Description Qty
