Graco Xtreme 116MCN Manuale operativo

Package solutions for pumping or circulating finishing materials.

For professional use only.

See pages 3-5 for model information, including maximum working pressure.

Important Safety Instructions

Read all warnings and instructions in

this manual. Save these instructions.

TI10362A TI10364A

Xtreme®Packages High-Flo®Packages

TI10398A

Dura-Flo™Packages

TI28081A

Instructions - Parts

Wall Mount

Packages

II 2 G Ex h IIB 230°C (T2) Gb

312358F

Related Manuals

2312358F

Contents

Related Manuals . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Part No. Matrix . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Wall Mount Packages . . . . . . . . . . . . . . . . . . . . . 4

Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Mount on Wall . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Grounding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Flush Before Using Equipment . . . . . . . . . . . . . . 8

Package Components . . . . . . . . . . . . . . . . . . . . . . . 9

Integrated Air Control Module . . . . . . . . . . . . . . . 9

Air Line Accessories . . . . . . . . . . . . . . . . . . . . . . 9

Fluid Line Components . . . . . . . . . . . . . . . . . . . . 9

Pump Operation and Repair . . . . . . . . . . . . . . . 11

Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Xtreme Packages . . . . . . . . . . . . . . . . . . . . . . . 12

Suction and Filter Kits for Xtreme Packages . . . 13

Dura-Flo Packages . . . . . . . . . . . . . . . . . . . . . . 14

Suction Kits for Dura-Flo Packages . . . . . . . . . . 15

Filter Kits for Dura-Flo Packages . . . . . . . . . . . . 16

High-Flo Packages . . . . . . . . . . . . . . . . . . . . . . 17

Mounting Hole Diagram . . . . . . . . . . . . . . . . . . . . . 18

Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Graco Standard Warranty . . . . . . . . . . . . . . . . . . . 20

Graco Information . . . . . . . . . . . . . . . . . . . . . . . . . 20

Related Manuals

Manual Description

311164 Xtreme®Pumps

311762 Xtreme Lowers

311827 Dura-Flo™Lowers

311828 Dura-Flo Pumps

311238 NXT®Air Motor

311239 NXT Integrated Air Control Module

307273 Fluid Filters

3A3382 High-Flo®Pumps, Instructions/Parts

3A0538 High-Flo Pumps, Instructions/Parts

333022 Sealed 4-Ball Lower

3A3452 4-Ball Lower with Open Wet Cup

Models

312358F 3

Models

Part No. Matrix

Check your wall mount package’s identification plate (ID) for the 6-digit part

number of your package. Use the following matrix to define the construction of

your package, based on the six digits. For example, Part No. 1 16 M C N rep-

resents a bare Xtreme package (1), pressure ratio (16: 1), low noise motor (M),

carbon steel lower (C), and a lower with an enclosed wet cup and npt connec-

tions (N). To order replacement parts, see Parts starting on page 12.

TI10428A

116 M CN

First Digit Secondand

Third Digit Fourth Digit Fifth Digit Sixth Digit

Pump Type Pressure

Ratio (xx:1) NXT Motor Type Lower Material Lower Type

1Xtreme, bare 03 M Low Noise, DataTrak™CCarbon Steel NEnclosed

NPT

2Xtreme, 5 gal. kit 04 S Remote Exhaust, DataTrak™SStainless Steel BEnclosed

BSPP

3Xtreme, 55 gal. kit 16 TEnclosed

tri-clamp

4Dura-Flo, bare 25 8Sealed

tri-clamp

5Dura-Flo, 5 gal. kit 30 9Open NPT

6Dura-Flo, 55 gal. kit 40 0Open

tri-clamp

7High-Flo, bare 45

Models

4312358F

Wall Mount Packages

NOTE: All packages include integrated air controls, a wall mount bracket, attaching hardware, and ground wire.

Xtreme Packages

Dura-Flo Packages

Part No.

Maximum

Working

Pressure

psi (MPa, bar)

Maximum Air

Input Pressure

psi (MPa, bar) Lower Size (cc

per cycle)

Includes (see page 5):

5 Gal. CST

Suction Kit 55 Gal. CST

Suction Kit CSTFluidFilter

Kit

116MCN 1520 (10.5, 105) 100 (0.7, 7.0) 290

216MCN 1520 (10.5, 105) 100 (0.7, 7.0) 290 

316MCN 1520 (10.5, 105) 100 (0.7, 7.0) 290 

125MCN 2375 (16.4, 164) 100 (0.7, 7.0) 290

225MCN 2375 (16.4, 164) 100 (0.7, 7.0) 290 

325MCN 2375 (16.4, 164) 100 (0.7, 7.0) 290 

130MCN 3150 (21.7, 217) 100 (0.7, 7.0) 220

230MCN 3150 (21.7, 217) 100 (0.7, 7.0) 220 

330MCN 3150 (21.7, 217) 100 (0.7, 7.0) 220 

Part No.

Maximum

Working

Pressure

psi (MPa, bar)

Maximum Air

Input Pressure

psi (MPa, bar) Lower Size (cc

per cycle)

Includes (see page 5):

5 Gal. SST

Suction Kit 55 Gal. SST

Suction Kit SSTFluidFilter

Kit

416MSN 1520 (10.5, 105) 100 (0.7, 7.0) 290

516MSN 1520 (10.5, 105) 100 (0.7, 7.0) 290 

616MSN 1520 (10.5, 105) 100 (0.7, 7.0) 290 

425MSN 2380 (16.4, 164) 100 (0.7, 7.0) 290

525MSN 2375 (16.4, 164) 100 (0.7, 7.0) 290 

625MSN 2375 (16.4, 164) 100 (0.7, 7.0) 290 

430MSN 3170 (21.9, 219) 100 (0.7, 7.0) 220

530MSN 3170 (21.9, 219) 100 (0.7, 7.0) 220 

630MSN 3170 (21.9, 219) 100 (0.7, 7.0) 220 

440MSN 3800 (26.2, 262) 100 (0.7, 7.0) 180

445MSN 4550 (31.4, 314) 100 (0.7, 7.0) 290

446MSN 4750 (32.8, 328) 100 (0.7, 7.0) 145

Models

312358F 5

High-Flo Packages

Suction Kits and Fluid Filter Kits for Xtreme and Dura-Flo Packages

Part No.

Maximum

Working

Pressure

psi (MPa, bar)

Maximum Air

Input Pressure

psi (MPa, bar) Lower Size (cc

per cycle)

703MSN 300 (2.1, 21) 100 (0.7, 7.0) 1500

703MST 300 (2.1, 21) 100 (0.7, 7.0) 1500

703SSN 300 (2.1, 21) 100 (0.7, 7.0) 1500

703SST 300 (2.1, 21) 100 (0.7, 7.0) 1500

704MSN 400 (2.8, 28) 100 (0.7, 7.0) 1000

704MST 400 (2.8, 28) 100 (0.7, 7.0) 1000

704SSN 400 (2.8, 28) 100 (0.7, 7.0) 1000

704SST 400 (2.8, 28) 100 (0.7, 7.0) 1000

703MS8 300 (2.1, 21) 100 (0.7, 7.0) 1500

703MS9 300 (2.1, 21) 100 (0.7, 7.0) 1500

703MS0 300 (2.1, 21) 100 (0.7, 7.0) 1500

703SS8 300 (2.1, 21) 100 (0.7, 7.0) 1500

703SS9 300 (2.1, 21) 100 (0.7, 7.0) 1500

703SS0 300 (2.1, 21) 100 (0.7, 7.0) 1500

704MS8 400 (2.8, 28) 100 (0.7, 7.0) 1000

704MS9 400 (2.8, 28) 100 (0.7, 7.0) 1000

704MS0 400 (2.8, 28) 100 (0.7, 7.0) 1000

704SS8 400 (2.8, 28) 100 (0.7, 7.0) 1000

704SS9 400 (2.8, 28) 100 (0.7, 7.0) 1000

704SS0 400 (2.8, 28) 100 (0.7, 7.0) 1000

Part No. Description

Use With:

Xtreme Pumps

(all)

Dura-Flo 145

and 180 cc

Pumps

Dura-Flo 220

and 290 cc

Pumps

247472 5 gal. CST Suction Kit, for 1-1/4 in. npt(m) pump inlet 

247473 55 gal. CST Suction Kit, for 1-1/4 in. npt(m) pump inlet 

247474 CST Fluid Filter Kit, for 1 in. npt(f) pump outlet 

247475 5 gal. SST Suction Kit, for 1-1/2 in. npt(f) pump inlet 

247476 55 gal. SST Suction Kit, for 1-1/2 in. npt(f) pump inlet 

247477 5 gal. SST Suction Kit, for 2 in. npt(f) pump inlet 

247478 55 gal. SST Suction Kit, for 2 in. npt(f) pump inlet 

247479 SST Fluid Filter Kit, for 3/4 in. npt(f) pump outlet 

247480 SST Fluid Filter Kit, for 1 in. npt(f) pump outlet 

Warnings

6312358F

Warnings

The following warnings are for the setup, use, grounding, maintenance, and repair of this equipment. The exclama-

tion point symbol alerts you to a general warning and the hazard symbols refer to procedure-specific risks. When

these symbols appear in the body of this manual or on warning labels, refer back to these Warnings. Product-specific

hazard symbols and warnings not covered in this section may appear throughout the body of this manual where

applicable.

FIRE AND EXPLOSION HAZARD

Flammable fumes, such as solvent and paint fumes, in work area can ignite or explode. Paint or solvent

flowing through the equipment can cause static sparking. To help prevent fire and explosion:

• Use equipment only in well ventilated area.

• Eliminate all ignition sources; such as pilot lights, cigarettes, portable electric lamps, and plastic drop

cloths (potential static sparking).

• Ground all equipment in the work area. See Grounding instructions.

• Never spray or flush solvent at high pressure.

• Keep work area free of debris, including solvent, rags and gasoline.

• Do not plug or unplug power cords, or turn power or light switches on or off when flammable fumes

are present.

• Use only grounded hoses.

• Hold gun firmly to side of grounded pail when triggering into pail. Do not use pail liners unless they

are anti-static or conductive.

•Stop operation immediately ifstatic sparkingoccursor youfeela shock.Donotuseequipmentuntil

you identify and correct the problem.If there is static sparking or you feel a shock, stop operation

immediately. Do not use equipment until you identify and correct the problem.

Static charge may build up on plastic parts during cleaning and could discharge and ignite flammable

vapors. To help prevent fire and explosion:

• Clean plastic parts only in a well ventilated area.

• Do not clean with a dry cloth.

• Keep a working fire extinguisher in the work area.

SKIN INJECTION HAZARD

High-pressure fluid from dispensing device, hose leaks, or ruptured components will pierce skin. This

may look like just a cut, but it is a serious injury that can result in amputation. Get immediate surgical

treatment.

• Engage trigger lock when not dispensing.

• Do not point dispensing device at anyone or at any part of the body.

• Do not put your hand over the fluid outlet.

• Do not stop or deflect leaks with your hand, body, glove, or rag.

• Follow the Pressure Relief Procedure when you stop dispensing and before cleaning, checking, or

servicing equipment.

• Tighten all fluid connections before operating the equipment.

• Check hoses and couplings daily. Replace worn or damaged parts immediately.

Warnings

312358F 7

EQUIPMENT MISUSE HAZARD

Misuse can cause death or serious injury.

• Do not operate the unit when fatigued or under the influence of drugs or alcohol.

• Donotexceedthemaximumworking pressureortemperatureratingofthelowestratedsystemcom-

ponent. See Technical Data in all equipment manuals.

• Use fluids and solvents that are compatible with equipment wetted parts. See Technical Data in all

equipment manuals. Read fluid and solvent manufacturer’s warnings. For complete information

about your material, request Safety Data Sheet (SDS) from distributor or retailer.

• Turn off all equipment and follow the Pressure Relief Procedure when equipment is not in use.

• Check equipment daily. Repair or replace worn or damaged parts immediately with genuine manu-

facturer’s replacement parts only.

• Donotalterormodifyequipment.Alterationsormodificationsmayvoidagencyapprovalsandcreate

safety hazards.

• Make sure all equipment is rated and approved for the environment in which you are using it.

• Use equipment only for its intended purpose. Call your distributor for information.

• Route hoses and cables away from traffic areas, sharp edges, moving parts, and hot surfaces.

• Do not kink or over bend hoses or use hoses to pull equipment.

• Keep children and animals away from work area.

• Comply with all applicable safety regulations.

MOVING PARTS HAZARD

Moving parts can pinch, cut or amputate fingers and other body parts.

• Keep clear of moving parts.

• Do not operate equipment with protective guards or covers removed.

• Pressurizedequipmentcan startwithout warning.Before checking, moving, or servicing equipment,

follow the Pressure Relief Procedure and disconnect all power sources.

TOXIC FLUID OR FUMES HAZARD

Toxic fluids or fumes can cause serious injury or death if splashed in the eyes or on skin, inhaled, or

swallowed.

• Read Safety Data Sheet (SDS) to know the specific hazards of the fluids you are using.

• Store hazardous fluid in approved containers, and dispose of it according to applicable guidelines.

PERSONAL PROTECTIVE EQUIPMENT

Wear appropriate protective equipment when in the work area to help prevent serious injury, including

eye injury, hearing loss, inhalation of toxic fumes, and burns. Protective equipment includes but is not

limited to:

• Protective eyewear, and hearing protection.

• Respirators, protective clothing, and gloves as recommended by the fluid and solvent manufacturer.

Installation

8312358F

Installation

Mount on Wall

1. Ensure the wall is strong enough to support the

weight of the pump assembly and accessories, fluid,

hoses, and stress caused during pump operation.

2. Ensure that the mounting location has sufficient

clearance for easy operator access.

3. Position the wall bracket at a convenient height,

ensuring that there is sufficient clearance for the

fluid suction line and for servicing the lower.

4. Drill four 7/16 in. (11 mm) holes using the bracket as

a template. Use any of the three mounting hole

groupings in the bracket. See Mounting Hole Dia-

gram, page 18.

5. Bolt the bracket securely to the wall using bolts and

washers designed to hold in the wall’s construction.

6. Attach the pump assembly to the mounting bracket.

7. Connect air and fluid hoses.

Grounding

Pump: use ground wire and clamp (supplied). See FIG.

1. Use the ground screw (GS) and lock washer (LW) to

attach the ground wire (N) at the rear of the air motor.

Tighten the screw securely. Connect the other end of the

ground wire to a true earth ground.

Air and fluid hoses: use only electrically conductive

hoses.

Air compressor: follow manufacturer’s recommenda-

tions.

Spray gun / Dispense valve: ground through connec-

tion to a properly grounded fluid hose and pump.

Fluid supply container: follow local code.

Object being sprayed: follow local code.

Solvent pails used when flushing: follow local code.

Use only conductive metal pails, placed on a grounded

surface. Do not place the pail on a nonconductive sur-

face, such as paper or cardboard, which interrupts

grounding continuity.

To maintain grounding continuity when flushing or

relieving pressure: hold metal part of the spray

gun/dispense valve firmly to the side of a grounded

metal pail, then trigger the gun/valve.

Flush Before Using Equipment

The equipment was tested with lightweight oil, which is

left in the fluid passages to protect parts. To avoid con-

taminating your fluid with oil, flush the equipment with a

compatible solvent before using the equipment. See

your respective pump manual. See Related Manuals,

page 2.

The equipment must be grounded to reduce the risk

of static sparking. Static sparking can cause fumes to

ignite or explode. Grounding provides an escape wire

for the electric current.

FIG. 1. Ground Wire

GS, LW

TI8250A

Package Components

312358F 9

Package Components

Integrated Air Control Module

The integrated air control module (C) is included with all

packages (see 311239). It includes the following:

•Bleed-type master air valve (D): required in your

system to relieve air trapped between it and the air

motor when the valve is closed. Be sure the valve is

easily accessible from the pump and located down-

stream from the air regulator

•Pump air regulator (E): a locking regulator to

adjust air pressure to the motor and fluid outlet pres-

sure of pump. View the gauge (F) to read air pres-

sure.

•Safety relief valve (G): automatically opens to

relieve air pressure, to prevent pump overpressur-

ization.

•Air line filter (H): removes harmful contaminants

from entering the air control module and air motor.

Air Line Accessories

Install the following accessories in the order shown in

FIG. 2, using adapters as necessary.

•Second bleed-type air valve (R): isolates air line

accessories for servicing. Locate upstream from all

other air line accessories.

•Air line moisture drain valve (S): install at the bot-

tom of each air line drop, to drain moisture.

Fluid Line Components

Some Xtreme and Dura-Flo packages include fluid suc-

tion kits and fluid filter kits. See pages 13, 15, and 16.

•Fluid filter (J): with a 60 mesh (250 micron) stain-

less steel element to filter particles from the fluid as

it leaves the pump.

•Fluid drain valve (K): required in your system, to

relieve fluid pressure in the hose and gun.

•55 Gal. (200 Liter) Suction kit (L): enables the

pump to draw fluid from a drum. Includes bung

adapter.

•5 Gal. (19 Liter) Suction kit (M): enables the pump

to draw fluid from a pail.

Trapped air can cause the pump to cycle unexpect-

edly, which could result in serious injury from splash-

ing or moving parts. Be sure the air bleed hole on the

integrated air control module points away from the

operator.

To help prevent fluid over pressurization, do not

exceed the maximum air inlet pressure rating to the

air motor (see page 3). If you can apply more than the

maximum air input pressure to the system, install a

safety relief valve between the bleed-type master air

valve and the air motor. The safety relief valve must

be set to open if the air inlet pressure to the motor

exceeds the motor rating.

Package Components

10 312358F

Key:

APump

B Wall Bracket

C Integrated Air Control Module (includes items D-H)

D Bleed-type Master Air Valve (required)

E Pump Air Regulator

F Air Pressure Gauge

G Safety Relief Valve

H Air Filter (hidden)

J Fluid Filter

K Fluid Drain Valve (required)

L 55 Gallon (200 Liter) Drum Suction Kit

M 5 Gallon (19 Liter) Pail Suction Kit

N Pump Ground Wire (required)

P Main Air Supply Line

R Air Line Shutoff Valve (bleed-type)

S Air Line Moisture Drain Valve

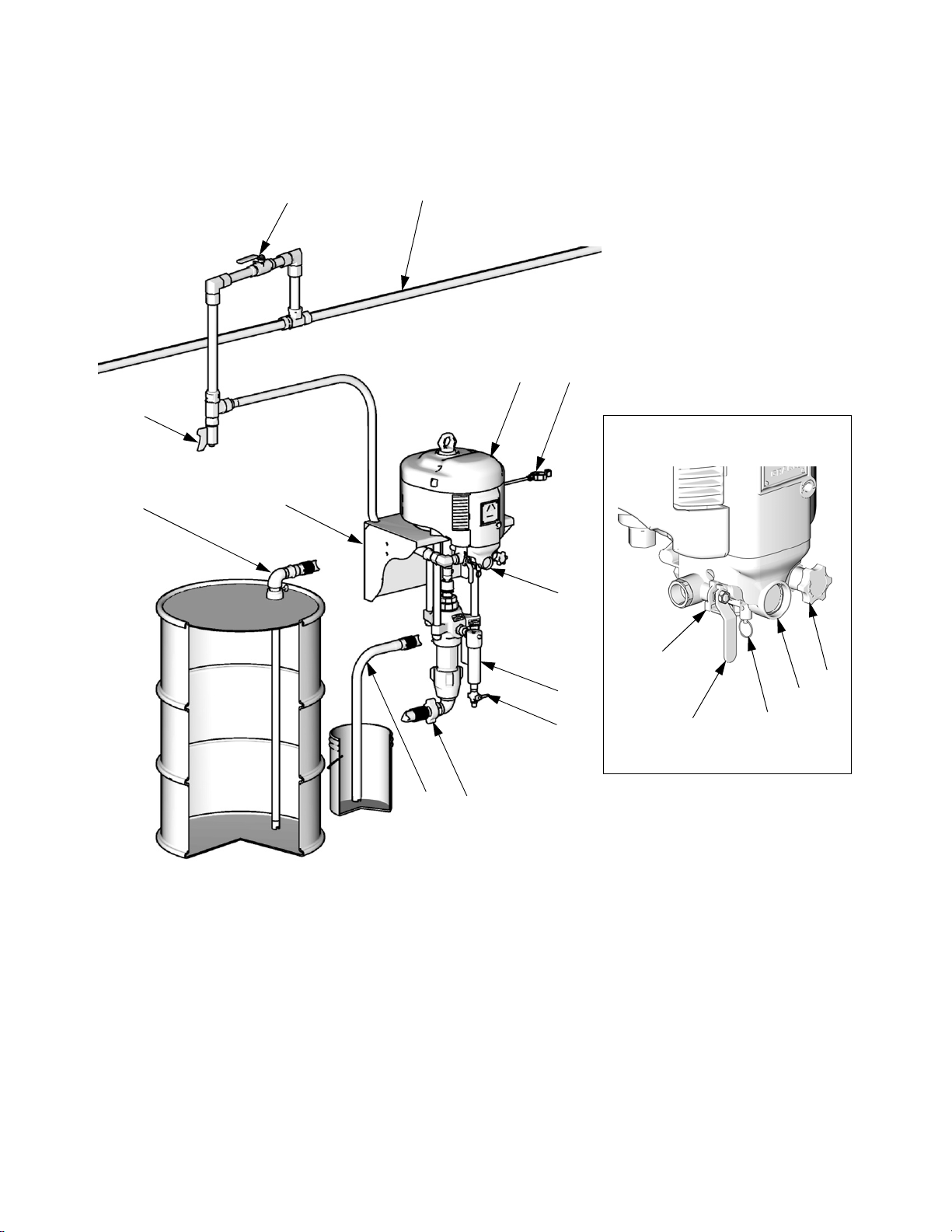

FIG. 2: Typical Installation (Xtreme Package Shown)

TI10390A

Detail of Integrated Air

Control Module (C)

TI8322C

M L and M

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Graco Pompa dell'acqua

Graco

Graco 970159 Manuale operativo

Graco

Graco 248061 Manuale utente

Graco

Graco EcoQuip 2 EQm Manuale utente

Graco

Graco 203872 Manuale operativo

Graco

Graco Husky 1590 Manuale operativo

Graco

Graco Husky 1040 Manuale operativo

Graco

Graco HFR Manuale di istruzioni

Graco

Graco 241407 Manuale operativo

Graco

Graco Husky 515 D51 Series Manuale utente

Graco

Graco SaniForce STU Series Manuale di istruzioni

Graco

Graco President A Series Manuale operativo

Graco

Graco Fire-Ball B Series Manuale operativo

Graco

Graco 190ES 261825 Istruzioni per il montaggio

Graco

Graco Hydra-Clean 1040 Manuale operativo

Graco

Graco Dyna-Star 239882 Manuale utente

Graco

Graco GBL 7500 Manuale utente

Graco

Graco Husky 1040 Manuale operativo

Graco

Graco Fire-Ball H Series Manuale operativo

Graco

Graco SaniForce 1040e Manuale per l'uso e la cura

Graco

Graco PRESIDENT 207-706 Manuale operativo

Graco

Graco 8900 Manuale utente

Graco

Graco Mini Fire-Ball B Series Manuale elenco delle parti

Graco

Graco MP-25 Manuale di istruzioni

Graco

Graco 216-256 Manuale operativo

Manuali Pompa dell'acqua popolari di altre marche

Neptun

Neptun NPHW 5500 Manuale utente

Sensidyne

Sensidyne Gilian BDX-II Istruzioni per l'installazione e il funzionamento

Draper

Draper 47808 Manuale utente

Trolla

Trolla 12820 Manuale utente

Sunfab

Sunfab SVH Series Manuale utente

WilTec

WilTec 50740 Manuale utente

Fieldmann

Fieldmann FVC 5015 EK Manuale utente

Everbilt

Everbilt EFSUB5-122HD Manuale utente

esotec

esotec 101018 Manuale utente

moyno

moyno 2000 CC Manuale utente

Becker

Becker BASIC VASF 2.80/1-0.AC230 Manuale utente

Sykes AmeriPumps

Sykes AmeriPumps GP100M Guida alla risoluzione dei problemi

DUROMAX

DUROMAX XP WX Series Manuale utente

BRINKMANN PUMPS

BRINKMANN PUMPS SBF550 Manuale utente

Franklin Electric

Franklin Electric IPS Manuale utente

Xylem

Xylem e-1532 Series Manuale utente

Milton Roy

Milton Roy PRIMEROYAL Manuale utente

STA-RITE

STA-RITE ST33APP Manuale utente
