GRAND Silver Line S650 Manuale utente
Rigid Inflatable Boat
SILVER LINE
Models:
S650,S650L,S650GL
User’s Manual
GRAND Silver Line S650,S650L,S650GL UM16500
INTRODUCTION.
"GRAND" inflatable motor boat of the "SILVER LINE" series: S650 has been designed under requirements of ISO
6185 "Plastomer and Elastomer Inflatable Boats" and DIN 7870 "Inflatable Boats with Reinforced Shells".
PURPOSE.
The rigid inflatable motor boat of the "SILVER LINE" series relates to the category of pleasure boats and is intended for
water sports, tourism and rest.
GRAND Silver Line S650,S650L,S650GL UM16500
2
TECHNICALDATASPECIFICATION Mo
Model Unit S650/S650L/S650GL
Length overall m 6.5
ft-inches 15'5"
Length inside m 5.00
ft-inches 16'4"
Width overall m 2.6
ft-inches 8'6"
Width inside m 1.5
ft-inches 4'11"
Tube diameter max m 0,55
ft-inches 1'9"
Number of chambers 5
Passenger capacity pers. 15
Load capacity kg 1700
lbs 3740
Boat weight kg 550
lbs 1100
Engine power recommended HP 140
kW 105
Engine power max HP 175
kW 136
Engine weight max kg 240
lbs 528
Engine shaft length (L-long, XL-ultralong) 2L / 1XL
Boat design Category(Dir.94/25/EC) C
GRAND Silver Line S650,S650L,S650GL UM16500
3
COMPLETESET Model
S650 S650L S650GL
Description unit q-ty availability
1.Inflatableboat pcs. 1
1.1 Oar / paddle pcs. 2
1.2 Bow locker cushion pcs. 1
1.3 Foot pump «Bravo-2» pcs. 1
1.4 Rear seat soft back pcs. 1
1.5 Bolt M8*50 pcs. 4
1.6 Washer 8*24 pcs. 4
1.7 Fashion washer pcs. 4
1.8 Arrester nut M 8 pcs. 4
1.9 Pilot seating bar SD-04 pcs. 1
1.10 BoltM8x25 pcs. 4
1.11 Serrated lock washer 8 pcs. 4
1.12 Washer 8 pcs. 4
1.13 Bow railing pcs. 2
1.14 Rear seat extended hand rails pcs. 2
1.15 Set of spare part and repear kit: pcs. 1
2. Steering console CL-04 pcs. 1
2.1 Windscreen pcs. 1
2.2 Stainless steel windscreen railing pcs. 1
2.3 Support windscreen railing pcs. 4
GRAND Silver Line S650,S650L,S650GL UM16500
4
COMPLETESET(continuation)
Model
S650 S650L S650GL
Description unit q-ty availability
2.4 Screw M6*25 pcs. 5
2.5 Screw bush (bush #1) pcs. 5
2.6 Bush #2 pcs. 5
2.7 NutM6 pcs. 5
2.8 Serrated lock washer 6 pcs. 5
2.9 Washer 6 pcs. 5
2.10 Bolt M8 x25 pcs. 6
2.11 Serrated lock washer 8 pcs. 6
2.12 Washer 8 pcs. 6
2.13 Bolt M12x30 pcs. 4
2.14 Serrated lock washer 12 pcs. 4
2.15 Washer 12 pcs. 4
2.16 Speedometer pcs. 1
2.17 Tachometer pcs. 1
2.18 Compass pcs. 1
2.19 Automatic circuit breakers pcs. 8
2.20 Main boat cable pcs. 1
2.21 Battery wire pcs. 1
2.22 Electric accessory socket(phone charge pluge) pcs. 1
2.23 Battery disconnector with wire pcs. 1
GRAND Silver Line S650,S650L,S650GL UM16500
5
COMPLETESET(continuation)
Model
S650 S650L S650GL
Description unit q-ty availability
2.24 Battery container pcs. 1
2.25 Fire extinguisher container pcs 1
3. Fuelsystem
3.1 Fuel tank (150 liters) pcs. 1
3.2 Fuel level sender pcs. 1
3.3 Fuel level gauge pcs. 1
3.5 Fuel filler pcs. 1
3.6 Fuel tank vent pcs. 1
4. Shower kit pcs 1
4.1 Water tank (50 liters) pcs. 1
4.2 External deck water fill pcs. 1
4.3 Shower hahdset pcs. 1
4.4 Shower pump pcs. 1
4.5 Box with cap for showerhandset pcs. 1
5. Fiberglass arc pcs. 1
5.1 Electric horn pcs. 1
5.2 Masthead (white) pcs. 1
5.3 Port (red) pcs. 1
5.4 Starboard (green) pcs. 1
GRAND Silver Line S650,S650L,S650GL UM16500
6
COMPLETESET(ending) Model
S650 S650L S650GL
Description unit q-ty availability
5.5 Nut M12 pcs. 4
5.6 Washer 12x36 pcs. 4
5.7 Serrated lock washer 12x36 pcs. 4
6. Drainautomaticbilgepump pcs. 1
7. Additionaloptions
7.1 Transom mounted swimming ladder w/ handrail pcs. 1
7.2 Removable bow sundeck w/ cusion pcs. 1
7.3 Adjustable pilot chear pcs. 2
7.4 St. console head for standart side mount engin
control box pcs. 1
7.5 Overall cover pcs. 1
7.6 Console CL-04 cover pcs. 1
7.7 Pilot seat SD-04 cover pcs. 1
7.8 Hydraulic steering system set w/ wheel pcs. 1
7.9 Mechanical steering system set w/ wheel pcs. 1
7.10 Delux steering wheel pcs. 1
7.11 Courtesy deck lights set w/ wiring pcs. 1
7.12 Collapsed st.steel suntop w/ mount bases pcs. 1
7.13 St.steel polished navigation arch pcs. 1
GRAND Silver Line S650,S650L,S650GL UM16500
—Your
"GRAND" boat "SILVER LINE" complete set included this items.
7
GRAND Silver Line S650,S650L,S650GL UM16500

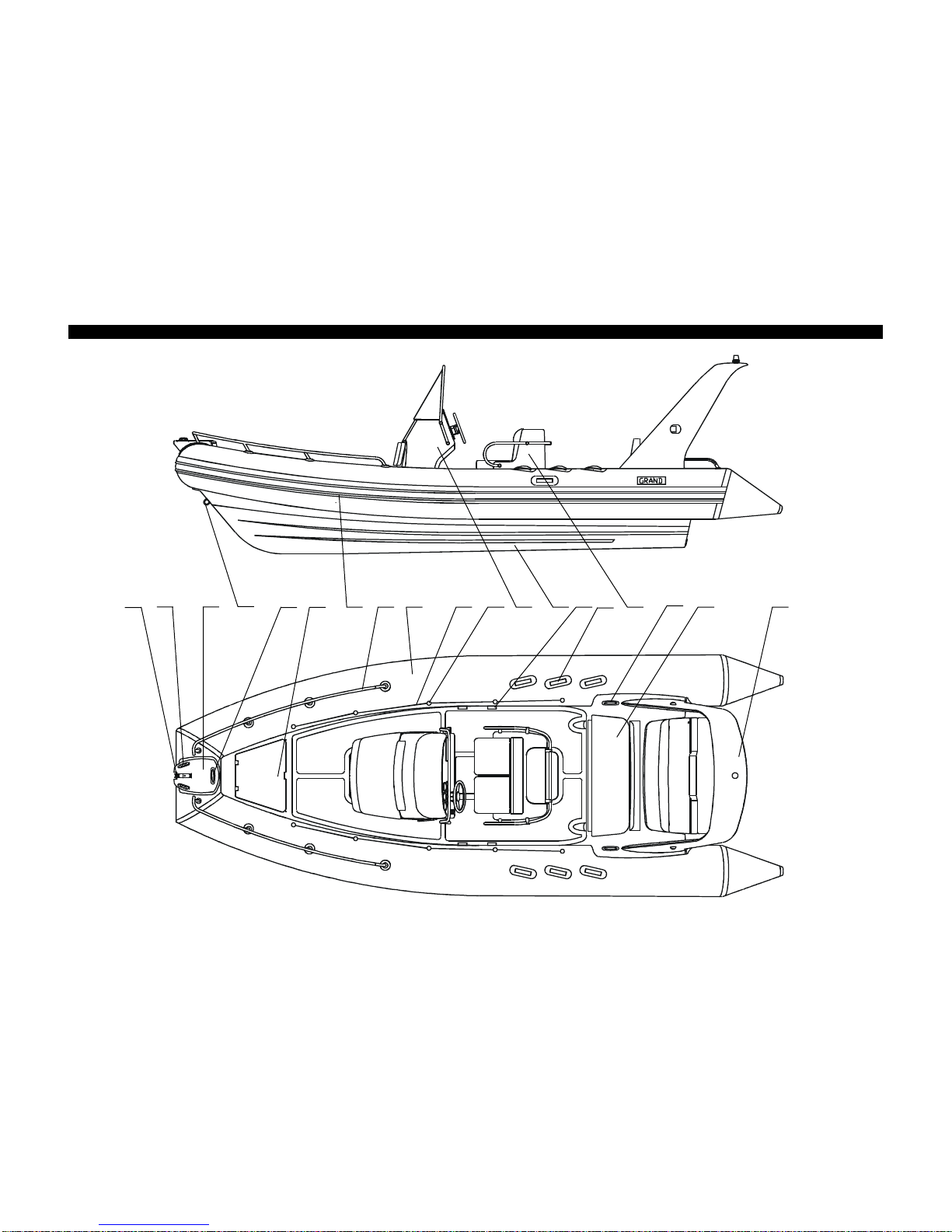

S650
910 8 7 1114 412 6 521513 17
11 1916
8
13
GRAND Silver Line S650,S650L,S650GL UM16500
Pos Item
1 Fiberglass hull
2 Reinforced buoyancy tube
3 Inflation / deflation valve
4 Doubled rubbing strake
5 Lifeline holder
6 Internallifeline
7 Towing bow eye
8 Bow step-plate with antiskid layer
9 Anchor roller
10 Continental fairlead
11 Pull-upcleat
12 Stainless steel bow railing
13 Safety handle
14 Bow locker with access hatch
15 Molded-in console CL-04 with front stowage, cushion,
soft back and rear access hatch
16 Molded-in container SD-04 with front stowages, cushions,
soft backs and rear access hatch
17 Stern locker seating
18 Stern seating soft back
19 Fiberglass arch
20 Cockpit drain system socket (2pcs.)
21 Fuelfill

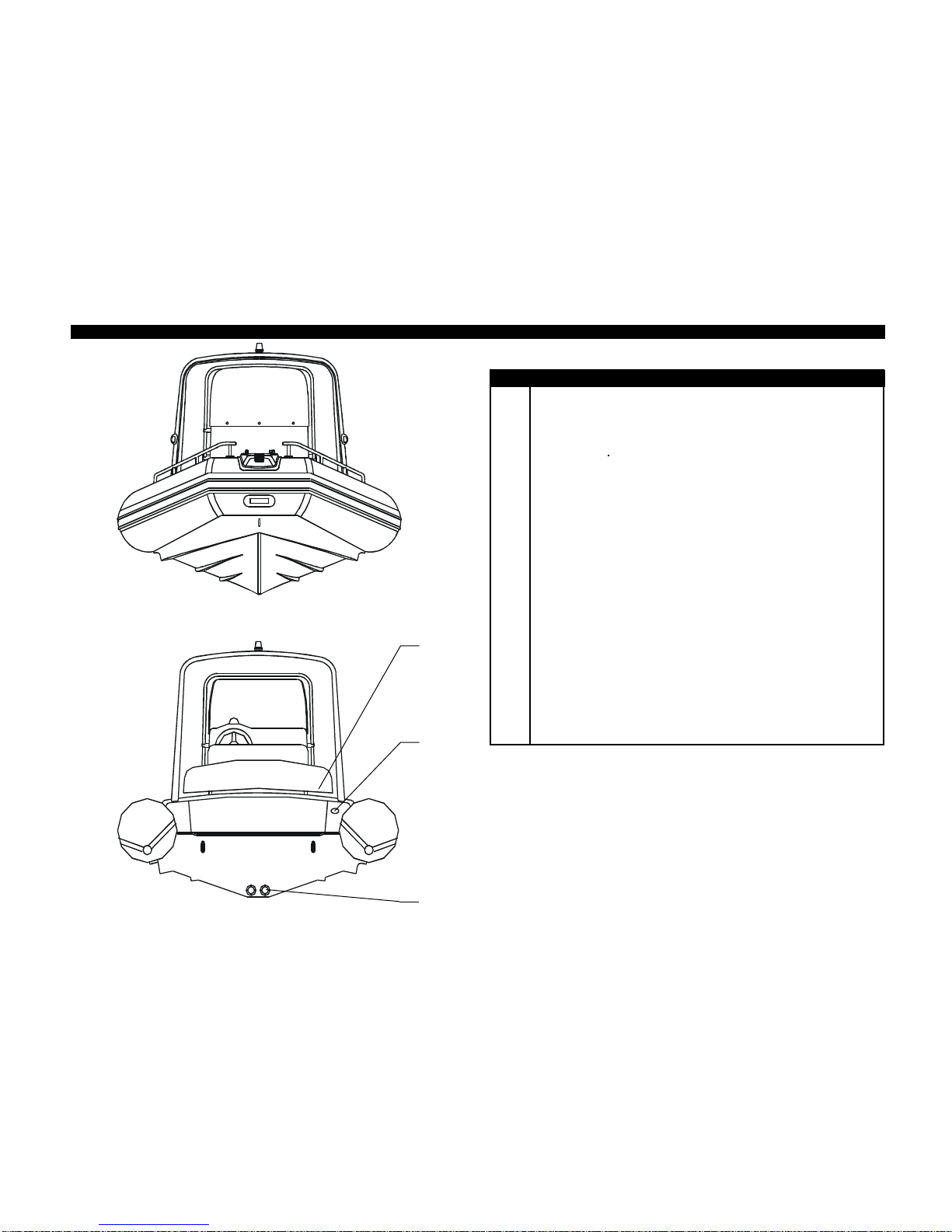

18
21
20 9
GRAND Silver Line S650,S650L,S650GL UM16500

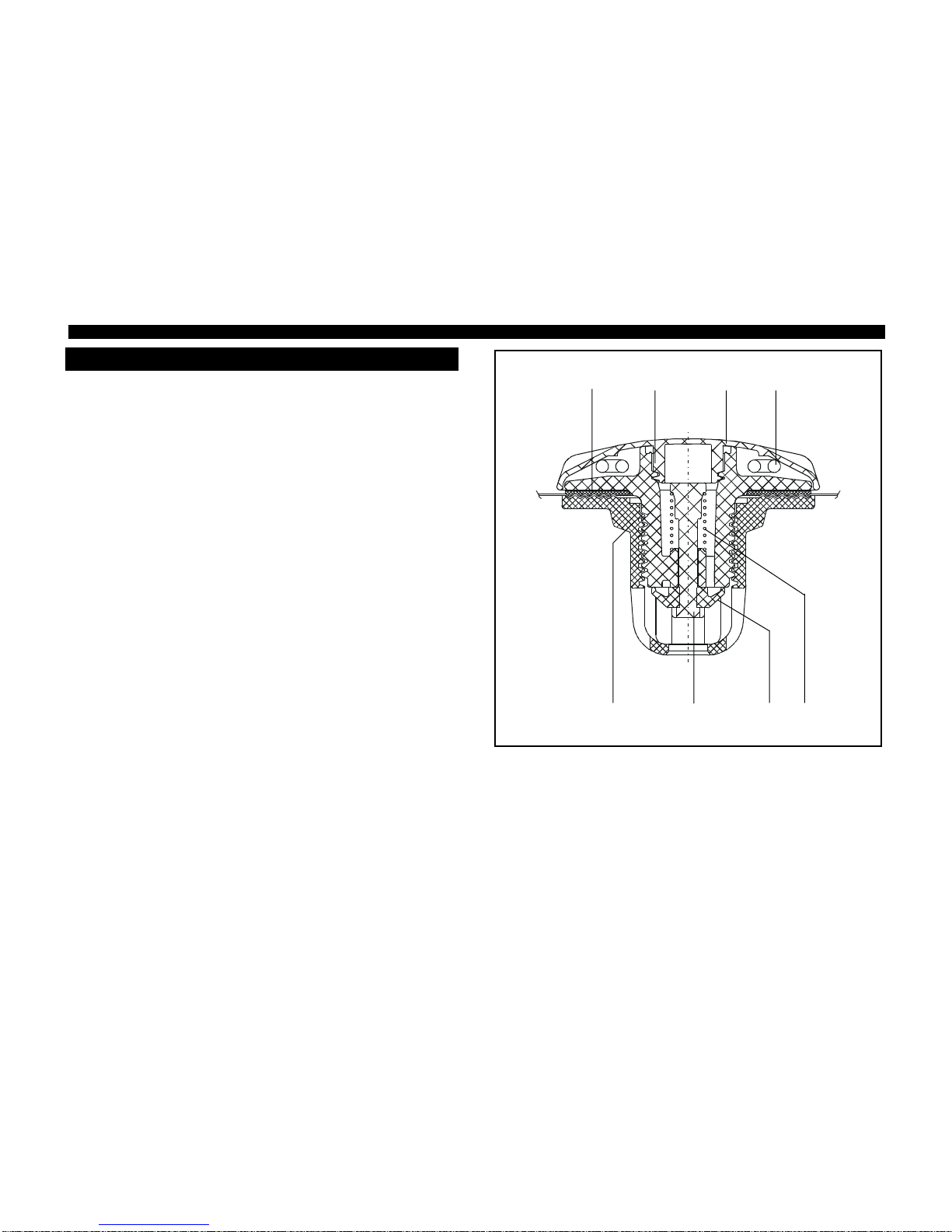

INFLATION/ DEFLATION VALVESOPERATION
The inflation/deflation valve is intended for:
—filling the compartment with air from a standart pump or filling
system and maintaining pressure in the tube for prolonged time,
—adjustable drop of pressure in compartment.
The air fill valve is designed as a tab-type non-return valve.
Every inflation / deflation valve includes the following parts : valve
body 1, valve nut 5, valve cap 2 with strap 3, washerwith gasket 4,
spindel 6 with spring 7, cup diaphragm 8 ( Fig.1).
INFLATION MODE : valve is closed with gasket 4 tight . To move the
valve to deflation mode : push the button 6 and turn it clockwise to fix
it in lower position
DEFLATION MODE : button is fixed in lower position. To move the
valve to inflation mode : push the button 6 and turn it counter
clockwise. The button goes to upper position.
ATTENTION!
1. Overinflating of your boat, when the air pressure is
more than nominal, sufficiently decreases the boat
life time.
2.The valvesare airtightjust incase theyare closedwith
the caps tight.
3. The tube is airtight in case it keeps its form for 8
hours at least.
5687
41 23
Fig.1
10
