GRP2616 is a next generation enterprise IP Phone featuring 6

dual-color line keys (can be digitally programmed as up to 24 pro-

visionable BLF/fast-dial keys), 4.3” (480x242) TFT color LCD, 5

programmable context-sensitive soft keys, 2.4” (320x240) addi-

tional screen dedicated to up to 24 multi-purpose keys, USB port,

1000M network ports, integrated PoE, Wi-Fi and Bluetooth sup-

port, 3-way conference and Electronic Hook Switch (EHS). The

GRP2616 delivers superior HD audio quality, rich and leading-

edge telephony features, protection for privacy, and broad interop-

erability with most 3rd party SIP devices and leading SIP/NGN/

IMS platforms. GRP2616 is the perfect choice for enterprise users

looking for a high quality, feature rich multi-line executive IP phone

with advanced functionalities and performance.

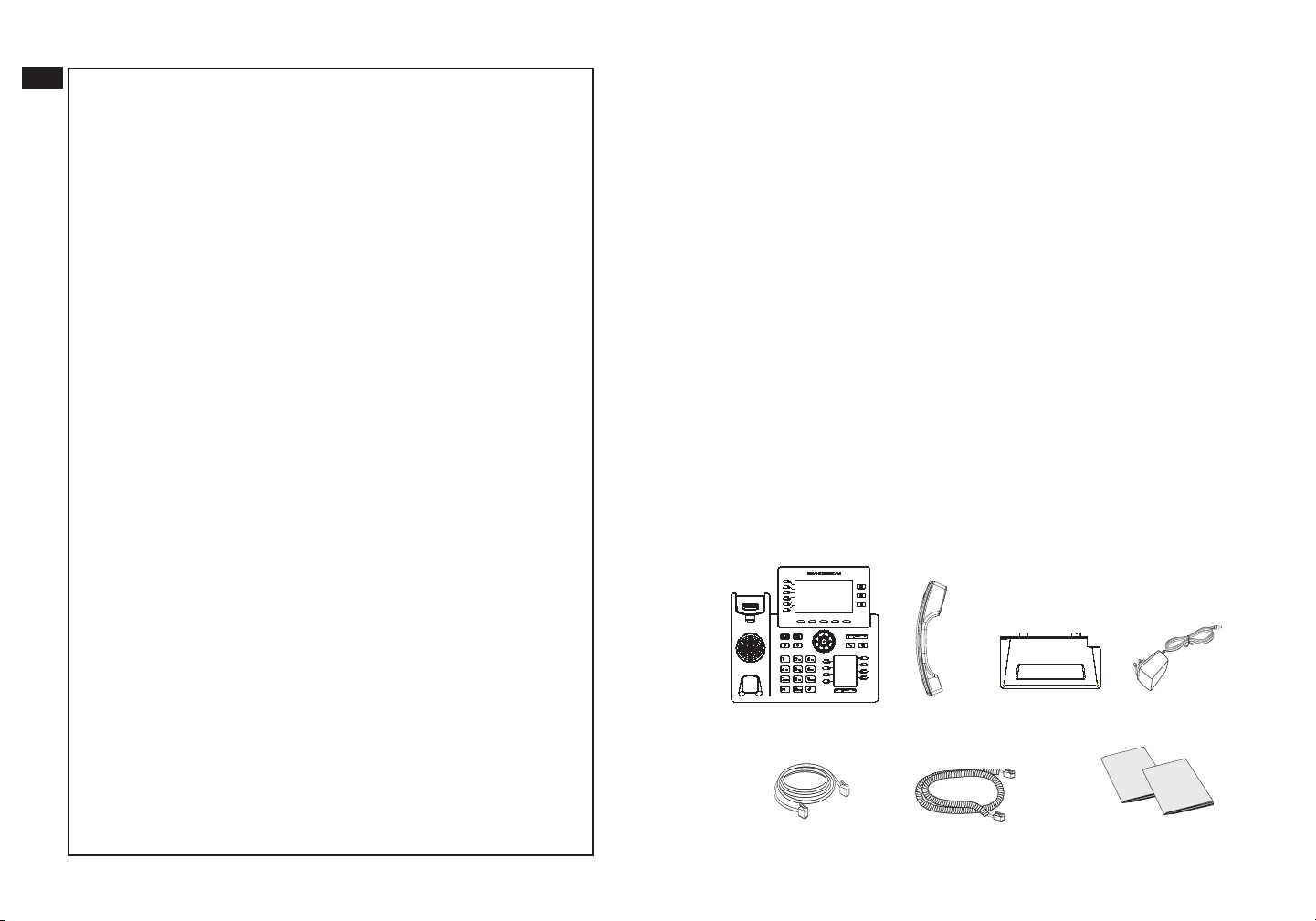

PACKAGE CONTENTS:

OVERVIEW:

WARNING: Please DO NOT power cycle the GRP2616 during system

boot up or rmware upgrade. You may corrupt rmware images and

cause the unit to malfunction.

1x Phone Main Case 1x Handset

1x Phone Cord

1x Ethernet Cable

1x Phone Stand 1x 12V Power

adapter

1x Quick Installation Guide

1x GPL license

PRECAUTIONS:

WARNING: Use only the power adapter included in the GRP2616 pack-

age. Using an alternative non-qualied power adapter may possibly

damage the unit.

12V

~3~ ~4~

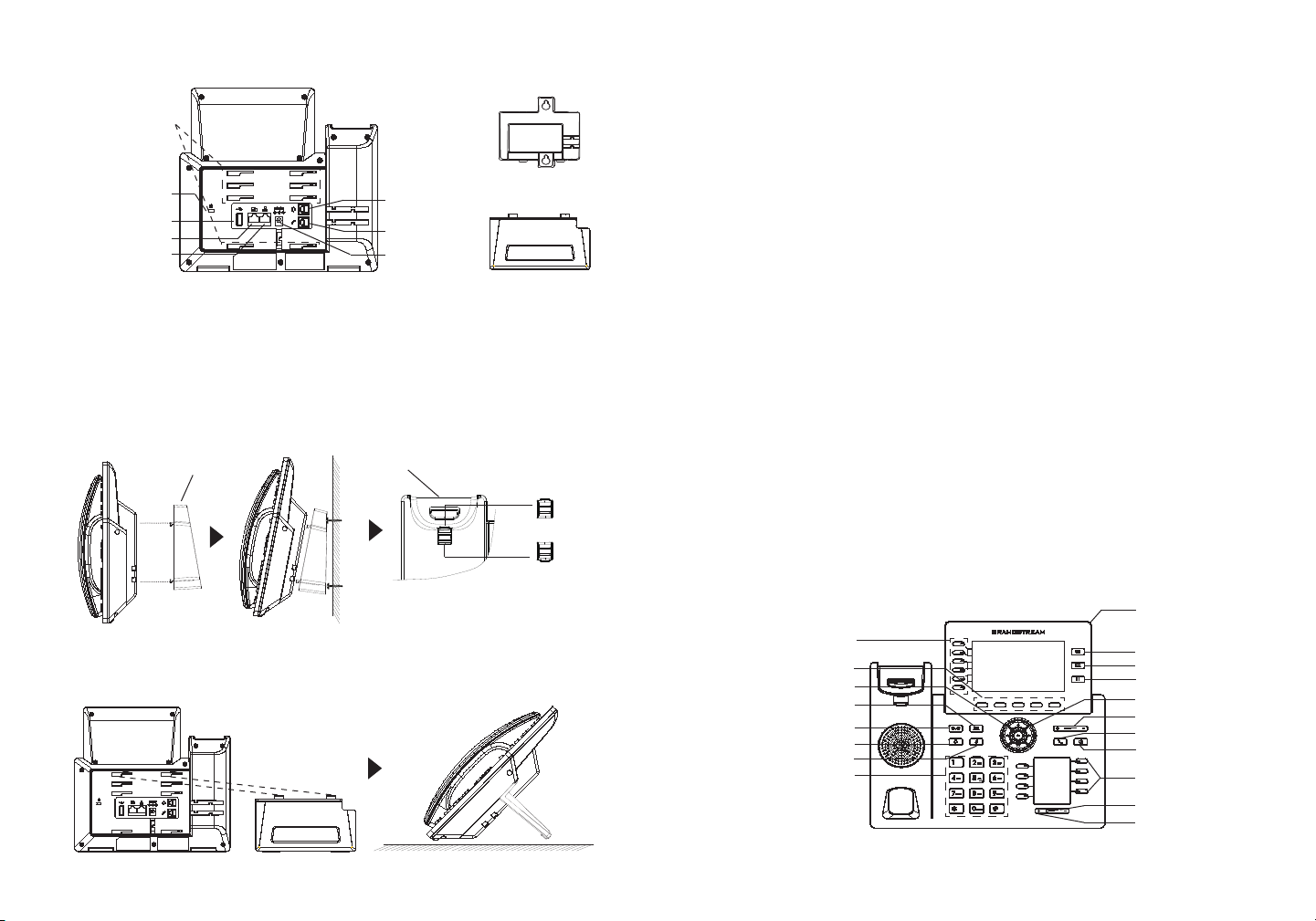

PHONE SETUP:

Installing the phone (Wall Mount *sold separately):

1. Attach the wall mount spacers to the slot for wall mount spacers on the back

of the phone.

2. Attach the phone to the wall via the wall mount hole.

3. Pull out the tab from the handset cradle (See gure below).

4. Rotate the tab and plug it back into the slot with the extension up to hold the

handset while the phone is mounted on the wall (See gure below).

Tab with exten-

sion up

Handset Rest

Tab with exten-

sion down

Slot for the wall

mount spacers

and phone

stand

To setup the GRP2616, follow the steps below:

1. Connect the handset and main phone case with the phone cord.

2. Connect the 12V DC output plug to the power jack on the phone; plug the

power adapter into an electrical outlet. If PoE switch is used in step 3, this

step could be skipped.

3. Network connection is possible via two methods which are described below:

• Using Ethernet:

Connect the LAN port of the phone to the RJ-45 socket of a hub/switch or a

router (LAN side of the router) using the Ethernet cable.

• Using WiFi:

- On LCD menu, navigate to “System→WiFi settings” and enable WiFi.

- Select “Scan” and GRP2616 will automatically start scanning within the

range.

- A list of WiFi networks will be displayed. Select the desired network, and if

required, enter the correct password to connect.

4. The LCD will display provisioning or rmware upgrade information. Before

continuing, please wait for the date/time display to show up.

5. Using the phone embedded web server or keypad conguration menu, you

can further congure the phone using either a static IP or DHCP.

For installing the phone on the table with the phone stand, attach the phone stand

to the bottom of the phone where there is a slot for the phone stand. (Upper half,

bottom part).

Installing the phone (Phone Stand):

USB Port

Power

Headset Port

Handset Port

CONNECTING THE PHONE:

Wall mount

Phone Stand

PHONE DESCRIPTION:

Kensington

Lock

PC Port

LAN Port

Soft keys

Navigation keys

Message

Hold

Transfer

Headset

Mute

Volume

Speaker

Send

Standard keypad

Line keys

MENU/OK key

Conference

Left Key

Right Key

Multi-Purpose

Key

Phonebook

Message Waiting

Indicator

~5~ ~6~

1. Ensure your phone is powered up and connected to the Internet.

2. Press and hold the “UP” button for 3 seconds to see the IP address.

3. Type the phone’s IP address in your PC browser.

4. Enter admin’s username and password to access the conguration menu.

(The factory default username is “admin” while the default random password

can be found on the sticker at the back of the unit).

1. Make sure the phone is idle.

2. Press the MENU key to access the keypad MENU to congure the phone.

3. Select MENU → Phone → SIP → Account to congure settings for SIP Proxy,

Outbound Proxy, SIP User ID, SIP Auth ID and SIP Password.

4. Follow MENU options to congure the basic features of the phone. For ex-

ample: the IP address if using a static IP. For details, please check GRP2600

series User Manual.

5. Please contact your ITSP for additional settings that may be necessary to

congure the phone.

Congure the GRP2616 using the Keypad:

PHONE CONFIGURATION:

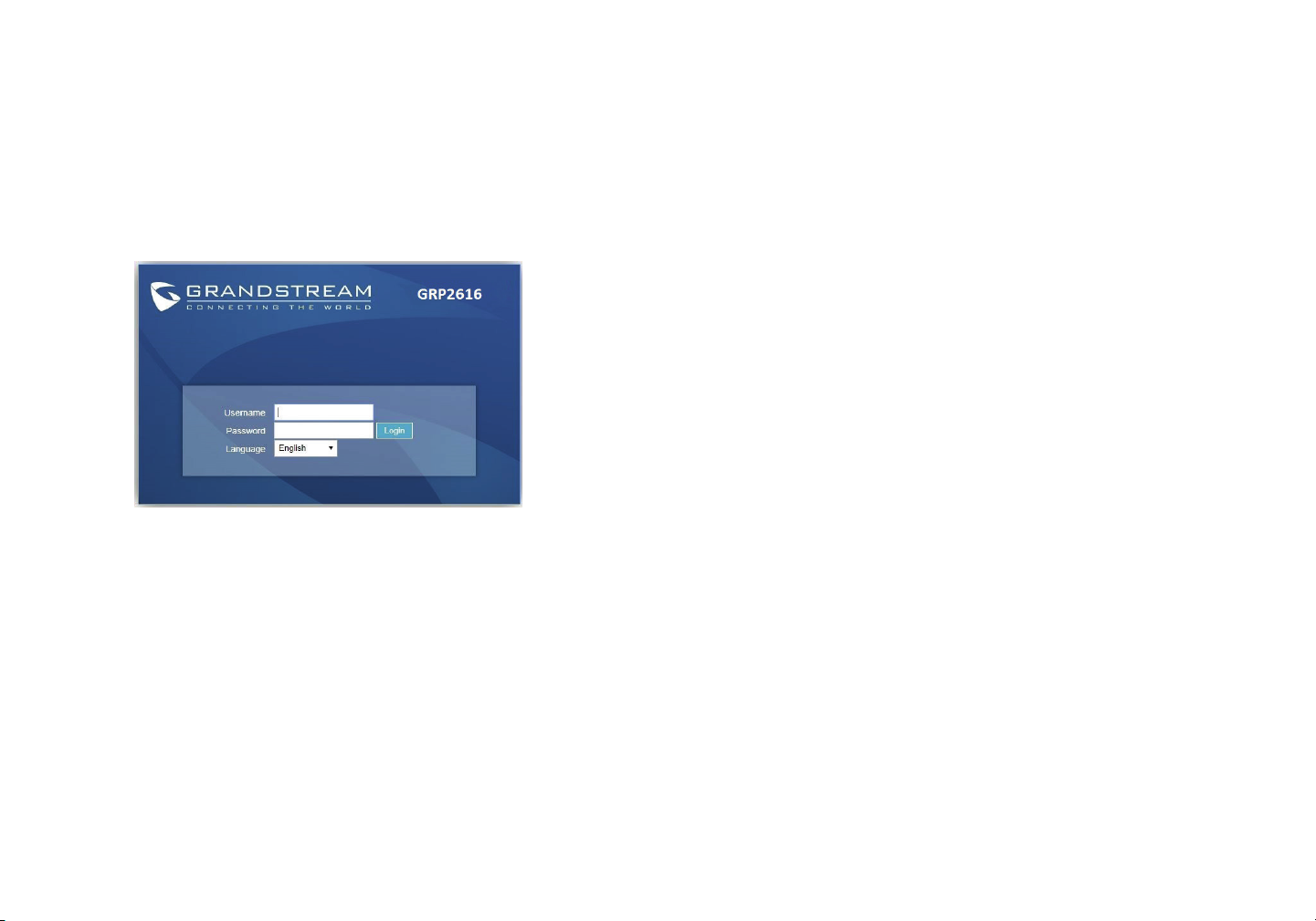

Congure the GRP2616 using a Web Browser:

Refer to online documents and FAQ for more detailed information:

http://www.grandstream.com/our-products
