GXP2140/GXP2160 Bluetooth User Guide

Grandstream Networks, Inc.

GXP2140/GXP2160

BLUETOOTH USER GUIDE

GXP2140/GXP2160 Bluetooth User Guide

Index

OVERVIEW ...............................................................................................................................................2

BASIC FUNCTIONS .................................................................................................................................2

TURN BLUETOOTH ON OR OFF.........................................................................................................3

CHANGE GXP2140/GXP2160 BLUETOOTH NAME............................................................................3

PAIRING TO A BLUETOOTH DEVICE ..................................................................................................3

CONNECTING TO A BLUETOOTH DEVICE ........................................................................................4

UNPAIRING AND DISCONNECTING A BLUETOOTH DEVICE ...........................................................5

USE BLUETOOTH HEADSET .................................................................................................................5

BT ON AND BT OFF ..............................................................................................................................6

HANDSFREE MODE ................................................................................................................................7

TURN ON/OFF HANDS FREE MODE ..................................................................................................7

CONNECT TO HANDS FREE DEVICE.................................................................................................8

USE BLUETOOTH PHONEBOOK ........................................................................................................8

INITIATE A CALL WITH HANDS FREE MODE .....................................................................................9

GXP2140/GXP2160 Bluetooth User Guide

OVERVIEW

Bluetooth is a proprietary, open wireless technology standard for exchanging data over short distances

from fixed and mobile devices, creating personal area networks with high levels of security.

GXP2140/GXP2160 supports Bluetooth Class 2 of version 2.1. On GXP2140/GXP2160, users could

connect to mobile phones (supporting Bluetooth) via hands free mode or use Bluetooth headset

answering calls.

This document serves as an end user guide on how to use Bluetooth headset and hands free mode on

GXP2140/GXP2160.

Please ensure your GXP2140/GXP2160 is on the latest firmware release:

http://www.grandstream.com/support/firmware.

Software release reference:

The original GA 1.0.1.6 build only supports connecting to Bluetooth Headsets.

The current Beta 1.0.2.9 supports both connecting to Bluetooth Headsets and Bluetooth Phones

(one at a time).

BASIC FUNCTIONS

Bluetooth related settings are under GXP2140/GXP2160's LCD Menu->System->Bluetooth. To connect

to a Bluetooth device, turn on GXP2140/GXP2160’s Bluetooth power first. The first time when using a

new Bluetooth device with the GXP2140/GXP2160, "pair" the device with the phone so that both devices

know how to connect securely to each other. After that, users could simply connect to a paired device.

Turn off Bluetooth if it's not used.

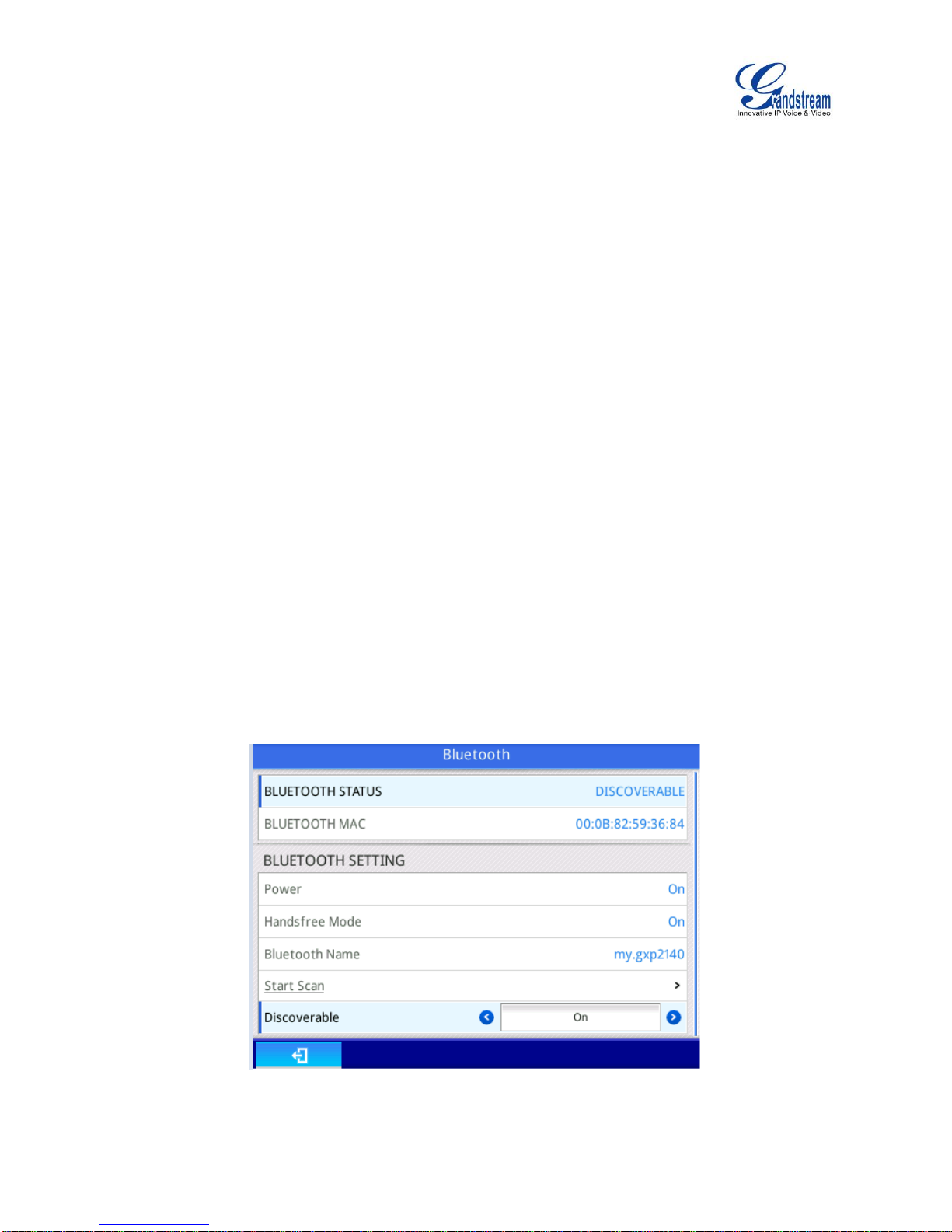

Figure 1: Bluetooth Configuration

GXP2140/GXP2160 Bluetooth User Guide

Table 1: Bluetooth Configuration

System -> Bluetooth

Bluetooth Status

Displays the status of Bluetooth. When Bluetooth power is on, the status is

“Discoverable”; when Bluetooth power is off, the status is “Off”.

Bluetooth MAC

Displays the GXP phone’s MAC address

Power

Turns on/off Bluetooth.

Handsfree Mode

Enables/Disables Handsfree mode

Bluetooth Name

Defines the GXP2140/GXP2160 Bluetooth name.

Start Scan

Starts to scan other Bluetooth devices in range. If found, user could press

“Pair” soft key, and enter Pin code to pair to other Bluetooth devices.

Discoverable

Defines whether the phone is discoverable by other Bluetooth devices, when

Bluetooth power is on.

TURN BLUETOOTH ON OR OFF

1. Go to GXP2140/GXP2160's LCD MENU->System->Bluetooth

2. Highlight Power option by pressing Up/Down arrow key

3. When the Power option is highlighted, pressing LEFT/RIGHT arrow key to turn on/off Bluetooth.

Note: While Bluetooth is turned on, GXP2140/GXP2160 is discoverable by other Bluetooth devices. To

make the phone undiscoverable, user needs to turn off Bluetooth.

CHANGE GXP2140/GXP2160 BLUETOOTH NAME

Under Bluetooth Name option user can change the Bluetooth name of GXP2140/GXP2160. When

discovered by other Bluetooth devices, GXP2140/GXP2160 will show the name configured in this option.

1. Go to GXP2140/GXP2160's LCD MENU->System->Bluetooth

2. Highlight Bluetooth Name option by pressing Up/Down arrow key

3. Enter the desired Bluetooth name from keypad.

PAIRING TO A BLUETOOTH DEVICE

Before connecting GXP2140/GXP2160 with other Bluetooth device, users must pair them first. They will

stay paired afterwards unless they are unpaired.

1. Go to GXP2140/GXP2160's LCD MENU->System->Bluetooth

GXP2140/GXP2160 Bluetooth User Guide

2. Enter Start Scan option

3. The GXP2140/GXP2160 scans and displays the Names of all available Bluetooth devices in range.

See Figure 2 Scan Bluetooth Device.

If the device you would like to pair with does not show up in the list, ensure that the device is turned

on and set to be discoverable. If need, user could press “Clear” and “Rescan”soft keys to restart the

scan;

Figure 2: Scan Bluetooth Device

4. The discovered devices will show in the scan result list with device name. If it is not paired, it will

show "Unpaired" behind the device name. Select the device name, and press “Pair”soft key to pair it.

Then a window will prompt up. See Figure 3 Pairing to Bluetooth Device. User may input the Pin code

in the window, and press “OK”soft key to start pairing.

Note: Usually, the default Bluetooth headset Pin code is 0000.

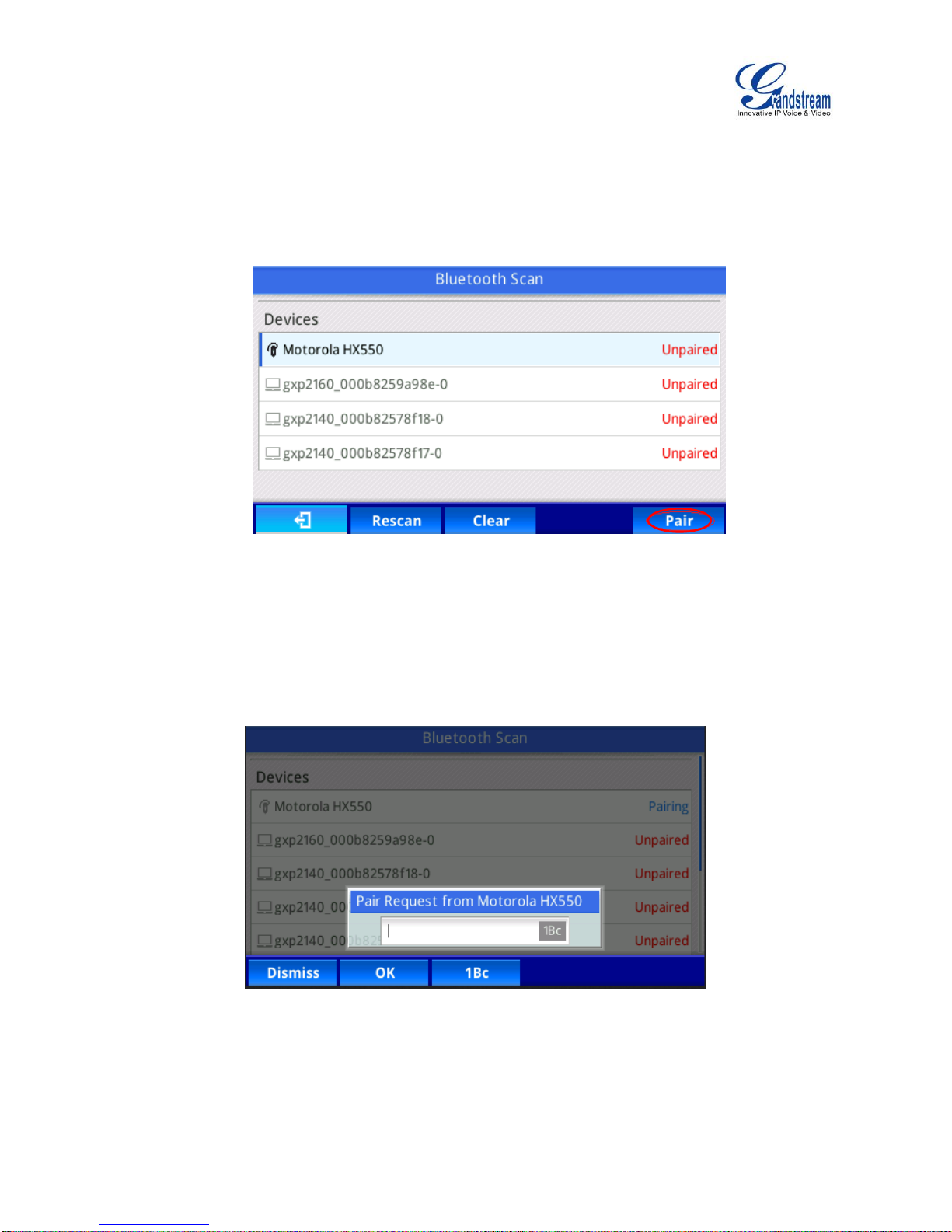

Figure 3: Pairing to Bluetooth Device

CONNECTING TO A BLUETOOTH DEVICE

GXP2140/GXP2160 Bluetooth User Guide

After successfully paired, the GXP2140/GXP2160 will show "Paired" behind the Bluetooth device name in

the scan list. Highlight the device name and press “Connect”soft key to connect.

Once connected, the GXP2140/GXP2160 will show “Connected”behind the Bluetooth device name in the

scan list.

Figure 4: Bluetooth Device Connected

UNPAIRING AND DISCONNECTING A BLUETOOTH DEVICE

In the Bluetooth settings, highlight the Bluetooth device name and press “Disconnect”/”Unpair”soft key to

disconnect/unpair the Bluetooth device.

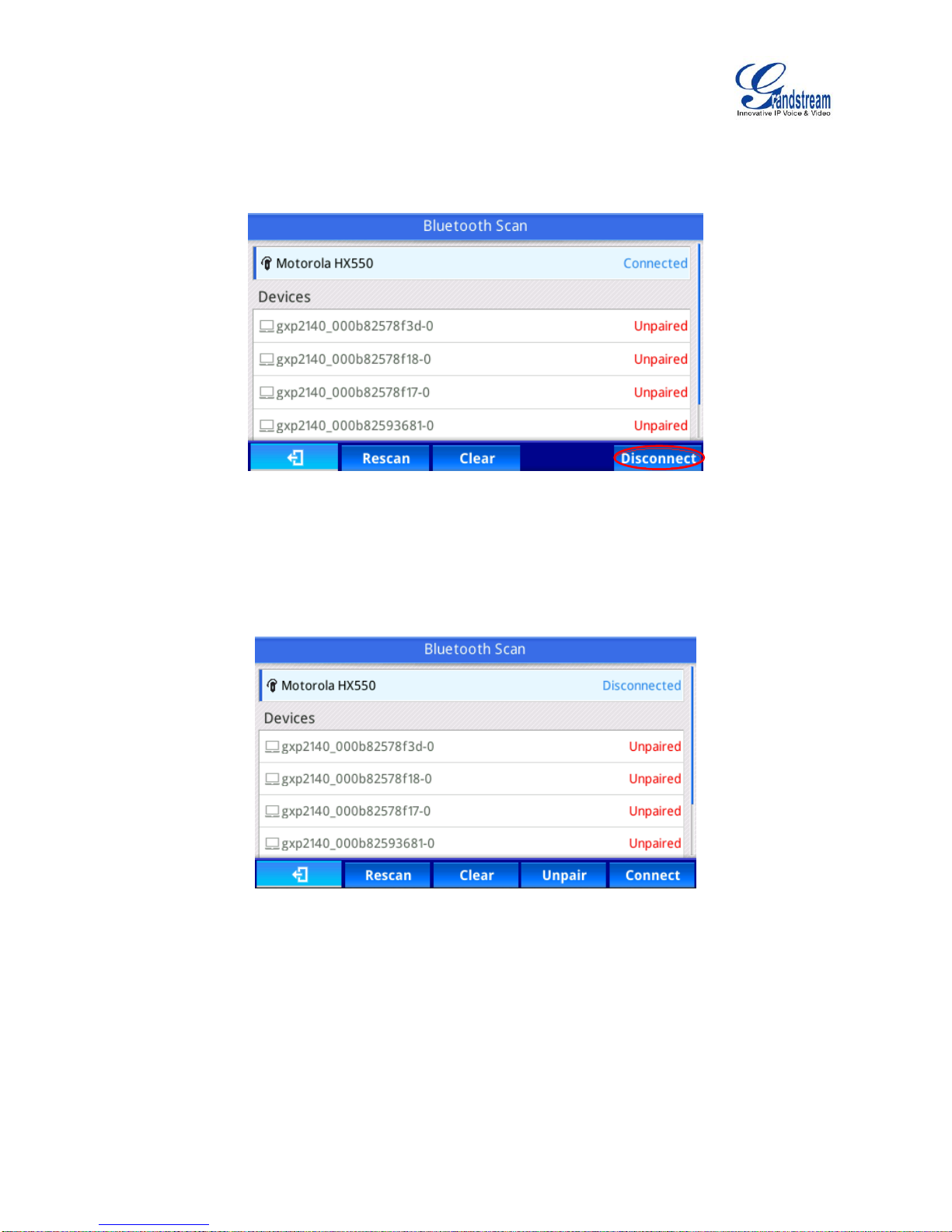

Figure 5: Disconnect Bluetooth Device

USE BLUETOOTH HEADSET

On GXP2140/GXP2160, user can answer/terminate incoming call from Bluetooth headset.

GXP2140/GXP2160 Bluetooth User Guide

BT ON AND BT OFF

After Bluetooth headset is successfully connected, the GXP2140/GXP2160 will show “BT On”soft key on

call screen. User may press it to active Bluetooth headset. See Figure 6 BT is OFF.

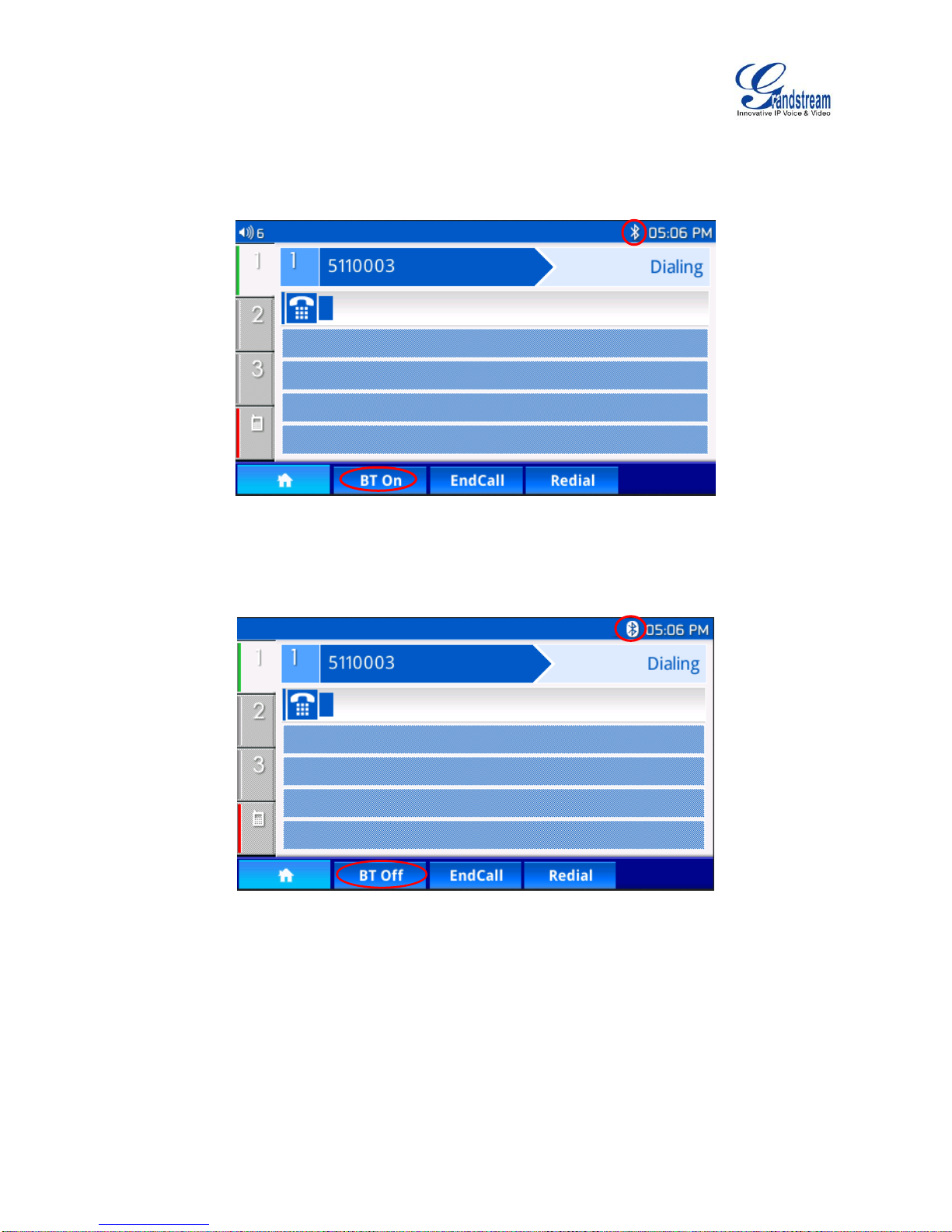

Figure 6: BT is OFF

When “BT Off”soft key shows up in call screen and the Bluetooth icon on status bar changes to be solid,

it means the Bluetooth headset is ready to use. See Figure 7 BT is ON.

Figure 7: BT is ON

When BT is on, both Bluetooth headset and GXP2140/GXP2160 will alert for incoming calls. User may

press the answer button on Bluetooth headset to answer the incoming call.

During an active call, user may switch the audio channel between Bluetooth headset and phone handset

by pressing “BT Off”/”BT On”soft key.

GXP2140/GXP2160 Bluetooth User Guide

HANDSFREE MODE

By connecting cell phone to GXP2140/GXP2160 phone via hands free mode, user can sync up cellphone

phonebook to GXP phone and make calls on GXP phone via cell phone account. GXP2140/GXP2160

plays the role of Bluetooth headset in hands free mode.

NOTE: The cell phone is required to support Bluetooth function. GXP2140/GXP2160 can connect to at

most one hands free device each time.

TURN ON/OFF HANDS FREE MODE

On GXP2140/GXP2160 keypad menu, go to System -> Bluetooth -> Handsfree Mode. Turn on /off

Hands Free mode by pressing LEFT/RIGHT arrow key. See Figure 8 Turn on Hands Free Mode.

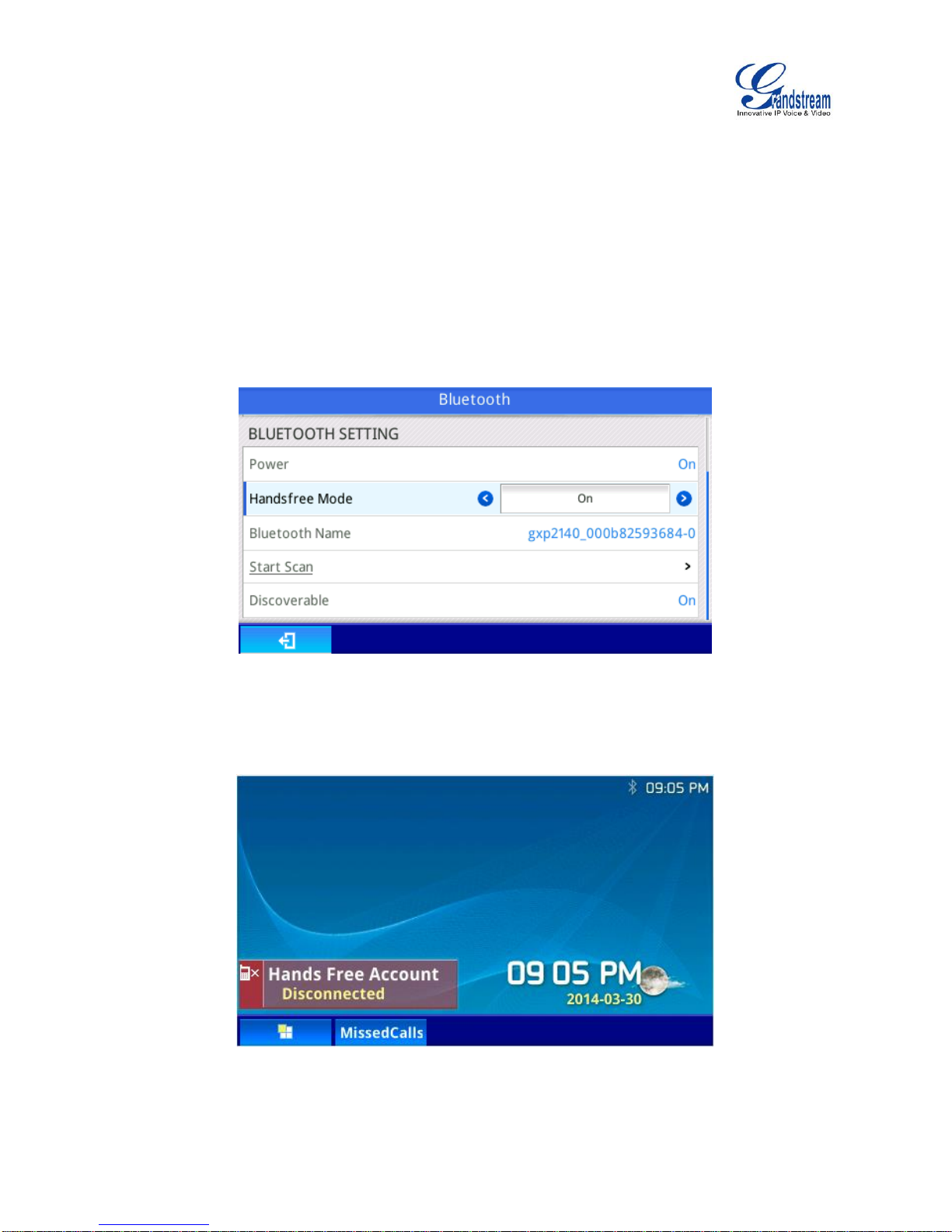

Figure 8: Turn On Hands Free Mode

When Hands Free mode is on, the Hands Free Account will show up on idle screen. See Figure 9 Hands

Free Enabled. If no hands free device is connected, the account will be highlighted in red background on

main screen.

Figure 9: Hand Free Enabled

GXP2140/GXP2160 Bluetooth User Guide

CONNECT TO HANDS FREE DEVICE

The hands free account virtually maps to Line 4. Press line key 4. It will bring up Bluetooth scan page. In

scan page, highlight the desired Bluetooth device from discovered list. Then pair and connect to the

device. After connected successfully, the Hands Free Account will be highlighted in green background and

the Bluetooth icon will turn to solid. See Figure 10 Hands Free Account Connected. The Bluetooth icon is

circled in red.

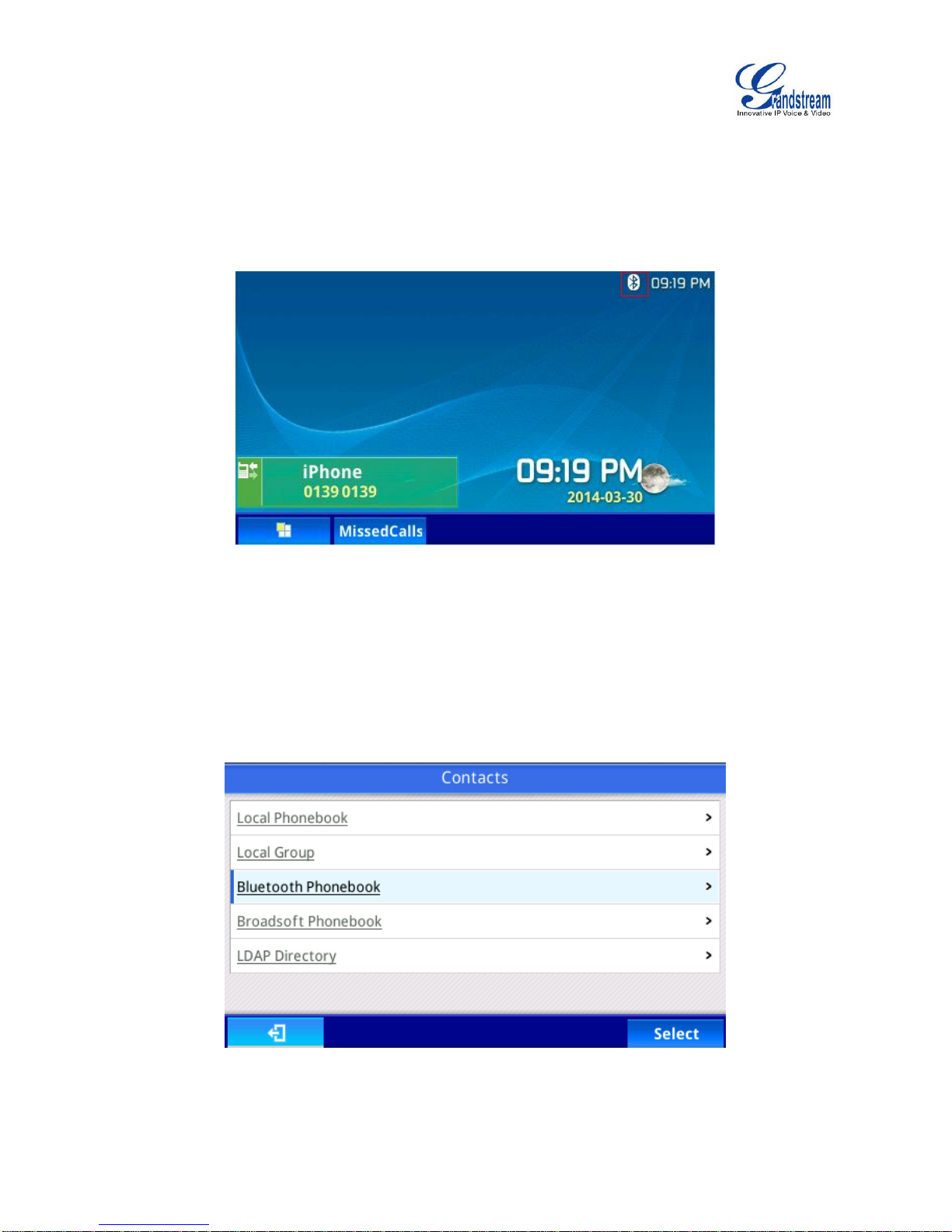

Figure 10: Hands Free Account Connected

USE BLUETOOTH PHONEBOOK

After hands free account is connected, the cell phone phonebook will be loaded to GXP2140/GXP2160.

1. Go to LCD Menu –> Contacts to see Bluetooth Phonebook option

2. Press “Select” soft key to enter Bluetooth phonebook and see the connected cell phone’s contacts

Figure 11: Bluetooth Phonebook

In Bluetooth phonebook, user can enter number digits to search contacts and phone will list the matching

GXP2140/GXP2160 Bluetooth User Guide

ones. The entered numbers will show in Search blank. See Figure 12 Search under Bluetooth Phonebook.

When one contact is highlighted, user can press round Menu button to check contact details.

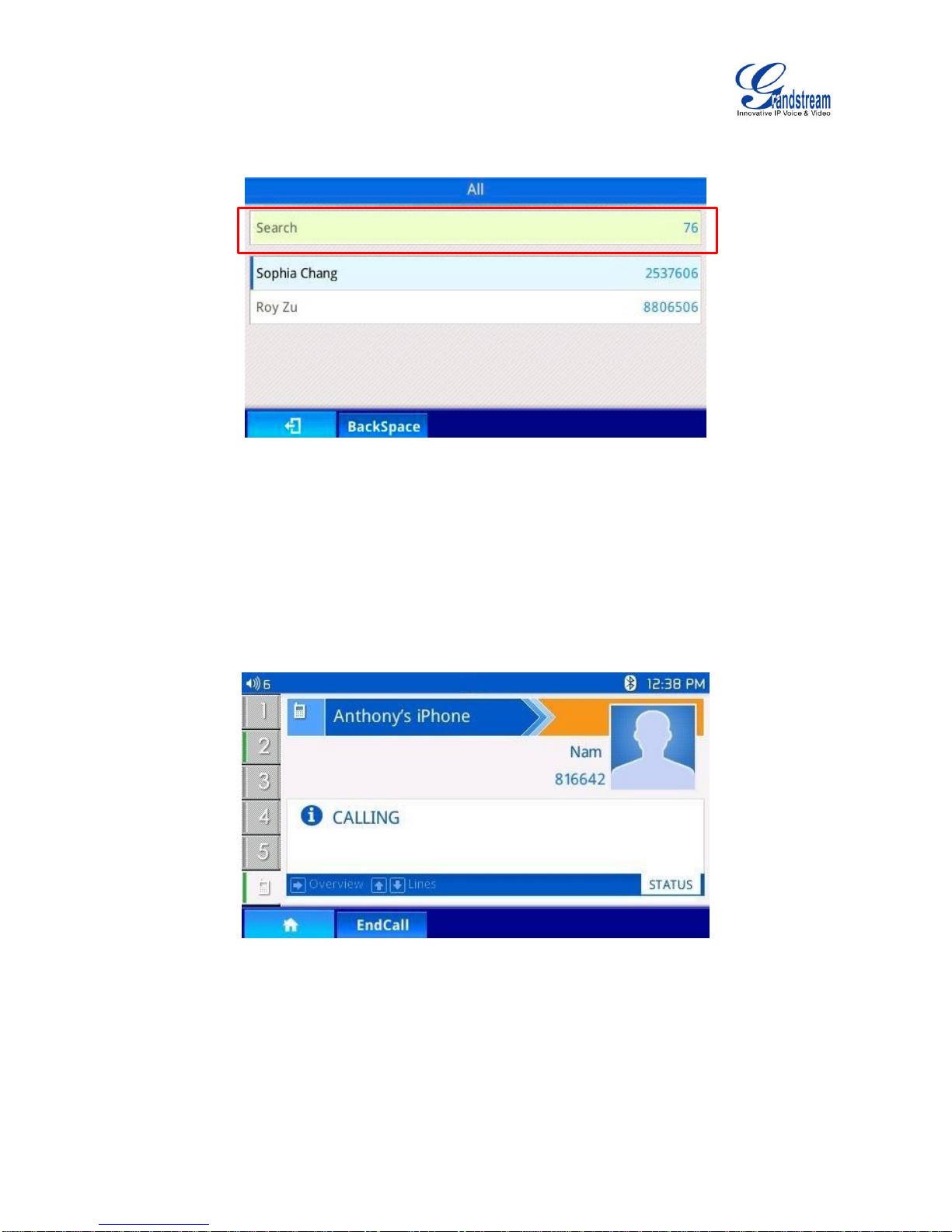

Figure 12: Search under Bluetooth Phonebook

INITIATE A CALL WITH HANDS FREE MODE

When one contact entry is highlighted, user can make a call to it by pressing “SEND” button. The call will

be initiated from hands free account (user’s cell phone).

In idle screen, when the hands free account is connected, pressing the last Line Key will bring up call

screen (Line Key 4 for GXP2140; Line Key 6 for GXP2160). User can enter the destination number from

key pad followed by “SEND” button to dial out.

Figure 13: Hands Free Call Screen
