Grandstream Networks GXV3601_LL Manuale utente
1297 Beacon Street, 2nd Floor
Brookline, MA 02446, USA
Tel : +1 (617) 566 – 9300
Fax: +1 (617) 247 – 1987
For Warranty and RMA information, please visit www.grandstream.com
GXV 3601_LL
IP CAMERA
QuickStart
Guide
Grandstream Networks, Inc.
www.grandstream.com www.grandstream.cn
深圳市南山高新科技园中区
科发路2号1栋（朗峰大厦）5楼
电话: +86 755-2601-4600
传真: +86 755-2601-4601
Content
English.....................................................1
Español.................................................. 11
Français................................................. 21
简体中文 ..............................................31
~1~ ~2~
PRECAUTIONS

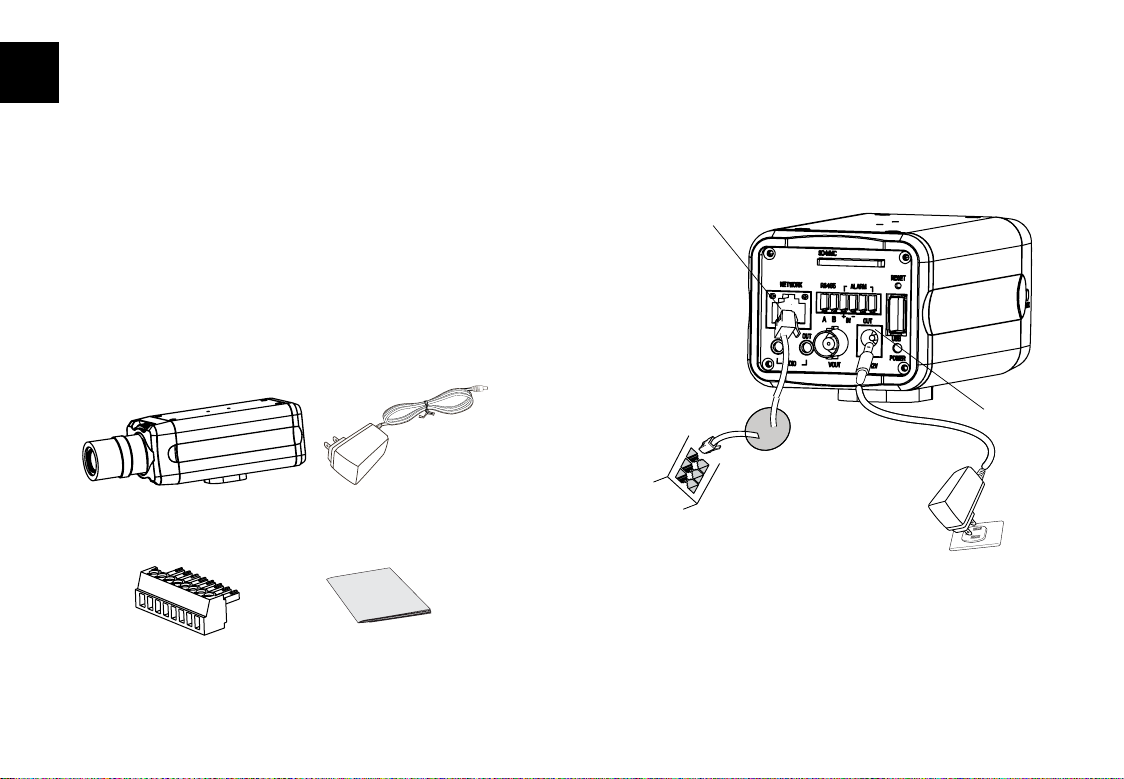

PACKAGE CONTENTS
Power Adapter
Quickstart Guide
CONNECTING THE GXV3601_LL
12V
Refer to the illustration below when following the
instructions on the next page.
NOTE: Choose Option A if using the power supply. Or
choose Option B if using a Power over Ethernet (PoE)
switch.
• Do not attempt to open, disassemble, or modify
the device
• Do not use a third party power adapter
• Do not expose this device to temperatures outside
the range of -10ºC to +55ºC
• Do not expose the GXV3601_LL to environments
outside of the following humidity range: 10-90%RH
(non-condensing)
Green Wire Cramper
GXV3601_LL Option B: RJ45 Ethernet
cable to Power over
Ethernet(PoE) switch
Power Port
Network
Port
Option A:
Power Adapter
To AC Outlet
EN
12V
~3~ ~4~
Option A
Step 1: Insert the power adapter into the 12V DC
port on the GXV3601_LL. Plug the other end
of the adapter into an AC power outlet.
Step 2: Plug an RJ45 Ethernet cable into the network
port. Plug the other end into a hub, switch
or router.
Option B
Step 1: Plug an RJ45 Ethernet cable into the network
port. Plug the other end into a Power over
Ethernet (PoE) switch.
GXV3601_LL CONFIGURATION
Conguring the GXV3601_LL using Microsoft
Internet Explorer
Connect the GXV3601_LL to the DHCP server
Step 1: Navigate your browser to:
http://www.grandstream.com/support/gxv_
series_surveillance/general/resources/gs_search.zip
Step 2: Run the Grandstream GS_Search tool, that
you just downloaded.
Step 3: Click on button in order to begin
device detection
Step 4: The detected devices will appear in the
Output eld
~5~ ~6~
Step 8: Once the installation of GSViewX.cab is
completed, you will see the web page shown
in the screenshot on the next page. Click on
the play button to view the video feed.
Step 5: Open Microsoft Internet Explorer on your PC.
Type in the IP in the address bar.
Step 6: A pop-up window will appear with prompts
for a user name and password. The default
administrator user name and password are
both set to “admin” at the default factory
conguration.
Step 7: Once you log into the GXV3601_LL’s web
interface Internet Explorer will indicate that
“This website wants to install the following
add-on: ‘GSViewer.cab’ from Grandstream
Networks, Inc.” Install this add-on by follow-
ing the instructions.
~7~ ~8~
Please download the user manual and FAQ
for more detailed conguration instructions:
http://www.grandstream.com/support
Step 9: Click through the menu on the left hand side
of the web UI for more advanced congura-
tion parameters.
Connect the GXV3601_LL using Static IP
If the camera does not get an response from the
DHCP server after 3 minutes, it can be accessed by
the default IP 192.168.1.168
Step 1: Connect your PC and the GXV3601_LL’s to
the same network.
Step 2: Set the IP address of your PC to 192.168.1.X.
Set the Default Gateway of your PC to
255.255.255.0.
Step 3: Open Microsoft Internet Explorer on your PC.
Type 192.168.1.168 in the address bar.
Step 4-7: Please refer to Step 6-9 on Page 5.
~9~ ~10~
Lens Mount CS, 1’’X1/32’’ - 6g
Image Format 1/3”
Image Sensor CCD/CMOS
Focal Length 3.5 ~ 8 mm
Back Focal Length 8.28~13.38mm
Aperture 1.4~360
View Angles
(F.O.V)(W~T)(D/H/V)
100º ~ 43º / 78º ~34º
/ 57º ~25.5º
Effective Aperture Front: 16.4mm
Rear: 9mm
M.O.D 0.10m
Iris Manual
GXV3601_LL SAMPLE CONNECTION
DIAGRAM
GXV3601_LL LENS SPECIFICATIONS
Front Rear
~11~ ~12~
Precauciones
Contenido
Adaptador
de corriente
Guía de
Instalación Rápida
GXV3601_LL
• No intente abrir, desarmar o modicar la unidad
• No use un adaptador de corriente de otra marca
• No exponga esta unidad a temperaturas fuera de
este rango: -10ºC a +55ºC
• No exponga esta unidad a condiciones húmedas
fuera del rango de 10 a 90%RH (no condensadas)
Conector verde del
cable
ES
12V
Nota: Utilice solo una opción A o B
Conexión del GXV3601_LL
Observe la ilustración de abajo cuando siga las
instrucciones en la página siguiente
Opción B: Cable de
Red RJ45 hacia switch
PoE
Puerto de
corriente
Puerto de
Red
Opción A: Adaptador
de corriente hacia toma
de corriente
12V
~13~ ~14~
Si el usuario elije opción A,
Paso 1: Conecte el conector pequeño y redondo
del adaptador de corriente en el puerto de
corriente. Conecte el otro extremo en la
toma de corriente.
Paso 2: Conecte el cable de red RJ45 en el Puerto
de red. Conecte el otro extremo en el hub/
switch/router.
Si el usuario elije opción B:
Paso 1: Conecte el cable de red RJ45 en el puerto
de red. Conecte le otro extremo en el
switch de PoE.
ConfiguraCión del gXV3601_ll
Congure el GXV3601_LL usando el Explorador
Internet de Microsoft
Conecte el GXV3601_LL al servidor DHCP
Paso 1: Navegue su explorador hacia:
http://www.grandstream.com/support/gxv_
series_surveillance/general/resources/gs_search.zip
Paso 2: Ejecute la herramienta GS_Search de Grand
stream que acaba de bajar.
Paso 3: Haga click en el botón de para
iniciar la detección de equipos.
Paso 4: Los equipos detectados aparecerán en la
pantalla.
~15~ ~16~
Paso 5: Abra Microsoft Internet Explorer en su PC.
Ingrese la dirección IP en la barra de
direcciones.
Paso 6: Una ventana aparecerá en donde deberá
ingresar el nombre de usuario y la
contraseña. De fabrica el nombre de
usuario de administrador y la contraseña
son ambos admin.
Paso 7: Luego de ingresar a la pagina web, su
explorador le indicara que “ Esta página
quiere instalar el siguiente add-on:
GSViewerX.cab desde “Grandstream
Networks Inc.”. Instale el add-on siguiendo
las instrucciones.
Paso 8: Luego de instalar el GSViewX.cab con éxito,
el usuario podrá ver la pagina principal
mostrando las siguientes guras. Haga Click
en el botón de PLAY para ver el video.
