Grandview CB-Pxx Manuale utente

GRANDVIEW REPRODUCING GENUINE COLORS

ISO9001:2000

International Certification

Grandview Crystal Screen Canada Ltd.

#11- 3751 North Fraser Way,

Marine Way Business Centre,

Burnaby, BC, Canada V5J 5G4

Tel: 1-604-412-9777 Fax: 1-604-412-9796

Website: www.grandviewscreen.ca

Guangzhou Grandview Crystal Screen Co., Ltd.

P.O. 511400 Federal Ind. Zone No. 363, Yushan West Road,

Shiqiao, Panyu District, Guangzhou, Guangdong, China

Tel: +8620-8489-9499 Fax: +8620-8480-3343

Website: www.grandviewscreen.com

GRANDVIEW REPRODUCING GENUINE COLORS

Thank you for purchasing a Grandview projection screen.

Before use, please read this manual carefully. After installation, keep this manual for future reference.

Model CB-Pxx

Cyber Pull Down User s Manual

Locking screw

Do not take apart and replace with unknown parts. If there are any problems, please contact your local dealer.

Product specifications are subject to change.

The warranty will only be valid if you follow the instructions below carefully! Improper use and care may cause

serious injury and/or damage!.

Make sure the Fixing screw be fastened when using the wall bracket, to avoid any damage.

Make sure the surface you have chosen for installing the screen is flat and secure.

Please read the following as any damage to the screen surface will impact the image's quality:

1. Do not touch the screen surface by hand.

2. Do not write or draw on the screen surface.

3. Do not poke the screen surface by finger or edge tools, as it may cause scratches or tears.

4. Do not use any detergent or cleaning products to clean the screen surface, please clean it with a soft cloth

and lukewarm water.

Retract the screen after every use.

Ensure the screen is level when it is wall-mounted installation, when the screen is spread, it should be

balanceable with the wall.

Do not pull two sides of the screen fabric by hands, do not fold the screen fabric.

To prevent unnecessary damage, the operation and maintenance of the screen should be done by adult.

Ignoring the safety warnings may lead

to injuries or damaging the product.

The screen should be installed at secure

place to avoid any accidents or the screen

falling down.

Avoid hanging anything on the screen

as it may cause the screen to fall down.

Retract the screen after every use.

Leave it hanging for a long period may

cause screen fabric loose

Please contact your local dealer for repair

or maintenance, and contact us if you have

any further questions. Avoid taking apart the

fixtures by yourself. Loose parts may cause

the screen fall down.

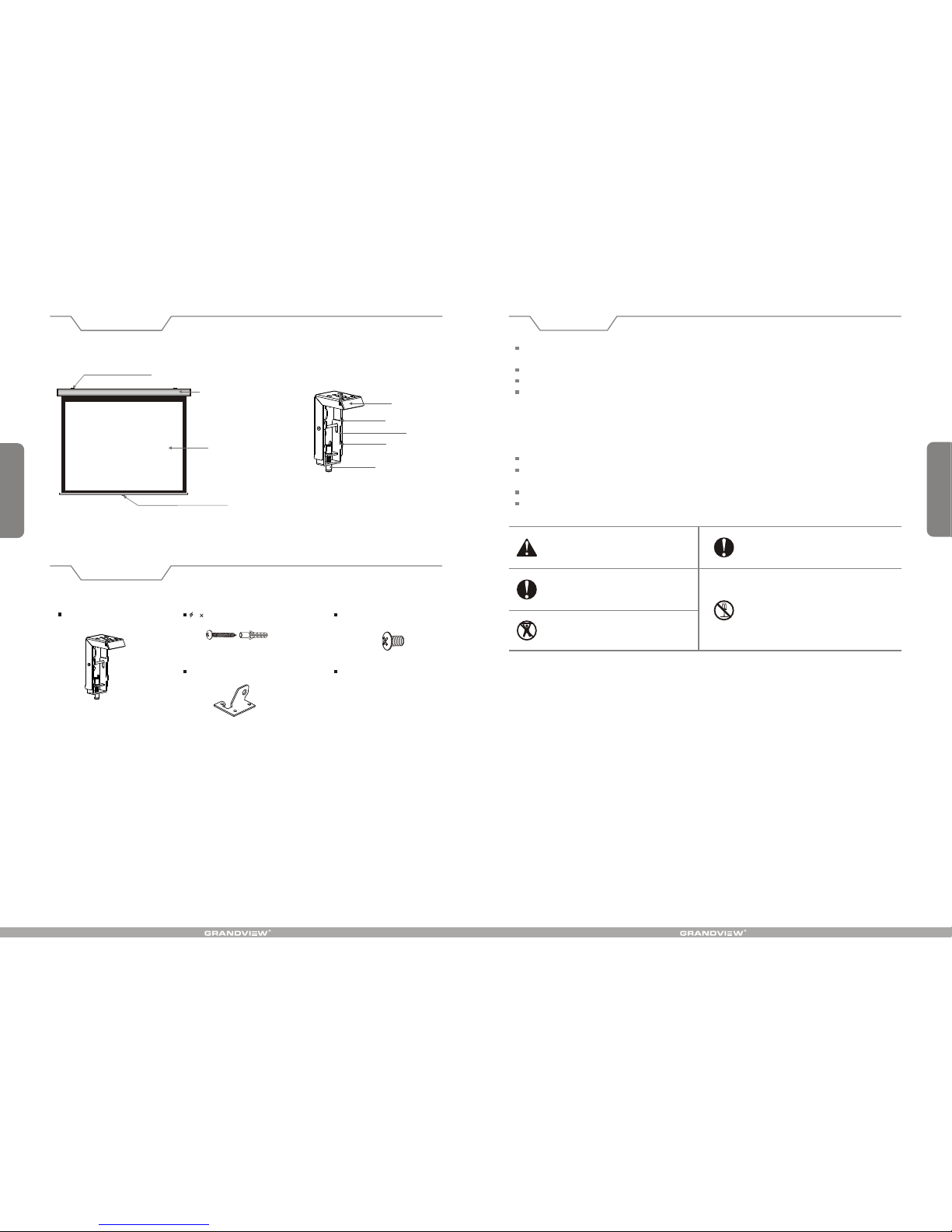

Warnings

Screen fabric

Handle

Aluminium casing

Description

Accessaries

Floating wall bracket

Floating wall bracket(2pcs)

5 40mm Tapping screw & cap (8sets)

M5x10 Screw (6pcs)

Instruction manual (1pc)

Hanging bracket (2pcs)

Top panel

Upper hook

Baffle

Lower hook

Take out all the parts from the packaging to ensure you have all necessary components.

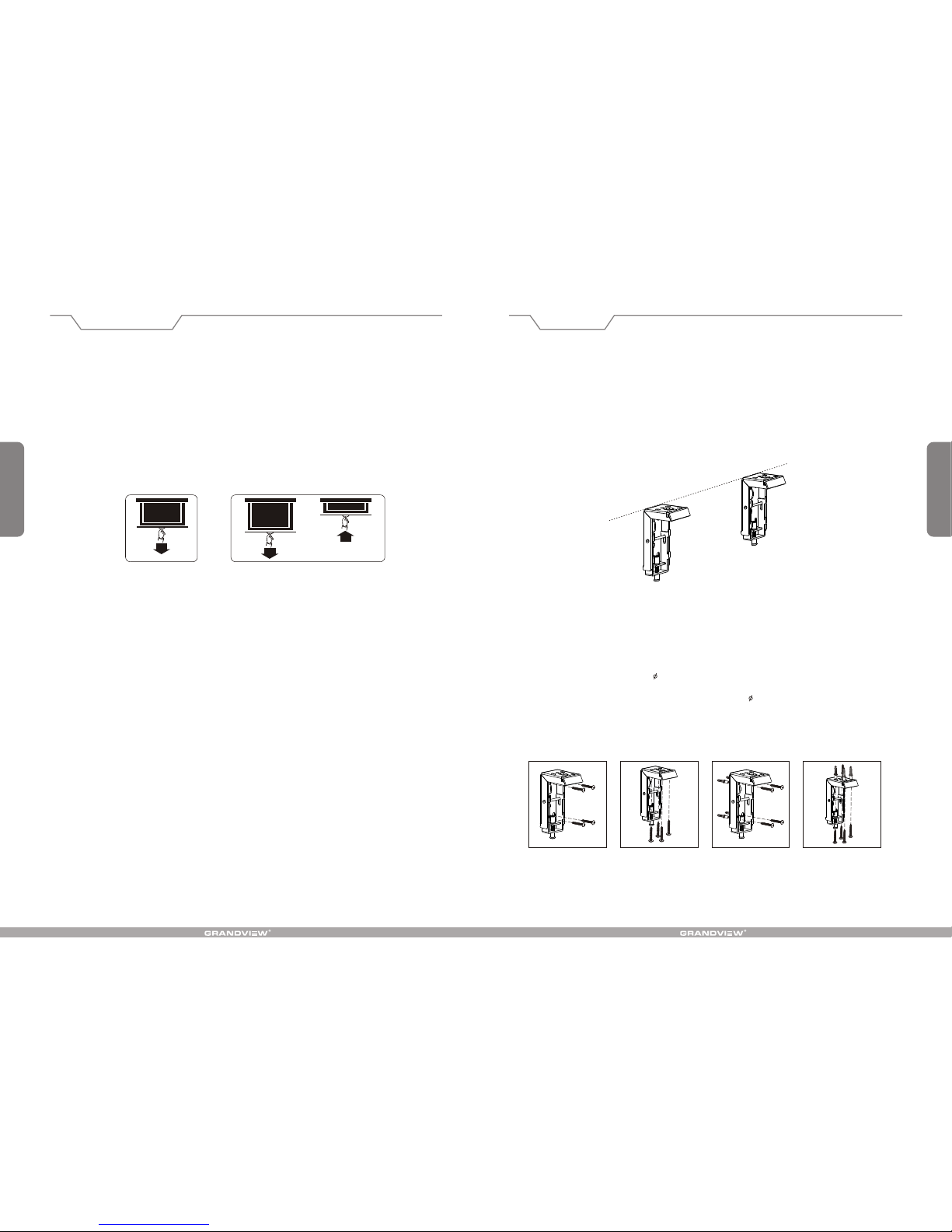

There are three installation measures for this product, namely wall mount, ceiling mount and ceiling hang. The

installed distance can be changeable up to your needs via adjusting the slipper block, while the ideal position is the

mounting bracket is at its nearest point to the end cap, which can reduce unnecessary vibration or noise.

Installation

1. Mount the wall/ceiling brackets using the appropriate screws for your supporting material.

2. Ensure the brackets are horizontal and near the ends of the casing. Fasten to the wall or ceiling, not both.

( Figure 1) .

Figure 1

Wood wall installation Wood ceiling installation Concrete wall installation Concrete ceiling installation

Figure 2 Figure 3 Figure 4 Figure 5

Wall and ceiling installation:

Installation Steps

a) Wood supportin g materials: Dri ll in the 5 x 40 screws through the appropriate holes in thebracket

( Figure 2-3 ).

b) Concrete supporting materials: Install theanchors and drill in the 5 x40

( Figure 4-5).

screws into the appropriate

bracket holes.

Operation

Picture 1 Picture 2

1.Lowering the screen:

Using the pull down handle, lowerthe screen with a gentle even action until desired height is reached.

The screen will stop when itreaches its maximum.

DO NOT ATTEMPT TO FORCETHE SCREEN LOWER THAN THIS POINT.

The screen will retract slightly before lock-ing in place.

2.Raising the screen:

Using the handle, pull down thescreen a small way, then allow the screen to raise quickly.

Caution: Do not let go ofthe handle until the screen is fully retracted. Damage from retracting too rapidly

can occur. Do notallow the dropper bar to hit the screen case when retracting.

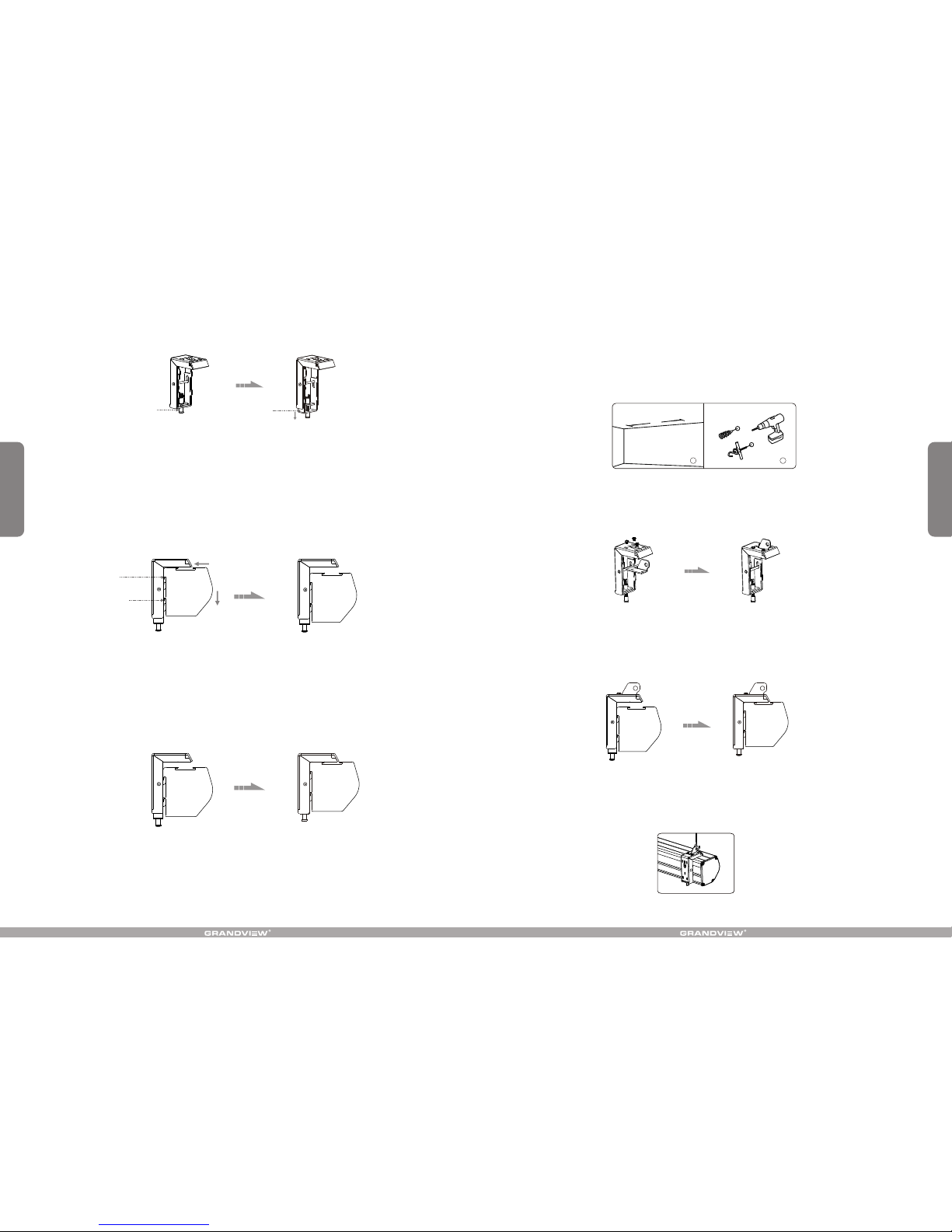

Ceiling hang installation

Up groove

Down groove

Figure 8 Figure 9

4. Mount the projection screen by sliding the casing grooves over thebracket hooks. ( Figure 8-9 )

5. Tighten the lockingscrew to clamp the screen securely in place. ( Figure 10-11 )

Figure 10 Figure 11

3 ( Figure 6-7). Loosen thelocking screw tolower the bracketclamp all theway down.

Figure 6 Figure 7

Baffle

Fixing screw

Each end of the screen casing needs to be supported by a hook (not provided). Ensure that the suspension system

(cable and/or hook) can support the weight of the screen.

1. To drill two same holes with an electric drill horizontally with wall, then fasten hangers (unprovided) onto the

ceiling. ( Figure 12 )

Figure 12

2. Use three M5x10mm screws to fasten the hanging brackets, to the wall and ceiling brackets as shown.

( Figure 13-14)

3. Attach the wall and ceiling brackets to the casing as shown in figures 15 and 16.

4. Place hooks through the hanging brackets to suspend the projection screen as shown. See figure 17.

Figure 13 Figure 14

Figure 15 Figure 16

Figure 17
