This manual describes additional functions included in SP4.3. For basic

functionality please refer to the User Manual.

The steps described in this manual is operated in front panel mode.

October 8, 2013 T2 Additional Function Manual SP4.3

Section 2

2ch view in Workstation Mode

You can use 2ch view in additon to 1ch and 3ch view in workstation mode.

Screen elements

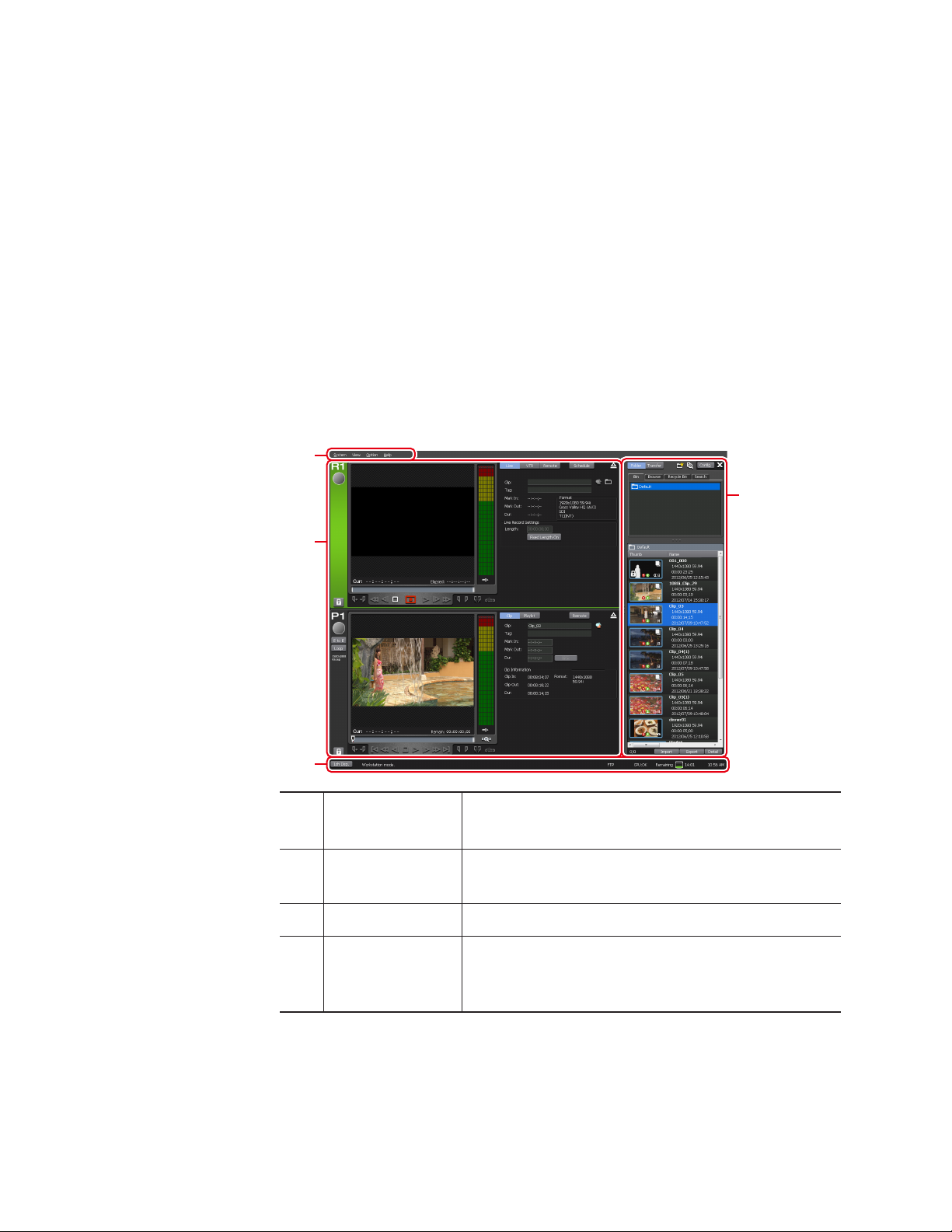

¾Full display – 2ch view

(2)

(4)

(3)

(1)

(1) Menu bar Please refer to the user manual.

(2) Channel display

part Displays R1, P1, and P2 channels in 3ch view.

(3) Status bar Please refer to the user manual.

(4)

Bin/transfer

screen display

part

Please refer to the user manual.

6T2 Additional Function Manual SP4.3 October 8, 2013

Section 2 ― 2ch view in Workstation Mode

¾Menu bar

[System] Please refer to the user manual.

[View]

By clicking, displays the next menu.

[2ch (R1+P1)]

Displays R1 and P1 channels in channel display part.

[2ch (R1+P2)]

Displays R1 and P2 channels in channel display part.

[2ch (P1+P2)]

Displays P1 and P2 channels in channel display part.

[3ch]

Displays R1, P1 and P2 channels in channel display part.

[Option] Please refer to the user manual.

[Help] Please refer to the user manual.

October 8, 2013 T2 Additional Function Manual SP4.3

MICROSOFT SOFTWARE LICENSE TERMS (WINDOWS EMBEDDED STANDARD 7)

Section 3

Preroll/Postroll

You can use preroll and postroll in P1/P2 seing.

P1/P2 settings

P1/P2 – Monitor & Remote settings

You can make seings for the monitor output from P1/P2 output section and

remote control of P1/P2 channel.

1. Tap [P1] (or [P2]), and then tap the [Monitor & Remote] tab in the

setting screen.

¾[Monitor & Remote] tab

[Monitor out]

Please refer to the user manual.

[Remote protocol:] Please refer to the user manual.

[Enable local

operations while being

remote controlled.]

Please refer to the user manual.

[Preroll :] Rewinds a short duration of time before the In

point and starts playback from the point.

[Postroll :]

Allows to set the playback duration by the

seconds in order to play back video later than

the Out point.

2. Set each item and tap [OK].

8T2 Additional Function Manual SP4.3 October 8, 2013

Section 3 ― Preroll/Postroll

Section 4

Appendix

New shortcuts are added in workstation mode.

Keyboard shortcut list in workstation mode

The following list shows the keyboard shortcuts.

Category Action Shortcut

[General] [Select R1 channel] [1]

[Select P1 channel] [2]

[Select P2 channel] [3]

[Change focus to the folder list]

[Change focus to the content list]

[Change focus to the playlist of the selected channel]

[Switch between 1ch View and 2ch/3ch View] *Update

[Change the content’s tab]

[Show the Conguration screen]

[Show the content search screen]

[Lock/Unlock the selected channel]

[Turn On/O the Loop in the selected channel (P1/P2)]

[Turn On/O the EtoE in the selected channel (P1/P2)]

[Turn On/O the Remote of the selected channel (P1/P2)]

[Turn the sync play mode On/O]

[Eject the selected channel]

[Start Recording the selected channel (R1)] [M]

[Start playback in the selected channel] [L]

[Play reverse in the selected channel] [J]

[Play or pause the selected channel] [Space]

[Stop playing/recording in the selected channel] [K]

[Fast Forward (skip) in the selected channel] [;]

[Rewind (1 step back) in the selected channel] [H]

October 8, 2013 T2 Additional Function Manual SP4.3
