GREAT PLAINS MC5109 Max-Chisel Guida utente

Manufacturing, Inc.

www.greatplainsmfg.com

ORIGINAL INSTRUCTIONS

Implement Command System

Manual

Max Chisel MC5109-MC5319

Read the operator’s manual entirely. When you see this symbol, the

subsequent instructions and warnings are serious - follow without

exception. Your life and the lives of others depend on it!

Illustrations may show optional equipment not supplied with standard unit.

ii Great Plains | 569-441M

Implement Command System

Machine Identification

Record your machine details in the log below. If you replace this manual, be sure to transfer this information to the new manual.

If you, or the dealer, have added Options not originally ordered with the machine, or removed Options that were originally

ordered, the weights and measurements are no longer accurate for your machine. Update the record by adding the machine weight

and measurements provided in the Specifications & Capacities Section of this manual with the Option(s) weight and

measurements.

Dealer Contact Information

Model Number

Serial Number

Machine Height

Machine Length

Machine Width

Machine Weight

Delivery Date

First Operation

Accessories

Name:

Street:

City/State:

Telephone:

Email:

WARNING: Cancer and reproductive harm - www.P65Warnings.ca.gov

California Proposition 65

Important Safety Information

12/11/2023 1

Important Safety Information

Look for Safety Symbol

The SAFETY ALERT SYMBOL indicates there is a

potential hazard to personal safety involved and extra

safety precaution must be taken. When you see this

symbol, be alert and carefully read the message that

follows it. In addition to design and configuration of

equipment, hazard control and accident prevention are

dependent upon the awareness, concern, prudence and

proper training of personnel involved in the operation,

transport, maintenance and storage of equipment.

Be Aware of Signal Words

Signal words designate a degree or level of hazard

seriousness.

DANGER indicates an imminently hazardous situation

which, if not avoided, will result in death or serious injury.

This signal word is limited to the most extreme situations,

typically for machine components that, for functional

purposes, cannot be guarded.

WARNING indicates a potentially hazardous situation

which, if not avoided, could result in death or serious

injury, and includes hazards that are exposed when

guards are removed. It may also be used to alert against

unsafe practices.

CAUTION indicates a potentially hazardous situation

which, if not avoided, may result in minor or moderate

injury. It may also be used to alert against unsafe

practices.

Use Adequate Lifting Means

The frame sections and gangs of this machine are

extremely heavy. If using multiple lifters, make sure each

is rated for at least its share of the load.

Prepare for Emergencies

Be prepared if a fire starts

Keep a first aid kit and fire extinguisher handy.

Keep emergency numbers for doctor, ambulance, hospital

and fire department near phone.

2Great Plains | 569-441M

Implement Command System, Max Chisel

Be Familiar with Safety Decals

Read and understand the “Safety Decals” section of the

Operators Manual.

Read all instructions noted on the decals.

Keep decals clean. Replace damaged, faded and illegible

decals.

Wear Protective Equipment

Wear protective clothing and equipment.

Wear clothing and equipment appropriate for the job.

Avoid loose-fitting clothing.

Because prolonged exposure to loud noise can cause

hearing impairment or hearing loss, wear suitable

hearing protection such as earmuffs or earplugs.

Because operating equipment safely requires your full

attention, avoid wearing entertainment headphones while

operating machinery.

Avoid High Pressure Fluids

Escaping fluid under pressure can penetrate the skin,

causing serious injury.

Avoid the hazard by relieving pressure before

disconnecting hydraulic lines.

Use a piece of paper or cardboard, NOT BODY PARTS, to

check for suspected leaks.

Wear protective gloves and safety glasses or goggles when

working with hydraulic systems.

If an accident occurs, seek immediate medical assistance

from a physician familiar with this type of injury.

Use Safety Lights and Devices

Slow-moving tractors and towed implements can create

a hazard when driven on public roads. They are difficult

to see, especially at night.

Use flashing warning lights and turn signals whenever

driving on public roads.

Use lights and devices provided with implement.

Keep Riders Off Machinery

Riders obstruct the operator’s view. Riders could be

struck by foreign objects or thrown from the machine.

Never allow children to operate equipment.

Keep all bystanders away from machine during operation.

Important Safety Information

12/11/2023 3

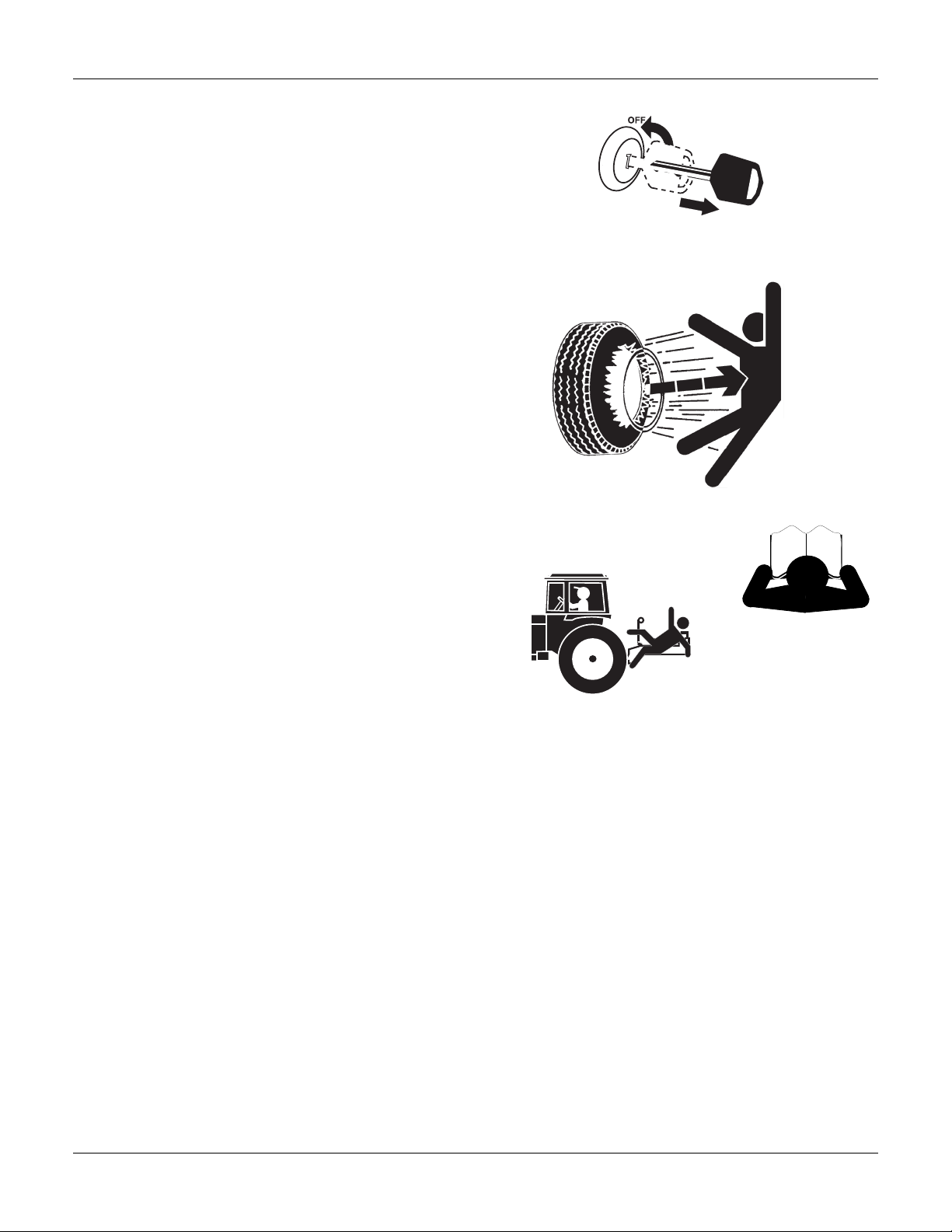

Shutdown and Storage

Lower implement, put tractor in park, turn off engine, and

remove the key.

Secure Hydraulic Reel Attachment using blocks and

supports provided.

Detach and store Hydraulic Reel Attachment in an area

where children normally do not play.

Tire Safety

Tire changing can be dangerous and should be

performed by trained personnel using correct tools and

equipment.

When inflating tires, use a clip-on chuck and extension

hose long enough for you to stand to one side–not in front

of or over tire assembly. Use a safety cage if available.

When removing and installing wheels, use wheel-handling

equipment adequate for weight involved.

Safety At All Times

Thoroughly read and understand the instructions in this

manual before operation. Read all instructions noted on

the safety decals.

Be familiar with all machine functions.

Operate machinery from the driver’s seat only.

Do not leave machine unattended with tractor engine

running.

Do not stand between the tractor and machine during

hitching.

Keep hands, feet and clothing away from power-driven

parts.

Wear snug-fitting clothing to avoid entanglement with

moving parts.

Watch out for wires, trees, etc., when folding and raising

machine. Make sure all persons are clear of working area.

4Great Plains | 569-441M

Implement Command System, Max Chisel

Introduction

The Implement Command System has been designed

with care and built by skilled workers using quality

materials. Proper setup, maintenance, and safe

operating practices will help the customer get years of

satisfactory use from this system.

Description of Unit

The new Implement Command system now gives Max

Chisel owners access to more data and technology. The

Implement Command System gives producers the data

needed to make decisions about their fields, while

making real-time adjustments to improve yields and soil

health. Available on MC5109-MC5319 Max Chisel

models, the Implement Command System (ICS) allows

you to take command of all your adjustment and

monitoring needs right at your fingertips. Set, adjust, and

monitor your Max Chisel right on your ISO-compatible

monitor in your tractor cab.

Using This Manual

This manual will familiarize you with

safety, assembly, operation,

adjustments, troubleshooting, and

maintenance. Read this manual and

follow the recommendations to help

ensure safe and efficient operation.

The information in this manual is current at printing.

Some parts may change to assure top performance.

Definitions

The following terms are used throughout this manual.

A crucial point of information related to the preceding topic.

Read and follow the directions to remain safe, avoid serious

damage to equipment and ensure desired field results.

Useful information related to the preceding topic.

Further Assistance

Great Plains Manufacturing, Inc. wants you to be

satisfied with your new Terra Max. If for any reason you

do not understand any part of this manual or are

otherwise dissatisfies with the product please contact:

Great Plains Service Department

1525 E. North St.

PO Box 5060

Salina, KS 67402-5060

Or go to www.greatplainsag.com and follow the contact

information at the bottom of your screen for our service

department.

Assembly

12/11/2023 5

Assembly

Implement Command System

NOTE: For parts reference refer to parts breakdown on

pages 16 to 25 of this manual. For in-field conversions

to ICS, also refer to the most recent parts manual for

comparison between existing and new ICS layouts.

Refer to Figure 2

The Controller Assembly will be shipped in a container,

with the installation hardware and will need installed on

the top of the brace bar, on the left hand side of the

center brace bar.

Implement Command Wiring

Harness

The wiring may need to be routed and installed on the

frame of the machine. The wiring harness is labeled near

each of the connectors to indicate which sensor or

solenoid it is to be plugged into. See “Wiring

Connections Layout” on page 20.

Refer to Figure 3 & 4

Plug-in the hitch harness into the tractor and the other

end into the ICS Control Box located on the front of the

left hand side of the machine.

Be sure the ICS box orientation is correct, the opening

for the plug will be facing the inside of the machine as

shown in the parts manual.

Hitch harness attaches to harness inside box and is held

in place by a p-clip on bottom left hand side. The frame

harness will plug into the ICS Control box and then run to

the other connections on the rest of the machine. It will

run under the frame tube and over to the valves.

Figure 2

TP-77265

Figure 3

TP-77267

Figure 4

TP-77266

6Great Plains | 569-441M

Implement Command System, Max Chisel

Refer to Figure 5

The depth gauge is located on the right hand side of the

center frame, to the left of the depth tube. The wiring

harness is labeled as GAS this will route along the rear

of the tube and be connected using p-clamps to the bolts

that are welded to the frame.

You may have to install the sensor on to the gauge

bracket, use the #10 x 214bolts and hardware to install

as shown.

Install the sensor in orientation shown and the small white

dots must be positioned toward the angle gauge when it is

installed on to the bracket. White dots must be in line and

directly across from each other, NOT 180* on the opposite

side. If not installed correctly the sensor will not function as it

should and may cause dame to the machine.

Refer to Figure 6 & 7

On Models MC5109-5315 there is one Down Pressure Valve (843-222C) (1) (for the finisher down pressure) it is

plugged into Finisher DPT1, Finisher DPT3, and Finisher DPC1, on the frame harness. The Depth Control Valve (843-

226C) (2) is attached to DCC1 and DCC2 harness plugs. After being attached to the Down Pressure (1) and Depth

Control Valve (2) the hydraulic hoses and the wiring harness will be routed along the right and left side brace bar, See

Wiring Connections Layout for routing. Be sure to keep any excess wiring away from pinch points. Use hose wrap or

zip ties if needed. Wiring harness will be labeled with connection names, match the labels on the valves with the labels

on the harness. The Gang Angle & Reel Sensor (GAS) and the Depth Control Sensor (DCS) will be labeled on the

harness as well and will need connected to these sensors.

Figure 5

TP-77270

Figure 7

TP-77272

Figure 6

TP-77271

Assembly

12/11/2023 7

Refer to Figure 8 & 9

Models MC5317 & MC5319 will have 2 Down Pressure Valves (843-222C), one will be for the wings and one will be

for the finisher, if your machine is equipped with an attachment.

The Down Pressure Valve (1) (843-222C) (for the wing down pressure) is plugged into DPT1, DPT3, and DPC1, on

the frame harness. The Down Pressure Valve (843-222C) (2) (for the finisher down pressure) is plugged into Finisher

DPT1, Finisher DPT3, and Finisher DPC1, on the frame harness. The Depth Control Valve (843-226C) (3) is attached

to DCC1 and DCC2 harness plugs. After being attached to the Down Pressure Valves (1 & 2) and Depth Control Valve

(3) the hydraulic hoses and the wiring harness will be routed along the left side brace bar and to the left side of the

torque tube, See Wiring Connections Layout for routing. Be sure to keep any excess wiring away from pinch points.

Use hose wrap or zip ties if needed. Wiring harness will be labeled with connection names, match the labels on the

valves with the labels on the harness. The Gang Angle Sensor (GAS) and the Depth Control Sensor (DCS) (located

on the left hand side by the torque tube) will be labeled on the harness as well and will need connected to these

sensors.

Figure 9

TP-77272

Figure 8

TP-77274

8Great Plains | 569-441M

Implement Command System, Max Chisel

Refer to Figure 10 & 11

The Depth Control Sensor and the assembly (1) that

connects to the torque tube will be shipped in place on

the center frame, the adjustable link may need

connected to the torque tube. This may be left

unattached to during shipment to keep it from bending.

Connect the center frame harness, DCS lead to this

sensor. The plate will bolt to the frame using 12x34hex

bolts (2) and lock washers, it will attach to a welded plate

on the frame.

The adjustable link (3) that attaches the sensor arm to

the toque tube, is 5.75 inches long. This can be adjusted

later if needed.

Attach the harness to the main frame of the machine and

connect wiring harnesses to locations indicated in the

Layout Section of this manual.

The hydraulic hoses will need to be routed from the hitch

and hooked up to the depth control valve and the down

pressure valve. Hoses will need to be routed to the reel

attachment as well. Route the harness along the hitch

and follow the hydraulic hoses.

Figure 10

TP-77277

Figure 11

TP-77296

Altri manuali per MC5109 Max-Chisel

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali GREAT PLAINS Attrezzature agricole

GREAT PLAINS

GREAT PLAINS Terra Max HT1100-20 Manuale utente

GREAT PLAINS

GREAT PLAINS Yield-Pro 3P4025AH Guida

GREAT PLAINS

GREAT PLAINS 7323DH Manuale utente

GREAT PLAINS

GREAT PLAINS 3P1006NT-1575 Manuale utente

GREAT PLAINS

GREAT PLAINS 3S-4000HD Manuale utente

GREAT PLAINS

GREAT PLAINS PL5500 Manuale utente

GREAT PLAINS

GREAT PLAINS Yield-Pro Air-Pro YP2425A Manuale utente

GREAT PLAINS

GREAT PLAINS 3P605NT Manuale utente

GREAT PLAINS

GREAT PLAINS Nutri-Pro NP3000 Manuale utente

GREAT PLAINS

GREAT PLAINS Terra Max HT1100-20 Guida

GREAT PLAINS

GREAT PLAINS 8323 Manuale utente

GREAT PLAINS

GREAT PLAINS 3S-3000HD Manuale utente

GREAT PLAINS

GREAT PLAINS 5109 Manuale utente

GREAT PLAINS

GREAT PLAINS Yield-Pro PL5800 Manuale utente

GREAT PLAINS

GREAT PLAINS Terra Max HT1100-20 Manuale utente

GREAT PLAINS

GREAT PLAINS PL5500-0830 Manuale utente

GREAT PLAINS

GREAT PLAINS Nutri-Pro NP30A Manuale utente

GREAT PLAINS

GREAT PLAINS BD7600 Manuale utente

GREAT PLAINS

GREAT PLAINS VT1100-35 Turbo Max Manuale utente

GREAT PLAINS

GREAT PLAINS Yield-Pro 3P3025AH Manuale utente

GREAT PLAINS

GREAT PLAINS Turbo Max 4800TM Manuale utente

GREAT PLAINS

GREAT PLAINS Turbo Max VT1110-6.0M Manuale utente

GREAT PLAINS

GREAT PLAINS HT1110-6.0M Manuale utente

GREAT PLAINS

GREAT PLAINS LS10 Manuale utente

Manuali Attrezzature agricole popolari di altre marche

GSi

GSi PNEG-2314 Manuale utente

Checchi & Magli

Checchi & Magli TEXDRIVE Manuale utente

Amazone

Amazone Cenius 4003-2TX Manuale utente

MASSEY FERGUSON

MASSEY FERGUSON MF 9313S Manuale utente

Cima

Cima BLITZ Istruzioni operative e di manutenzione

Amazone

Amazone CombiDisc 3000 Istruzioni per l'installazione

HE-VA

HE-VA Disc-Roller XL Contour Manuale utente

AGT

AGT AGT-SSFM Manuale utente

Milestone

Milestone 72-84 Manuale utente

KUHN

KUHN Hector 3000 Manuale utente

Krone

Krone X-Disc 6200 Manuale utente

Eliet

Eliet DZC450 Manuale utente

Taarup

Taarup BIO+ B4000 Manuale utente

Garland

Garland SHAKER 310 DPG Manuale utente

stable comfort

stable comfort StableWall System Manuale utente

Raven

Raven AccuBoom Manuale utente

International

International 710 Manuale utente

Ashland

Ashland HDW-3217-14 Manuale utente
