Centrifugal Ceiling and Cabinet

Exhaust Fans

Models SP and CSP

September

2012

See ENERGY STAR® Models on Pages 16-17

Models SP and CSP are listed electric fans

(UL/cUL 507). Ceiling Exhaust Fans are also

UL Listed for above bathtub/shower with GFCI

branch protected circuit. File no. E33599.

Greenheck Fan Corporation certifies that the SP

models shown herein are licensed to bear the

AMCA seal. The ratings shown are based on tests

and procedures performed in accordance with

AMCA Publication 211 and AMCA Publication 311

and comply with the requirements of the AMCA

Certified Ratings Program. The SP models are not

AMCA certified with 50 hertz motors.

Greenheck Fan Corporation certifies that the

CSP models shown herein are licensed to bear

the AMCA seal. The ratings shown are based on

tests and procedures performed in accordance

with AMCA Publication 211 and comply with

the requirements of the AMCA Certified Ratings

Program. The CSP models are not AMCA certified

with 50 hertz motors.

Models SP and CSP

Ceiling and Cabinet Exhaust Fans

Standard Construction Features ..........4-5

Options and Accessories ................. 6

SP Grill and Lighting Options.............. 7

Control Accessories ....................8-9

Filter and Discharge Accessories.......... 10

Flat Roof Caps ........................ 11

Wall Discharge Accessories ............12-13

Sound Level Information ................ 14

Energy Star Approval ................... 15

Model Number Code ................... 15

Model SP-A .......................... 16

Model SP-B and SP-C.................. 17

Model CSP-A ......................... 18

Model CSP-B ......................... 19

Model SP (50 cycle) .................... 20

Model CSP (50 cycle)................... 21

Typical Specifications.................22-23

Warranty ............................. 24

Fans that are ENERGY STAR qualiﬁed include:

SP-A-50, 70, 90, 200, 250, 290 and 410

SP-B-50, 70, 80 and 90

Products that earn the ENERGY STAR®

prevent greenhouse gas emissions

by meeting strict energy efﬁciency

guidelines set by the U.S. Environmental

Protection Agency and the U.S.

Department of Energy.

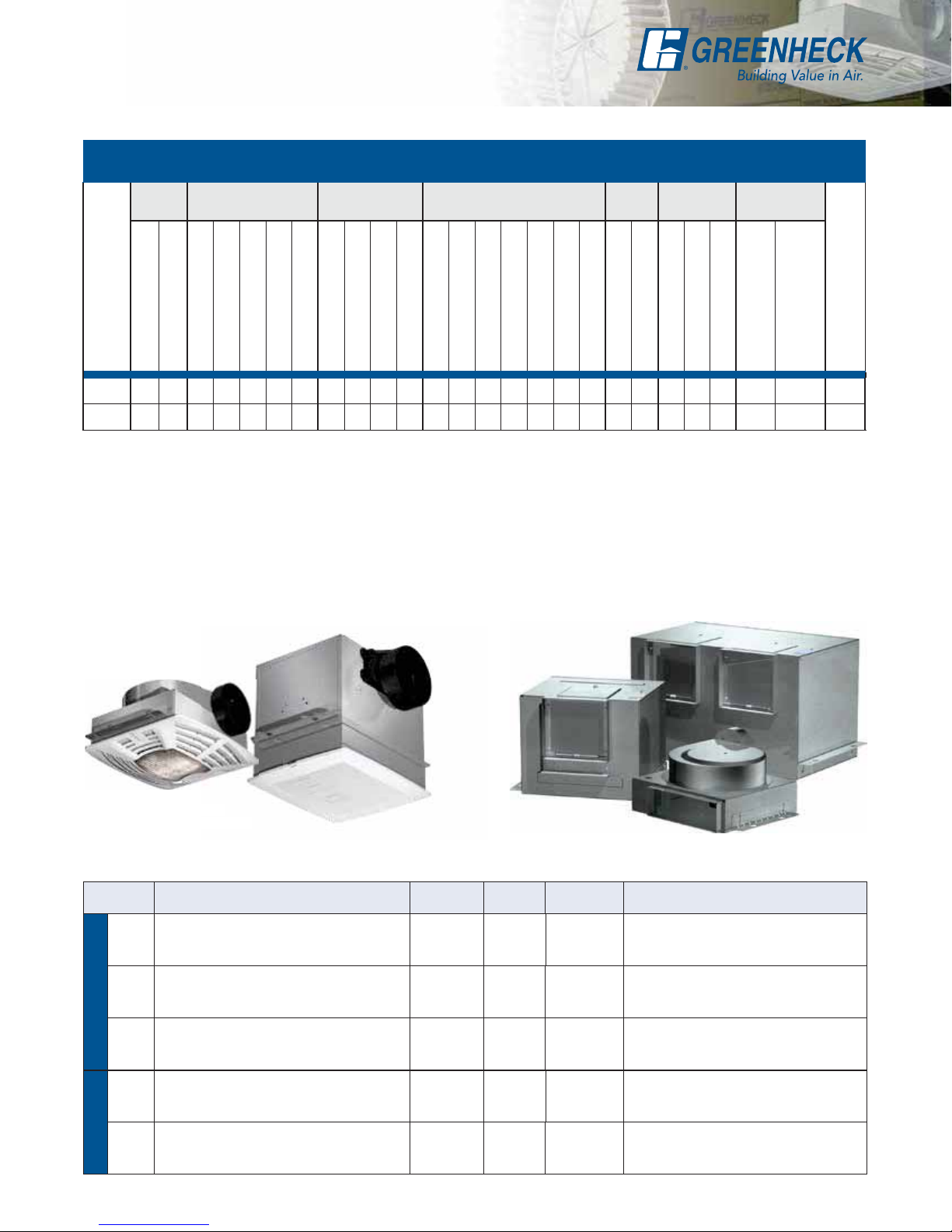

Models SP and CSP

Ceiling and Cabinet Exhaust Fans

Model Description Profile

min. height

Sound

min. sones Air Volume

(maximum) UL Listing

Ceiling Fans

SP-A Premium Ceiling Fan:

Best choice to meet sound requirements.

9 inches

(229 mm) 0.5 1,600 cfm

(2718 m3/hr)

UL/cUL Listed for above bathtub/shower

with GFCI branch protected circuit

(Sizes A390 and smaller)

SP-B

Deluxe Ceiling Fan:

Compact to fit most applications with quiet

operation.

7 inches

(178 mm) 1.2 200 cfm

(340 m3/hr)

UL/cUL Listed for above bathtub/shower

with GFCI branch protected circuit

SP-C Economy Ceiling Fan:

Designed for light commercial applications.

35⁄8inches

(86 mm) 3.0 50 cfm

(85 m3/hr) UL Listed

Inline Fans

CSP-A

Premium Inline Fan:

Outperforms the competition and is

preferred by specifying engineers.

9 inches

(229 mm) 0.8 3,775 cfm

(6414 m3/hr) UL/cUL Listed

CSP-B

Deluxe Inline Fan:

Compact design to fit in small remote

spaces.

7 inches

(178 mm) 1.5 185 cfm

(314 m3/hr)UL/cUL Listed

Great things come in small packages, as do our

ceiling fan SP models and cabinet fan CSP models.

Be assured when you buy any Greenheck product,

you are getting a quality product at a competitive

price. In fact, we guarantee our SP and CSP ceiling

and cabinet exhaust fans with a three-year warranty.

We offer the most comprehensive ceiling and cabinet

exhaust fan line in the commercial market. We are

your market leader!

SP fans are designed for

ceiling mounted applications.

CSP fans are

designed for inline

mounted applications.

Model Comparison

Model

Location Mounting Airﬂow Application Drive

Type

Impeller

Type Performance

Relative Cost

Outdoor

Indoor

Roof Curb

Base/Floor

Hanging

Wall

Ceiling Mounted

Exhaust

Supply

Reversible

Recirculate

General/Clean Air

Contaminated Air

Spark Resistant

Grease (UL 762)

Smoke Control (UL)

High Wind (150 mph)

High Temp (above 200°F)

Belt

Direct

Centrifugal

Propeller/Axial

Mixed Flow

Maximum Volume

(cfm)

Maximum Static

Pressure

(in. wg)

SP 9999 99

1,600 1 $

CSP 99999 993,800 1 $

Benefits

•Lowest sound in the industry

•Compact size

•Five different fan styles offering you a

competitive price

•Broadest performance selections in the industry

for

cat

ons

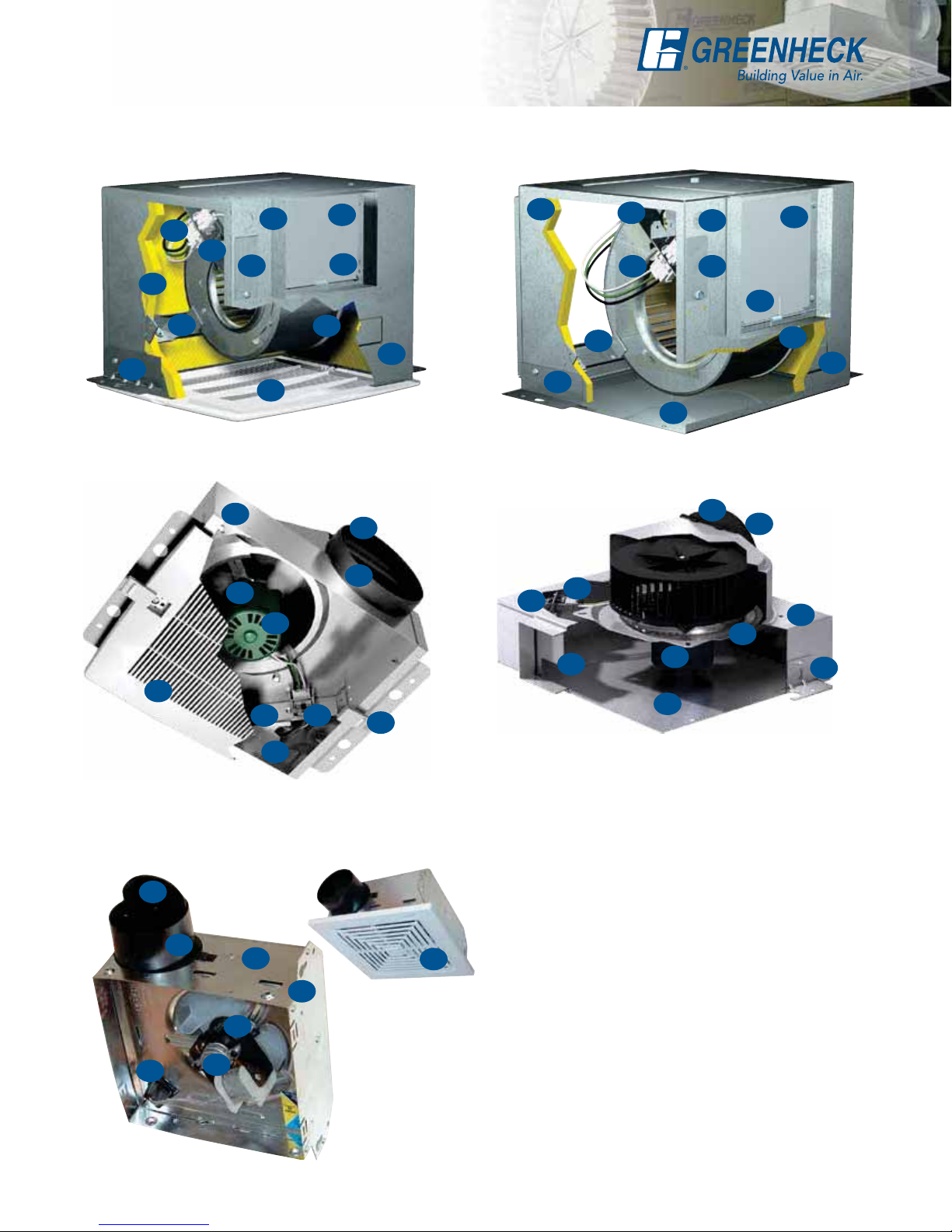

Standard Construction Features

Model SP-A

Model SP-C

Model SP-B

Model CSP-A

Model CSP-B

810

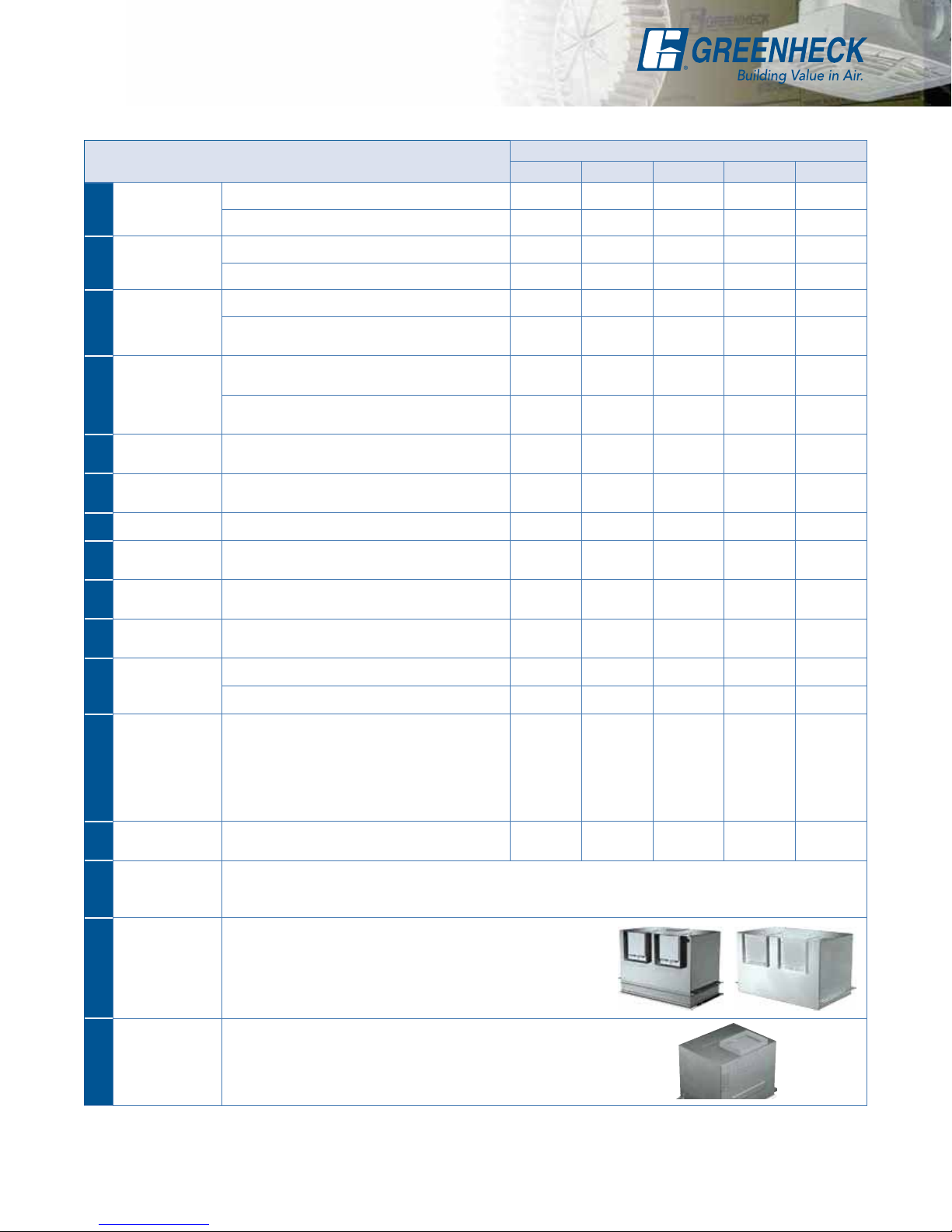

Standard Construction Features

Number and Description Specific Features for Each Model

SP-A SP-B SP-C CSP-A CSP-B

1Backdraft

Damper

Durable plastic to eliminate rattling & backdrafts 99 9

Aluminium to eliminate rattling & backdrafts 99

2Outlet

Round - For quick and easy connections 50-90 50-200 50 50-200

Square - For quick and easy connections 110-1550 110-3600

3Power

Assembly

Removes quickly for maintenance 99999

Includes conversion from horizontal to

vertical discharge 99

4Electrical

Access

Vertical electrical access to eliminate

drilling holes 99 99

External electrical access to eliminate removing

motor pack, saving installation time 99

5Electrical

Knockouts

Eliminates drilling holes

(horizontal or vertical) 99999

6Acoustic

Insulation Absorbs sound 99

7Disconnect Servicing is quick and safe 99999

8Electrical

Junction Box Large for easy wiring 99 99

9Grille Concealed attachment screws securely fasten

grille to housing for quiet, rattle free operation 999

10 Mounting

Brackets Adjustable for multiple installation conditions 99999

11 Housing

Embossed galvanized steel for rigidity 99999

A low profile for height restricted areas 99 9

12 Motors

Motors are compatible for use with speed

controls and have thermal overload protection

Domestic & International

• 50 cycle, 220v or 240v

• 60 cycle, 115v, 208v, 220v, 230v, & 277v options

(See CAPS for availability)

60 cycle,

115v only 99

13 Access Panel Gain easy access to internal components once

installed 99999

Exclusive

Electrical

Wiring Feature

Electrical access cover located on the housing exterior. This feature permits external wiring without removing

the power assembly, saving installation time and cost. Available on models SP-A and CSP-A.

Double-Wide

Fans

Available for applications requiring 700 cfm or greater.

Double-wide fans have two double-width forward-curved wheels,

which are housed in separate scrolls, and driven by a single motor.

Available on models SP-A and CSP-A.

Vertical

Discharge

Exhaust outlet duct installed in the optional vertical position.

The power assembly must be rotated to match the duct adapter position.

Available on models SP-A and CSP-A.

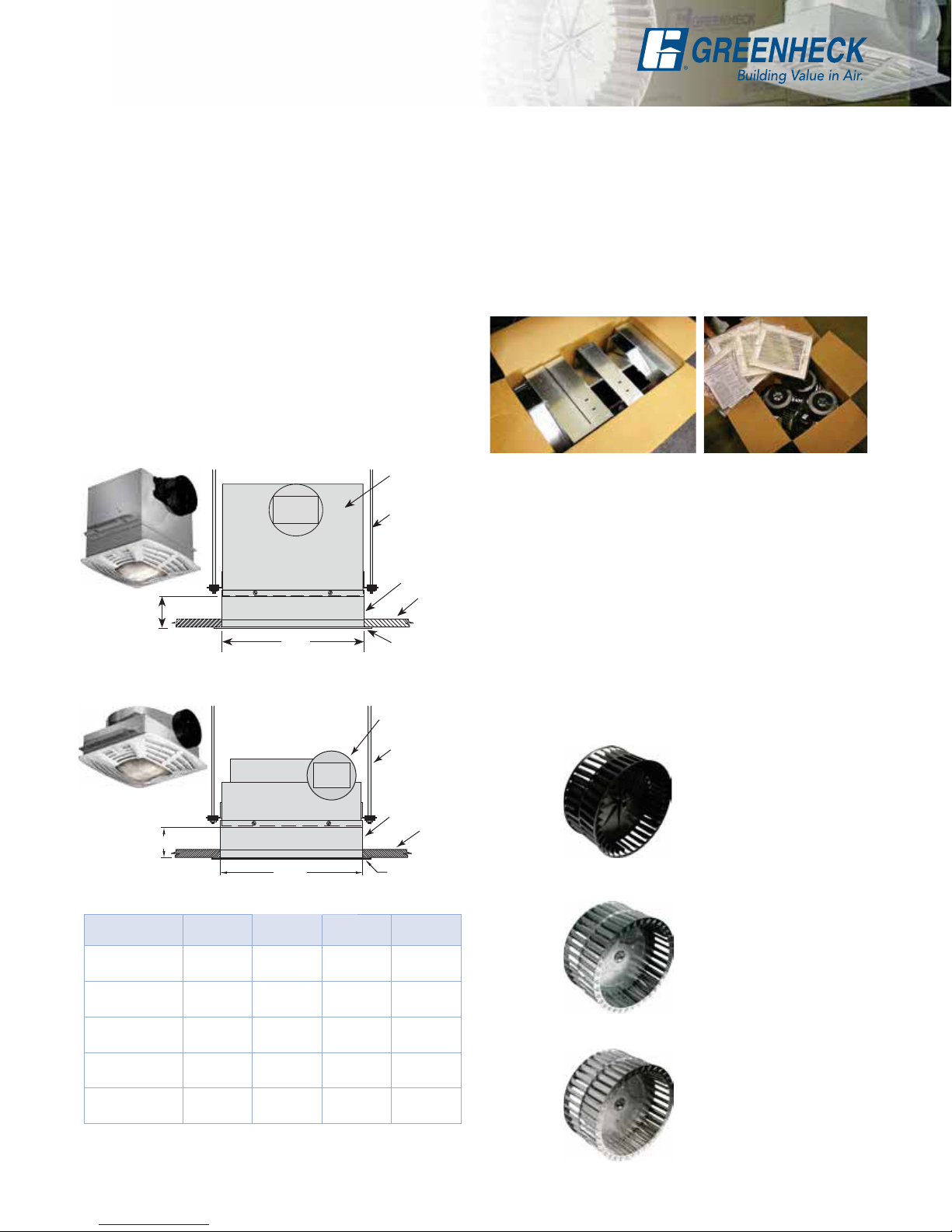

Options and Accessories

Ceiling Radiation Damper

The National Fire Protection Association (NFPA)

Standard 90A requires openings in fire rated ceiling

assemblies to be protected by appropriately rated

ceiling radiation dampers. As a result, many local

codes require fans installed in fire rated ceilings to

be protected by dampers which are insulated against

both heat and flame.

UL Classified ceiling radiation dampers are rated at

three to four hours of fire resistance. All model SP

fans and fan/light combinations are available with

ceiling radiation dampers. This design saves space

by allowing the damper to mount directly beneath

the fan.

Model SP-A

Model SP-B

SP-B Fan

Hanging

Vibration

Isolation

Ceiling

Radiation

Damper

Fire

Rated

Ceiling

Grille

3 in.

AxB

Polypropylene

Steel

Aluminum

SP Model CRD Length (A) Width (B) Height

A50 - A190 310 131⁄2

(343)

111⁄8

(283)

(76)

B50 - B200

A200 - A390 320 143⁄8

(365)

121⁄4

(311)

(76)

A410 - A510

A710 - A780 350 187⁄16

(468)

1415⁄16

(379)

(76)

A700 700 243⁄16

(614)

121⁄4

(311)

(76)

A900 - A1550 360 243⁄16

(614)

1415⁄16

(379)

(76)

All dimensions shown in inches (millimeters). Add an “L” to all CRD models if

fan & light combo is used. *CRD is approximately 1/4 inch (6 mm) larger than

housing dimension. (See Installation, Operation and Maintenance Manual)

Contractor 4 Packs

Save installation time and labor by installing the

housing first, then installing the internal components

after the sheetrocking, plastering and finishing is

done. Housings are packaged in one box, power

assemblies and grilles are packaged in another box.

Components are shipped to coincide with the phase

of your project. (Model SP-B only).

Wheel Options

Greenheck’s ceiling and cabinet fans (models SP and

CSP) deliver high performance from a forward-curved

wheel. The forward-curved wheel design offers

both high-efficiency and low sound. Fan wheels are

constructed of polypropylene or steel as standard,

and all models offer an aluminum wheel option.

•Level A models utilize steel or polypropylene wheel

construction depending on size.

•Level B models are standard with a

polypropylene wheel.

SP-A Fan

Hanging

Vibration

Isolation

Ceiling

Radiation

Damper

Fire

Rated

Ceiling

Grille

AxB

3 in.

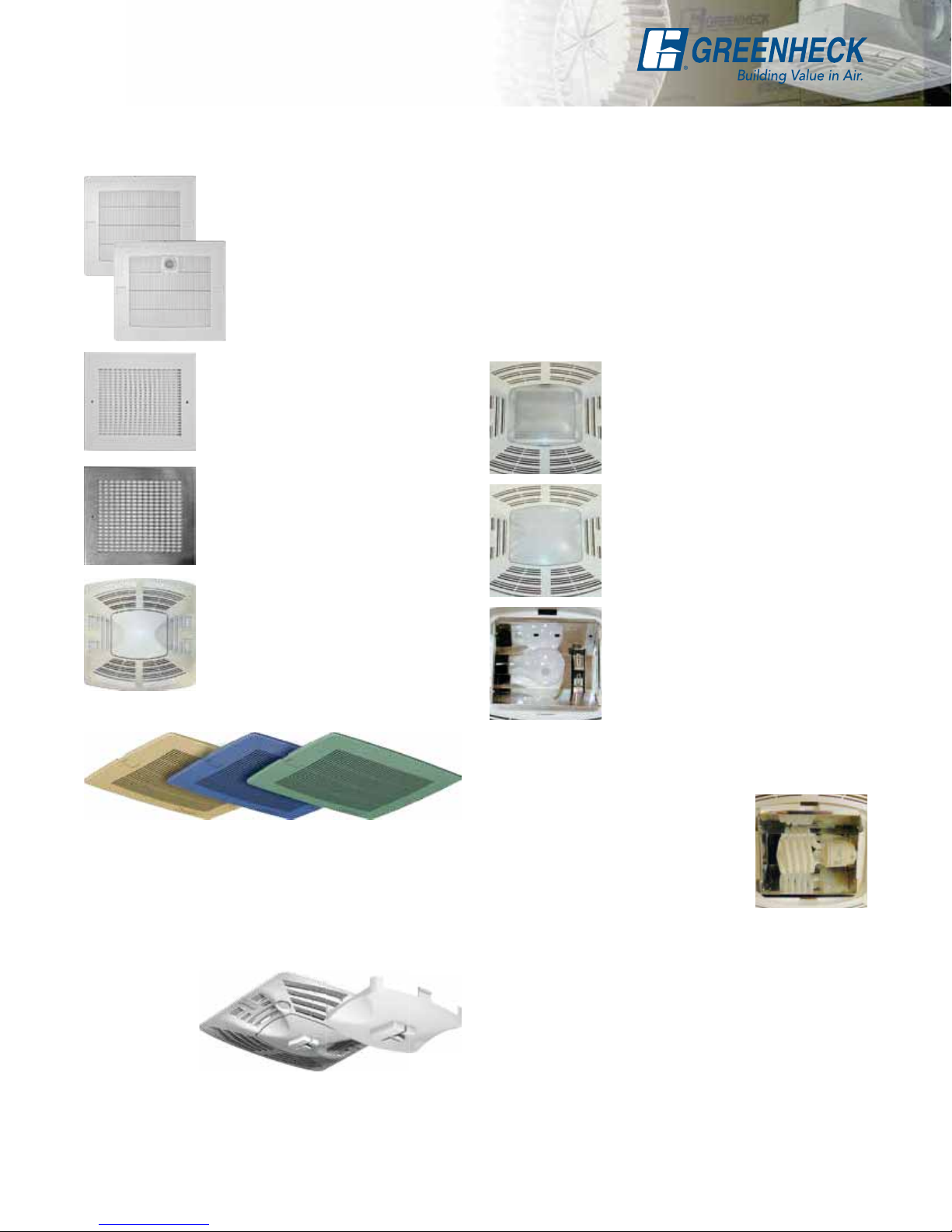

SP Grille and Lighting Options

Grille Options

Designer - standard grille

Available in white polystyrene ﬁnish,

with or without motion detector

or time delay (see page 9 for

motion detector and time

delay information). Standard

on SP models A50-A390 and

B50-B200.

Grille - Aluminum

White enamel ﬁnish standard for

models A410-A1550.

Optional for models A50-A390 and

B50-B200.

Grille - Decorative

White plastic ﬁnish, with or without

light, motion detector or time delay

(see page 9 for motion detector

and time delay information).

Optional for models A50-A390

and B50-B200.

Greenheck’s fan and light combinations include either

a prismatic or a frosted lens and either compact

fluorescent or incandescent lamps. Our unique light

box is manufactured with a reflective material to

increase the light given off by either type of lamp.

UL Listed for above bathtub and showers with GFCI

branch protected circuit.

Model SP-A, sizes 50 - 390

Model SP-B, sizes 50 - 200

Lighted Grille Options

Compact Fluorescent Lamps (CFL)

Features and Beneﬁts

• GU24 Base

• Long Life, 10,000 hour average

rated life

• Lower maintenance and labor

costs for lamp replacements

• No lead glass - Better lumen

maintenance over life of bulb

• End-of-Life logic guards against violent failures

• Complies with UL 1993 End-of-Life requirements

• World Class phosphor insures high lumen output

and excellent lumen maintenance

• Replacement bulbs can be found wherever

standard light bulbs and fixtures are sold. Energy

efficient ENERGY STAR®qualified fixtures.

• California Energy Title 24 compliant

Grille - Stainless Steel

Polished stainless steel ﬁnish

optional for models A50-A390

and B50-B200.

Customized grille options

Molded polystyrene available in an array of colors.

Includes all the same accessory options as the

standard grilles. For more information on the many

ways this grille option can be used please contact

your Greenheck representative.

Customized

Grille Lens

Lenses can be

customized with

formed shapes or logos.

Contact your Greenheck representative for details.

Prismatic Lens

The prismatic lens design provides

approximately 25% more light than

a traditional frosted lens. The lens

may be easily removed to replace

light bulbs.

Frosted Lens

The frosted lens option is a traditional

design which lets approximately 80%

of light through the lens. The lens

may be easily removed to replace

light bulbs.

Incandescent Lamps

One bulb provides up to 100 watts

of light (bulbs provided by others).

• Dimmable

• Reflective light box

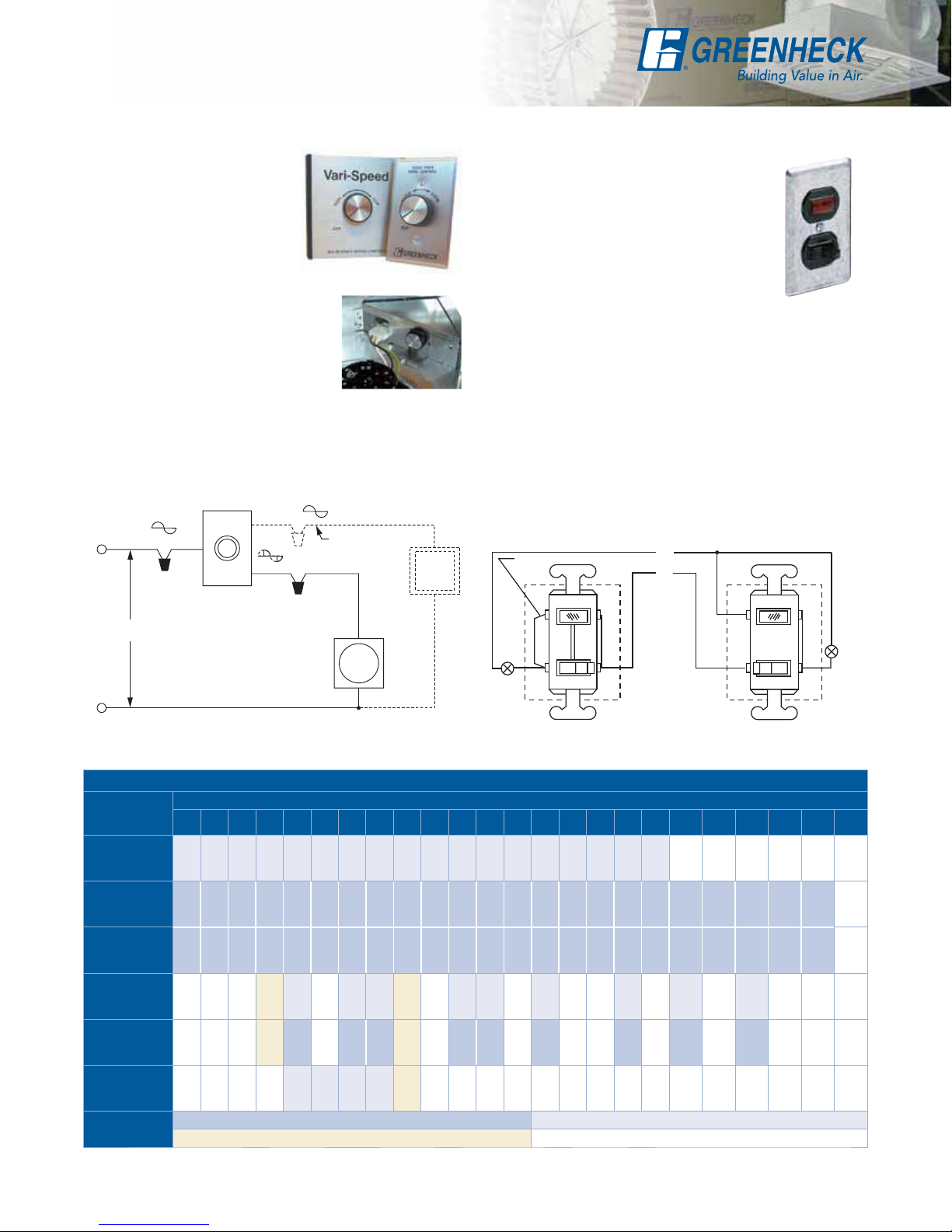

Control Accessories

Speed Controls

Speed controls may be used

on model SP and CSP fans for

manual adjustment of the fan’s

performance (for final system

balancing) or to control the

fan’s output in confined

spaces, such as conference or

meeting rooms.

The fan can be adjusted to 60% of

design airflow with a speed control.

This reduction in airflow and fan

speed is also accompanied by a

reduction in noise level. Solid state

speed controls are available for

a range of applications up to 15

amps. Speed controls can be used to operate

more than one fan if the combined total amperage

of the fans do not exceed the control rating.

For use with shaded pole and permanent split capacitor (PSC)

motors. Available shipped loose or mounted internal or external.

Switches

Switches may be used on model

SP and CSP fans to enable manual

control of your fan or fan and light

combination. There are several

options to fit your application.

NEMA 1 - Single pole rocker

switch assembly.

• Rated for, 115v, 15 Amp, 1/2 hp

• UL Listed

Model MS-16 - Single pole rocker switch assembly

with cover and pilot light.

• Rated for, 115v, 15 Amp, 1/2 hp

• UL Listed

NEMA 1 - Two pole rocker switch assembly.

• Rated for, 220/230/240/277v, 20 Amp, 2 hp

• UL Listed

• Requires a 2x4 handy box.

Internal Mounting

FULL VOLTAGE

120 VAC

HBLACK

SPEED CONTROL

WHITE

VARIABLE

VOLTAGE

FAN

AUX

DEVICE

SWITCHED FULL VOLTAGE

Dotted line indicates

for use with 10W

switch only.

RED

EXTERNAL JUMPER

LOAD

SPEED CONTROL INTERNAL AND/OR EXTERNAL MOUNTING OPTIONS

Model

Voltage Rating

Amp Rating

Fan Sizes

50 70 80 90 110 125 150 190 200 250 290 390 410 510 700 710 780 900 1050 1410 1550 1750 2150 3600

5WSSC

115 - 127v

5 Amp

I/E I/E I/E I/E I/E I/E I/E I/E I/E I/E I/E I/E I/E I/E I/E I/E I/E I/E No No No No No No

10WSSC

115 - 127v

10 Amp

EEEEEEEEEEEEEEEEEE EEEEE

15WSSC

115 - 127v

15 Amp

EEEEEEEEEEEEEEEEEE EEEEE

5W240

220 - 240v

5 Amp

No No No *I/E I/E No I/E I/E *I/E No I/E I/E No I/E No No I/E No I/E No I/E No No No

8WSSC

220 - 240v

8 Amp

No No No *E E No E E *E No E E No E No No E No E No E No No No

5W277

227v

5 Amp

No No No No I/E I/E I/E I/E *I/E No No No No No No No No No No No No No No No

KEY: E = External mounted only I/E = Available Internal and External Mounted

* Only available on the B-series (A-series is not available) No = Not available

NOTES: Speed controllers are not available for 208v applications. SP-C50 Speed Controller is shipped loose only. All speed controller options listed in table are UL Listed.

Handy Box sizes are 2x4 for all options above except 10WSSC and 15WSSC, which are 4x4.

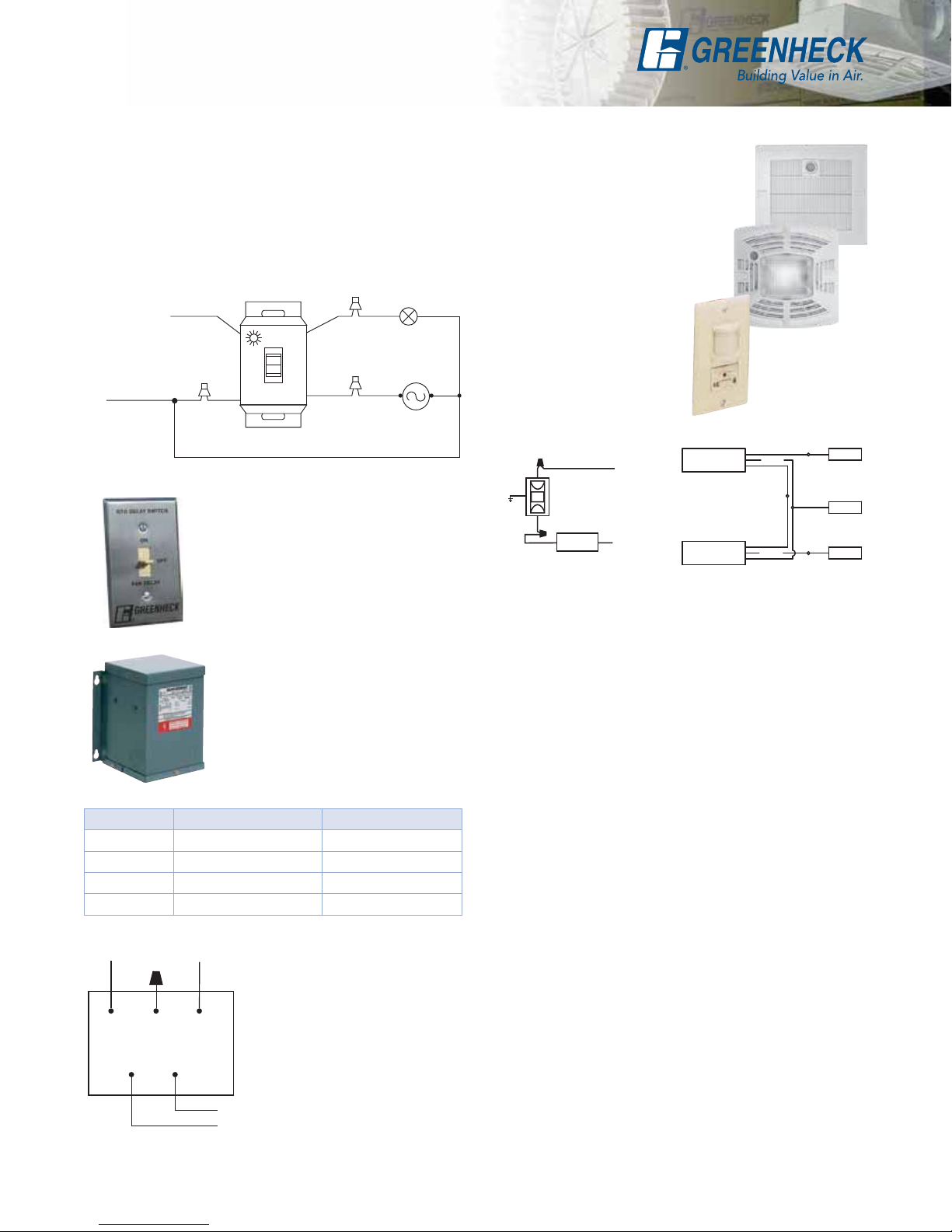

Time Delay Switch

Time delay switches save energy by automatically

turning off equipment. They may be used with SP and

CSP fans or fan and light combinations for extended

operating time of fan. Time delay switches act in the

same manner as a standard switch, however, there is a

delay of 1 to 60 minutes after it has been turned off.

Model GTD -

A single switch controls both fan

and light. Available shipped loose.

• Silent Operation

• Rated for 115v

• UL Listed

• Requires 2x4 handy box

Transformers

Transformers are available for

applications requiring voltage

reduction. Selection is based on

motor amperage. All transformers

are shipped loose.

Motion Detectors

Motion detectors may be used with

SP and CSP fans or fan and light

combinations. Motion detectors

use a passive infrared motion

detector to automatically turn the

fan on when a change in motion

is sensed. They have

a viewing area of 180

degrees, however they

must be placed in the

line-of-sight. They also

have an adjustable time

delay shutoff setting of

1 to 20 minutes.

Grille Motion Detectors are available on models

up through size SP-A390 and SP-B200.

• Rated for 115v

• UL Listed

Model MDW

For use on fan or lights. Available shipped loose.

• Rated for 115v

• UL Listed

• Requires 2x4 handy box

Control Accessories

Grille Mount

Wall Mount

Gnd.

Hot

Black

Green

Red

Load

(12.5 Amps Max.)

Neutral

Black

Red

Black

White

White Hot

Neutral

Ground

Motion Sensor

Fan Motor and/or

Light Green

115 VOLT AC

60 CYCLE

(NEUTRAL)

(HOT) BLACK BLUE

(500 Watt Max)

LIGHT

(7.5 Amps Max)

FAN MOTOR

RED

WHITE

Models Voltage Ratings Amp Ratings

T-2.0 230/277v to 115 2.0 Amps

T-4.3 230/277v to 115 4.3 Amps

T-6.5 230/277v to 115 6.5 Amps

T-8.6 230/277v to 115 8.6 Amps

















 







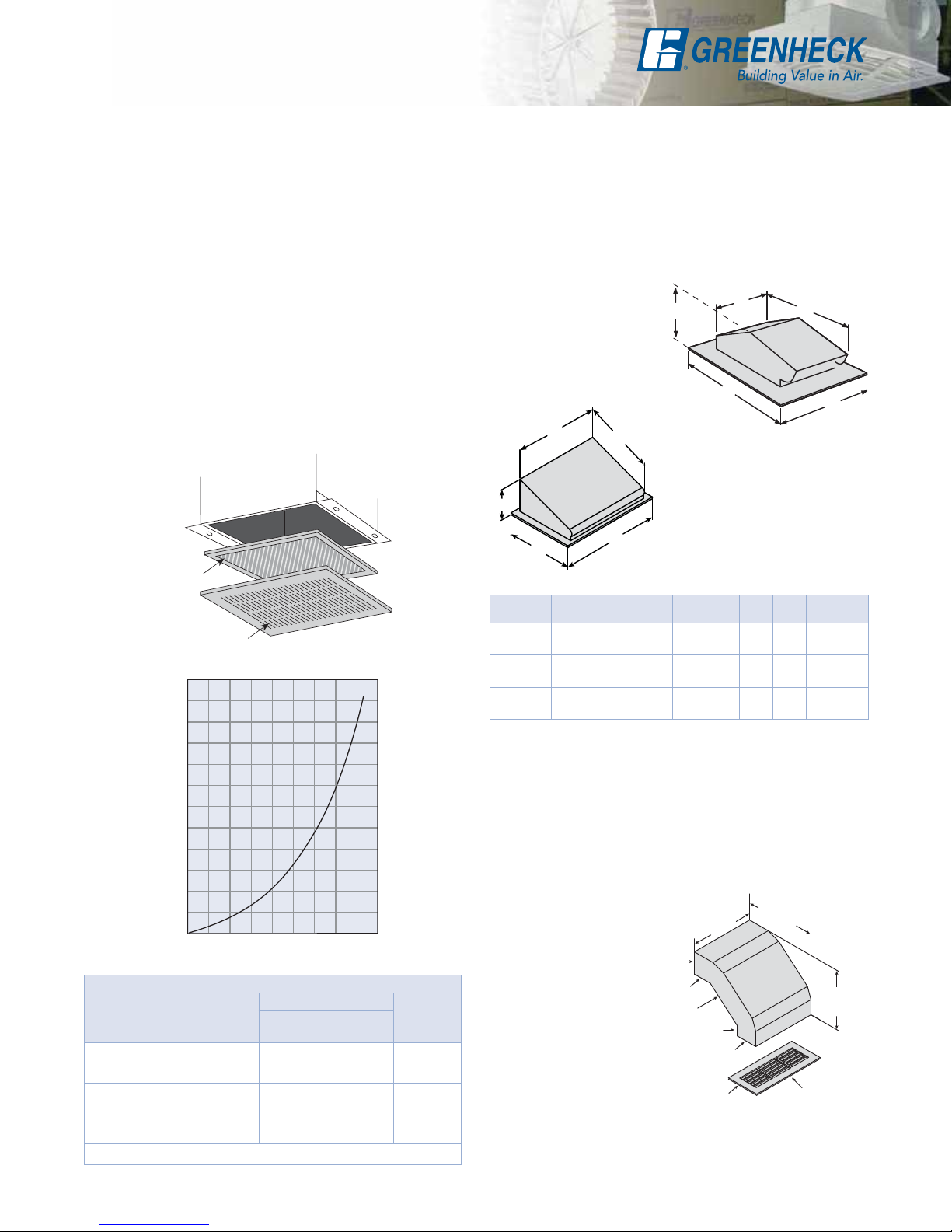

Filters and Discharge Accessories

Filters

Fans used in most applications will collect airborne

dirt on wheels and motors over time, even where air

is not excessively dirty. Accumulations of dirt on the

fan wheel will sharply reduce performance and cause

imbalance. Dirt buildup on the motor can cause it to

overheat. All of these conditions will shorten the life of

the fan. To help reduce this accumulation, washable

aluminum mesh filters are available to trap dirt before

it enters the fan. These filters should be regularly

cleaned to maintain performance. The Filter Loss Chart

shows the effect the filter will have on performance.

To determine the added resistance, divide the desired

cfm by the filter area (ft2). This will give ft/min. Use this

with the filter loss chart to get the added resistance.

Filters reduce sound levels, in addition to reducing dirt

accumulations on the motor and wheel.

Roof Discharge Accessories

Model RJ - Pitched Roof Cap

• Steel construction with black enamel finish

• Integral flashing flange

• Built-in birdscreen and damper

Model EL-10x3 -

Elbow Discharge with Grille

• Designed for installation under roof eaves

• Black epoxy finish (elbow and grille)

• Built-in damper

• For model SP and

CSP sizes 50-290

Mesh

Filter

Grille

Filter Loss Chart

SP Model

Filter Model Filter

Area (ft2)

Designer

Grille *Metal

Grille

SP-A50 - A190 F-200 F-210 0.739

SP-B50 - B200, A200 - A390 F-200 F-220 0.911

SP-A410 - A510

SP-A710 - A780 NA F-250 1.518

SP-A900 - A155 NA F-260 2.078

*Aluminium or Stainless Steel Grille.

0 1 2 3 4 5 6 7 8 9

Velocity (FPM) x 100

.24

.22

.20

.18

.16

.14

.12

.10

.08

.06

.04

.02

.00

Resistance in w.c.

Model Use for sizes: A B C D E Throat

RJ-4 C50, B50-B80 11

(279)

91⁄4

(235)

81⁄4

(210)

55⁄16

(135)

41⁄2

(114)

4 (102)

diameter

RJ-6x9 B90-B200,

A50-A390

183⁄4

(476)

141⁄4

(362)

141⁄2

(368)

103⁄8

(264)

61⁄2

(165)

6 x 9

(152 x 229)

RJ-10x10 A410-A1050 181⁄2

(470)

271⁄2

(699)

153⁄4

(400)

235⁄8

(600)

91⁄2

(241)

10 x 10

(254 x 254)

All dimensions shown in inches (millimeters).

3.5 (89)

(254)

11.125

(283)

2.875 (73)

6.5 (165)

1.625 (42)

9.375

(238)

11.5 (292)

5.125

(130)

3.375 (86)

All dimensions shown in inches (millimeters).

RJ-4 and RJ-6x9

RJ-10x10

Altri manuali per SP

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Greenheck Cappa di ventilazione

Greenheck

Greenheck Smoke Dampers SMD-202 Manuale utente

Greenheck

Greenheck Centrifugal Roof Exhaust Fans NYB Manuale utente

Greenheck

Greenheck Vektor Istruzioni per l'installazione e il funzionamento

Greenheck

Greenheck UL 555S Leakage Class II SSSMDR-502 Manuale utente

Greenheck

Greenheck Stainless Steel Round Backdraft Damper... Manuale utente

Greenheck

Greenheck Vektor-H Manuale utente

Greenheck

Greenheck 458292 Manuale utente

Greenheck

Greenheck DFD & FD Series Manuale utente

Greenheck

Greenheck ERD Manuale utente

Greenheck

Greenheck Sleeve Extensions 462103 Manuale del proprietario

Greenheck

Greenheck EM-30 Series Manuale utente

Greenheck

Greenheck Combination Fire Smoke Dampers SSFSD-211 Manuale utente

Greenheck

Greenheck Steel Airfoil Blades FSD-311V Manuale utente

Greenheck

Greenheck Grease Grabber GGH2O Manuale utente

Greenheck

Greenheck KFD Series Manuale del proprietario

Greenheck

Greenheck Steel Airfoil Blades SMD-301M Manuale utente

Greenheck

Greenheck Fire Smoke Dampers FSDGB-211 Manuale utente

Greenheck

Greenheck CFSD-XXX Series Manuale del proprietario

Greenheck

Greenheck Steel 3V Blades OFSD-212 Manuale utente

Greenheck

Greenheck IG Manuale utente

Greenheck

Greenheck DFD-155 Manuale utente

Greenheck

Greenheck Outdoor Air Ventilator Guida

Greenheck

Greenheck Belt Drive Duct Fan BDF Manuale utente

Greenheck

Greenheck Steel Airfoil Blades OFSD-311 Manuale utente

Manuali Cappa di ventilazione popolari di altre marche

emmeti

emmeti RECUPA MED A-140 Guida

Nibe

Nibe F135 Manuale utente

Kuppersberg

Kuppersberg INTRO 60 Istruzioni di installazione e manutenzione

Zephyr

Zephyr Spruce AK9834BS Guida all'installazione

Hisense

Hisense MH6INBG Manuale utente

Miele

Miele DA 1255 Manuale utente

Broan

Broan 46000 Manuale utente

GE Profile PV977 Istruzioni originali

FALMEC

FALMEC FFRIA24W5FS Manuale utente

Whirlpool

Whirlpool RH2600XL-1 SERIES Manuale utente

Küppersbusch

Küppersbusch DX ISLA Manuale utente

ETNA

ETNA AV360RVS Manuale utente

JUNO

JUNO JDF603E6 Manuale utente

Miele

Miele DA 6708 D Manuale utente

Tricity Bendix

Tricity Bendix LE 150 Manuale

AEG

AEG X68163BV1 Manuale utente

AEG

AEG 125 D Manuale utente

Smeg

Smeg KSEV97X Manuale utente
