690 and 690-22 Power Fishing Systems
KEEPTHIS MANUAL
Table of Contents
Description ................................................................... 2
Safety........................................................................... 2
Purpose........................................................................ 2
Important Safety Information ................................... 3–4
Grounding Instructions................................................. 4
Identification................................................................. 5
Specifications............................................................... 5
Setup............................................................................ 6
Operation ................................................................. 6–8
Maintenance ................................................................ 8
Troubleshooting ........................................................... 9
Exploded Views and Parts Lists .......................... 10–13
Wiring Diagram .......................................................... 14
Description
The Greenlee 690 and 690-22 Power Fishing Systems
are intended to “fish,” or route, nylon fishing line through
1/2" to 4" conduit. Optional accessories are also
available for fishing through 5" and 6" conduit, and for
clean-up vacuuming.
This tool is intended for commercial use.
Safety
Safety is essential in the use and maintenance of
Greenlee tools and equipment. This instruction manual
and any markings on the tool provide information for
avoiding hazards and unsafe practices related to the
use of this tool. Observe all of the safety information
provided.
Purpose of this Manual
This manual is intended to familiarize personnel with the
safe operation and maintenance procedures for the
following Greenlee products:
• 690 Serial Number AAR 001 and higher
(115-Volt model)
• 690-22 Serial Number AAT 001 and higher
(220-Volt model)
Greenlee, and Mighty Mouser are registered
trademarks of Greenlee Textron.
Keep this manual available to all personnel.
Replacement manuals are available upon request at no
charge.
Greenlee Textron / Subsidiary of Textron Inc. 34455 Boeing Dr., Rockford, IL 61109-2988 815/397-7070
690 and 690-22 Power Fishing Systems
Do not use this tool in a hazardous
environment, or use this tool to
vacuum up anything hazardous.
Hazards include flammable liquids,
gases, or other materials. Such use
can result in a fire or explosion.
Failure to observe this warning will
result in severe injury or death.
IMPORTANT SAFETY INFORMATION
Electric shock hazard:
• Do not leave unit unattended
when plugged in. Unplug from
receptacle when not in use and
before servicing.
• Do not expose to rain. Store
indoors.
• Do not handle plug or vacuum/
blower unit with wet hands.
• Do not use with a damaged cord
or plug. If the vacuum/blower is
not working as it should, if it has
been dropped, damaged, left
outdoors or dropped into water,
send it to an authorized Greenlee
service center.
• Do not pull or carry by cord, use
the cord as a handle, close a door
on the cord, run over the cord, or
pull the cord around sharp edges
or corners. Keep the cord away
from heated surfaces.
• Do not unplug by pulling on the
cord. To unplug, grasp and pull
the plug — not the cord.
• Connect to a properly grounded
receptacle only. See Grounding
Instructions.
• Disconnect from power before
servicing.
Failure to observe these warnings
can result in severe injury or death.
This symbol is used to call your attention to
hazards or unsafe practices which could result in
an injury or property damage. The signal word,
defined below, indicates the severity of the hazard.
The message after the signal word provides
information for preventing or avoiding the hazard.
Hazards or unsafe practices which, if not avoided,
MAY result in injury or property damage.
Hazards which, if not avoided, COULD result in
severe injury or death.
Immediate hazards which, if not avoided, WILL
result in severe injury or death.
SAFETY
ALERT
SYMBOL
Read and understand all of the
instructions and safety information
in this manual before operating or
servicing this tool.
Failure to observe this warning can
result in severe injury or death.
• Do not allow to be used as a toy. Close attention
is necessary when used by or near children.
• Use only as described in this manual. Use only
manufacturer’s recommended attachments.
• Do not put any object into openings. Do not use
with any opening blocked; keep free of dust and
debris that may reduce air flow.
• Turn power OFF before unplugging.
• Use extra care when cleaning on stairs.
• Keep loose clothing and all parts of the body
away from openings and moving parts.
Failure to observe these warnings can result in
severe injury or death.
Greenlee Textron / Subsidiary of Textron Inc. 44455 Boeing Dr., Rockford, IL 61109-2988 815/397-7070
690 and 690-22 Power Fishing Systems
IMPORTANT SAFETY INFORMATION
Grounding Instructions
This tool must be grounded. In the event of a malfunction
or breakdown, an electrical ground provides a path of least
resistance for the electric current. This path of least
resistance is intended to reduce the risk of electric shock.
This tool’s electric cord has a grounding conductor and a
grounding plug as shown. Do not modify the plug. Connect
the plug to a corresponding GFCI-protected receptacle
that is properly installed and grounded in accordance with
all national and local codes and ordinances.
Do not use an adapter.
Do not vacuum or blow burning or
toxic materials such as carcinogens,
asbestos, pesticides or heavy
metals.
• Wear eye protection and a dust
mask when operating or servicing
this tool.
• Piston and debris will exit the
conduit at high speed. Attach the
warning tag at the exit end of the
conduit before blowing a piston
through the conduit.
Failure to wear eye protection can
result in serious eye injury from
flying debris.

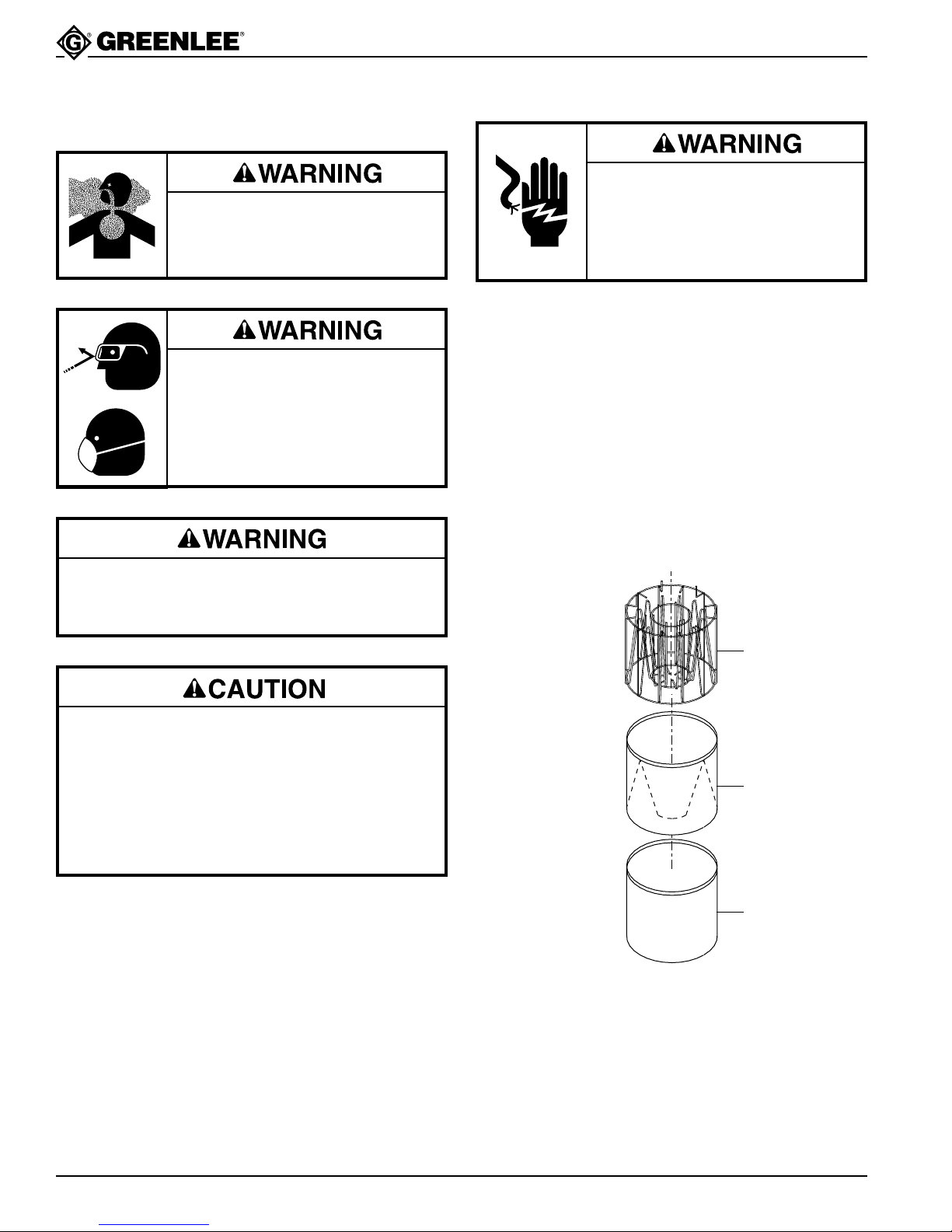

• Do not use without a clean filter in place. Using
the vacuum/blower with a clogged, damaged or
missing filter will cause damage to the motor.
• Do not vacuum up anything that is burning or
smoking, such as cigarettes, matches or hot
ashes.
Failure to observe these warnings can result in
severe injury or death.
Electric shock hazard:
• Do not modify the plug provided
with the tool.
• Connect this tool to a grounded
receptacle on a 15-amp GFCI-
protected circuit.
Failure to observe these warnings
can result in severe injury or death.
NEMA 5-15 (for Model 690)
ReceptaclePlug
NEMA 6-15 (for Model 690-22)
ReceptaclePlug
Greenlee Textron / Subsidiary of Textron Inc. 54455 Boeing Dr., Rockford, IL 61109-2988 815/397-7070
690 and 690-22 Power Fishing Systems
Identification
GREENLEE
Intake Port
(for vacuuming)
Exhaust Port
(for blowing)
Motor
Model 690...................................................................... 12 amps / 115 VAC / 60 Hz
Model 690-22 .................................................................. 6 amps / 220 VAC / 50 Hz
Pressure
Blower ............................................................................................ 0.275 Bar (4 psi)
Vacuum
Column of Water................................................................................ 2.8 m (110")
Column of Mercury ............................................................................ 203 mm (8")
Air Flow ................................................................................. 36.5 m3/min (120 ft3/min)
Piston Speed in 1/2" Conduit....................................................145 m/min (475 ft/min)
Tank Capacity
Liquid.............................................................................................41 L (11 U.S. gal)
Dry...................................................................................................30 L (8 U.S. gal)
Mass / Weight ........................................................................................22.7 kg (51 lb)
Specifications
Greenlee Textron / Subsidiary of Textron Inc. 64455 Boeing Dr., Rockford, IL 61109-2988 815/397-7070
690 and 690-22 Power Fishing Systems
Setup
1. Unfasten the catches. Remove the motor cover and
remove the hose from the tank. Install the cover and
latch the catches.
2. Attach the storage box to the tank by positioning the
box over the triangular rib on the tank and sliding
the box down firmly until it locks into place.
Operation
• Wear eye protection and a dust
mask when operating the unit.
• Piston and debris will exit the
conduit at high speed. Attach the
warning tag at the exit end of the
conduit before using the unit.
Failure to observe this warning can
result in serious injury from flying
debris.
Use the 690 or 690-22 alone, or combine it with a
592 Mighty Mouser®as shown here.
OPERATING TIPS
• When fishing through IMC or rigid, blowing is
generally more efficient than vacuuming.
• When fishing through EMT, vacuuming is the better
method. EMT connections are not airtight, and a
piston that is blown through might not reach the exit
end of the conduit run.
• Two fishing lines can be vacuumed in at the same
time, if desired. Leave one line in the conduit to pull
additional wire into the conduit after the initial
installation.
Greenlee Textron / Subsidiary of Textron Inc. 74455 Boeing Dr., Rockford, IL 61109-2988 815/397-7070
690 and 690-22 Power Fishing Systems
Operation (cont’d)

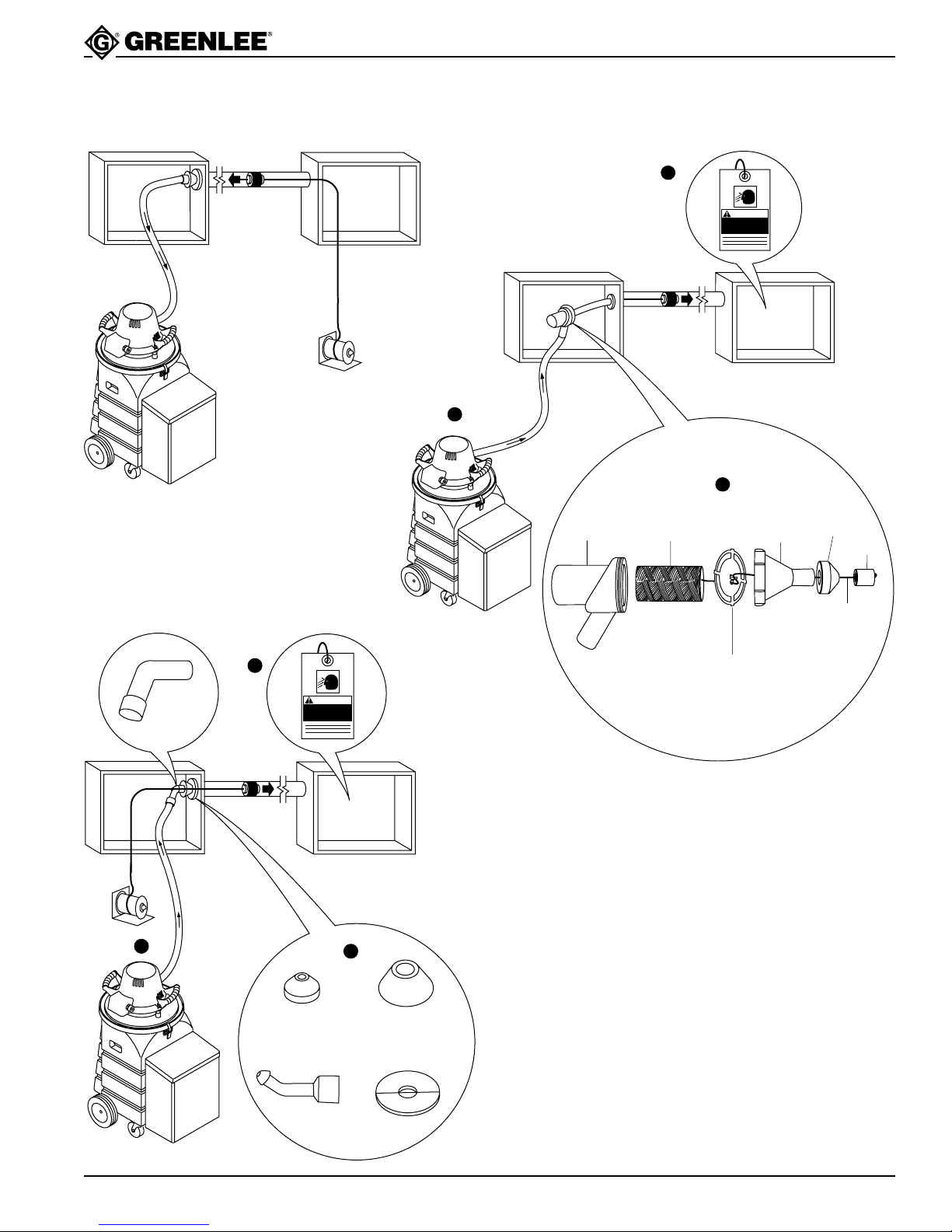

VACUUMING
Line Tied
to Piston
Piston
Nose
Cone
Fish Line
Cannister
Line Drag Insert
Adapter
Cone
CAUTION
1
3
2
Cone 1-1/4" to 2-1/2" Cone 3" to 4"
Cone 1/2" to 1"
Washer 5" and 6"
(optional)
Adapters
CAUTION
1
32
BLOWING
BLOWING WITH OPTIONAL 592 MIGHTY MOUSER®
Greenlee Textron / Subsidiary of Textron Inc. 84455 Boeing Dr., Rockford, IL 61109-2988 815/397-7070
690 and 690-22 Power Fishing Systems
Operation (cont’d)
CLEAN-UP VACUUMING
Do not vacuum or blow burning or
toxic materials such as carcinogens,
asbestos, pesticides or heavy
metals.
•Do not use without a clean filter in place. Using
the vacuum/blower with a clogged, damaged or
missing filter will cause damage to the motor.
•Do not vacuum up anything that is burning or
smoking, such as cigarettes, matches or hot
ashes.
Failure to observe these warnings can result in
severe injury or death.
Wet Pickup
This unit is equipped with a shut-off float valve. When
the unit is used for wet pickup, the rising fluid lifts the
float valve until it seals against the motor intake. When
this happens, the sound of the motor changes to a
higher pitch. Unplug the unit, empty the tank, and
replace the cover.
Dry Pickup
For optional dry pickup accessories, see the Optional
Equipment at the end of the Parts List.
Wear eye protection and a dust
mask when operating or servicing
this tool.
Failure to wear eye protection can
result in serious eye injury from
flying debris.
Use extra care when cleaning on stairs.
Failure to observe this warning can result in severe
injury or death.
Maintenance
Note: Keep filters clean. Efficiency of this vacuum is
largely dependent on the cleanliness of the filters. A
clogged filter can cause overheating and damage to the
motor. Filters should be removed and cleaned
periodically to ensure proper operation. After cleaning,
allow filters to dry thoroughly to prevent deterioration.
Filters and Gaskets
1. Unplug the unit.
2. Remove the tank cover (21).
3. Carefully remove the filters (28, 28A) from the filter
basket (25). See the illustration.
25
28
28A
4. Clean the filters with a mild detergent and warm
water. Allow them to dry thoroughly.
5. Inspect the gaskets (22, 23). Replace if necessary.
6. Install the filters. Install the tank cover and secure
with the catches.
Electric shock hazard:
Disconnect from power before
servicing.
Failure to observe this warning can
result in severe injury or death.
Greenlee Textron / Subsidiary of Textron Inc. 94455 Boeing Dr., Rockford, IL 61109-2988 815/397-7070
690 and 690-22 Power Fishing Systems
Troubleshooting
PROBLEM PROBABLE CAUSE PROBABLE REMEDY
Unit does not run. Faulty cord. Replace cord.
Faulty switch. Replace switch.
Faulty motor. Replace motor.
Unit does not develop adequate Filters are dirty. Clean the filters. See the Maintenance
vacuuming or blowing pressure. section of this manual.
Gaskets do not seal well. Replace gaskets. See the Maintenance
section of this manual.
Tank is full. Empty the tank.
Piston does not travel Wrong piston size. Select the correct piston size.
through the conduit. Conduit run is obstructed. Clear the conduit run. Check for
flattened bends.
EMT couplings are loose. Tighten the couplings.
Greenlee Textron / Subsidiary of Textron Inc. 10 4455 Boeing Dr., Rockford, IL 61109-2988 815/397-7070
690 and 690-22 Power Fishing System
27
20
48
43
11
49
10
22
21
51
50
19
17
14
12 13
16
15
47
26
18
23
24
28
28A
25
1
5
8
7
6
42
3
4
46
2
44
45
46
4140
38373635
52
29
53 55
56
Optional Accessories
54
9
32 33 34
31
30
30A
See Wiring
Diagram
ExplodedView
690 and 690-22
Altri manuali per 690
1
Questo manuale è adatto per i seguenti modelli
1
Indice
