Griesser FSR1 Manuale utente

Assembly instructions

Sliding bi-fold shutters

Read these instructions, observe the contents and the warning notes prior to

assembly. The information is very important for installation and correct use

of the material.

The sliding bi-fold shutter is a product for which not only the dimensional and

geometric tolerances, but also the straightness and parallel alignment of the

running and guide elements, must be adhered to without fail at the time of

installation in order to guarantee the trouble-free operation and performance

of the product.

Only trained personnel may mount and put the systems into operation.

Contents

1 Notes regarding these instructions 3

1.1 Validity of this manual 3

1.2 CE marking 3

1.3 Used symbols 3

1.4 Abbreviations 3

2 Security 4

2.1 Safety and Warnings 4

2.2 Intended use 4

3 Product description 5

3.1 Exploded assembly drawing (external view) 5

3.2 Mounting accessories 5

3.3 Marking 6

4 Mounting 6

4.1 Preparation for mounting 6

4.2 Installation tolerances 6

4.3 Installation in an elevated area 6

4.4 Fasteners 7

4.5 Design variants 7

4.6 Installation runner and guide rail 8

4.7 Shutter packages 8

4.8 Installing the sashes 9

4.9 Pull latch installation 13

4.10 Mounting Overwinding protection 13

5 Troubleshooting table - Trouble-shooting 16

6Disposal 16

Version 01.18 2

Persiane scorrevoli pieghevoli

Version 01.18 3

1 Notes regarding these instructions

These instructions is meant for trained technicians with good skills in assembly technology. Only

qualified technical personnel with the respective assembly experience may install sliding bi-fold

shutters.

1.1 Validity of this manual

Sliding bi-fold shutters are designed in accordance with EU standards.

1.2 CE marking

Griesser AST GmbH hereby declares that the sliding bi-fold shutters are in compliance with the

basic requirements and other relevant provisions of EN standards.

This is documented by the CE marking.

1.3 Used symbols

L Side, direction, design left

R Side, direction, design right

Outside

Movement to be carried out

 Movement, direction

 Movement, direction

2x Repeat step various times

 Manual operation

 Electric operation, motor

 Visual inspection

 Information

F Note

1.4 Abbreviations

hl Opening height bl Opening width

hff Finished sash height bff Finished sash width

Sliding bi-fold shutters

Version 01.18 4

2 Security

The safety and warning notes make a distinction between personal injury and damage to property.

The signal word „Danger“ is used to indicate the risk of personal injury, while the signal word

„Caution“ is used to indicate the risk of damage to property.

2.1 Safety and Warnings

Immediate danger to life and limb!

Immediate risk of product and environment!

 Useful information and notes

• Observe the applicable accident prevention regulations.

• Make sure that any installed electrical connections are disconnected from the mains supply

during the assembly.

• Close off a sufficient space around the assembly area.

• Check any available scaffolds and installations in terms of their safety.

• Observe the regulations applicable to dowel and fastening material.

• Always work with undamaged and suitable tools.

• Keep plastic films, packaging material as well as small parts away from children – risk of

suffocation!

2.2 Intended use

Warranty claims are forfeited if damage is due to the non-compliance with the brochure or the

attached document. Griesser AST GmbH does not accept liability for consequential damage.

Griesser AST GmbH does not accept liability for damage caused by incorrect installation.

Except for the actions described in the operating manual and the assembly instructions, the product

may not be altered in any way, otherwise, all warranty claims will likewise become null and void

In winter, check products for formation of ice prior to

operation; do not operate if ice has formed.

Danger!

Attention

Sliding bi-fold shutters

Attenion

Version 01.18 5

3 Product description

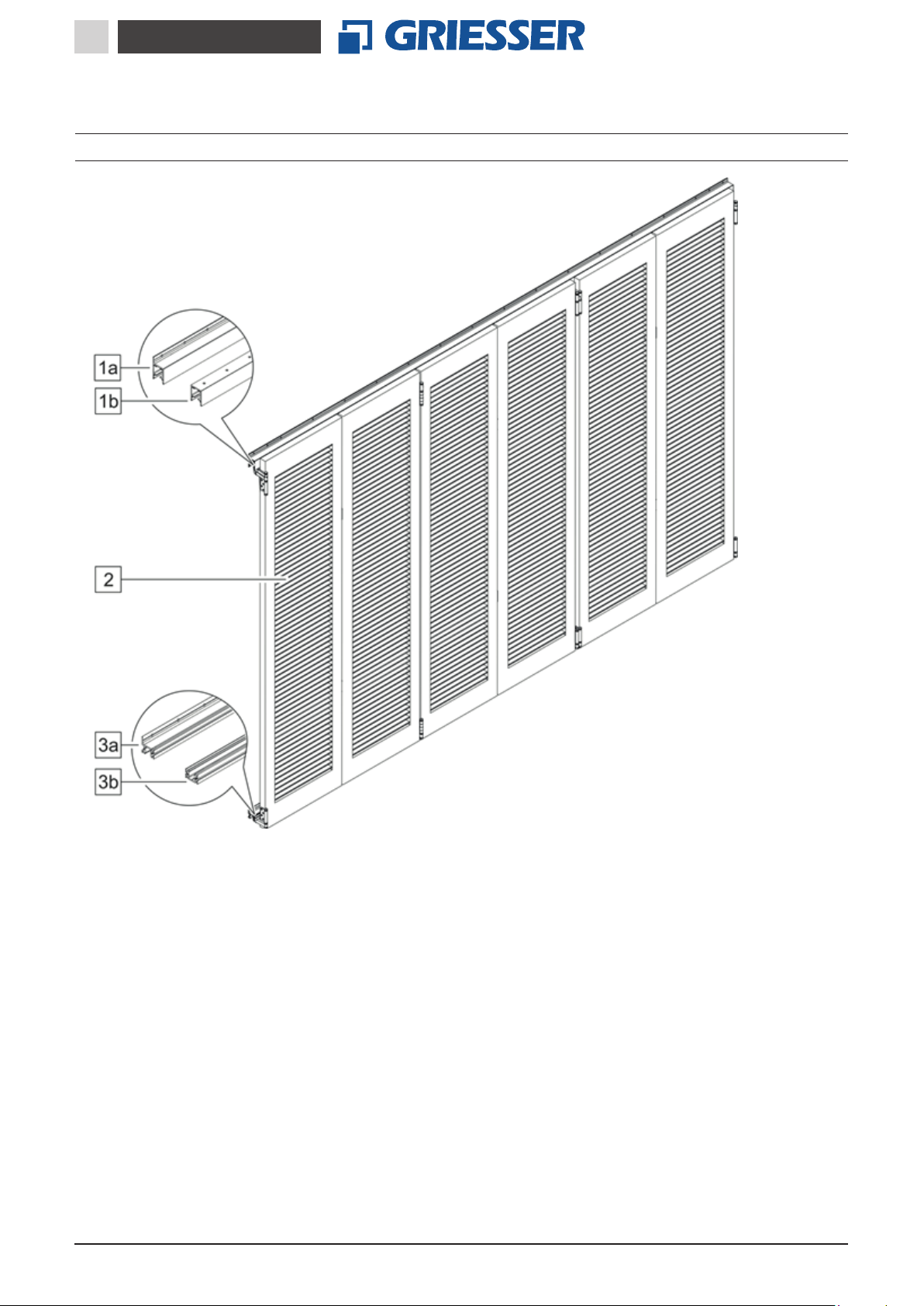

3.1 Exploded assembly drawing (external view)

3.2 Mounting accessories

Nr. Designation

1a Runner rail Typ FSR2

1b Runner rail Typ FSR1

2 Sash

3a Guide rails Typ FSR2

3b Guide rails Typ FSR1

Sliding bi-fold shutters

Version 01.18 6

3.3 Marking

Depending on the quantity, the components for the same sliding bi-fold shutter can be packed in

several cartons.

4 Mounting

4.1 Preparation for mounting

• Checking the installation dimensions

The main dimensions must be checked according to the dimension sheet prior to installation.The

installation tolerances according to the Technical Datasheet must be adhered to.

• Orientation at the installation site

Aids (table, crane, ladder, etc.)

Check material

• Distribute material (how and where)

Dimension sheets, manufacturing notes, Assembly instructions

• Study documents

Installation dimension check (width x height)

Sketches, drawings

4.2 Installation tolerances

Parallelism of the guides in all directions +/- 1 mm

Deviations from the perpendicular +/- 1 mm/system

No horizontal deviations.

4.3 Installation in an elevated area

Fall protection

Workers run the risk of falling when working at elevated heights. Suitable anti-fall guards must be

used.

Sliding bi-fold shutters

Version 01.18 7

4.4 Fasteners

In the installed condition, the sliding bi-fold shutter only meets the requirements of the given

wind class when

•the Runner rails, guide rails installed taking the permitted anchor plug extraction force into

consideration

•the processing guidelines of the used dowel pins were observed during assembly.

4.5 Design variants

Sliding bi-fold shutters

FSR1

Ceiling installation FSR2

Wall installation FSH1

Ceiling installation FSH2

Ceiling installation

Version 01.18 8

Construction tolerances may not be

compensated via the armatures!

Sliding bi-fold shutters

Attenzione

4.6 Installation runner and guide rail

Runner rail (top)

• Check the installation situation

• Fastening holes must be drilled

• Install the runner rail on the subsurface using suitable fastening material (no horizontal deviation!)

• Two additional screws are required for the parking position

Guide rail (bottom)

• With the fixed sash removed from the package, measure the distance to the guide rail (bottom).

• Drill fastening holes in line with the runner rail and fasten with fastening material

• Mount the window shutter and check that it runs freely

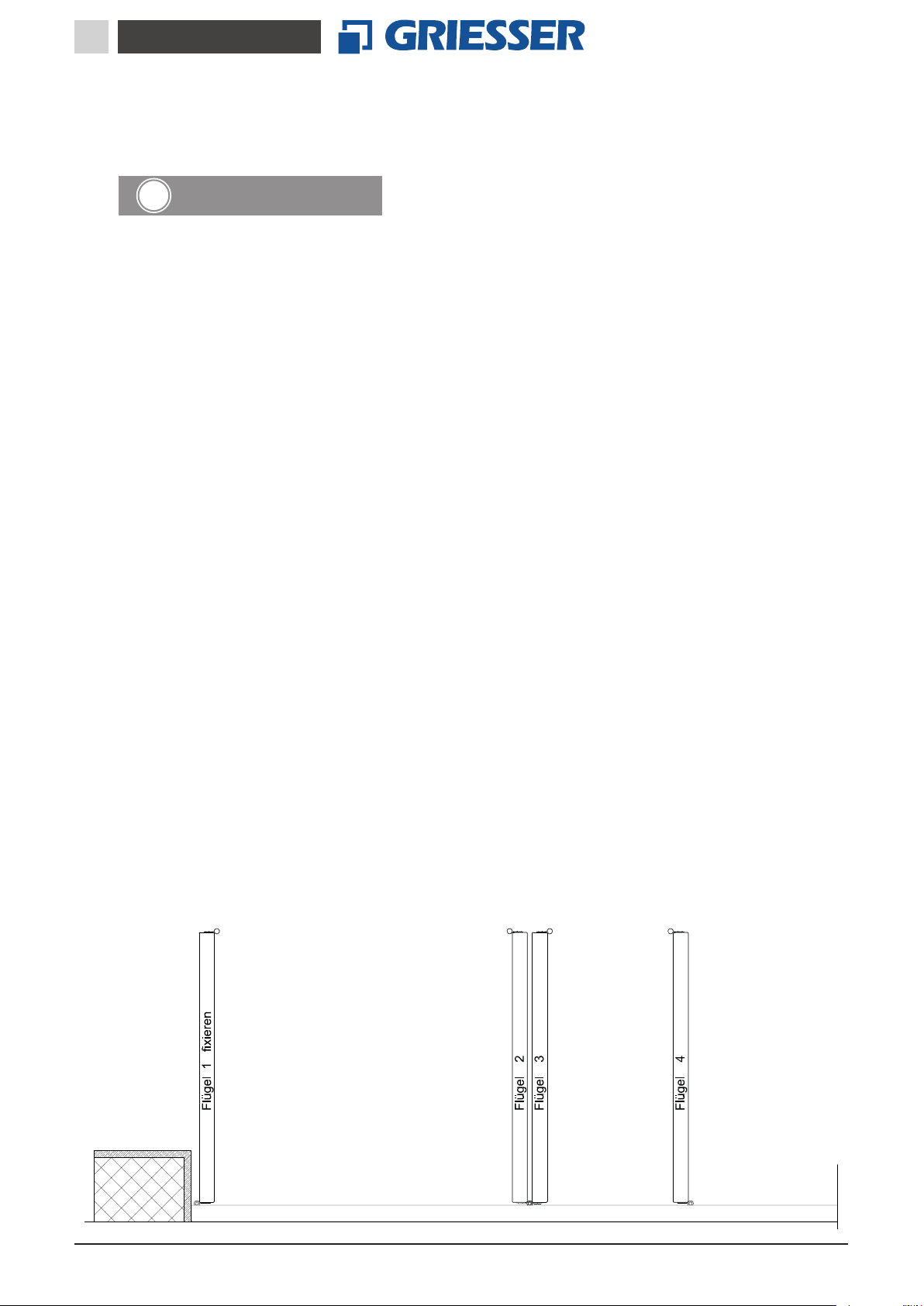

4.7 Shutter packages

• Verify which one is the fixed sash; it can be recognized by its armature

• Unhinge the pre-installed fixed sash from the shutter package by loosening the hinges

• Place the fixed sash in front of the window

• Install the fixed sash in accordance with the instructions on the following pages, then install the

sashes in pairs. Sashes 2 and 3, 4 and 5, etc.

FSH 1 und FSH 2

oben

FSH 1 und FSH 2

oben

Version 01.18 9

Sliding bi-fold shutters

FSR 1 + 2 top FSH 1 + 2 top

FSR 1 bottom FSH 1 bottom

FSR 2 bottom FSH 2 bottom

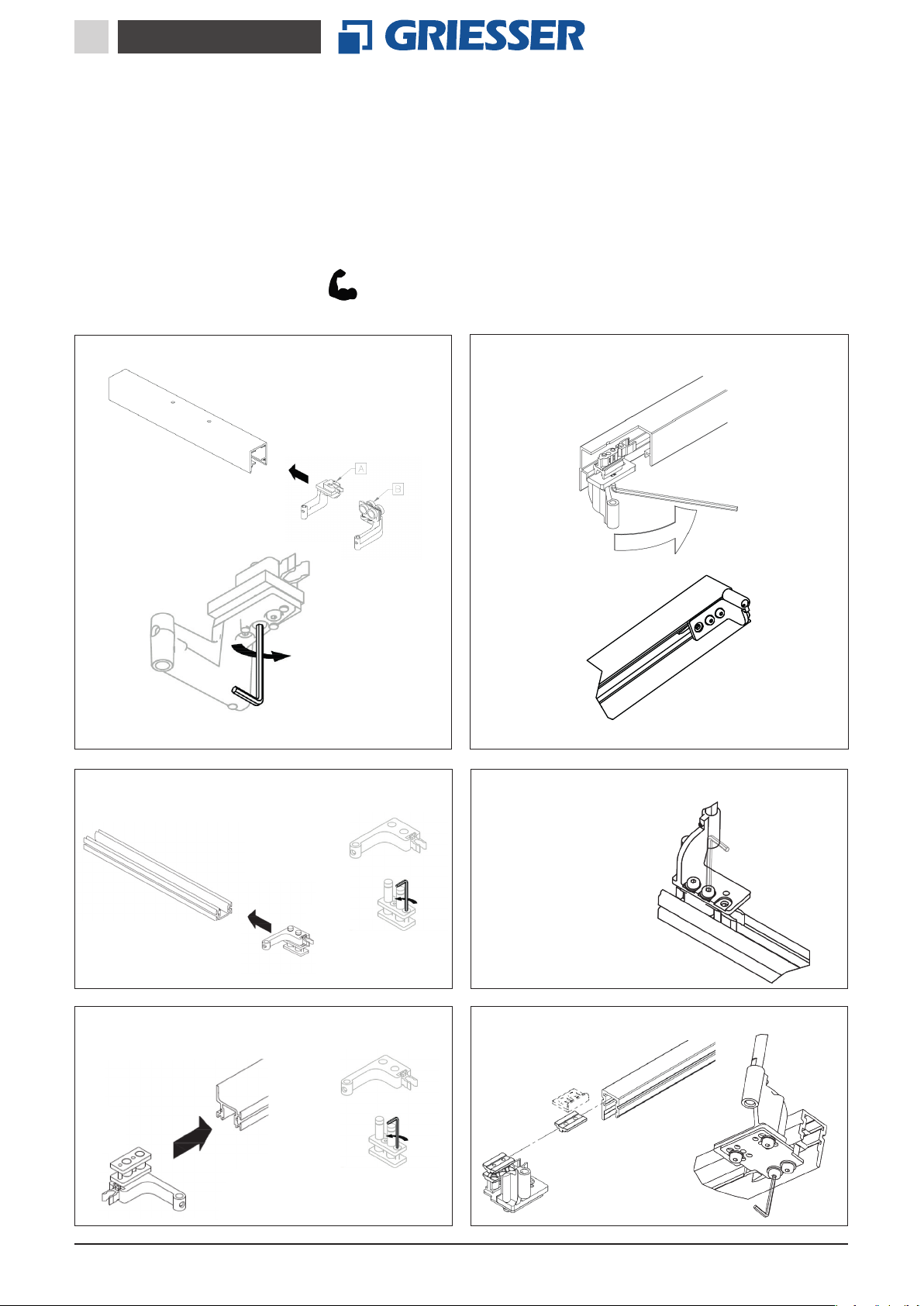

4.8 Installing the sashes

Align the fastening clamps at the top and bottom. Fasten the fastening clamps at the top and

bottom

Remove the connector between hinge and clamp while adjusting.

Fasten as much as possible ; depending on the diagram used, there may be deviations from

the images below

ROB Beschlag oben

ROB Beschlag unten

Version 01.18 10

Sliding bi-fold shutters

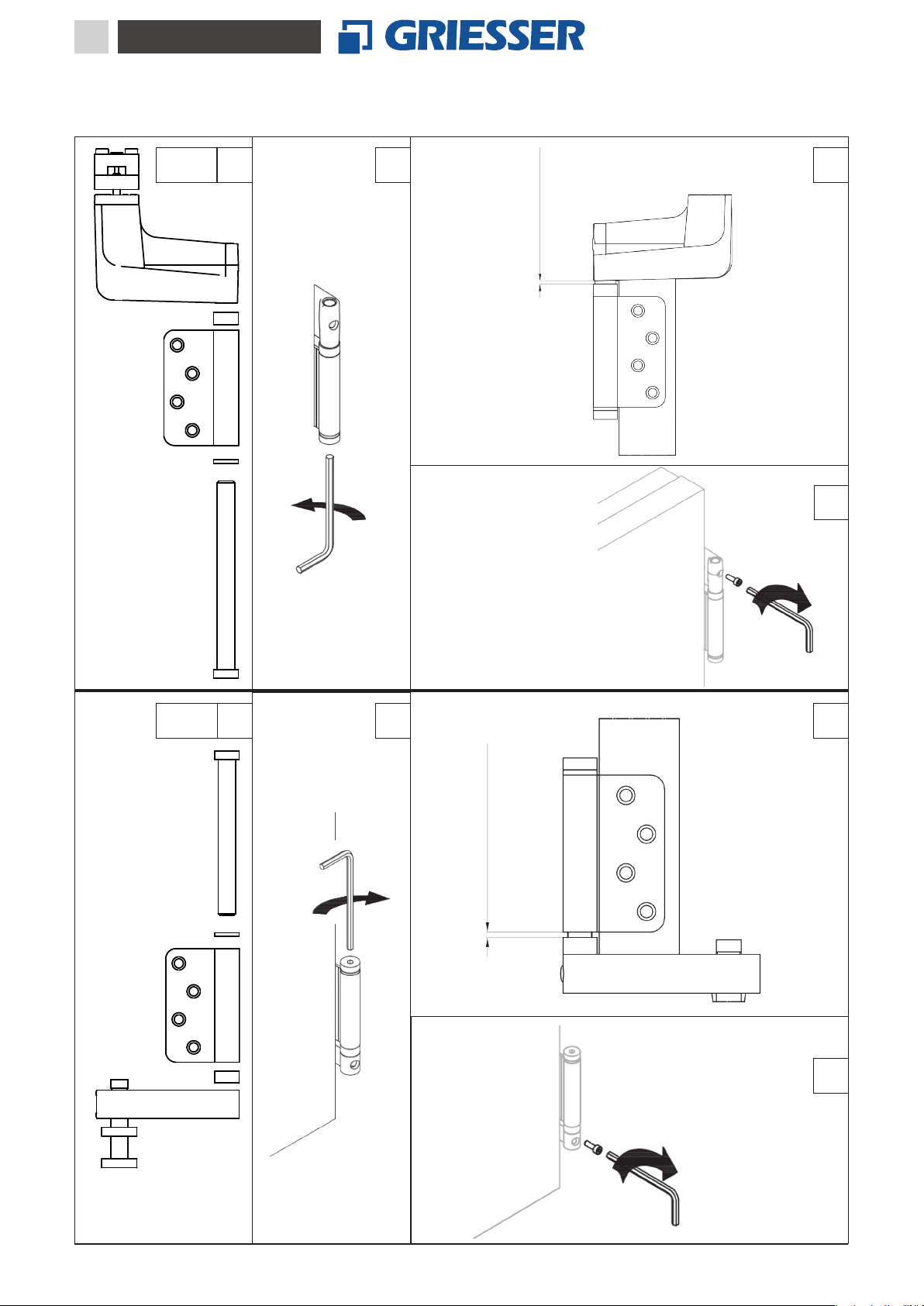

FSR - Details and safety features for top and bottom

top

bottom

Nominal dimension 2 mm

(min. 1 mm, max. 3 mm)

Nominal dimension 2 mm

(min. 1 mm,

max. 3 mm)
