Grindmaster B-DAP Manuale utente

Digitally controlled airpot brewer holds brew temperature to + 1°F throughout brew cycle.

Brew temperature, brew volume, operator defined pre-infusion/pulse brewing, and

low temp/no brew are programmable from the front display.

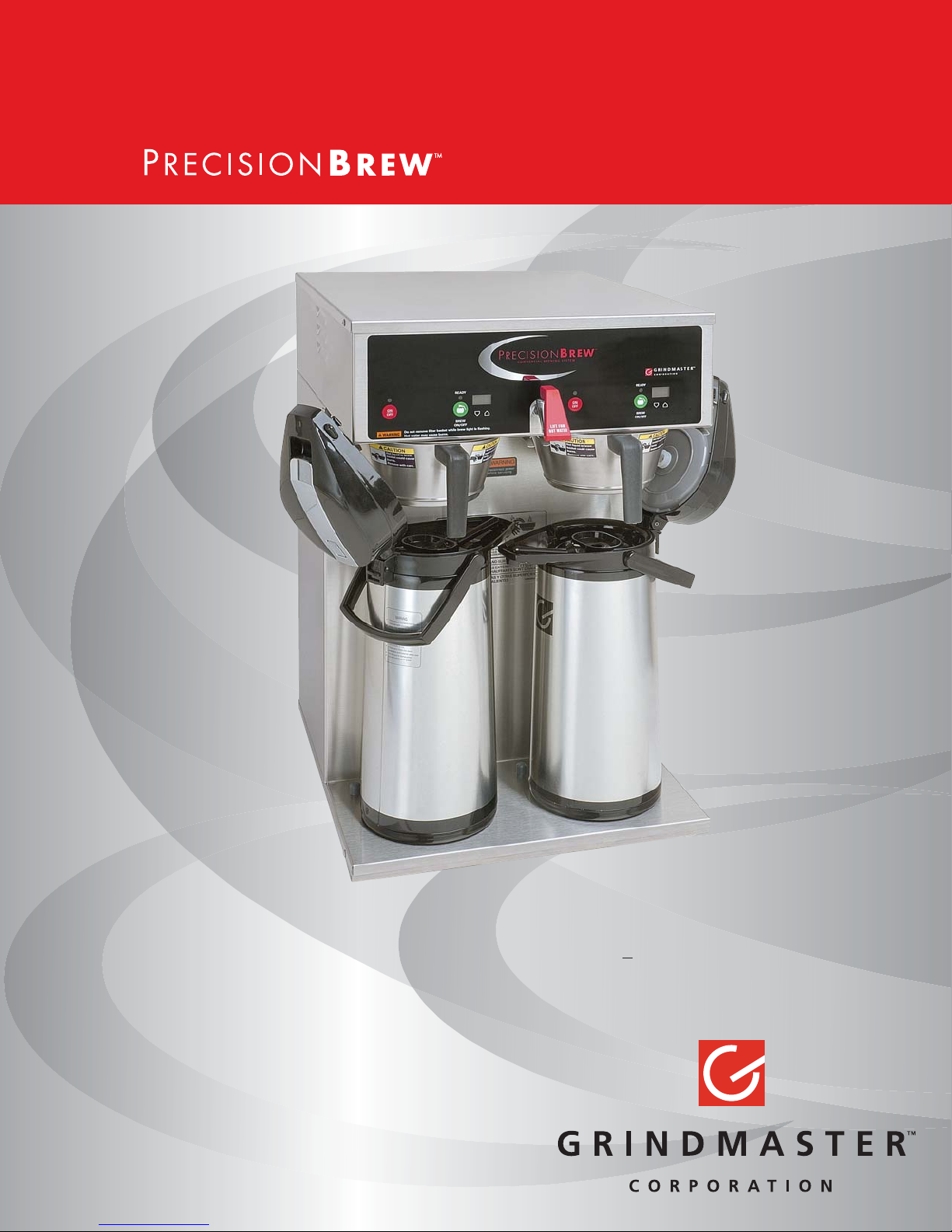

Model B-DAP

(Airpots sold separately)

Model B-DAP

Dual Airpot Brewer

Grindmaster® Coffee Grinders and Brewers • Espressimo® Espresso Machines • Crathco® Hot Beverage Dispensers

Crathco® Cold and Frozen Beverage Dispensers • American Metal Ware® Coffee and Tea Systems

Tel (502) 425-4776 • Fax (502) 425-4664 • 1-800-695-4500 (USA & Canada only)

P.O. Box 35020 • Louisville, KY 40232 • USA

www.grindmaster.com • email: info@grindmaster.com

Specification Model B-DAP

Electrical

120/240V, 6000W, 25A

120/208V, 4492W, 21.6A

European voltages available

Brew Capacity

(# of 2.2 liter airpots / hour)

@ 240V: 27

@ 208V: 23

Water Line 1/4” flare

Water Line Pressure 30 to 80 psi

Tank Drain Yes

Tank Size 4.3 Gallons

Dimensions (H x W x D) 25” H x 16-1/4” W x 17-3/4” D

(64 cm x 41 cm x 45 cm)

Ship Dimensions (H x W x D) 28” H x 20” W x 24” D

(71 cm x 51 cm x 61 cm)

Weight 46 lbs (21 kg)

Ship Weight 55 lbs (25 kg)

Listings UL, CUL, NSF, (CE for E models only)

0905 Form # AM-297-05

PRINTED IN USA

Model B-DAP

Specifications are subject to improvement or change without notice.

Features

•Model B-DAP is a twin, digitally controlled brewer that

brews into 2.2L (74oz) and 3.0L (101oz) Airpots.

(Airpots sold separately.)

•Airpots hold freshly brewed coffee for hours without

additional heat.

•High productivity - 6,000 watts of heating capacity.

•Precise Brew Temperature - The brewer will hold the brew

temperature to +/-1°F during the complete brew cycle.

•Brew Volume - Can be set by ‘teach’ mode to eliminate

trial-and-error set-up.

•Pulse brewing/pre-infusion - Allows the brew sequence to

extract up to 20% more dissolved solids per batch of

coffee. Programmable: number of pulses, pulse-on time

and pulse-off time. Changing the pulse sequence does not

affect the brew volume.

•Low Temp/No Brew - Allows the brew cycle to begin only

when the water has reached the optimum brew temperature.

•Cycle Counter - The brewer counts the total number of

brew cycles.

•Programming Lock-Out - The brewer settings can be

“locked” to prevent tampering.

•Gourmet Brew basket (pn 71431) available as an option.

•Warranty - 2 years parts and labor on the brewer. 4 years

part warranty on the control board.

0.38 - 0.63"

13.8

GOURMET

BASKET

2.7 17.8

24.5

14.6

STD

BASKET

16.2

Side View

Front View
