Introduction

Features include a pistol grip with trigger switch,

forward and reverse switch and 1⁄4" NPT female

air inlet. The 1⁄2" chuck accepts drill bits down

to 1⁄64" and includes a chuck key. The auxiliary

handle can be positioned anywhere around the

drill body.

Inventory

A. Air Drill ........................................................ 1

B. 1⁄4" NPT Quick Connect Fitting (male) ........ 1

C. Chuck Key .................................................. 1

D. Handle ........................................................ 1

E. Lock Collar ................................................. 1

Operation

Tool requires 90 PSI to operate correctly.

To improve tool lifespan, use a filter/lubricator/

regulator as shown in Figure 2. Otherwise, lubri-

cate daily with a couple drops of pneumatic tool oil

directly into the air fitting as shown in Figure 3.

MODEL H6139

1⁄2" REVERSIBLE AIR

DRILL

INSTRUCTION SHEET

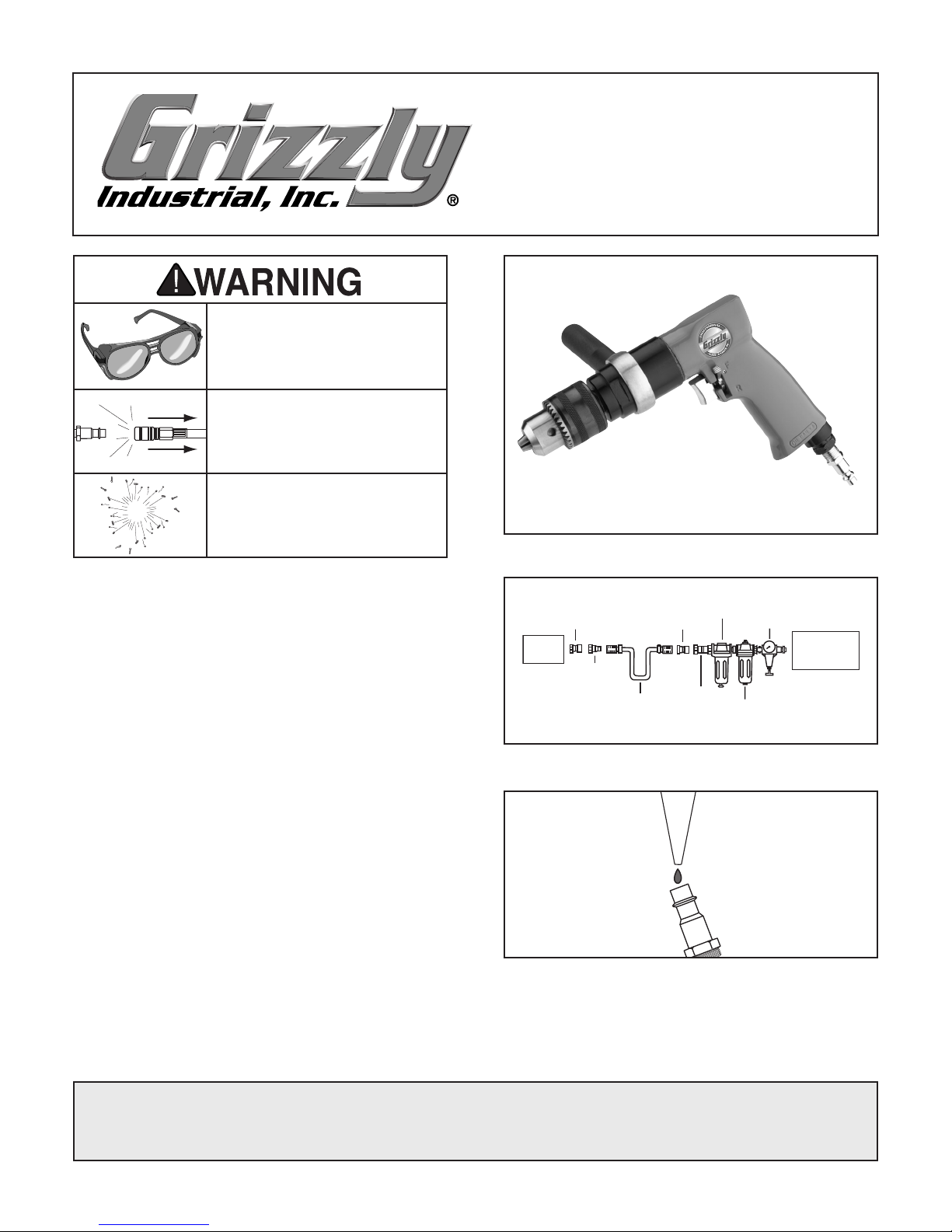

Figure 1. Model H6139.

Figure 3. Lubricating directly into air fitting.

If you need help with your new pneumatic tool,

call our Tech Support at: (570) 546-9663.

WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

#KM7955 PRINTED IN CHINA

EYE INJURY HAZARD!

Always wear safety glasses

when using this tool to

prevent serious personal

INJURY HAZARD!

Always disconnect tool from

air to prevent unexpected

operation during service.

EXPLOSION HAZARD!

Never exceed 120 PSI.

Quick

Connector

Quick

Coupler

Air Hose Quick

Coupler

Quick

Connector

Lubricator

Filter

Regulator

Air

Compressor

Your

Tool

Figure 2. Installing your tool.

H6139 Parts Breakdown and List

REF PART # DESCRIPTION REF PART # DESCRIPTION

1 PH6139001 AIR INLET 18 PH6139018 STEEL BALL

2 PH6139002 EXHAUST DEFLECTOR 19 PH6139019 FRONT PLATE

3 PH6139003 SPRING PIN 20 PH6139020 BEARING

4 PH6139004 HOUSING 21 PH6139021 WASHER

5 PH6139005 SPRING 22 PH6139022 GEAR LINK

6 PH6139006 O-RING 23 PH6139023 GEAR

7 PH6139007 VALVE STEM 24 PH6139024 PIN

8 PH6139008 O-RING 25 PH6139025 GEAR PLATE

9 PH6139009 REVERSE LEVER 26 PH6139026 GEAR SHAFT

10 PH6139010 TRIGGER 27 PH6139027 SHAFT

11 PH6139011 SCREW 28 PH6139028 BEARING

12 PH6139012 BEARING 29 PH6139029 CLAMP NUT

13 PH6139013 REAR PLATE 30 PH6139030 WASHER

14 PH6139014 STEEL BALL 31 PH6139031 DRILL CHUCK

15 PH6139015 CYLINDER 32 PH6139032 CHUCK SCREW

16 PH6139016 ROTOR 33 PH6139033 BUSHING

17 PH6139017 ROTOR BLADE 34 PH6139034 O-RING
