Grizzly T33682 Manuale utente

For questions or help with this product contact Tech Support at (570) 546-9663 or techsupport@grizzly.com

MODEL T33682

DRILL PRESS TRAY

INSTRUCTIONS

Introduction

***Keep for Future Reference***

The Model T33682 holds bits, chucks and other

equipment for your drill press. It easily mounts to a

drill press column up to 43⁄4" in diameter, and can

be conveniently rotated 360° during operations for

closer access.

The tray size is 113⁄8" across and has pre-drilled

mounting holes for bit sizes 1⁄16" to 1⁄2" in 32nd and

64th increments.

To reduce risk of serious

injury, read this entire

manual BEFORE using

drill press tray. Read and

understand instructions/

safety warnings provided

by manufacturer for any

machine or tool you plan to

use with this tray.

Figure 1. Model T33682.

Inventory

Contents (Figure 2) Qty

A. Tool Tray ..................................................... 1

B. Z-Bar 1⁄2" ..................................................... 1

C. Z-Bar 3⁄8" ..................................................... 1

D. Key Hose Clamps 5" .................................. 2

E. Z-Bar Adapter ............................................. 1

F. Mounting Block ........................................... 1

Figure 2. Inventory.

A B

NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

(FOR MODELS MFD. SINCE 07/23) #JM22675 PRINTED IN CHINA V1.07.23

-2- Model T33682 (Mfd. Since 07/23)

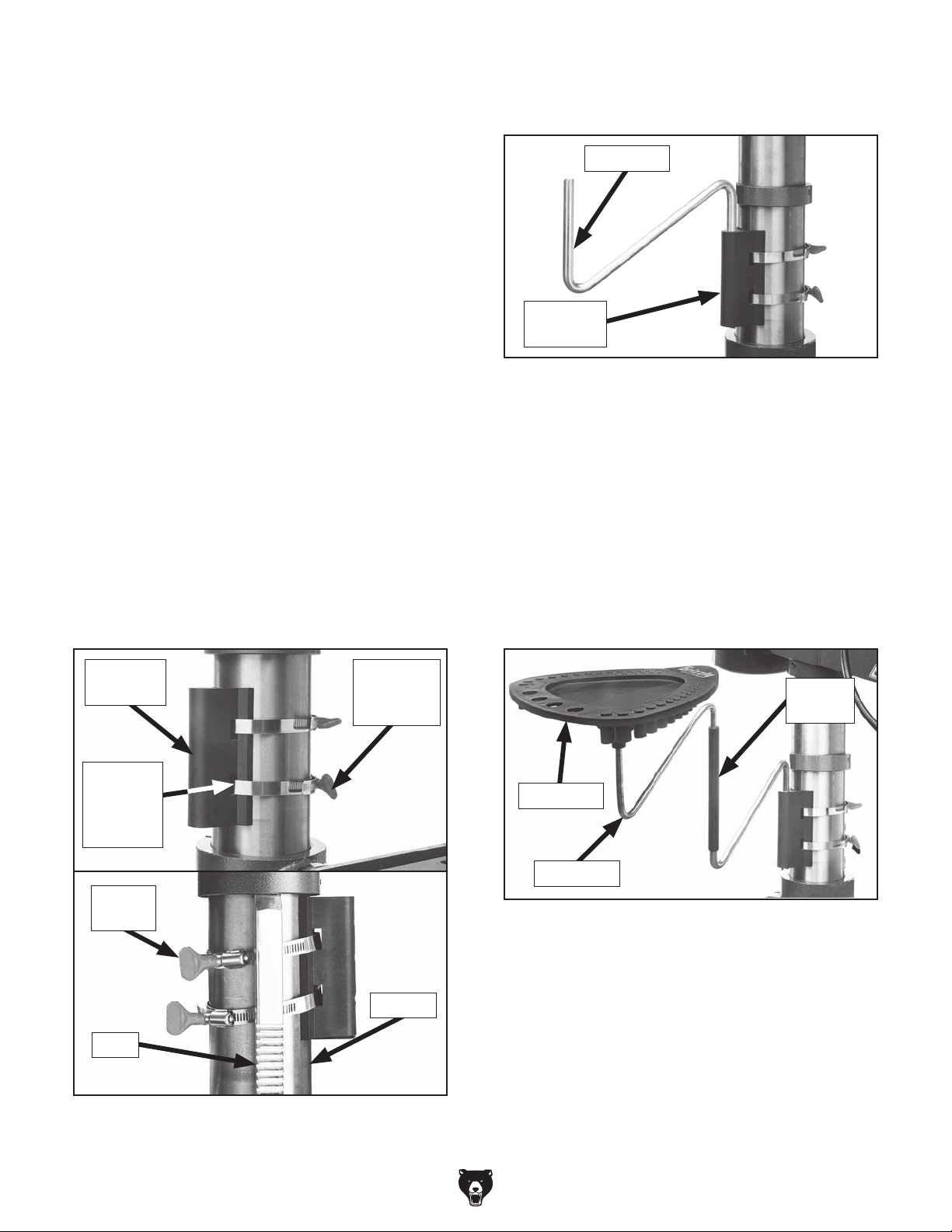

Installation

Installing the Model T33682 consists of clamping

the mounting block to the drill press column, and

installing the Z-bars, adapter, and tool tray.

Figure 4. 1⁄2" Z-bar installed.

Mounting

Block

1⁄2" Z-Bar

6. Mount Z-bar adapter on 1⁄2" Z-bar

(see Figure 5).

Note: Z-bar adapter has one end drilled at 3⁄8"

and one end drilled at 1⁄2".

7. Mount 3⁄8" Z - b a r i n t o Z - b a r a d a p t e r

(see Figure 5).

8. Insert tool tray on top of 3⁄8" Z - b a r

(see Figure 5).

5. Mount 1⁄2" Z-bar into mounting block

(see Figure 4).

Figure 5. Drill press tray installed.

Tool Tray

3⁄8" Z-Bar

Z-Bar

Adapter

To install drill press tray:

1. Unscrew hose clamp key until band is free of

shroud, then repeat with second hose clamp.

2. Feed clamp bands through slots in mounting

block, then slide clamp bands underneath

drill press rack (see Figure 3).

Note: Do not position clamps over rack. They

will interfere with movement of drill press

column.

3. Position mounting block on drill press column

(see Figure 3).

Note: Position mounting block high enough

on column so it does not interfere with table

movement.

4. Insert clamp bands in shrouds and tighten

until snug (see Figure 3).

Figure 3. Mounting block attached on drill press

column.

Column

Rack

Key Hose

Clamps

(1 of 2)

Mounting

Block

Mounting

Block

Slot

(1 of 2)

Clamp

(1 of 2)
