Grizzly DEEP DIGGER Manuale utente

Specications are subject to change without prior noticationDecember 2019

DEEP

DIGGER

RT007-RT011

XCDMGJT1

Grizzly Deep Digger RT007-RT011 PART NO. XCDMGJT1 ISSUE# 4 FROM SERIAL NO. 7027

2Specications are subject to change without prior notication From serial number 7027

page

1. Foreword 3

2. Welcome to Grizzly 4

3. The Right Machine 6

4. Pre-Delivery Checklist 7

5. Warranty Registration 9

6. Safe use Instructions 11

7. Warranty Policy 14

8. Specications      16

9. Assembly Instructions 18

10. Operating Instructions 21

11. Storage 25

12. Lubrication and Maintenance 26

13. Spare Parts 29

14. Maintenance Record 58

15. Problem Solving 59

Contents

Specications are subject to change without prior noticationDecember 2019

Materials in this manual may not be

reproduced in any form without permission

in part or in whole, this manual may not be

copied reproduced, translated, or reduced to

any electronic medium or machine readable

form without express written permission of the

publishers.

While the publishers have taken all

reasonable precautions to ensure the

accuracy of information contained in this

manual, it is a condition of use of this

manual that the publishers do not assume

any responsibility or liability for any loss or

damage which may result from any inaccuracy

or omission in the manual, or from the use

of the information contained herein; and the

publishers make no warranties expressed or

implied, with respect to any of the materials

contained herein.

Publishers:

Grizzly Engineering Pty Ltd

2 McAllister Road

Swan Hill VIC 3585

AUSTRALIA

www.grizzlyag.com.au

Foreword

Congratulations on your purchase of a

Grizzly Deep Digger, proudly designed and

manufactured in Australia to the highest level

of quality and performance. Your Grizzly Deep

Digger has been designed to give you the best

possible performance and serviceability over a

wide range of conditions and applications.

This booklet is provided to help you obtain the

best results from your machine.

The extent to which your machine performs to

it’s potential will depend upon:

1) That it is the correct machine for the task.

2) That it is used in conjunction with a tractor

of the correct specication.

3) That it is delivered in rst class mechanical

order, and is properly prepared for work.

4) That it is used correctly with understanding

of the various limitations and tolerances as

explained by your Grizzly Dealer, and in

this booklet.

5) That it is serviced and maintained regularly

as outlined in this booklet.

If you are uncertain of any aspect of your

machine’s performance, please refer to the

appropriate sections of this booklet, your

Grizzly Dealer or, if necessary, to Grizzly

Engineering Pty Ltd

4Specications are subject to change without prior notication From serial number 7027

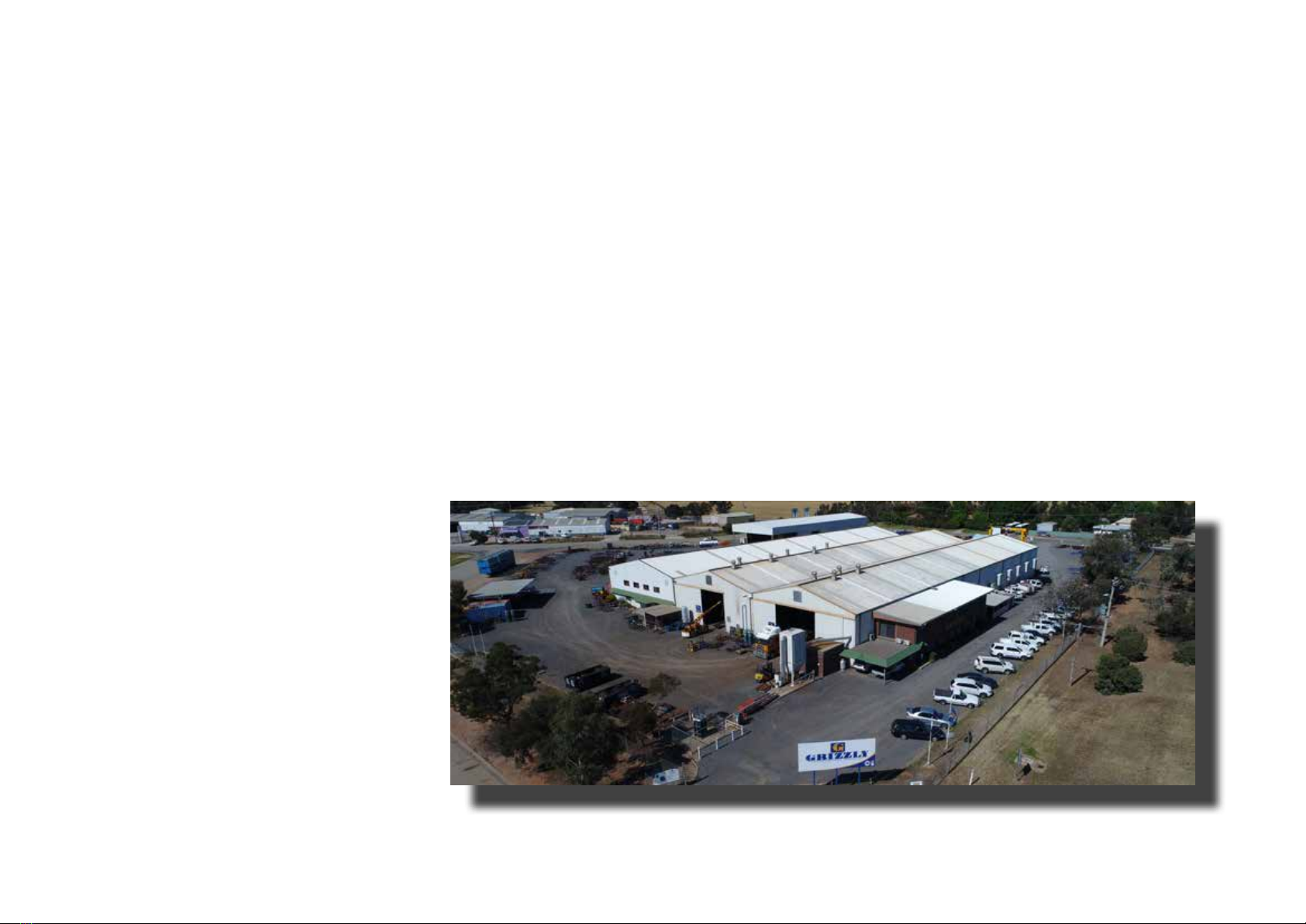

Factory and Head O󰀩ce located in Swan Hill Victoria Australia

2 Welcome to Grizzly

This manual includes safety, assembly, setting

up and operating instructions, as well as

lubrication, maintenance and problem solving

instructions, disc warranty guidelines and

assembly drawing and parts for the Deep

Digger range of machines.

Some components explained in this manual

may not be installed on your machine.

Replacement manuals are obtainable from

your Grizzly dealer.

CompanyProle

Australia’s largest manufacturer and exporter

of Disc ploughs, Grizzly Engineering Pty

Ltd is an Australian owned and operated

manufacturing company based at Swan Hill in

Victoria.

Like many other Australian icons of ingenuity,

the Grizzly plough was founded on need.

The Grizzly name was established in the

early 1980’s by country people with the will to

construct a better o󰀨set disc plough.

In 1983, a unique three gang, tandem o󰀨set

disc design was patented and released. This

innovative Grizzly plough provided complete

ploughing out (no unworked ridges), less

working draught, elimination of side draught

and longer disc life. Other new features, at

that time, included self phasing wheel lift and

improved scrapers.

Grizzly’s broad range of versatile ploughs

suit a wide variety of agricultural applications.

Sizes vary from 1.4 metres to 15.6 metres

working width.

Grizzly also manufacture Bankers,

Renovators, and a large range of subsoil and

row crop Rippers from 1 tine.

Advantages of Grizzly technology include

lower power requirements, signicant fuel

savings, reduced stress on components,

reduced maintenance costs, and greater

operator control allowing e󰀨ortless

adjustments for better performance.

The Grizzly product has earned a reputation

of uncompromising strength, performance and

reliability.

Each model is designed with inbuilt durability,

and accuracy, E󰀩ciency and easy operation

for sustainable farming practices.

Continued investment into research and

development plays a key role in the success

of the company’s product range

The company has a very successful and

loyal dealer network throughout Australia.

All dealers are backed by Grizzly training,

technical support and rapid delivery parts

replacement anywhere in Australia.

Specications are subject to change without prior noticationDecember 2019

Considerable practical research and

continued improvements have been

developed into all Grizzly products for the

best possible performance and durability.

This manual is designed to help you have a

better understanding of your machine and to

attain the best possible results from it. We are

grateful for the feedback we have received

over the years. We look forward to continued

constructive comment from new owners and

operators of Grizzly equipment.

The terms “left hand side” (LHS) and “right

hand side” (RHS), when used in reference to

the machine, mean viewed from behind.

ProductIdentication

The Deep Digger’s Serial Number Plate

is located at the front of the main frame. If

damage occurs to this Serial Number Plate,

serial numbers are also stamped into the

frame under the Serial Number Plate for

identication.

This plate shows:

- The Grizzly name.

- The machine’s model number .

- The machine’s serial number.

- Patent numbers.

Precise product identication is important and

must be used when seeking parts and service

for the Deep Digger, namely:

1 The model number and serial number.

2 The part number and description.

(Refer to the Parts section of this Manual).

For quick reference, we suggest writing your

Deep Digger’s model number and serial

number in the space below:

Model No: .......................................................

Serial No: ........................................................

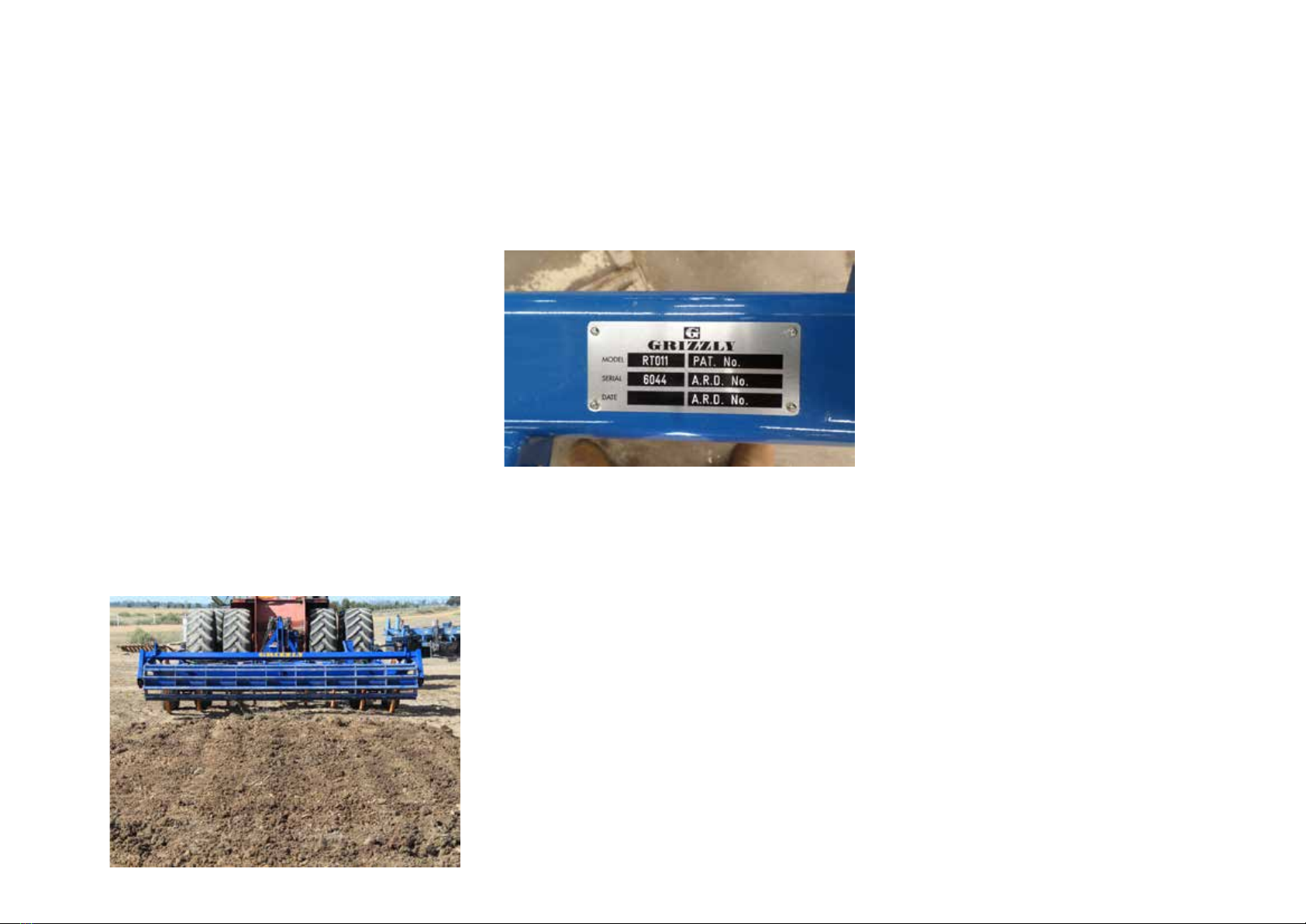

Above: The serial number plate is located at the

front of the main frame

2 Welcome to Grizzly

LEFT RIGHT

6Specications are subject to change without prior notication From serial number 7027

3 The Right Machine

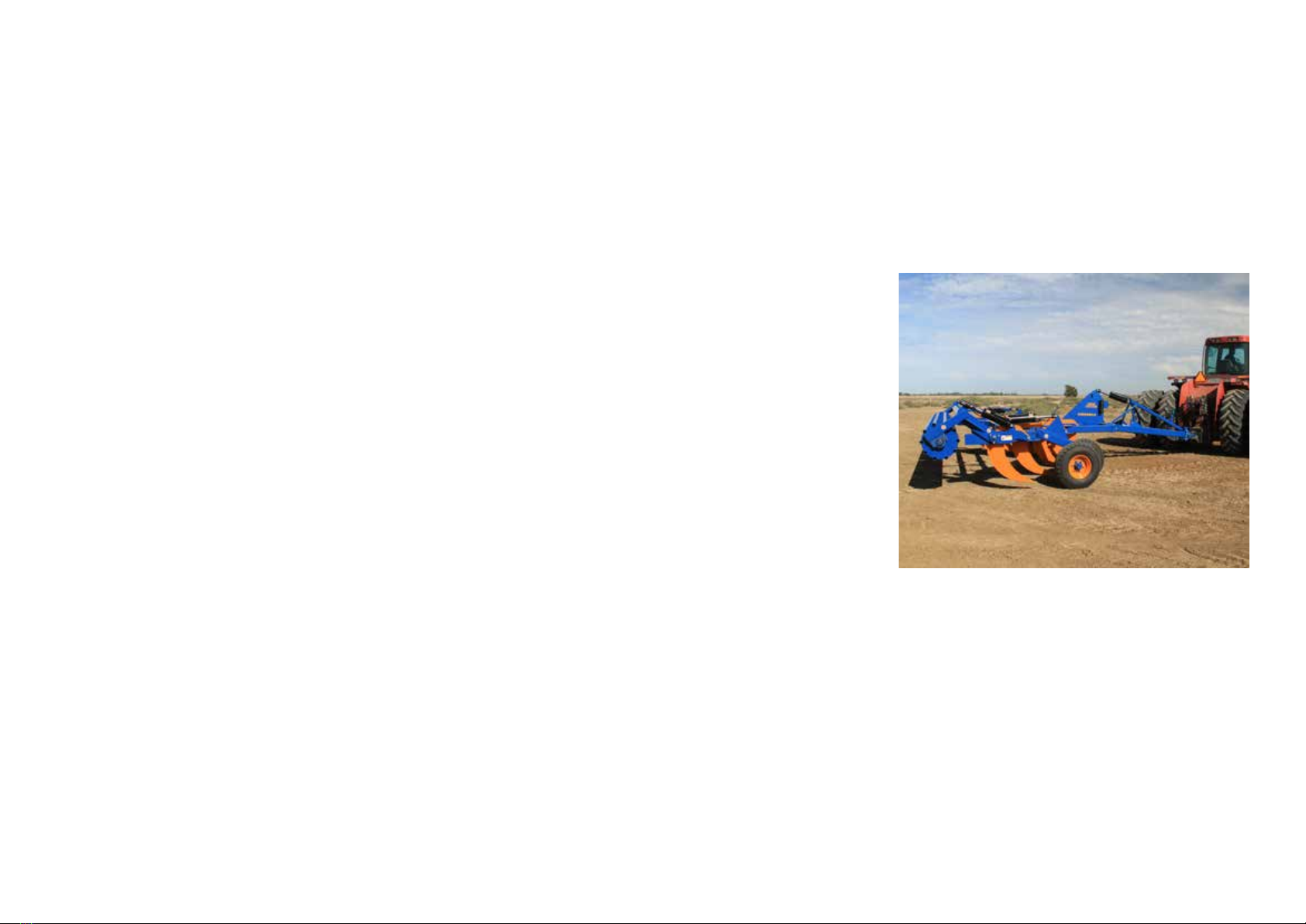

The Grizzly Deep Digger is a heavy duty, fuel

e󰀩cient, deep ripping machine for breaking

up sub-soil hard pans. It is also used for deep

cultivation applications and in conjunction with

Agricultural architects where land forming,

laser levelling and sub-soil ripping is required.

The action of the Deep Digger tine fractures

the structure of the sub-soil so that drainage,

root growth and the process of mineral

osmosis is enhanced. This leads to better

growth and higher crop yields in most

compacted soils. The Deep Digger is also

used to bring small stumps and roots, to

the surface, ie grape vines to prepare for

cultivation or laser levelling. All tasks or

applications are performed with minimal

disturbance to the soil surface.

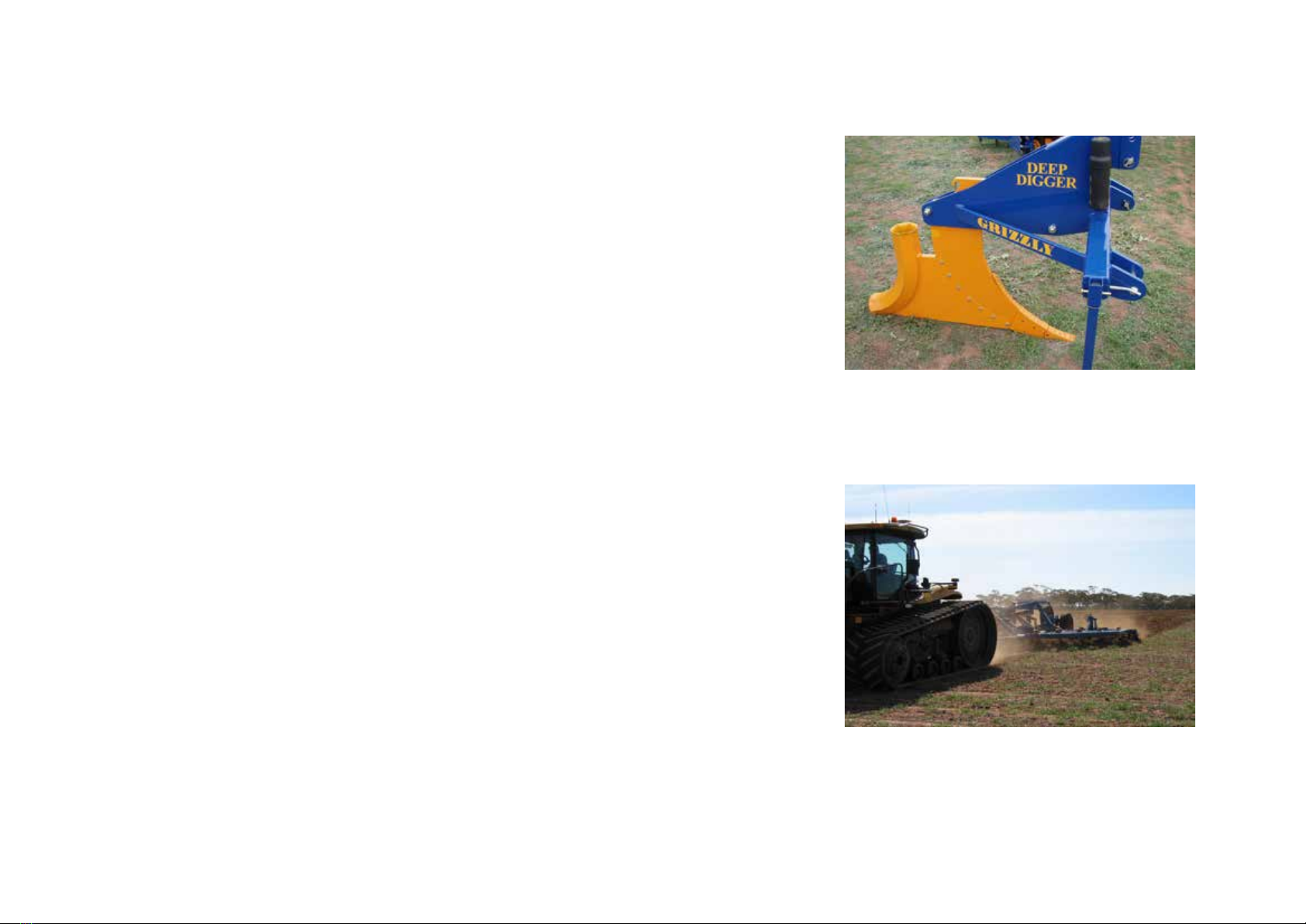

The Deep Digger features parabolic tines

congured in a “V” formation for ease of

penetration, better traction and greater

implement strength. Tines are constructed

of 350 grade steel plate for excellent wear

resistance. A rounded edge spring steel

wear bar and replaceable point increase the

e󰀨ective action and life of the tine. All tines

are tted with shear pins to prevent damage

to the frame in rough conditions. Tines can

be individually locked up in a non-working

position for narrower working width or wider

tine spacing.

The Grizzly Deep Digger is available in either

linkage models ranging in size from one to

nine tines or We trust the Deep Digger will

play an important part in your farming program

for many years to come.

Specications are subject to change without prior noticationDecember 2019

8Specications are subject to change without prior notication From serial number 7027

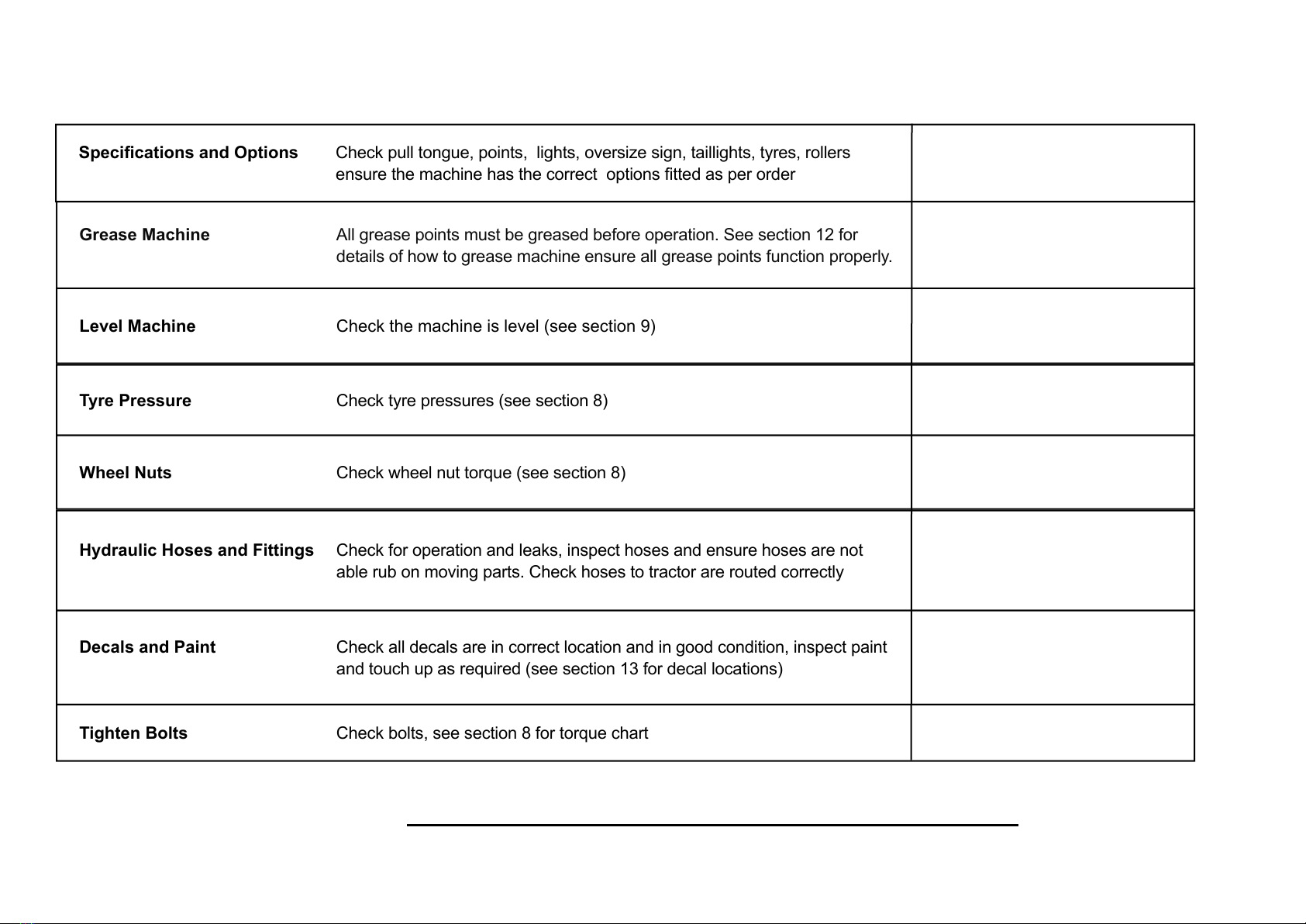

Tyre Pressure Check tyre pressures (see section 8)

Wheel Nuts Check wheel nut torque (see section 8)

Level Machine Check the machine is level (see section 9)

Grease Machine All grease points must be greased before operation. See section 12 for

details of how to grease machine ensure all grease points function properly.

4 Pre-Delivery Checklist

Hydraulic Hoses and Fittings Check for operation and leaks, inspect hoses and ensure hoses are not

able rub on moving parts. Check hoses to tractor are routed correctly

Decals and Paint Check all decals are in correct location and in good condition, inspect paint

and touch up as required (see section 13 for decal locations)

Specications and Options Check pull tongue, points, lights, oversize sign, taillights, tyres, rollers

     ensurethemachinehasthecorrectoptionsttedasperorder

Tighten Bolts Check bolts, see section 8 for torque chart

All checks done and correct Name Sign Date____/____/____

Comments

Specications are subject to change without prior noticationDecember 2019

warranty

registration

10 Specications are subject to change without prior notication From serial number 7027

back of warranty

rego
