Grizzly H3117 Manuale utente

1821 VALENCIA ST., BELLINGHAM, WA 98227

WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

PRINTED IN CHINA

MINI GRINDER

MODEL H3117

INSTRUCTION MANUAL

WARNING

Some dust created by power sanding, sawing, grind-

ing, drilling, and other construction activities contains

chemicals known to the State of California to cause

cancer, birth defects or other reproductive harm.

Some examples of these chemicals are:

• Lead from lead-based paints.

•Crystalline silica from bricks, cement, and

other masonry products.

• Arsenic and chromium from chemically

treated lumber.

Your risk from these exposures varies, depending on

how often you do this type of work. To reduce your

exposure to these chemicals: work in a well ventilated

area, and work with approved safety equipment, such

as those dust masks that are specially designed to fil-

ter out microscopic particles.

H3117 Mini Grinder

For Your Own Safety Read Instruction Manual

Before Operating This Equipment

Indicates an imminently hazardous situation which, if

not avoided, WILL result in death or serious injury.

Indicates a potentially hazardous situation which, if

not avoided, COULD result in death or serious injury.

Indicates a potentially hazardous situation which, if

not avoided, MAY result in minor or moderate injury.

It may also be used to alert against unsafe practices.

This symbol is used to alert the user to useful information

about proper operation of the equipment.

The purpose of safety symbols is to attract your attention to possible hazardous

conditions. This manual uses a series of symbols and signal words which are

intended to convey the level of importance of the safety messages. The progres-

sion of symbols is described below. Remember that safety messages by them-

selves do not eliminate danger and are not a substitute for proper accident pre-

vention measures.

NOTICE

Safety Instructions

1. KEEP ALL SAFETY DEVICES IN

PLACE and in working order.

2. REMOVE ADJUSTING KEYS AND

WRENCHES. Form habit of check-

ing to see that keys and adjusting

wrenches are removed from winch

before operation.

3. KEEP CHILDREN AWAY. All chil-

dren should be kept at a safe dis-

tance from winch.

4. DO NOT USE UNDER THE INFLU-

ENCE OF DRUGS OR ALCOHOL.

5. NEVER ALLOW UNTRAINED

USERS TO RUN THIS TOOL

WHILE UNSUPERVISED.

SAFETY

6. WEAR PROPER APPAREL. Do

not wear loose clothing, gloves,

neckties, rings, bracelets, or other

jewelry which may get caught in

moving parts. Non-slip footwear is

recommended. Wear protective

hair covering to contain long hair.

7. ALWAYS USE SAFETY GLASS-

ES. Also use face or dust mask if

cutting operation is dusty. Everyday

eyeglasses only have impact resis-

tant lenses, they are NOT safety

glasses.

8. IF YOU ARE UNSURE OF THE

INTENDED OPERATION, STOP

USING THE TOOL.

-1-

H3117 Mini Grinder

-2-

9. USE PROPER EXTENSION CORD

for the tool. Make sure your exten-

sion cord is in good condition.

Conductor size should be in accor-

dance with the chart below. The

amperage rating should be listed on

the motor or tool nameplate. An

undersized cord will cause a drop in

line voltage resulting in loss of power

and overheating. Your extension

cord must also contain a ground wire

and plug pin. Always repair or

replace extension cords if they

become damaged.

Minimum Gauge for Extension Cords

10. WEAR PROPER APPAREL. Do not

wear loose clothing, gloves, neck-

ties, rings, bracelets, or other jewel-

ry which may get caught in moving

parts. Non-slip footwear is recom-

mended. Wear protective hair cover-

ing to contain long hair.

11. ALWAYS USE SAFETY GLASSES.

Also use face or dust mask if cutting

operation is dusty. Everyday eye-

glasses only have impact resistant

lenses, they are NOT safety glass-

es.

12. SECURE WORK. Use clamps or a

vise to hold work when practical. It’s

safer than using your hand and frees

both hands to operate tool.

13. DON’T OVERREACH. Keep proper

footing and balance at all times.

Safety Instructions For Power Tools

14. MAINTAIN TOOLS WITH CARE.

Keep tools sharp and clean for

best and safest performance.

Follow instructions for lubricating

and changing accessories.

15. DISCONNECT TOOLS before ser-

vicing and changing accessories,

such as blades, bits, cutters, and

the like.

16. REDUCE THE RISK OF UNIN-

TENTIONAL STARTING. Make

sure switch is in off position before

plugging in.

17. USE RECOMMENDED ACCES-

SORIES. Consult the owner’s

manual for recommended acces-

sories. The use of improper acces-

sories may cause risk of injury.

18. CHECK DAMAGED PARTS.

Before further use of the tool, a

guard or other part that is dam-

aged should be carefully checked

to determine that it will operate

properly and perform its intended

function. Check for alignment of

moving parts, binding of moving

parts, breakage of parts, mount-

ing, and any other conditions that

may affect its operation. A guard or

other part that is damaged should

be properly repaired or replaced.

AMP LENGTH

RATING 25ft 50ft 100ft

0-6 18 16 16

7-10 18 16 14

11-12 16 16 14

13-16 14 12 12

17-20 12 12 10

21-30 10 10 No

No list of safety guidelines can be

complete. Operating this tool may

require additional safety precau-

tions specific to your working

environment. Failure to use rea-

sonable caution while operating

this tool could result in serious

personal injury.

H3117 Mini Grinder -3-

INTRODUCTION

The specifications, details, and pho-

tographs in this manual represent the

Model H3117 as supplied when the manu-

al was prepared. However, owing to

Grizzly’s policy of continuous improve-

ment, changes may be made at any time

with no obligation on the part of Grizzly. If

you have any comments regarding this

manual, please write to us at the address

below:

Grizzly Industrial, Inc.

C/O Technical Documentation

P.O. Box 2069

Bellingham, WA 98227-2069

Most importantly, we stand behind our

tools. If you have any service questions or

parts requests, please call or write us at

the location listed below.

Grizzly Industrial, Inc.

1203 Lycoming Mall Circle

Muncy, PA 17756

Phone: (570) 546-9663

Fax: (800) 438-5901

E-Mail: [email protected]

Web Site: http://www.grizzly.com

Commentary

We are proud to offer the Grizzly Model

H3117 Mini Grinder. This model is part of

a growing Grizzly family of fine tools.

When used according to the guidelines set

forth in this manual, you can expect years

of trouble-free, enjoyable operation and

proof of Grizzly’s commitment to customer

satisfaction.

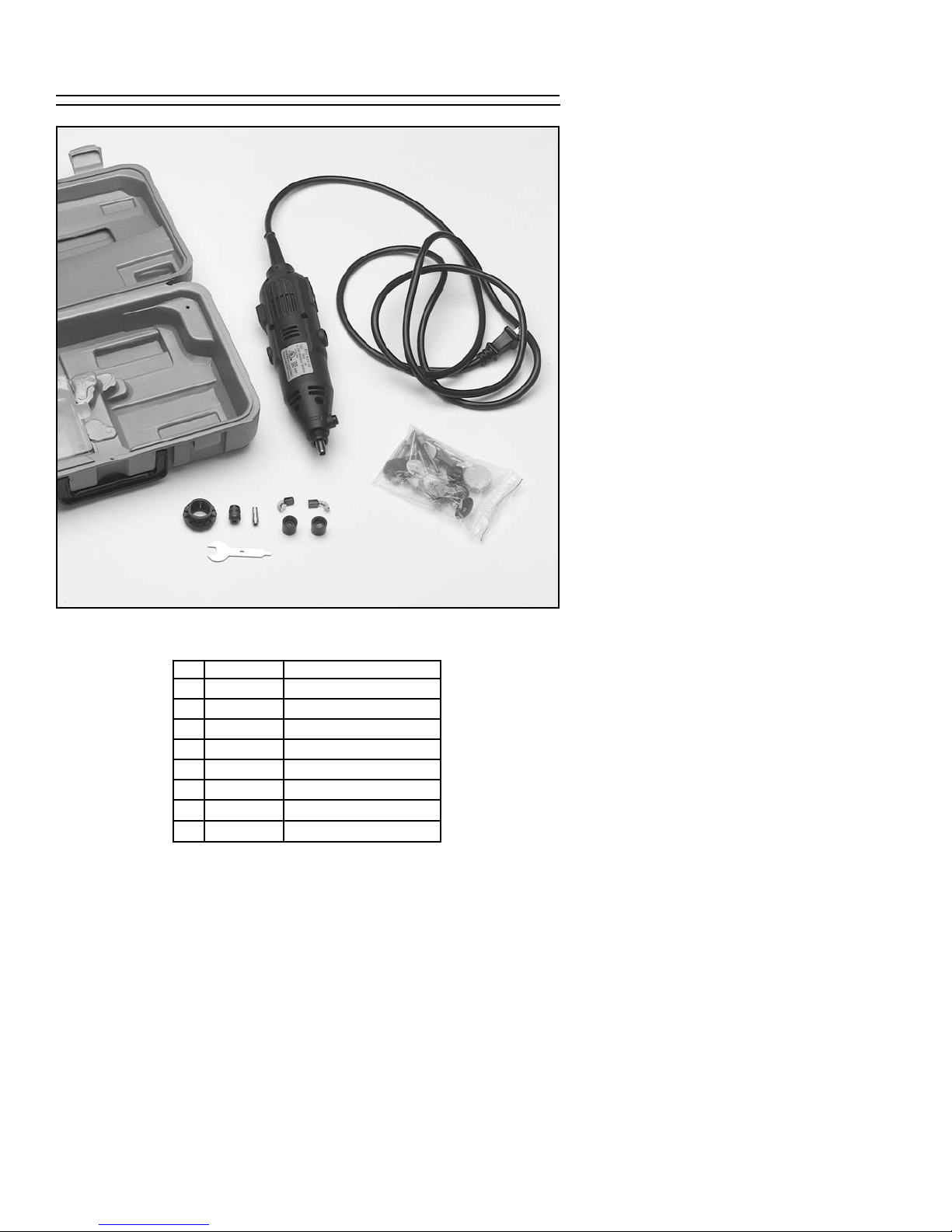

The Model H3117 features a 1⁄8" collet, a

collet lock, a collet wrench, removable

electric motor brushes, a variable speed

dial, and a wide assortment of bits.

We are pleased to provide this manual

with the Model H3117. It was written to

encourage safety considerations and

guide you through general operating pro-

cedures and maintenance. This manual

represents our effort to produce the best

documentation possible.

Lack of familiarity with this manual

could cause serious personal injury.

Spend a sufficient amount of time

becoming familiar the contents of

this manual, including all the safety

warnings.

H3117 Mini Grinder

-4-

OPERATION

Installing Bits

The Model H3117 can use most bits and

cutters that have a 1⁄8" diameter shaft. See

the Grizzly catalog or website for a com-

plete listing of available bits and acces-

sories.

To install a bit:

1. Unplug the tool from the power

source!

2. Depress the Collet Lock. The Collet

Lock is a small black button near the ip

of the Grinder. Initially the Collet Lock

may not depress when pushed; how-

ever, continue to apply and hold pres-

sure on the Collet Lock.

3. While applying pressure to the Collet

Lock, use your other hand to rotate the

Collet Nut and loosen it. At some point

through the rotation the Collet Lock will

engage, preventing further rotation of

the Collet Nut.

4. With the Collet Lock engaged, the

Collet Nut should easily loosen and

unthread by hand. DO NOT complete-

ly remove the Collet Nut from the shaft.

5. Insert the end of a bit into the Collet. At

least 1⁄2" of the bit shaft should be

mounted into the end of the Collet.

6. While depressing the Collet Lock,

rotate the Collet Nut to secure the bit.

Only hand tighten the bit. Excessive

tightening with the Collet Wrench is not

necessary.

Before Start Up

1. Be sure the bit and the Collet Nut are

secure on the grinder shaft.

2. Wear safety glasses and a dust mask

when operating the grinder.

3. Turn the Power Switch to the OFF “—”

position.

4. Plug the grinder into the power source.

DO NOT use bits or cutters with a

cutting surface larger than 1" in

diameter. The bit could break apart

under the stresses of high speed use

causing serious personal injury.

About Your New Grinder

The Grizzly Model H3117 is a variable

speed, rotary-style tool capable of speeds

from 0-30,000 RPM. It is capable of a wide

range of grinding, cutting, polishing,

drilling, engraving, and cut-off operations.

Please take the time to become familiar

with this instruction manual. The informa-

tion contained will allow you to get the

maximum enjoyment and use from your

new tool.

H3117 Mini Grinder -5-

High RPM Uses

Higher RPM settings are best for general

carving, cutting, routing, and grinding. The

grinder will perform more work at faster

RPM settings.

Low RPM Uses

Lower RPM settings are best for grinding

and cutting materials that have low melting

points. Plastics in particular will often melt

from the extreme heat generated by high

speed bits.

Low RPM settings are also ideal for polish-

ing and buffing with the felt accessories

included.

Use low RPM settings when working

with plastics or other materials with

low melting points. Melted plastics

can liquefy, be thrown into the air,

and stick to the operator, causing

serious personal injury.

The Model H3117 is best suited for high

RPM, low torque applications. Most opera-

tions performed with the grinder will per-

form best at the higher RPM settings; how-

ever, slower RPM settings are ideal when

working with plastics that melt easily.

Always test the bit and RPM combination

on a scrap piece of material similar to the

workpiece. Trial and error is the best way

to determine the ideal setup.

To use the grinder:

1. Grasp the grinder with a secure grip.

2. Turn the Power Switch to the ON “O”

position.

3. Adjust the Speed Dial to change the

RPM. “1” is the lowest RPM and “Max”

is the highest RPM. The best speed for

each job can vary.

Using The Grinder

Failure to wear safety glasses while

operating the grinder could cause

serious personal eye injury.

H3117 Mini Grinder

-6-

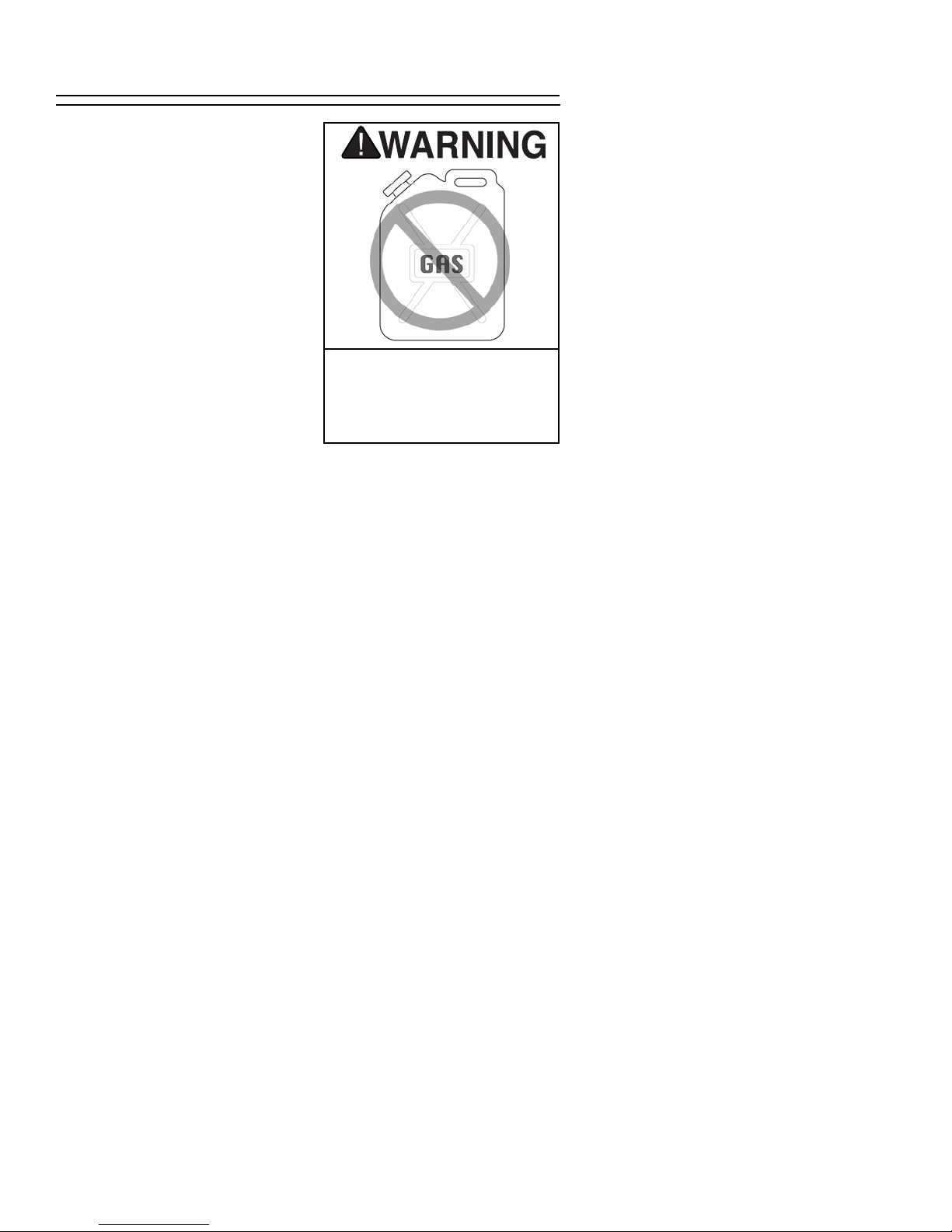

Gasoline or petroleum products used

to clean the tool could explode caus-

ing serious personal injury. DO NOT

use gasoline or petroleum products

to clean the tool.

Unplug the grinder from the power

source before performing any mainte-

nance!

Carbon Brushes

The Model H3117 has a brush-type electric

motor. Periodically remove and inspect the

2 carbon brushes under the Brush Covers.

New brushes have a grey-copper color. If

the brushes are pitted, cracked, or are

black colored, replace them.

Cleaning The Grinder

While wearing safety glasses, periodically

clean the grinder with compressed air. DO

NOT use flammable products to clean the

grinder.

Repairs

The Model H3117 is an insulated and UL®

listed tool which should only be repaired by

a qualified technician. DO NOT attempt to

open the tool housing or perform any elec-

trical repair. Contact or Customer Service

Department if the tool stops working or

malfunctions.

MAINTENANCE

H3117 Mini Grinder -7-

01 PH3117001 GRINDER ASSEMBLY

02` PH3117002 COLLET NUT

03 PH3117003 COLLET

04 PH3117004 MOTOR BRUSH (2)

05 PH3117005 BRUSH COVER (2)

06 PH3117006 NOSE

07 PH3117007 COLLET WRENCH

08 PH3117008 BIT ACCESSORY KIT

09 PH3117009 CARRYING CASE

REF PART # DESCRIPTION

PARTS

23 4

H3117 Mini Grinder

-8-

NOTES

Indice

Altri manuali Grizzly Macinacaffè

Manuali Macinacaffè popolari di altre marche

Parkside

Parkside PWS 230 C3 Manuale utente

SUHNER ABRASIVE

SUHNER ABRASIVE ASC 9 Manuale tecnico

PTA

PTA P1322 Manuale utente

Crown

Crown CT13313 Manuale utente

Parkside

Parkside 280250 Manuale utente

Climax

Climax VM2150 Series Manuale utente

Jet

Jet JPSG-618M1 Manuale di servizio

Makita

Makita GA4030 Manuale utente

DeWalt

DeWalt DWEN202 Manuale utente

Fein

Fein MSf843-1a Manuale utente

Bosch

Bosch GWS 14,4 V PROFESSIONAL Manuale utente

RAMSET

RAMSET CBAGR18 Manuale utente

Bosch

Bosch 8-115 Z Manuale utente

STEELE PRODUCTS

STEELE PRODUCTS SP-PB008 Manuale utente

MW TOOLS

MW TOOLS ME15W Manuale utente

Caravaggi

Caravaggi SP 20 Istruzioni operative

SUHNER ABRASIVE

SUHNER ABRASIVE UWK 10-R125 Manuale tecnico

Metabo

Metabo WEF 9-125 Quick Manuale utente
