INSPECTION RECORD

of Model G0509G

Precision Lathe

TJ9037

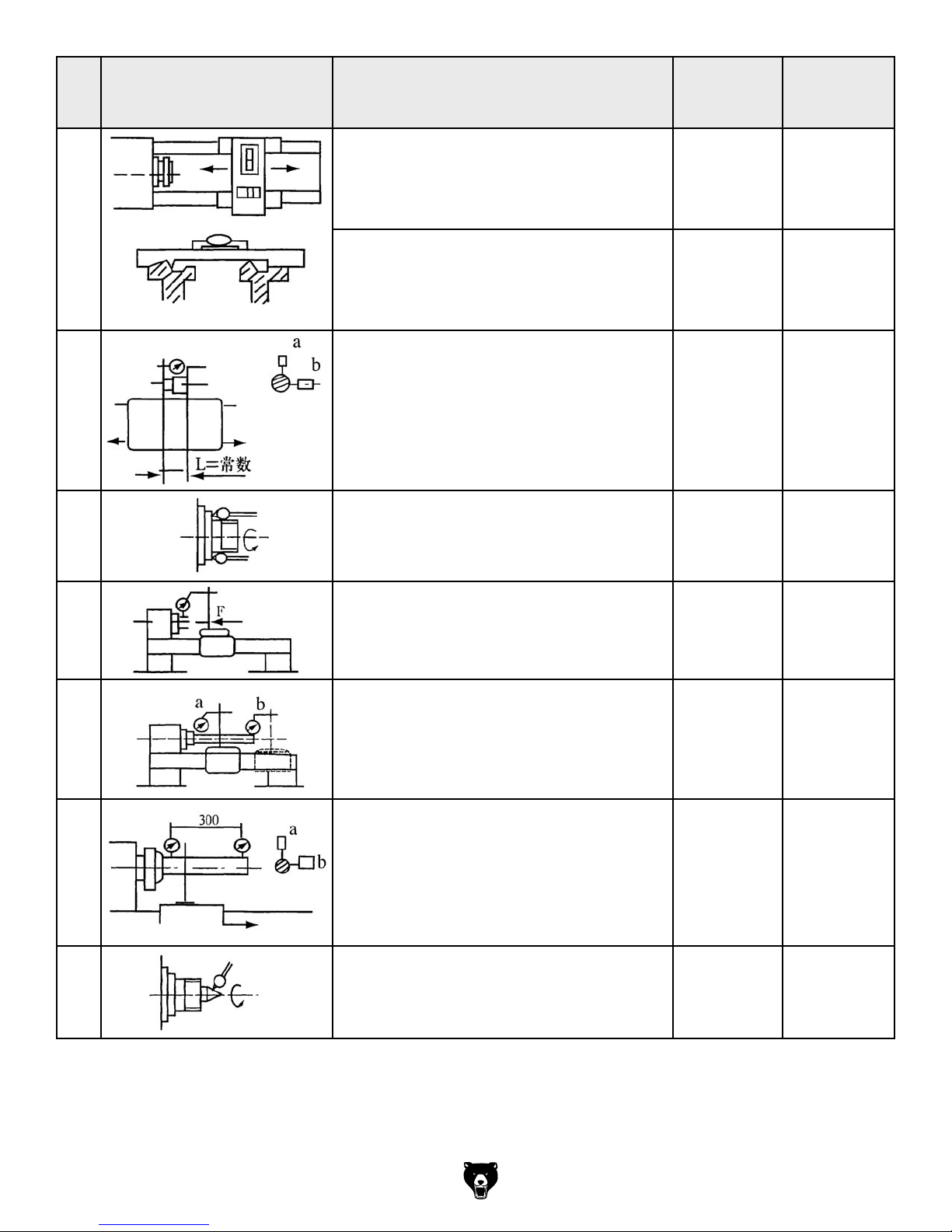

G0509G Precision Lathe Inspection Record -2-

No. Diagram of Measuring

Method Allowed Tolerances

Typical

Measured

Value (mm)

Typical

Measured

Value (inch)

G1 a. Alignment of longitudinal bed slide

ways in vertical plane: 0.04mm (0.0015")

0.018mm 0.0007"

b. Parallelism of transverse direction:

0.04mm (0.0015") in 1000mm (39.370")

0.03mm 0.0012"

G2 Parallelism of tailstock to longitudinal

motion carriage:

a. In vertical plane 0.02mm in 500 mm

b. In horizontal plane 0.02mm (0.0008") in

500mm (19.685")

0.01mm

0.0004"

G3 Cam action of spindle 0.015mm (0.0006") 0.008mm 0.0003"

G4 Spindle nose runout 0.01mm (.0004") 0.005mm 0.0002"

G5 Spindle taper runout:

a. At end of spindle nose 0 to 0.01mm

(0.0004")

b. At end of 300mm (11.811") test bar 0 to

0.02mm (0.0007")

0.005mm

0.018mm

0.0002"

0.0007"

G6 Parallelism of spindle center line to

longitudinal motion of carriage:

a. In vertical plane: 0.02mm (0.0007") in

300mm (11.811")

b. In horizontal plane: 0.015mm (0.0006")

in 300mm

0.005mm

0.013mm

0.0002"

0.0005"

G7 Spindle center runout: 0.015mm (0.0006") 0.01mm 0.0003"

G0509G Precision Lathe Inspection Record -3-

No. Diagram of Measuring

Method Allowed Tolerances

Typical

Measured

Value (mm)

Typical

Measured

Value (inch)

G8 Parallelism of center line of tailstock

spindle to longitudinal motion of carriage:

a. In vertical plane: 0.02mm (0.0007") in

100mm (3.937")

b. In horizontal plane: 0.015mm (0.0006")

in 100mm

0.007mm

0.005mm

0.00027"

0.0002"

G9 Parallelism of center line of tailstock

spindle hole to longitudinal motion of

carriage:

a. In vertical plane: 0.03mm (0.001") in

300mm (11.811")

b. In horizontal plane: 0.03mm (0.001") in

300mm (11.811")

0.015mm

0.01mm

0.0006"

0.0003"

G10 Diﬀerence in center height between

headstock and tailstock: 0.04mm (0.0015")

0.04mm 0.0015"

G11 Parallelism of spindle axis with

longitudinal movement of upper slide

0.015mm (0.0006") in 150mm (5.905")

0.01mm 0.0003"

G12 Cross slide alignment to face follow or

conave only on 160mm (6.300") diameter

0.02mm (0.0007")

0.008mm 0.0003"

G13 Lead screw parallel with ways

0 to 0.10mm horizontal (0.004"

0 to 0.10mm vertical (0.004")

0.05mm

0.07mm

0.0019"

0.0027"

G14 Lead screw alignment of half nut

0 to 0.10mm horizontal (0.004")

0 to 0.10mm vertical (0.004")

0.07mm

0.08mm

0.0027"

0.0031"

G0509G Precision Lathe Inspection Record -4-

No. Diagram of Measuring

Method Allowed Tolerances

Typical

Measured

Value (mm)

Typical

Measured

Value (inch)

G15 Lead screw cam action

0.015mm (0.0006")

0.01mm 0.0003"

P1 Accuracy of outside round cutting:

a. Roundness: 0.005mm

b. Cylindricity: 0.02mm (0.0007") in

200mm (7.874")

0.003mm

0.01mm

0.0001"

0.0003"

P2 Flatness of face for ﬁnishing cutting:

0.025mm (0.001") on the diameter of

300mm (11.811")

0.015mm 0.0005"

P3 Accuracy of pitch of leadscrew thread

0.04mm (0.0015") in 200mm (7.874")

0.02mm (0.0007") in 50mm (1.968")

0.02mm

0.01mm

.0007"

.0003"
