Grizzly G1037 Manuale utente
13'' PLANER MOULDER
MODEL G1037
PARTS LIST
COPYRIGHT © 1996 BY GRIZZLY INDUSTRIAL, INC.
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
SEPTEMBER, 1997 PRINTED IN TAIWAN
PARTS LIST DISCLAIMER
THIS PARTS LIST AND DRAWINGS REPRESENT THE CONFIGURATION OF THE MACHINE AS IT IS CURRENTLY BEING SHIPPED. THE MACHINE CON-
FIGURATION CAN CHANGE AS PRODUCT IMPROVEMENTS ARE INCORPORATED. IF YOU OWN AN EARLIER VERSION OF THE MACHINE, THIS PARTS
LIST MAY NOT DEPICT YOUR MACHINE EXACTLY. CONTACT CUSTOMER SERVICE IF YOU HAVE ANY QUESTIONS ABOUT PART DIFFERENCES.
PREVIOUS PARTS LIST VERSIONS ARE NOT AVAILABLE ONLINE.

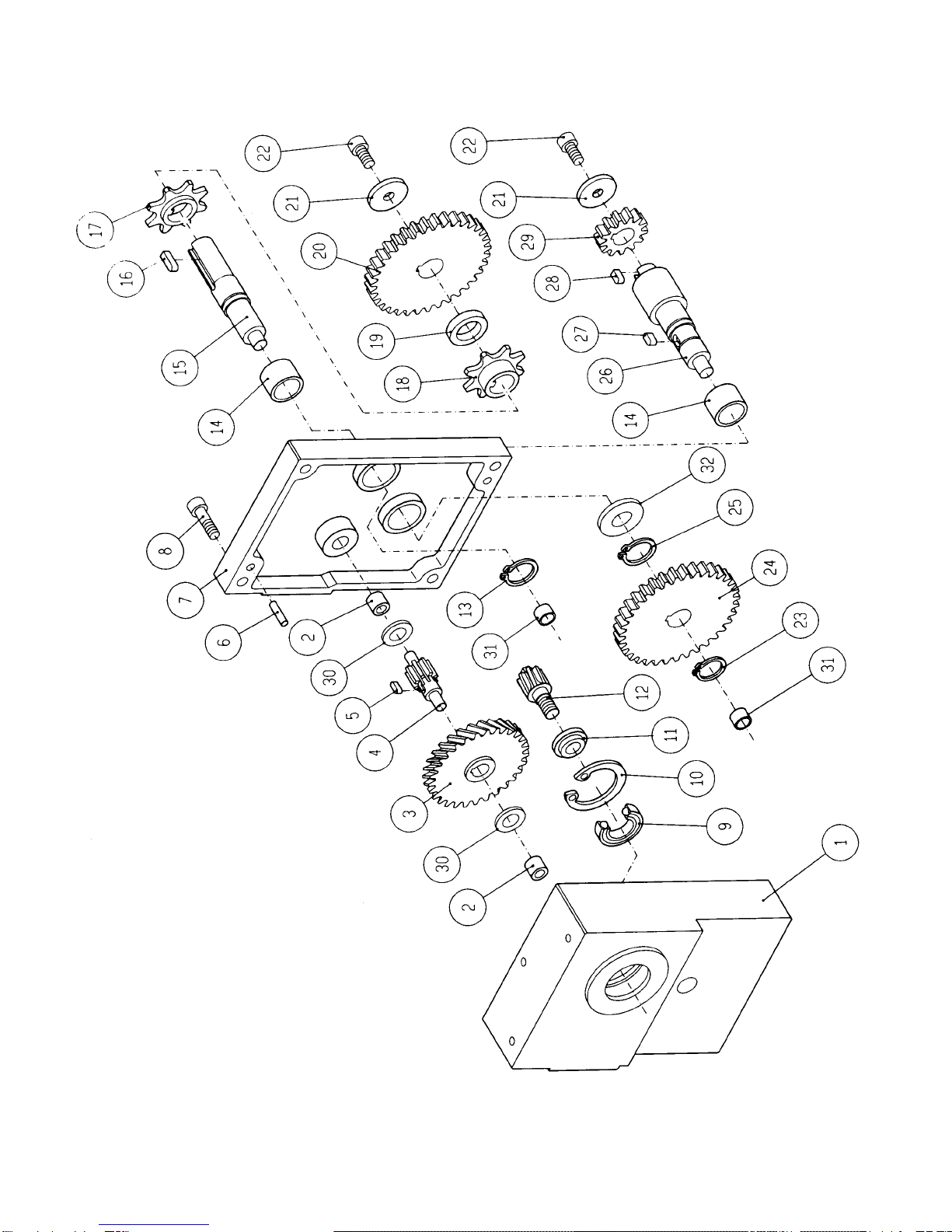

-B- G1037 Planer / Moulder
REF PART # DESCRIPTION REF PART # DESCRIPTION
G1037 Planer / Moulder -C-
01 P1037001 GEAR BOX
02 P1037002 BUSHING
03 P1037003 GEAR
04 P1037004 GEAR
05 P1037005 KEY
06 P1037006 POSITIONING PIN
07 P1037007 GEAR BOX
08 P1037008 CAP SCREW
09 P1037009 BEARING
10 P1037010 SNAP RING
11 P1037011 WASHER
12 P1037012 GEAR
13 P1037013 SNAP RING
14 P1037014 BUSHING
15 P1037015 CHAIN SPROCKET SHAFT
16 P1037016 KEY
17 P1037017 CHAIN SPROCKET
18 P1037018 CHAIN SPROCKET
19 P1037019 SPACER
20 P1037020 GEAR
20A P1037020A GEAR
21 P1037021 WASHER
22 P1037022 CAP SCREW
23 P1037023 SNAP RING
24 P1037024 GEAR
25 P1037025 SNAP RING
26 P1037026 OUTPUT SHAFT
27 P1037027 KEY
28 P1037028 KEY
29 P1037029 GEAR
29A P1037029A GEAR
30 P1037030 WASHER
31 P1037031 BRONZE BUSHING
32 P1037032 WASHER

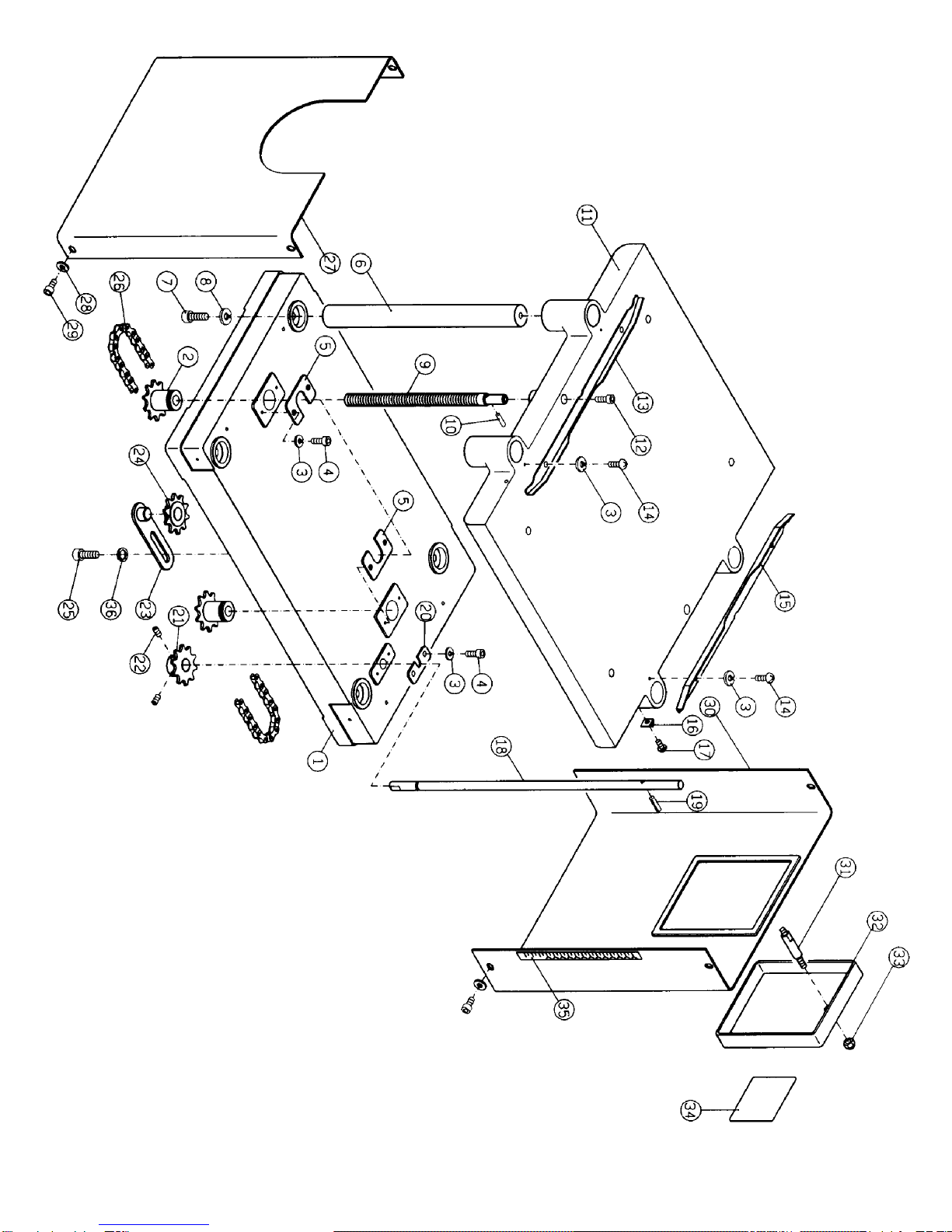

-D- G1037 Planer / Moulder
REF PART # DESCRIPTION REF PART # DESCRIPTION
G1037 Planer / Moulder -E-
01 P1037101 BASE MECHANISM
02 P1037102 BASE
03 P1037103 WASHER
04 P1037104 CAP SCREW
05 P1037105 PLATE
06 P1037106 POST
07 P1037107 CAP SCREW
08 P1037108 WASHER
09 P1037109 ELEVATION SCREW
10 P1037110 ROLL PIN
11 P1037111 MIDDLE FRAME
12 P1037112 CAP SCREW
13 P1037113 FENCE, LEFT
14 P1037114 SCREW
15 P1037115 FENCE, RIGHT
16 P1037116 POINTER
17 P1037117 SCREW
18 P1037118 TRANSMISSION SHAFT
19 P1037119 ROLL PIN
20 P1037120 PLATE
21 P1037121 SPROCKET
22 P1037122 SETSCREW
23 P1037123 IDLE GEAR BRACKET
24 P1037124 SPROCKET
25 P1037125 CAP SCREW
26 P1037126 CHAIN
27 P1037127 COVER, LEFT
28 P1037128 WASHER
29 P1037129 CAP SCREW
30 P1037130 SIDE COVER
31 P1037131 SHAFT
32 P1037132 GEAR BOX COVER
33 P1037133 SPECIAL NUT
34 P1037134 LABEL
35 P1037135 SCALE
36 P1037136 WASHER

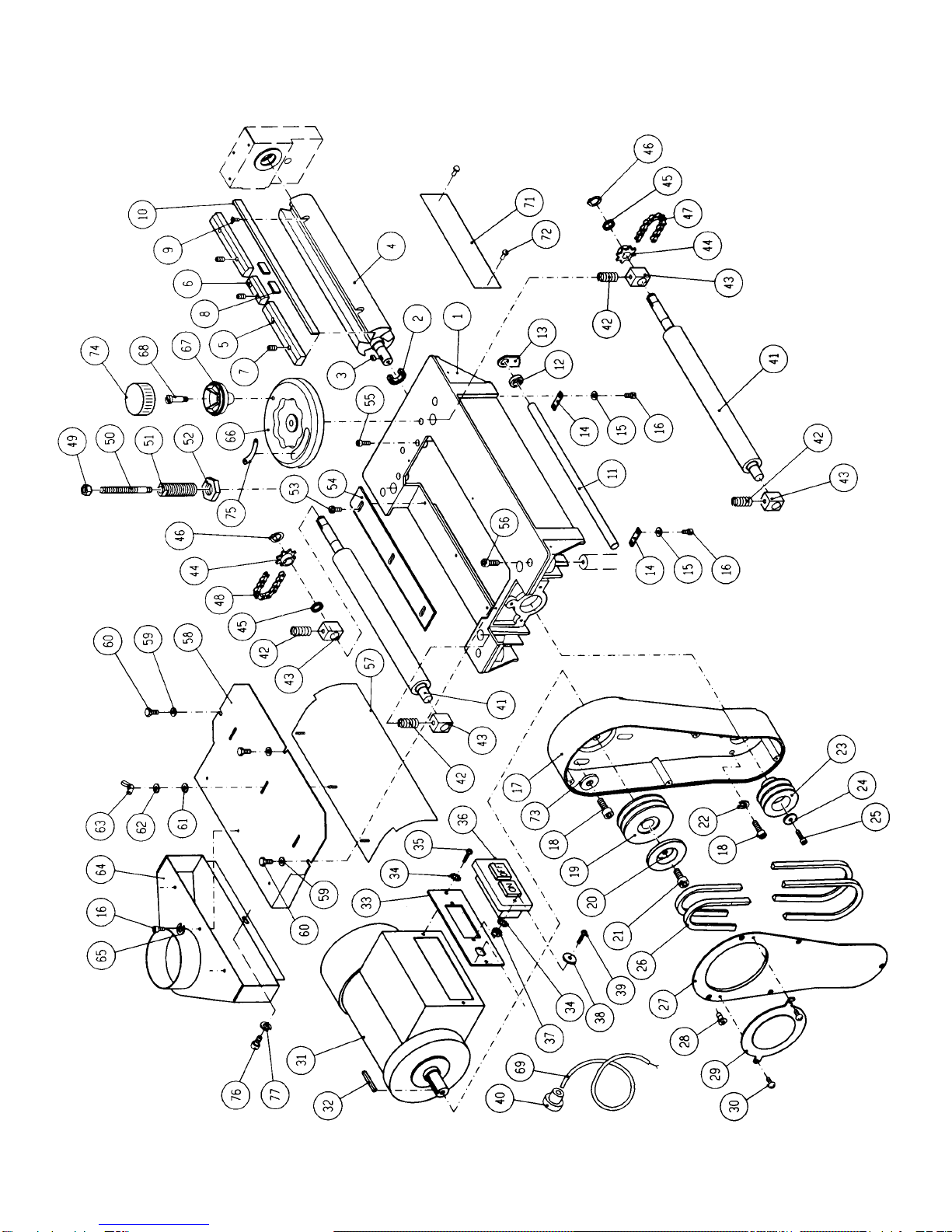

G1037 Planer / Moulder-F-
REF PART # DESCRIPTION REF PART # DESCRIPTION
G1037 Planer / Moulder -G-
01 P1037201 UPPER FRAME
02 P1037202 BEARING
03 P1037203 KEY
04 P1037204 CUTTERHEAD
05 P1037205 GIB
06 P1037206 GIB
07 P1037207 SETSCREW
08 P1037208 WASHER
09 P1037209 CAP SCREW
10 P1037210 KNIFE
11 P1037211 SHAFT
12 P1037212 SPACER
13 P1037213 ANTI-KICKBACK FINGER
14 P1037214 PLATE
15 P1037215 WASHER
16 P1037216 CAP SCREW
17 P1037217 MOTOR BRACKET
18 P1037218 CAP SCREW
19 P1037219 PULLEY
20 P1037220 TURNING PLATE
21 P1037221 CAP SCREW
22 P1037222 WASHER
23 P1037223 PULLEY
24 P1037224 WASHER
25 P1037225 CAP SCREW
26 P1037226 V-BELT
27 P1037227 BELT COVER
28 P1037228 SCREW
29 P1037229 VALVE
30 P1037230 SCREW
31 P1037231 MOTOR
32 P1037232 KEY
33 P1037233 SWITCH COVER
34 P1037234 SPECIAL WASHER
35 P1037235 SCREW
36 P1037236 SWITCH
37 P1037237 COVER
38 P1037238 WASHER
39 P1037239 SCREW
40 P1037240 CLAMP
41 P1037241 ROLLER
42 P1037242 SPRING
43 P1037243 ROLLER BRACKET
44 P1037244 CHAIN SPROCKET
45 P1037245 SPACER
46 P1037046 SNAP RING
47 P1037247 CHAIN
48 P1037248 CHAIN
49 P1037249 NUT
50 P1037250 ADJUSTMENT SHAFT
51 P1037251 ADJUSTABLE SHAFT
52 P1037250 ADJUSTMENT NUT
53 P1037251 SPECIAL SCREW
54 P1037254 CHIP GUARD PLATE
55 P1037255 CAP SCREW
56 P1037256 CAP SCREW
57 P1037257 CHIP GUARD
58 P1037258 CHIP GUARD
59 P1037259 WASHER
60 P1037260 SCREW
61 P1037261 WASHER
62 P1037262 WASHER
63 P1037263 WING NUT
64 P1037264 DUST CHUTE
65 P1037265 WASHER
66 P1037266 HANDWHEEL
67 P1037267 HAND KNOB
68 P1037268 SCREW SHAFT
69 P1037269 POWER CORD
71 P1037271 NAME PLATE
72 P1037272 RIVET
73 P1037273 WASHER
74 P1037274 HANDLE GUARD
75 P1037275 WARNING LABEL
76 P1037276 CAP SCREW
77 P1037277 WASHER
REF PART # DESCRIPTION REF PART # DESCRIPTION

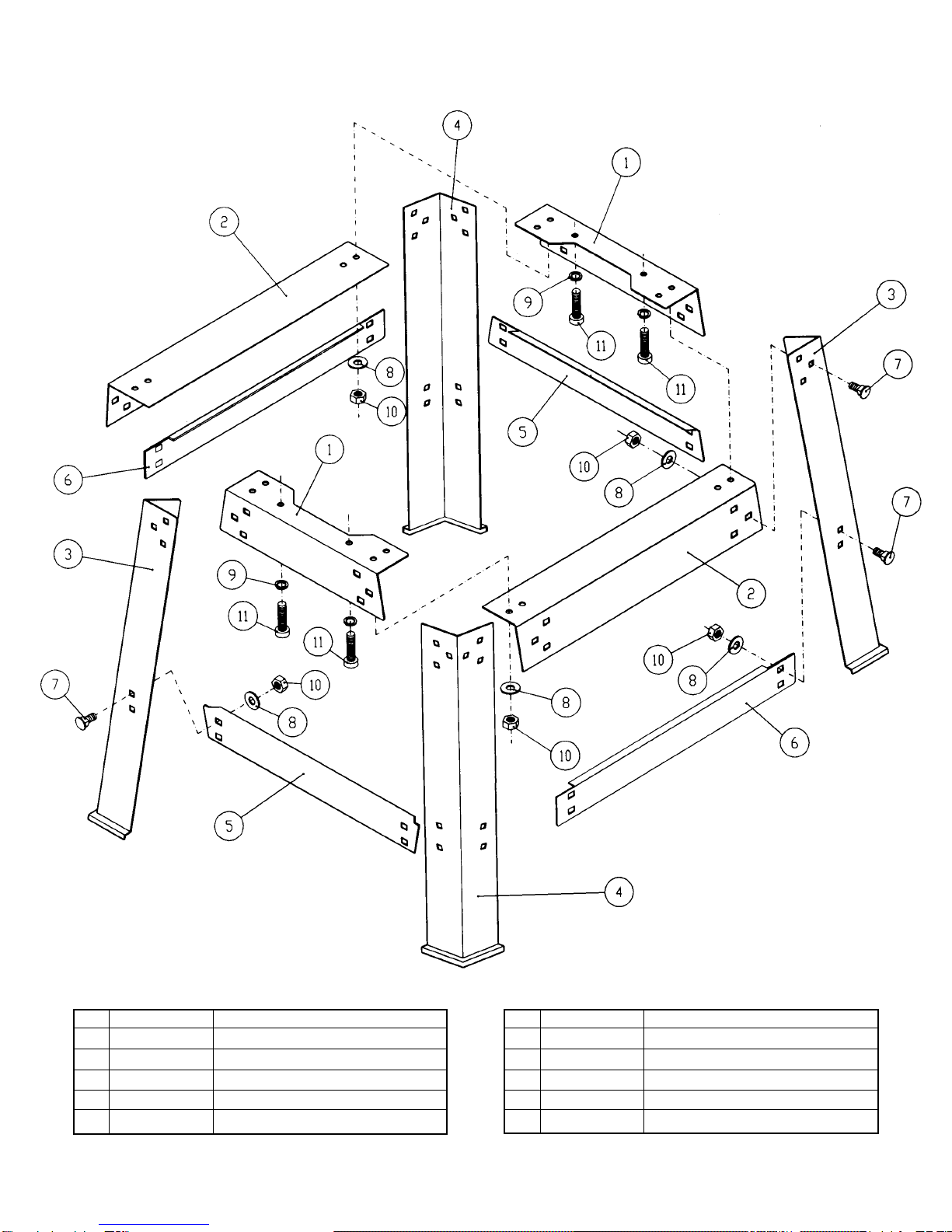

-H- G1037 Planer / Moulder
01 P1037301 UPPER PLATE, R & L
02 P1037302 UPPER PLATE, F & B
03 P1037303 LEG
04 P1037304 LEG
05 P1037305 BRACE, R & L
06 P1037306 BRACE, F & B
07 P1037307 CARRIAGE BOLT
08 P1037308 WASHER
09 P1037309 WASHER
10 P1037310 HEX NUT
11 P1037311 CAP SCREW
