Grizzly G0526 Manuale utente

G0526 6" Jointer -37-

11 12

40 25

32 29

34 31

28 26

DO NOT remove this

guard! A high speed

cutterhead is below.

Failure to comply will

result in serious per-

sonal injury.

-38- G0526 6" Jointer

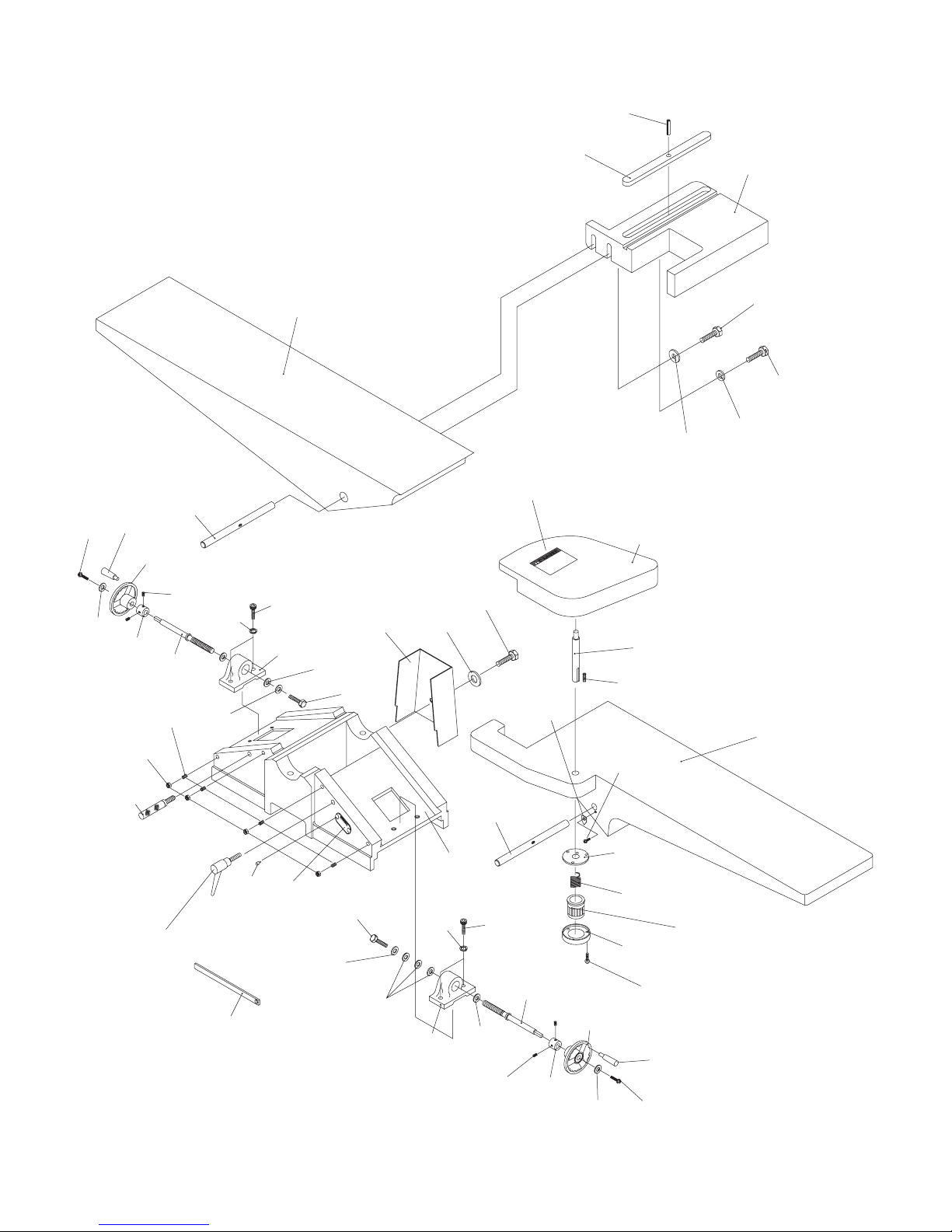

001 P0526001 BASE

002 P0526002 INFEED TABLE

003 P0526003 OUTFEED TABLE

004 P0526004 GIB

005 P0526005 TABLE LOCK HANDLE

006 PSS01 SETSCREW 5⁄16-18 X 1

007 PN02 HEX NUT 5⁄16-18

008 P0526008 TABLE ADJUST ROD

009 P0526009 HANDWHEEL

09A P0526009A HANDWHEEL HANDLE

010 PSS11 SETSCREW 1⁄4-20 X 1⁄4

011 P0526011 LOCK COLLAR

012 P0526012 TABLE ADJUST LEVER

014 P0526014 BELT GUARD

015 PW07 FLAT WASHER 5⁄16

016 P0526016 LEAD SCREW BRACKET

018 P0526018 CUTTERHEAD GUARD

019 P0526019 STUD

020 P0526020 SPRING PLATE

021 P0526021 SPRING

022 P0526022 SPRING HOUSING

023 P0526023 HOUSING MOUNT

024 PS25 PHLP HD SCR 8-32 X 5⁄8

025 PSB03 CAP SCREW 5⁄16-18 X 1

REF PART # DESCRIPTION

026 P0526026 SCALE

027 P0526027 POINTER

028 P0526028 RIVET

029 P0526029 FENCE SUPPORT

030 PB24 HEX BOLT 3⁄8-16 X 1 1⁄4

031 P0526031 SPACER

032 PK16 KEY 3⁄8X 3⁄8X 9"

033 PRP18M ROLL PIN 4 X 12

034 PW02 FLAT WASHER 3⁄8

035 PS23 PHLP HD SCR 8-32 X 1⁄4

036 PB23 HEX BOLT 5⁄16-18 X 2 1⁄2

039 P0526039 LOCK HANDLE 5⁄16 (MALE)

040 PW07 FLAT WASHER 5⁄16

041 PW03 FLAT WASHER #10

042 PS01 PHLP HD SCR 10-24 X 1⁄2

043 PW01 FLAT WASHER 1⁄2

049 PSS31M SETSCREW M5-.8 X 8

051 PB19 HEX BOLT 1⁄4-20 X 1⁄2

052 PW06 FLAT WASHER 1⁄4

053 P0526053 DUST PORT

055 PLABEL-29 CUTTERHEAD LABEL

REF PART # DESCRIPTION

G0526 6" Jointer -39-

132

131

101 102

108

106

107

102

103

104 105

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

133

124

126

126 127

128

129

130

125

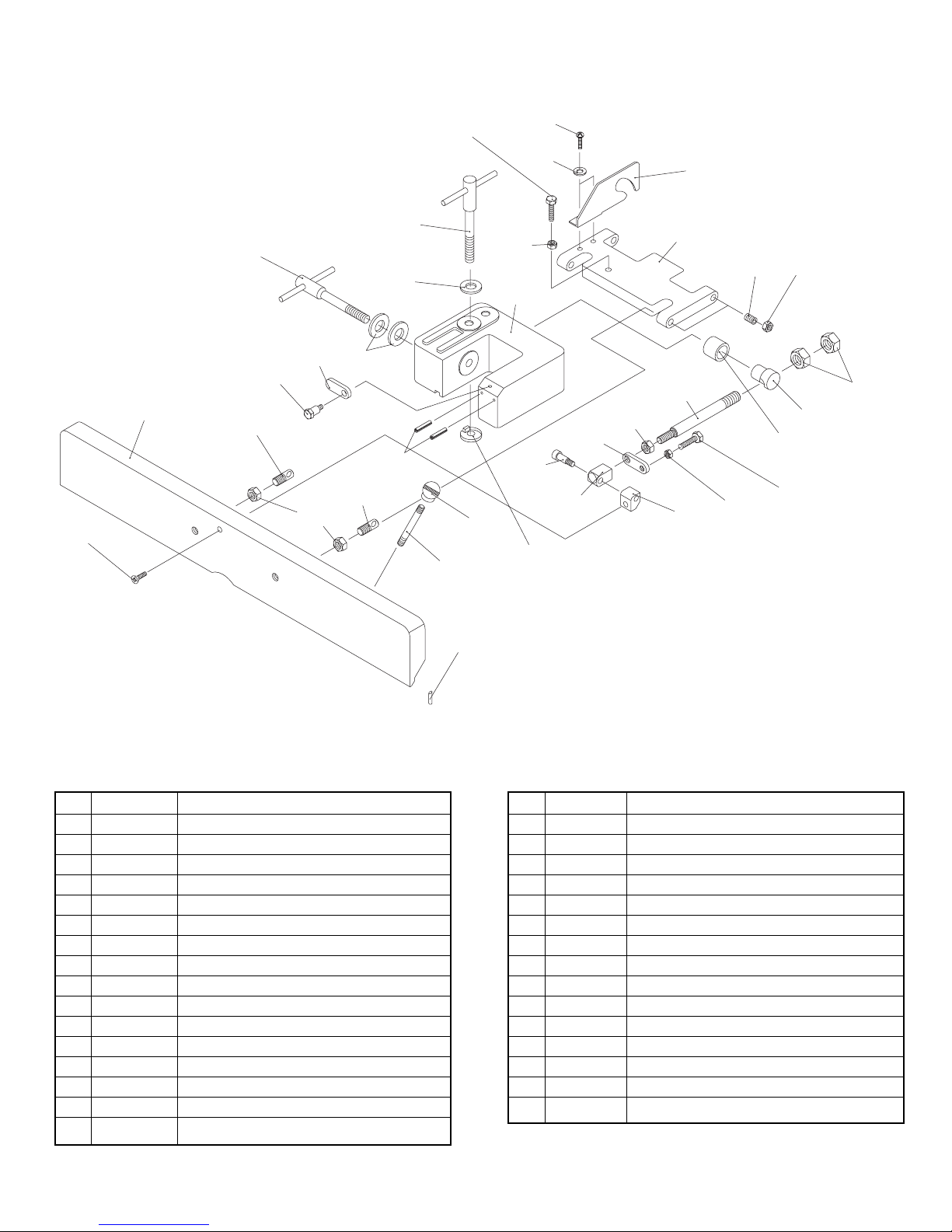

101 P0526101 FENCE

102 P0526102 PIVOT STUD

103 P0526103 FENCE HINGE

104 P0526104 STUD 3⁄8-16 X 11⁄2

105 PN08 HEX NUT 3⁄8-16

106 P0526106 TILT LEVER

107 P0526107 KNOB 3⁄8-16 (FEMALE)

108 PFH30 FLAT HD ALLEN SCR 1⁄4-20 X 13⁄4

109 P0526109 FENCE BRACKET

110 P0526110 FENCE STOP BRACKET

111 P0526111 SPECIAL HEX HD BOLT 1⁄4-20 X 1⁄2

112 PN19 HEX NUT 7⁄16-14

113 P0526113 FENCE ADJUSTMENT ROD

114 P0526114 FENCE TILT CLAMP

115 P0526115 90° STOP TAB

116 PRP18M ROLL PIN 4 X 12

117 P0526117 SPECIAL HEX HD BOLT 1⁄4-20 X 3⁄8

REF PART # DESCRIPTION

118 P0526118 STOP TAB

119 P0526119 JAM NUT 5⁄8-18

120 P0526120 FENCE TILT SLEEVE

121 P0526121 FENCE BASE

122 PW01 FLAT WASHER 1⁄2

123 P0526123 LOCK HANDLE 1⁄2-12 X 11⁄4

124 P0526124 SPECIAL NUT 1⁄2-12

125 PB03 HEX BOLT 5⁄16-18 X 1

126 PN02 HEX NUT 5⁄16-18

127 PB22 HEX BOLT 5⁄16-18 X 1 3⁄4

128 P0526128 FENCE LOCK BRACKET

129 PS04 PHLP HD SCR 1⁄4-20 X 1⁄2

130 PW06 FLAT WASHER 1⁄4

131 P0526131 POST

132 PN01 HEX NUT 1⁄2-20

133 PW01 FLAT WASHER 1⁄2

REF PART # DESCRIPTION

-40- G0526 6" Jointer

208

209

210

211

212

213

214

215

206

207

206

207

208

205

202

201

217

222

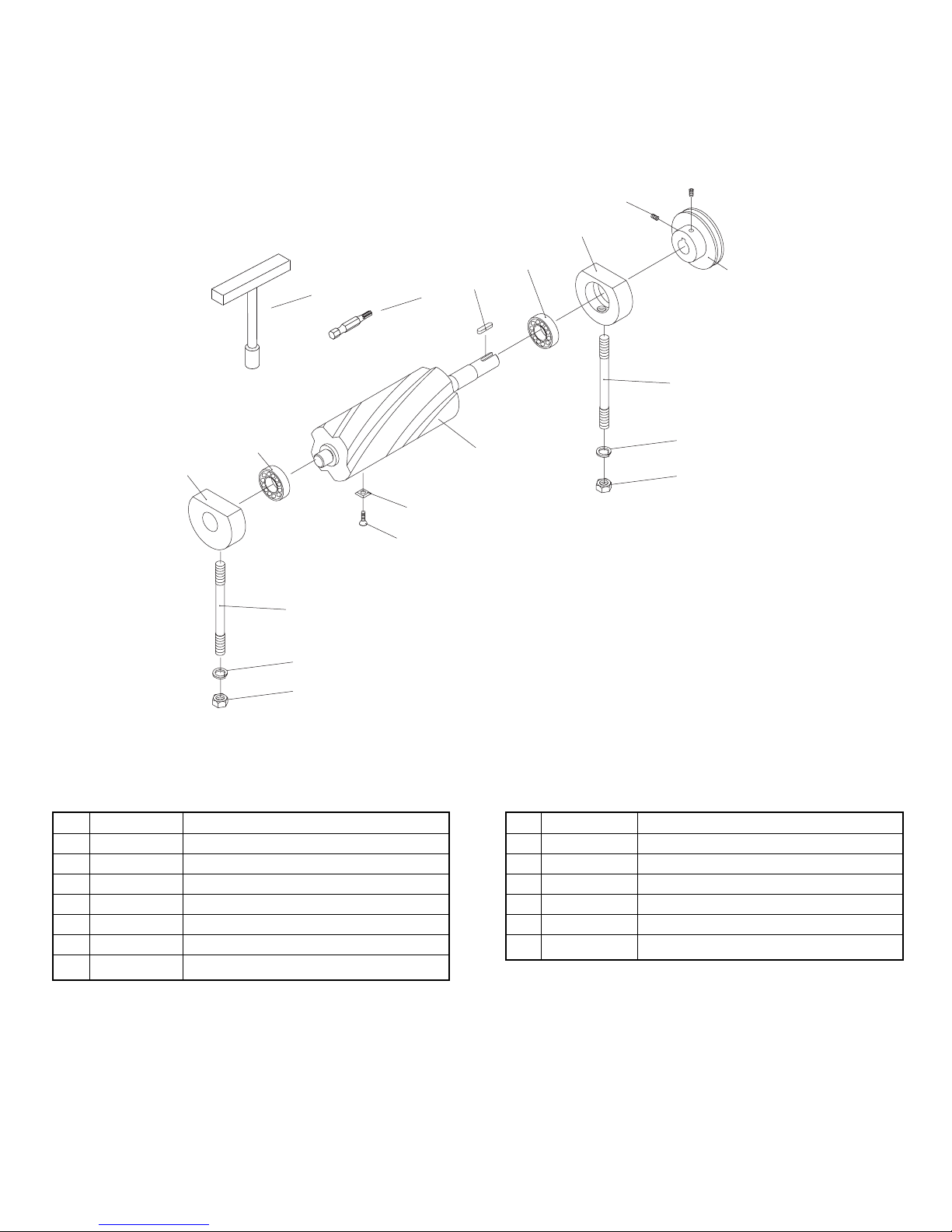

211 PK15 KEY 3⁄16 X 3⁄16 X 11⁄4

212 P6203 BALL BEARING 6203

213 P0526213 BALL BEARING BLOCK

214 P0526214 PULLEY

215 PSS03 SETSCREW 1⁄4-20 X 3⁄8

217 P0526217 TORX T-HANDLE DRIVER 6MM

222 P9740Z1722 T-20 TORX BIT

201 P0526201 SPIRAL CUTTERHEAD

202 P0526202 INDEXABLE CUTTER

205 PFH35M FLAT HD TRX T-20 M6-1.0 X 15

206 PN11 HEX NUT 3⁄8-24

207 PLW06M LOCK WASHER 10MM

208 P0526208 STUD

209 P0526209 BALL BEARING BLOCK

210 P6202 BALL BEARING 6202

REF PART # DESCRIPTION REF PART # DESCRIPTION

G0526 6" Jointer -41-

SPECIFICATIONS

TABLESIZE:6

⁄

"x60"

MOTOR:1

⁄

HP,110V/220V,SINGLE-PHASE

MOTORSPEED:3450 RPM

CUTTERHEAD:SPIRAL

CUTTERS:24 INDEXABLECARBIDEINSERTS

MAXIMUMDEPTHOFCUT:

⁄

MAXIMUMRABBETINGDEPTH:

⁄

CUTTERHEADSPEED:4800 RPM

CUTSPERMINUTE: 14,400

FENCETILT: 45˚-90˚-45˚

WEIGHT:264 LBS.

G0526

Ultimate 6" Jointer

FAILURETO FOLLOW THESEWARNINGSWILL RESULTIN SERIOUS

PERSONALINJURY:

1. READANDUNDERSTANDMANUAL BEFORESTARTINGMACHINE.

2.ALWAYSWEAR EYEPROTECTIONAND DUST MASKDURINGOPERATION.

3. PLUG POWERCORD INTO GROUNDEDOUTLET ONLY.

4. NEVER PLACE HANDSDIRECTLYOVER CUTTERHEAD.

5. KEEP ALL GUARDSINPLACE AT ALLTIMES.

6. DONOTWEARLOOSECLOTHING, GLOVES ORJEWELRY. SECURELONG

HAIR ANDBUTTONALL LONGSLEEVESHIRTS.

7.DISCONNECTPOWER PRIOR TO SERVICING, SETTING UPOR ADJUSTING.

8. BEAWAREOFTHEDANGERSOF "KICKBACK"&HOWTO PREVENTTHEM.

9. DO NOTOPERATE UNDERTHEINFLUENCEOFDRUGSOR ALCOHOL.

10.MAKESUREMACHINEISPROPERLYADJUSTED ANDSETUPCORRECTLY

BEFORESTARTING MOTOR.

11.BEFORESTARTINGMACHINEMAKECERTAINITRESTSSECURELYON

FLAT,LEVEL GROUND.

12.DONOTCUTDEEPERTHAN

⁄

"PERPASS.

13.NEVERJOINT⁄PLANEMATERIAL SMALLERTHAN 8'' INLENGTH,

⁄

''IN

WIDTHOR

⁄

"INTHICKNESS.

14.ALWAYSUSEPUSHBLOCKS.

15.NEVERMAKEADJUSTMENTS TOTHETABLEOR FENCEWHENMACHINE

ISRUNNING.

Date

SerialNumber

ManufacturedforGrizzlyinTaiwan

301

307

308 309

310

311A

312

315332

303

302

306

305

304

330 329

316

324

323

322

332 333

311B

311C

325

328

326

343

342

348

333

332 327

332

331

346

318

317

320

321

319

313

344

345

334

314

349

352

351

335

354

320-1

320-5

320-3

320-4

320-2

-42- G0526 6" Jointer

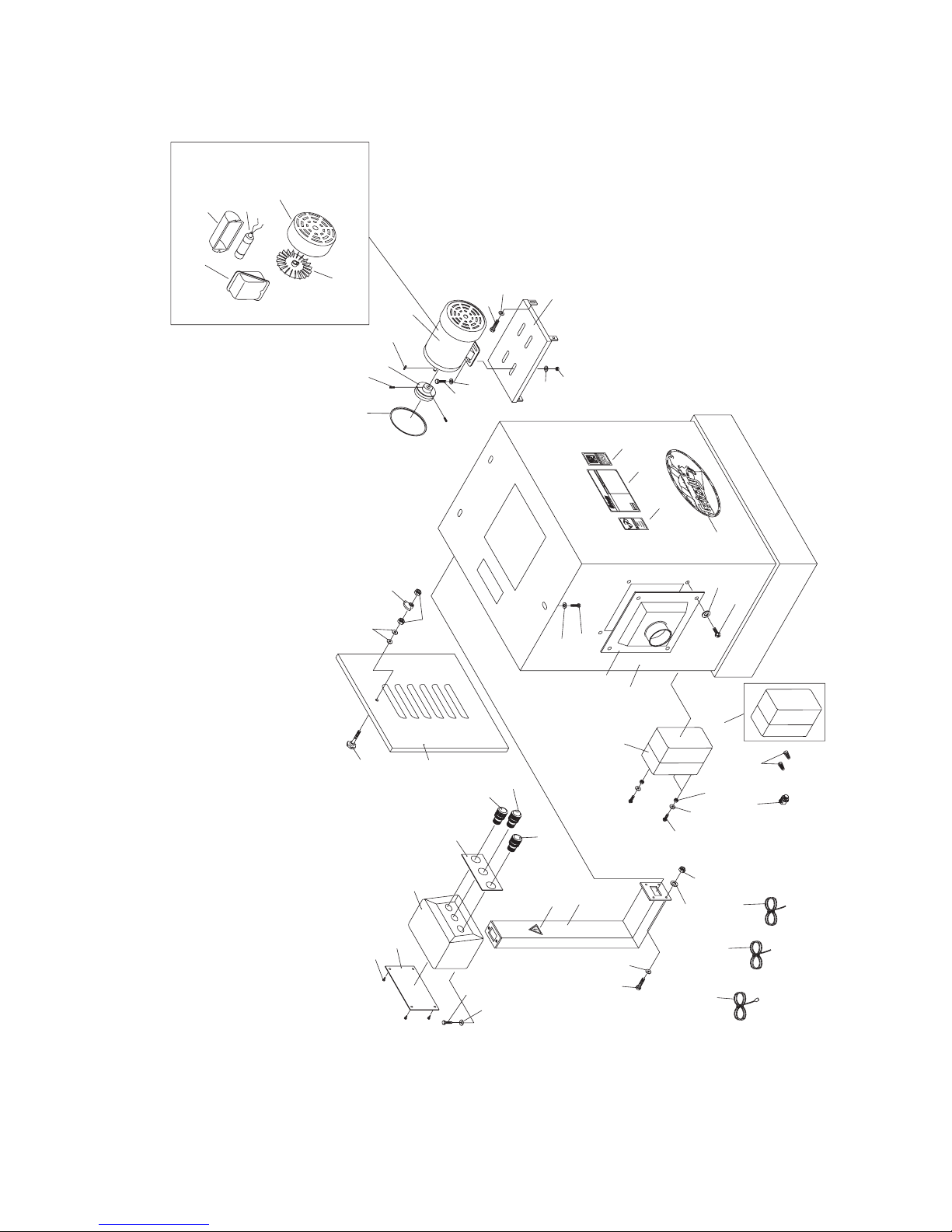

301 P0526301 CABINET STAND

302 P0526302 CABINET DOOR

303 P0526303 KNOB 3⁄8-16

304 P0526304 LATCH

305 PN08 HEX NUT 3⁄8-16

306 PW02 FLAT WASHER 3⁄8

307 PHTEK27 TAP SCREW #8 X 1⁄2

308 P0526308 BACK SWITCH PLATE

309 P0526309 SWITCH BOX

310 P0526310 PEDESTAL

311A P0526311A “OFF” SWITCH ASSEMBLY

311B P0526311B LIGHT INDICATOR

311C P0526311C “ON” SWITCH ASSEMBLY

312 PB02 HEX BOLT 1⁄4-20 X 5⁄8

313 PW06 FLAT WASHER 1⁄4

314 P0526314 PEDESTAL MOUNT

315 PB03 HEX BOLT 5⁄16-18 X 1

316 P0526316 MA-15 MAG SWITCH (110V)

317 P0526317 MOTOR PULLEY

318 PSS03 SETSCREW 1⁄4-20 X 3⁄8

319 PVA54 V-BELT A-54 4L540

320 P0526320 MOTOR 11⁄2 HP

320-1 P0526320-1 FAN COVER

320-2 P0526320-2 FAN

320-3 P0526320-3 WIRING COVER

320-4 PC300B START CAP. 300MF 125V

320-5 P0526320-5 CAPACITOR COVER

321 PK04 KEY 3⁄16 X 3⁄16 X 13⁄4"

REF PART # DESCRIPTION

322 PS01 PHLP HD SCR 10-24 X 1⁄2

323 PW03 FLAT WASHER #10

324 PN07 HEX NUT 10-24

325 P0526325 STRAIN RELIEF

327 P0526327 MOTOR BRACKET

328 P0526110S POWER CORD 110V, SHORT

329 P0526110L PWR CRD 110V, LONG

330 P0526330 CONTROL CORD

331 PB07 HEX BOLT 5⁄16-18 X 3⁄4

332 PW07 FLAT WASHER 5⁄16

333 PN02 HEX NUT 5⁄16-18

334 P0526334 ID/WARNING LABEL

335 G8588 GRIZZLY LOGO PLATE

338 PWR810 8 X 10 WRENCH

339 PWR1214 12 X 14 WRENCH

340 PAW03M ALLEN WRENCH 3MM

341 P0526341 PUSH PADDLE

342 PLW04 LOCK WASHER 3⁄8

343 PB21 HEX BOLT 3⁄8-16 X 3⁄4

344 PW06 FLAT WASHER 1⁄4

345 PS04 PHLP HD SCR 1⁄4-20 X 1⁄2

346 PB65 HEX BOLT 3⁄8-16 X 5⁄8

348 PW02 FLAT WASHER 3⁄8

349 P0526349 MA-9 MAG SWITCH (220V)

351 PLABEL-11 SAFETY GLASSES LABEL

352 PLABEL-12 READ MANUAL LABEL

354 PLABEL-14 ELECTRICITY LABEL

REF PART # DESCRIPTION
