Grizzly G1128 Manuale utente
POWER FEEDER
MODEL G1128 AND MODEL G1129
PARTS LIST
COPYRIGHT © 1995 BY GRIZZLY IMPORTS, INC.
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY IMPORTS, INC.
REPRINTED MARCH, 1997. PRINTED IN TAIWAN
DISCONTINUED MACHINE PARTS LIST DISCLAIMER
THESE PARTS REPRESENT THE LAST CONFIGURATION OF THE MACHINE BEFORE IT WAS DISCONTINUED. MACHINE CONFIGURATIONS MAY HAVE
CHANGED AS PRODUCT IMPROVEMENTS WERE INCORPORATED. IF YOU OWN AN EARLIER VERSION OF THE MACHINE, THIS PARTS LIST MAY NOT
EXACTLY DEPICT YOUR MACHINE. CONTACT CUSTOMER SERVICE IF YOU HAVE ANY QUESTIONS ABOUT PART DIFFERENCES. PREVIOUS PARTS
LIST VERSIONS ARE NOT AVAILABLE ONLINE.
54
61
66
57
65
67
68
69
70
27
71
72 56
73-2
71 27 70 69 68 67 57 6665
55
59 59
71
72
27
60
60
55
59
50B
52
923 11
9
22
22
21
10-1 53-1 51-1
1819 20
76
54
48 19 20
53B
12 916
55
70 69 68 67
57
56
66 65 7
8
81 27
82
53A 51 52
14 15 17
50-1 52
5450A
49
75
73 73-3
75 74
74
75 74
73
73-2
72
56
5
78
77
73
73-2
10

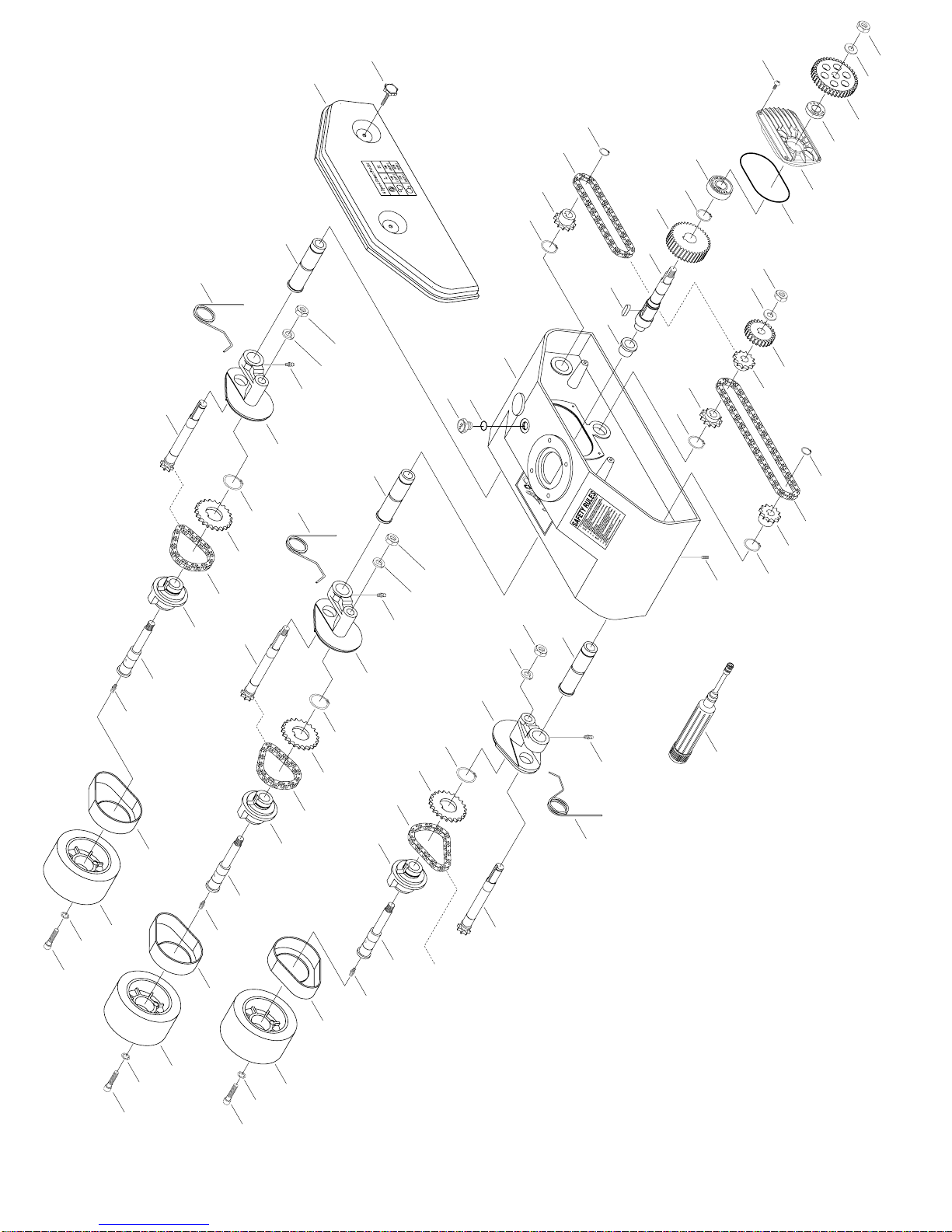

-B- G1128/G1129 Power Feeders
REF# PART# DESCRIPTION REF# PART# DESCRIPTION
G1128/G1129 Power Feeders -C-
05 P1128005 FRAME
07 P1128007 OIL CAP
08 P1128008 O-RING
09 P1128009 BUSHING
10 P1128010 WORM GEAR SHAFT
10-1 P1128010-1 SHAFT
11 P1128011 WORM GEAR 30T
12 PR10M SNAP RING 22mm
14 P1128014 O-RING
15 P1128015 COVER
16 PFH05M FLAT HD SCR M5-0.8 x 12
17 P1128017 OIL SEAL 17 - 32 - 7
18 P1128018 GEAR 30T
19 PW04M FLAT WASHER 10mm
20 PN02M HEX NUT M10 - 1.5
21 P1128021 COVER
22 P1128022 KNOB
23 PK46M KEY 6 x 6 x 8mm
27 P1128027 BUSHING
48 P1128048 GEAR 20T
49 P1128049 CHAIN 11 LINKS
50A P1128050A SPROCKET 12T
50B P1128050B SPROCKET 12T
50-1 P1128050-1 SPROCKET 10T
51 P1128051 CHAIN 18 LINKS
51-1 P1128051-1 CHAIN 16 LINKS
52 PR05M SNAP RING 15mm
53A P1128053A SPROCKET 12T
53B P1128053B SPROCKET 12T
53-1 P1128053-1 SPROCKET 20T
54 PR17M SNAP RING 26mm
55 P1128055 TUBE/BUSHING
56 P1128056 GREASE FITTING
57 P1128057 ROLLER STAND
59 P1128059 SPRING
60 P1128060 SPROCKET/SHAFT
61 P1128061 SPROCKET/SHAFT
65 PN03M HEX NUT M8 - 1.25
66 PLN04M LOCK WASHER 8mm
67 PR09M SNAP RING 20mm
68 P1128068 CHAIN 9 LINKS
69 P1128069 SPROCKET 13T
70 P1128070 ROLLER SUPPORT
71 P1128071 SHAFT
72 P1128072 COVER
73 P1128073 FEED ROLLER
73-2 P1128073-2 FEED ROLLER MOUNT
73-3 PSB01M CAP SCREW M6 - 1.0 x 16
74 P1128074 STAR WASHER 8mm
75 PSB14M CAP SCREW M8 - 1.25 x 20
76 P1128076 SPACER
77 P1128077 GEAR 26T
78 P1128078 GEAR 24T
81 PR01M SNAP RING 10mm
82 P1148082 SPACER
G1128 Gear Box
-D- G1128/G1129 Power Feeders
1
3
2
7
5
64
77
4
53
6
8
2
1
10
11
920-5
38-1
26-1
20-4
20-3
20-2
21
22
25
24
9
10
11
8
19
19
20-5
20-4
20-3
20-1
20-2
22
21 22
23
28
20 29
16
20-5
20-4
20-3
20-1
27
29
29
30
30
38
21
12
20-5
20-4
20-3
38-1
27
26-1
40
39
REF# PART# DESCRIPTION REF# PART# DESCRIPTION
G1128/G1129 Power Feeders -E-
01 P1128101 HANDLE ASSEMBLY
02 P1128102 HAND WHEEL
03 PRP31M ROLL PIN 6 x 36
04 P1128104 BUSHING
05 P6202 BEARING 6202 - 2RS
06 P1128106 SPACER
07 PSS02M SET SCREW M6 - 1.0 x 6
08 P1128108 ELEVATING SCREW
09 P1128109 ELEVATING NUT
10 P1128110 KEY
11 PSB26M CAP SCREW M6 - 1.0 x 12
12 PSB02M CAP SCREW M6 - 1.0 x 20
16 P1128116 ELEVATING BRACKET
19 P1128119 COLUMN
20 P1128120 LOCK HANDLE ASSEMBLY
20-1 P1128120-1 HANDLE
20-2 P1128120-2 HANDLE BODY
20-3 P1128120-3 BALL 6mm
20-4 P1128120-4 SPRING
20-5 PSS17M SETSCREW M8 - 1.25 x 6
21 PW06M FLAT WASHER 12mm
22 P1128122 STUD
23 P1128123 BASE
24 PB33M HEX BOLT M12 - 1.75 x 50
25 PLW05M LOCK WASHER 12mm
26-1 P1128126-1 HANDLE BODY
27 PRP07M ROLL PIN 6 x 20
28 P1128128 HORIZONTAL BRACKET
29 P1128129 LOCK STUD
30 P1128130 SWIVEL CASTING
38 P1128138 HANDLE ASSEMBLY
38-1 P1128138-1 HANDLE
39 PSB31M CAP SCREW M8 - 1.25 x 25
40 PN03M HEX NUT M8 - 1.25
G1128 Base Type I
-F- G1128/G1129 Power Feeders
REF# PART# DESCRIPTION REF# PART# DESCRIPTION
G1128/G1129 Power Feeders -G-
010 P1128101 HANDLE ASSEMBLY
020 P1128102 HAND WHEEL
021 P1128021-1 HAND WHEEL
030 PRP31M ROLL PIN 6 x 36
040 P1128104 BUSHING
050 P1128050 BUSHING
060 P1128060-1 COLUMN CAP
070 PSS04M SETSCREW M6-1.0 X 12
080 P1128080 ELEVATING SCREW
100 P1128110 ELEVATING KEY
120 PSB04M CAP SCREW M6-1.0 X 10
130 PSB50M CAP SCREW M5-0.8 X 10
140 P1128140-1 HORIZONTAL COLUMN
150 P1128150 RACK
160 P1128160 ELEVATING BRACKET
170 P1128170 PINION
180 P1128180 SPECIAL SETSCREW
190 P1128190 VERTICAL COLUMN
200 P1128120 HANDLE ASSEMBLY
201 P1128120-1 HANDLE
202 P1128120-2 HANDLE BODY
203 P1128120-3 BALL
204 P1128120-4 SPRING
205 PSS17M SETSCREW M8 - 1.25 X 6
210 PW06M FLAT WASHER 12MM
220 P1128122 STUD
221 P1128221-1 STUD
230 G1130 BASE
240 PB33M HEX BOLT M12 - 1.75 X 50
250 PLW05M LOCK WASHER 12MM
261 P1128126-1 HANDLE BODY
270 PRP07M ROLL PIN 6 X 20
280 P1128128 HORIZONTAL BRACKET
290 P1128129 LOCK STUD
300 P1128130 SWIVEL CASTING
380 P1128138 HANDLE ASSEMBLY
381 P1128138-1 HANDLE
382 PN01M HEX NUT M6-1.0

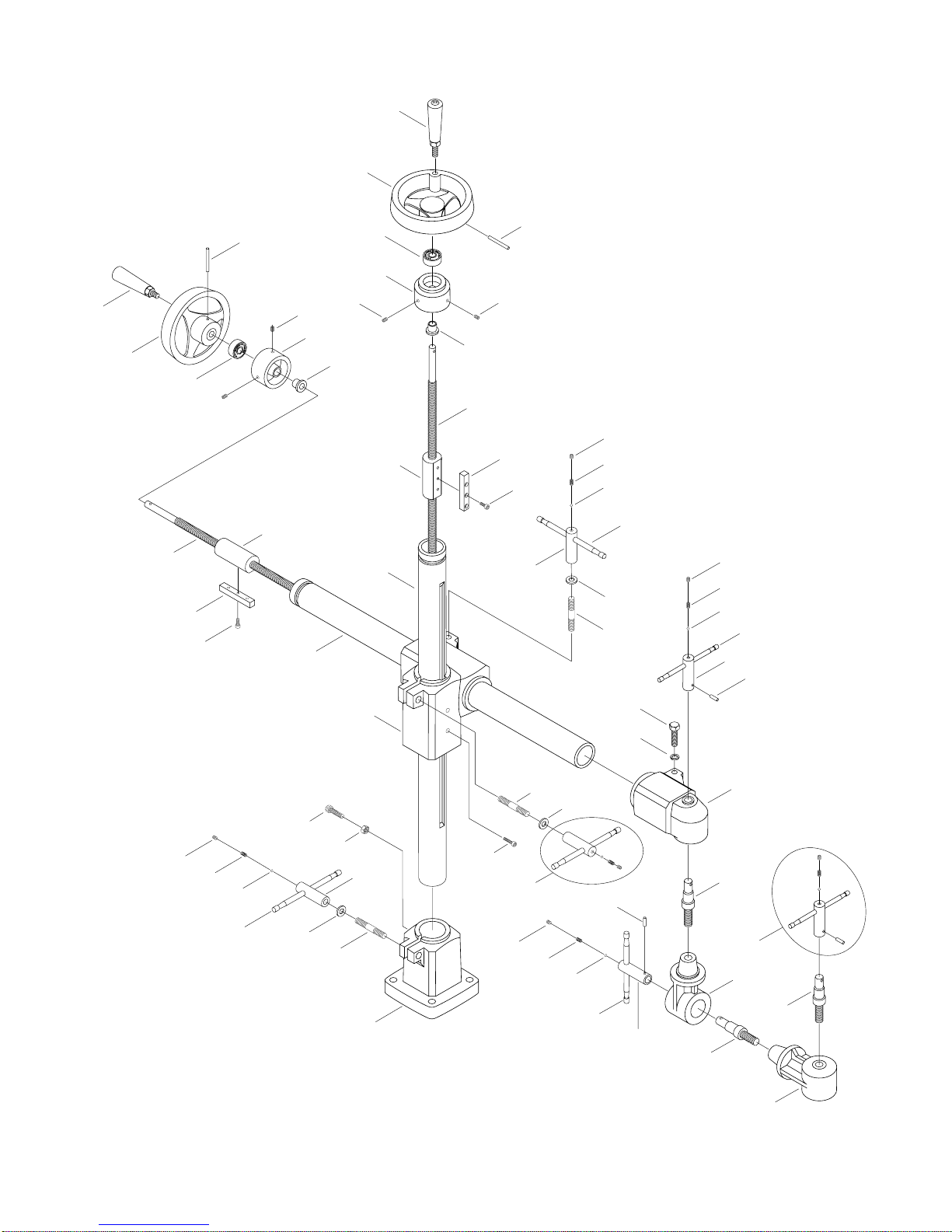

G1128 Base Type II
-H- G1128/G1129 Power Feeders
17
21
16
20
18
15
19
3
7
1
11
22
23
2
REF# PART# DESCRIPTION
G1128/G1129 Power Feeders -I-
01 P1128201 FAN COVER
02 PS18 PHLP HD SCRW 10 - 24 x 1⁄4"
03 P1128203 FAN
07 P1128207 MOTOR
11 P1128211 SEAL
15 P1128215 FORWARD/REVERSE SWITCH
16 P1128216 OUTER COVER
17 P1128217 SCREW
18 PS21M PHLP HD SCRW M4 - 0.7 x 15
19 P1128219 INNER COVER
20 P1128220 POWER CORD
21 PC200 CAPACITOR
22 P1128222 O-RING
23 PB08M HEX BOLT M6 - 1.0 x 20
G1128 Motor
73
74
75
72 56
70
67
69
68
68
70
71
56
72
73
75 74
75 74
73
72
56 71
60
59 56
45
71
69 67
60
59
55
59
55
56
57-1
6620
57-1 56
61
70 68 69 67
57-2 66 20
7
8
11
10
23
54
22
21
53B 49 52
9
13
12
47
50A
54
20
15
14
50B48
52
51
53A
54
6
16
1718 1920
5
55
6620

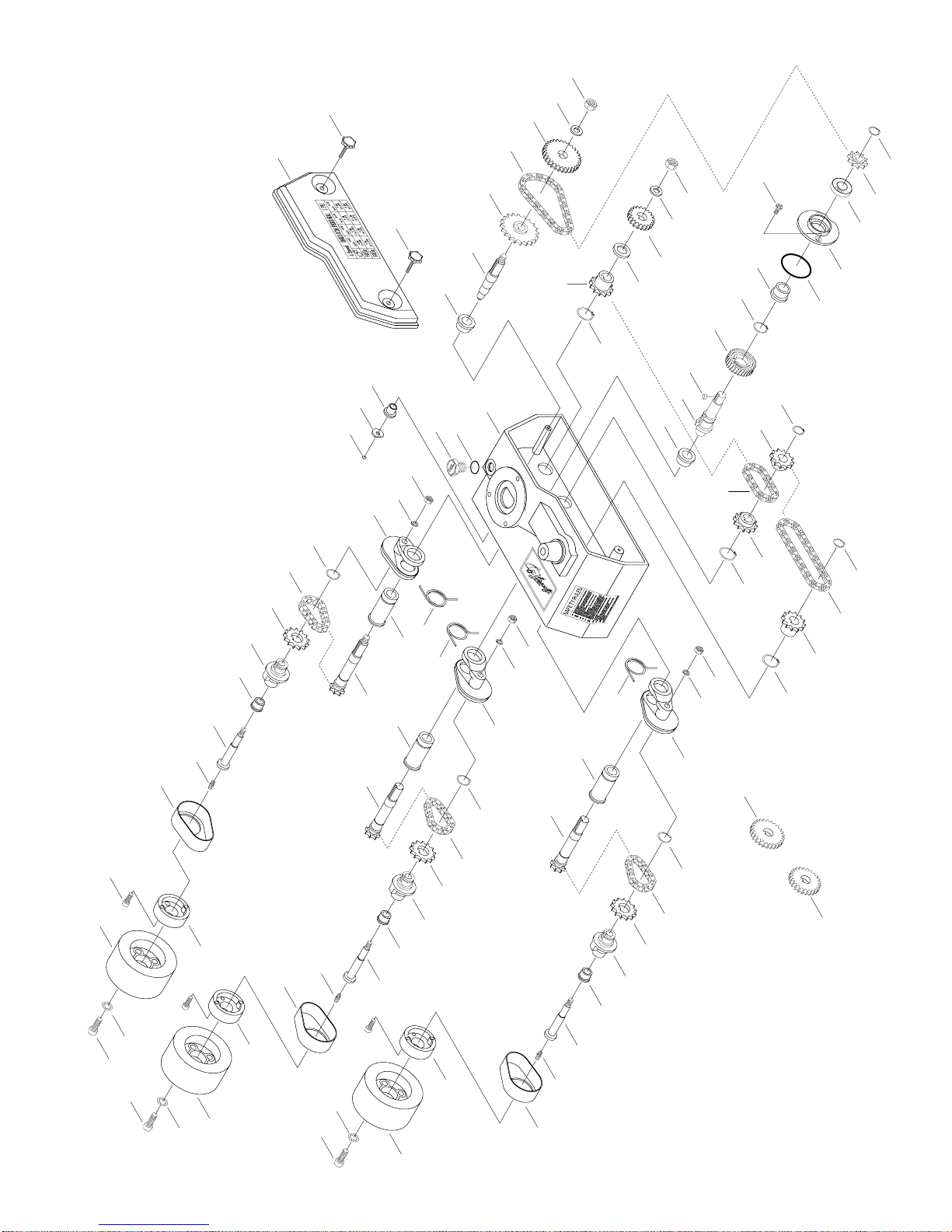

-J- G1128/G1129 Power Feeders
