Grizzly G1778 Manuale utente

IMPORTS, INC.

POWER FEEDER

MODEL G1778

PARTS LIST

GRIZZLY IMPORTS, INC.

WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE OR FORM

WITHOUT THE WRITTEN CONSENT OF GRIZZLY IMPORTS, INC.

REVISED OCTOBER, 1994

DISCONTINUED MACHINE PARTS LIST DISCLAIMER

THESE PARTS REPRESENT THE LAST CONFIGURATION OF THE MACHINE BEFORE IT WAS DISCONTINUED. MACHINE CONFIGURATIONS

MAY HAVE CHANGED AS PRODUCT IMPROVEMENTS WERE INCORPORATED. IF YOU OWN AN EARLIER VERSION OF THE MACHINE, THIS

PARTS LIST MAY NOT EXACTLY DEPICT YOUR MACHINE. CONTACT CUSTOMER SERVICE IF YOU HAVE ANY QUESTIONS ABOUT PART DIF-

FERENCES. PREVIOUS PARTS LIST VERSIONS ARE NOT AVAILABLE ONLINE.

- 2 -

XV. PARTS LISTS AND DIAGRAMS

A. GEARBOX DIAGRAM

- 3 -

B. PARTS LIST – GEARBOX DIAGRAM

Ref. # Part # Description Ref. # Part # Description

001

002

003

004

005

006

007

008

009

110

011

012

013

014

015

016

017

018

019

020

021

022

023

024

PSB15M Cap Screw M5-0.8x20

PLW01M Lock Washer 5mm

P1778003 Wheel

P1778004 Screw M4-0.7x25mm

P1778005 Cover

P1778006 Chain

P1778007 Grease Fitting

P1778008 Shaft

P1778009 Bushing

P1778010 Sprocket

P1778011 Roller Stand

PLW04M Lock Washer 8mm

PN03M Nut M8-1.25mm

P1778014 Oil Plug 5/8"-18

P1778015 Case

P1778016 Bushing

P1778017 Worm Gear

PK06M Key 5x5x10mm

P1778019 Bushing

P1778020 O-Ring

P1778021 Cover

PSB33M Cap Screw M5-0.8x12

P1778023 Seal 17x32x8mm

P1778024 Gear 26T

P1778024A Gear 18T

P1778024B Gear 20T

P1778024C Gear 30T

P1778024D Gear 32T

P1778025 Knob

P1778026 Cover

P1778027 Retaining Ring 5mm

P1778028 Retaining Ring 15mm

P1778029 Chain

P1778030 Sprocket

PR17M Retaining Ring

P1778032 Sprocket

P1778033 Collar

P1778034 Gear 24T

P1778035 Chain

P1778036 Spring

P1778037 Bushing

P1778038 Bush Tube

PK12M Key 5x5x30mm

P1778040 Shaft

P1778041 Oil Plug Gasket

P1778042 Shaft

PSS04M Setscrew M6-1.0x12mm

PN03M Nut M10-1.5mm

PW06 Washer 1/4"

PB10M Screw M6-1.0x25mm

024

025

026

027

028

029

030

031

032

033

034

035

036

037

038

039

040

041

042

043

044

045

046

- 4 -

Ref. # Part # Description Ref. #Part # Description

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

P1778101 Base

PN03M Nut M8-1.25mm

P1778103 Column

P1778104 Leadscrew

P1778105 Bracket

P1778106 Bolt

PB20M Bolt M8-1.25x35mm

PW01M Flat Washer 8mm

P1778109 Lock Handle

P1778110 Column Cap

P1778111 Handwheel

P1778112 Handle

PSS04M Setscrew M6-1.0x12mm

PSS14M Setscrew M8-1.25x12mm

PB24M Bolt M12-1.75x45mm

PW01 Flat Washer 1/2"

PN05M Nut M16-1.5mm

P1778118 Lock Handle

P1778119 Angular Joint

P1778120 Angular Joint

PW01M Flat Washer 8mm

D. PARTS LIST – COLUMN DIAGRAM

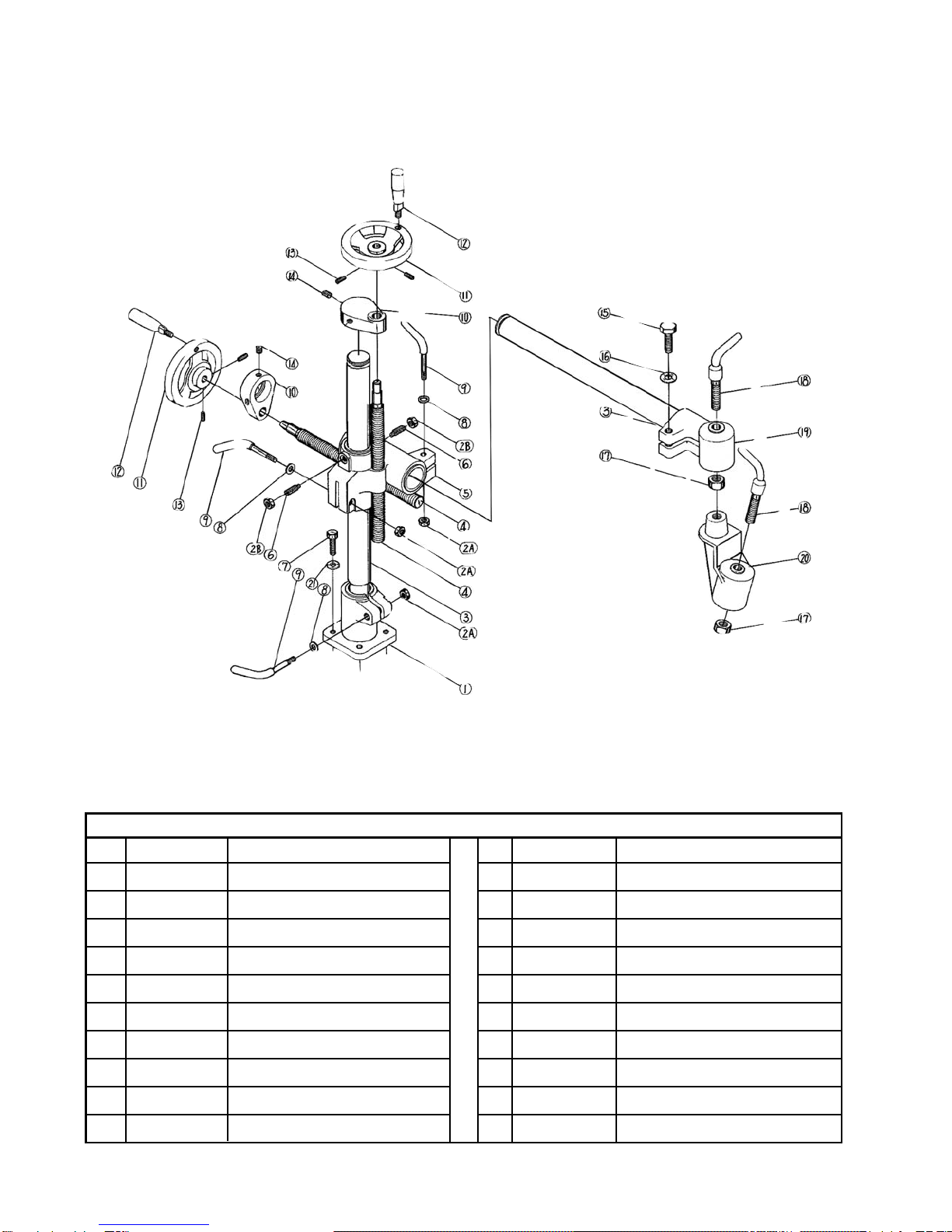

C. COLUMN DIAGRAMC. COLUMN DIAGRAM

- 5 -

Ref. # Part # Description Ref. #Part # Description

201

202

203

204

205

206

207

208

209

210

211

212

213

P1778201 Motor

P1778202 Switch Half

P1778203 Switch

P1778204 O-Ring

P1778205 Screw M3.5-0.6x13mm

P1778206 Wire Clamp

P1778207 Strain Relief

P1778208 Screw M4.5-0.75x13mm

P1778109 Cord

P1778110 Capacitor

P1778111 Switch Cover

P1778212 Handle

P1778213 Grease Gun

F. PARTS LIST – MOTOR DIAGRAM

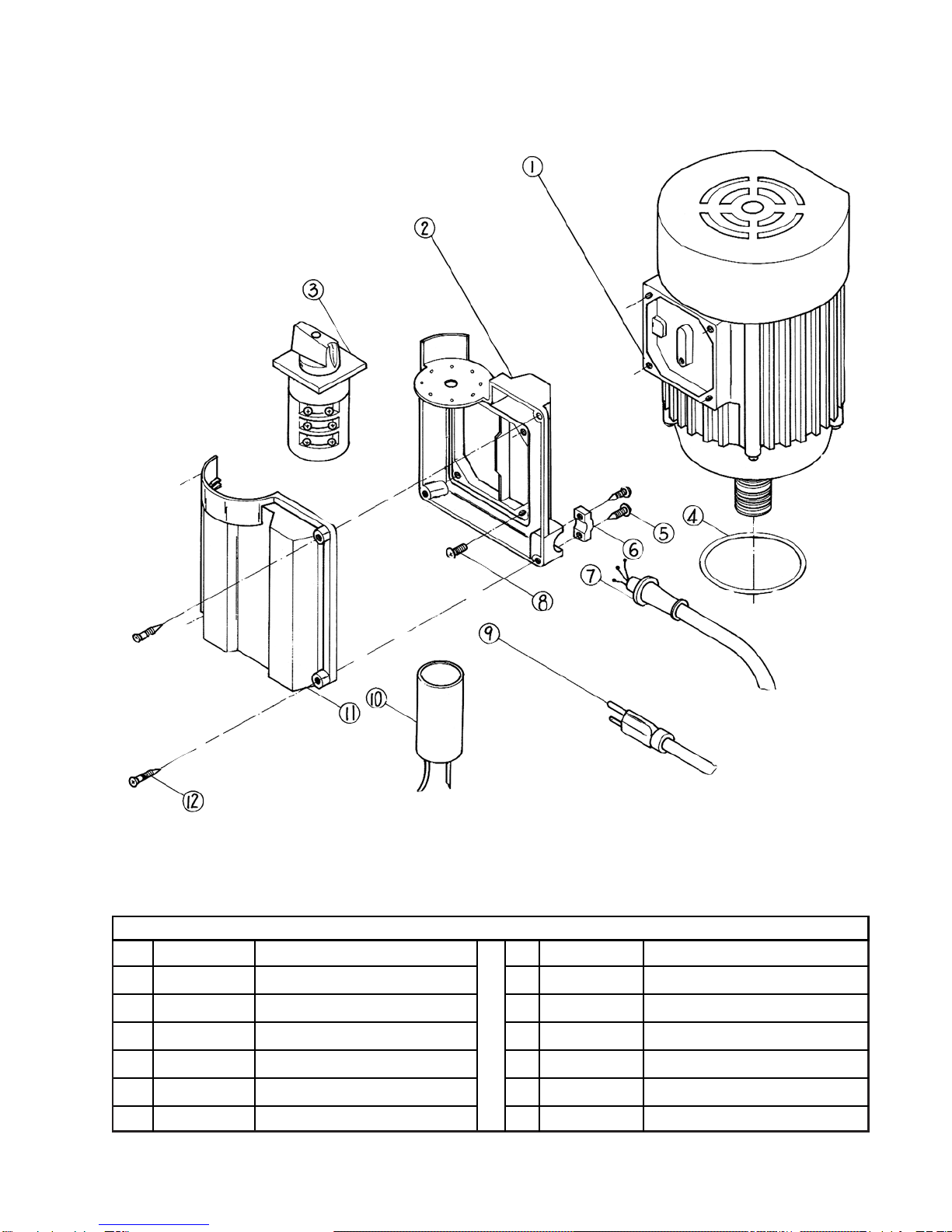

E. MOTOR DIAGRAM
