Introduction

Push type pneumatic nibbler makes quick work

of sheet steel up to 1⁄16" thick and soft metal up to

5⁄64" thick. Features 3500 strokes per minute at an

average air consumption of 6 CFM.

Inventory

A. Pneumatic Nibbler ...................................... 1

MODEL G8124

PNEUMATIC NIBBLER

INSTRUCTION SHEET

Figure 1. Model G8124.

If you need help with your new pneumatic tool,

call our Tech Support at: (570) 546-9663.

COPYRIGHT © APRIL, 2006 BY GRIZZLY INDUSTRIAL, INC.

WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

#PC8128 PRINTED IN TAIWAN

INJURY HAZARD!

Always disconnect tool from

air to prevent unexpected

operation during service!

EXPLOSION HAZARD!

Never exceed 90 PSI!

EYE/EAR INJURY HAZARD!

Wear safety glasses and

hearing protection during

use of this tool!

Operation

Connect a 1⁄4" MNPT air fitting to the pneumatic

nibbler and then to your regulated air source.

This pneumatic nibbler MUST have 3-4 drops of

oil directly dropped into the air fitting before each

use.

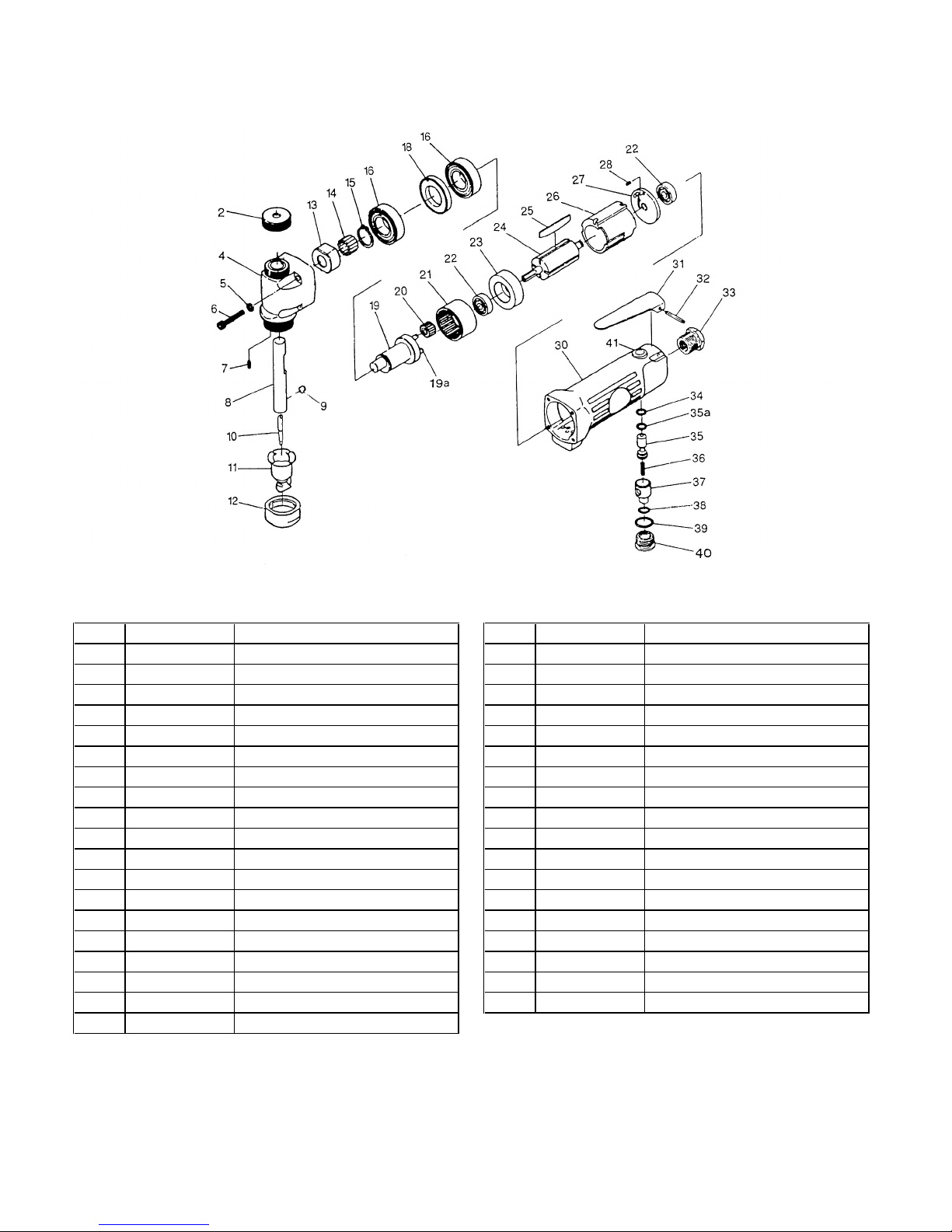

G8124 Parts Breakdown and List

REF PART # DESCRIPTION REF PART # DESCRIPTION

2 P8124002 HEAD GAP 23 P8124023 FRONT END PLATE

4 P8124004 HEAD 24 P8124024 ROTOR

5 PW05M FLAT WASHER 4MM 25 P8124025 ROTOR BLADE

6 PSB153M CAP SCREW M4-.7 X 25 26 P8124026 CYLINDER

7 P8124007 PIN M2.5 X 5.8 27 P8124027 REAR END PLATE

8 P8124008 SLIDE PIN 28 P8124028 PIN M2.5 X 6

9 PSS07M SET SCREW M5-.8 X 5 30 P8124030 MOTOR HOUSING

10 P8124010 PUNCH BLADE 31 P8124031 THROTTLE LEVER

11 P8124011 DIES N/S 32 P8124032 LEVER PIN (M3 X 23)

12 P8124012 LOCK NUT 33 P8124033 INLET BUSHING

13 P8124013 CAM 34 P8124034 O-RING 3.6 X 2.4

14 P8124014 NEEDLE ROLLER 3 X 9.8 35 P8124035 VALVE STEM

15 PR18M EXT RETAINING RING 17MM 35A P8124035A O-RING P5

16 P6003ZZ BALL BEARING 6003ZZ 36 P8124036 VALVE SPRING

18 P8124018 SPACER 37 P8124037 AIR REGULATOR

19 P8124019 CRANK SHAFT 38 P8124038 O-RING P7

19A P8124019A PIN M4 X 14.8 39 P8124039 O-RING P12

20 P8124020 IDLER GEAR 40 P8124040 THROTTLE VALVE PLUG

21 P8124021 INTERNAL GEAR 41 P8124041 VALVE BUSHING

22 P626ZZ BALL BEARING 626ZZ
